1st M.2 highest PCI Express generation Expansion slots - 3.0
1st M.2 largest key size Expansion slots - 2280
12V power connector Internal I/O - Yes
ACPI version BIOS - 5.0
Antenna included Packaging content - Yes
ATX Power connector (24-pin) Internal I/O - Yes
Audio output channels Features - 7.1 channels
Batteries included Packaging content - Yes
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
Battery technology Battery - Lithium-Manganese Dioxide (LiMnO2)
Battery type Battery - CR2032
Battery weight Battery - 3 g
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 4.2
Brand - GIGABYTE
BrandPartCode - A520M DS3H AC
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
category_en - Computers & Components > Computer components > Motherboards > AMD motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
Chipset manufacturer - AMD
Chipset type - AMD A520
Clear CMOS jumper BIOS - Yes
code - A520M DS3H AC
Code - A520M DS3H AC
COM connector / port - Yes
Compatible processor series Processor - AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - Socket AM4
Depth Weight & dimensions - 244 mm
Description - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edgeSupports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series ProcessorsDual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETsUltra-Fast NVMe PCIe 3.0 x4 M.2 ConnectorOnboard Intel Dual Band 802.11ac Wireless & BT 4.2 with WIFI AntennaGIGABYTE Exclusive 8118 Gaming LAN with Bandwidth ManagementHDMI, DVI-D, Display Ports for Multiple DisplayRGB FUSION 2.0 Supports Addressable LED & RGB LED StripsSmart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Description - Płyta główna AMD A520 z rozwiązaniem Pure Digital VRM, wysokiej jakości dźwiękiem, kartą sieciową GIGABYTE Gaming LAN z zarządzaniem przepustowością, PCIe 3.0 x4 M.2, dwuzakresową kartą Wi-Fi Intel 802.11ac, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus
description_en - Gigabyte A520M DS3H AC is a reliable Micro ATX motherboard for AMD Ryzen processors with an AM4 socket. It features the AMD A520 chipset and built-in Wi-Fi AC for stable wireless connectivity. With support for DDR4 memory, M.2 SSDs, and modern interfaces, it’s ideal for compact yet powerful PC builds.
Key specifications: Socket: AM4 Chipset: AMD A520 Form factor: Micro ATX Supported CPUs: AMD Ryzen 3000 / 4000G / 5000 Series Memory: DDR4 up to 128 GB (OC up to 5100 MHz) Wi-Fi: 802.11ac Dual Band LAN: Gigabit Ethernet Storage: 1× M.2 PCIe 3.0 x4, 4× SATA 6 Gb/s Expansion slots: 1× PCIe 3.0 x16, 2× PCIe x1 Audio: Realtek 7.1 HD Audio
description_lv - Gigabyte A520M DS3H AC ir uzticama Micro ATX mātesplate, paredzēta AMD Ryzen procesoriem ar AM4 ligzdu. Tā izmanto AMD A520 čipkopu un ir aprīkota ar iebūvētu Wi-Fi AC moduli, nodrošinot ātru un stabilu bezvadu savienojumu. Atbalsts DDR4 atmiņai, M.2 SSD un moderniem interfeisiem padara šo mātesplati lieliski piemērotu kompaktām, bet jaudīgām sistēmām.
Specifikācija: Ligzda: AM4 Čipkopa: AMD A520 Formāts: Micro ATX Atbalstītie procesori: AMD Ryzen 3000 / 4000G / 5000 sērija Atmiņa: DDR4 līdz 128 GB (OC līdz 5100 MHz) Wi-Fi: 802.11ac Dual Band LAN: Gigabit Ethernet Uzglabāšana: 1× M.2 PCIe 3.0 x4, 4× SATA 6 Gb/s Paplašinājuma sloti: 1× PCIe 3.0 x16, 2× PCIe x1 Skaņa: Realtek 7.1 HD Audio
description_ru - Gigabyte A520M DS3H AC надёжная и функциональная материнская плата Micro ATX для процессоров AMD Ryzen с разъёмом AM4. Основана на чипсете AMD A520 и оснащена встроенным Wi-Fi AC, обеспечивая стабильное беспроводное соединение. Поддержка DDR4 памяти, M.2 SSD и современных интерфейсов делает её отличным выбором для компактных и производительных ПК.
Характеристики: Сокет: AM4 Чипсет: AMD A520 Форм-фактор: Micro ATX Поддержка процессоров: AMD Ryzen 3000 / 4000G / 5000 Series Память: DDR4 до 128 GB (OC до 5100 MHz) Wi-Fi: 802.11ac Dual Band LAN: Gigabit Ethernet Хранение: 1× M.2 PCIe 3.0 x4, 4× SATA 6 Gb/s Расширение: 1× PCIe 3.0 x16, 2× PCIe x1 Аудио: Realtek 7.1 HD
Designation - CE+WEEE
Desktop Management Interface (DMI) version BIOS - 2.7
Detailed data on disk/drive interfaces - Złącza rozszerzeń CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) Złącza SATA CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 24.4 cm x 24.4 cm
dimension weight - 950 g
dimension width - 280 mm
Discrete graphics support Graphics - Yes
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
DVI-D ports quantity Rear panel I/O ports - 1
EAN - 4719331810696
ean - 4719331810696
EAN_code - 4719331810696
ECC сompatibility Memory - ECC & Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe x 16
Expansion slots - 2 x PCIe x 1
Expansion slots - 1st M.2 highest PCI Express generation - 3.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1

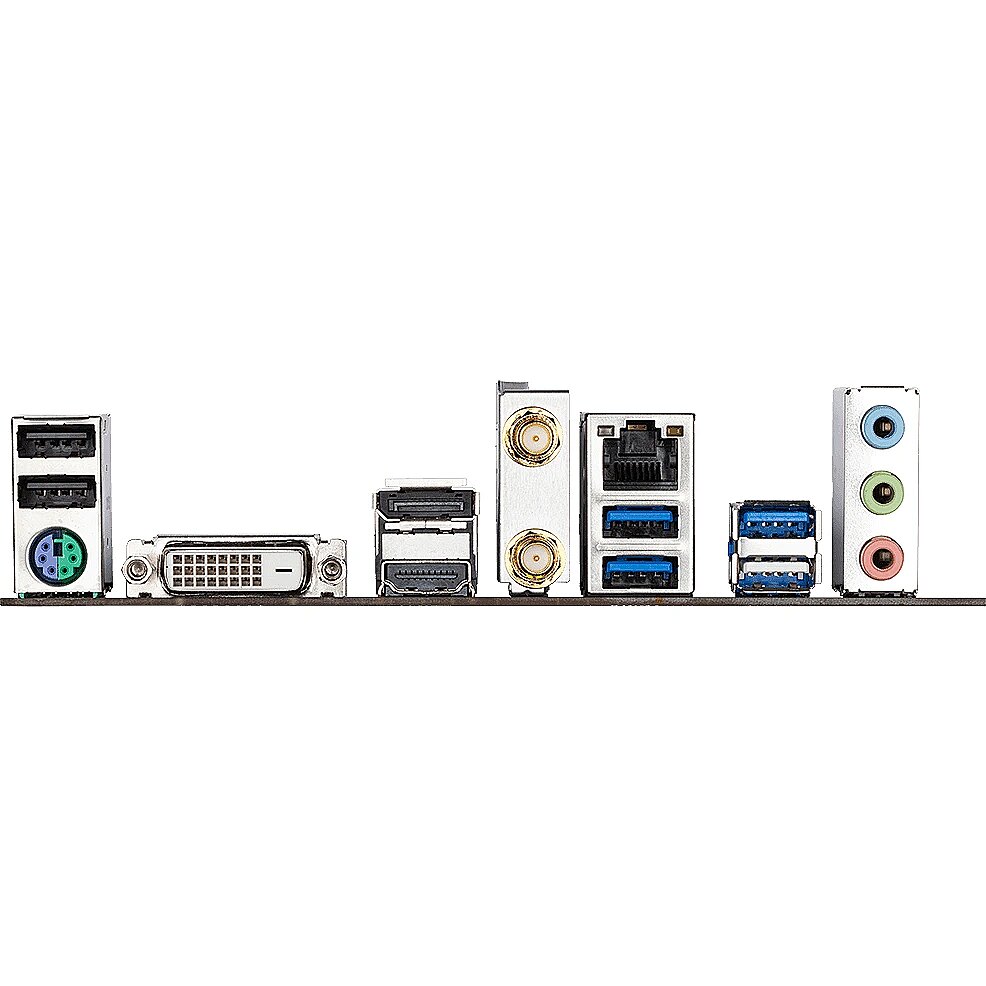

External connectors - 1 x DisplayPort
External connectors - 1 x DVI-D
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.2 Gen 1 Type-A
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD A520
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan, Temperature, Voltage
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - Zintegrowany procesor graficzny: 1 x port DVI-D, obsługujący maksymalną rozdzielczość 1920x1200@60 Hz
* Port DVI-D nie obsługuje połączenia D-Sub przez adapter. 1 x DisplayPort, obsługujący maksymalną rozdzielczość 5120x2880@60 Hz
* Obsługa DisplayPort w wersji 1.4, HDCP 2.3 i HDR. 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz
* Obsługa HDMI w wersji 2.1, HDCP 2.3 i HDR. Obsługa do 3 wyświetlaczy jednocześnie Maksymalna pamięć współdzielona: 16 GB
Graphics - Discrete graphics support - Yes
Graphics - HDCP - Yes
Graphics - Maximum resolution - 5120 x 2880 pixels
Graphics - Number of displays supported - 3
Graphics - Parallel processing technology support - Not supported
gross_weight - 1.1 kg
GTIN - 0889523023891
GTIN - 889523023891
GTIN - 4719331810696
guarantee - 36
guarantee_type - normal
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Headphone outputs Rear panel I/O ports - 1
Height Weight & dimensions - 35 mm
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of RGB LED pin headers - 2
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Line-in Rear panel I/O ports - Yes
Link - https://www.gigabyte.com/Motherboard/A520M-DS3H-AC-rev-1x
Lithium weight per battery Battery - 0.07 g
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - A520M DS3H AC Motherboard - AMD Ryzen 5000 Series CPUs, 5+3 Phases VRM, up to 4733MHz DDR5 (OC), 1xPCIe 3.0 M.2, GbE LAN, WIFI 5, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE A520M DS3H AC Motherboard - AMD Ryzen 5000 Series CPUs, 5+3 Phases VRM, up to 4733MHz DDR5 (OC), 1xPCIe 3.0 M.2, GbE LAN, WIFI 5, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - A520M DS3H AC
Max. number of SATA devices - 4
Maximum internal memory Memory - 128 GB
Maximum internal memory per slot Memory - 32 GB
Maximum number of SMP processors Processor - 1
Maximum resolution Graphics - 5120 x 2880 pixels
Max memory size - 128 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Maximum internal memory per slot - 32 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 4733 MHz
Memory - Supported memory clock speeds - 2133,2400,2667,2933,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4400,4733 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR4
Memory bus frequency - 133 MHz
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3300 MHz
Memory bus frequency - 3333 MHz
Memory bus frequency - 3400 MHz
Memory bus frequency - 3466 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 3733 MHz
Memory bus frequency - 3800 MHz
Memory bus frequency - 3866 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4600 MHz
Memory bus frequency - 4733 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR4
Microphone in Rear panel I/O ports - Yes
Model -
Model - A520M DS3H AC
Model - A520M DS3H AC 1.4
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD A520
Motherboard form factor Features - micro ATX
MPN - A520M-DS3H AC
Name - Gigabyte A520M DS3H AC (A520.AM4.mATX.DDR4)
Name - Gigabyte A520M DS3H AC (rev. 1.x) | Processor family AMD | Processor socket AM4 | DDR4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Name - GigaByte A520M DS3H AC - Socket AM4
name - GIGABYTE A520M DS3H AC Mainboard, Sockel AM4, AMD A520, Micro-ATX, DDR4
name - Motherboard A520M DS3H AC AM4 4DDR /HDMI/DVI/DP M.2 mATX
Network - Bluetooth - Yes
Network - Bluetooth version - 4.2
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Network - WLAN controller model - Intel Dual Band Wireless-AC 3168
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Bluetooth
Network interface - LAN Realtek GbE LAN chip (1 Gbps/100 Mbps) Wireless Communication module Intel Dual Band Wireless-AC 3168 (For PCB rev. 1.0, 1.2, 1.3) WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard Intel Wireless-AC 9260 (For PCB rev. 1.1) WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ac 160MHz wireless standard AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) (For PCB rev. 1.4) WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ac wireless standard
Network interface - Wi-Fi 802.11a/b/g/n/ac
Number of battery cells Battery - 1
Number of chassis fan connectors Internal I/O - 2
Number of CPU fan connectors Internal I/O - 1
Number of DDR4 slots - 4
Number of displays supported Graphics - 3
Number of EPS power connectors (8-pin) Internal I/O - 1
Number of HDDs supported Storage controllers - 4
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 4
Number of RGB LED pin headers Internal I/O - 2
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Addressable LED
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 720 g
Package depth Packaging data - 268 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 244.00 mm
Package features > Gross height (mm) - 40.00 mm
Package features > Gross width (mm) - 244.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 363 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 68 mm
Package weight Packaging data - 1.21 kg
Package width Packaging data - 270 mm
Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Screws included - Yes
Packaging data - Package depth - 268 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.21 kg
Packaging data - Package width - 270 mm
Parallel processing technology support Graphics - Not supported
PC health monitoring Features - Fan, Temperature, Voltage
PCI Express x1 (Gen 3.x) slots Expansion slots - 2
PCI Express x16 (Gen 3.x) slots Expansion slots - 1
Power source type Features - ATX
Processor - Compatible processor series - AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Processor family - AMD
Processor > Processor socket - AM4
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM4
producer - Gigabyte
Producer - Gigabyte

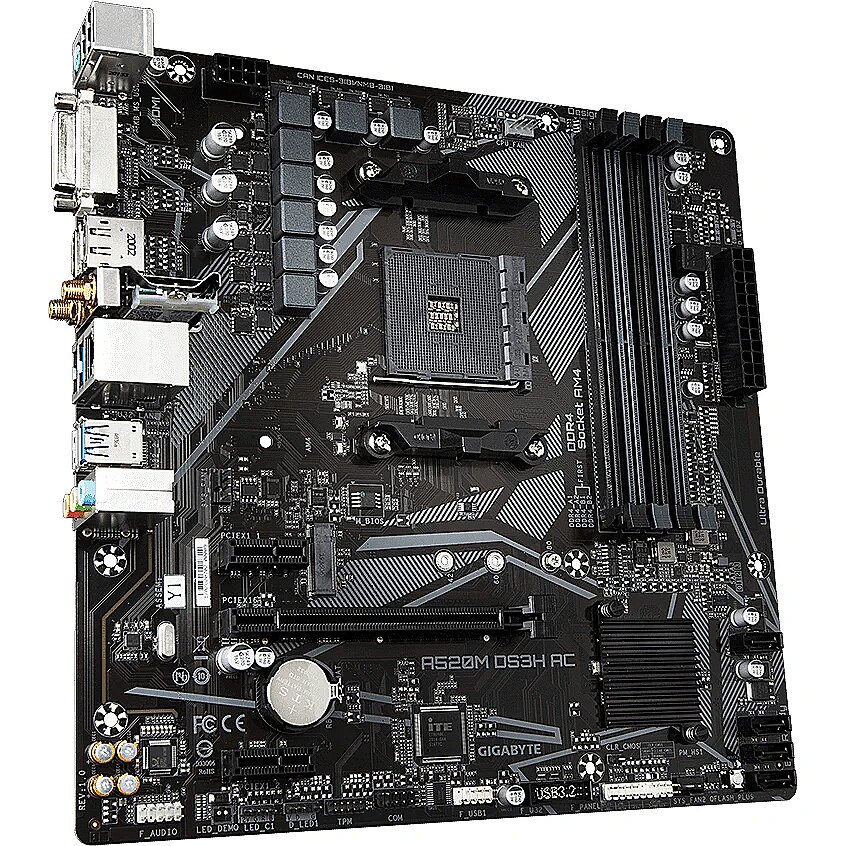

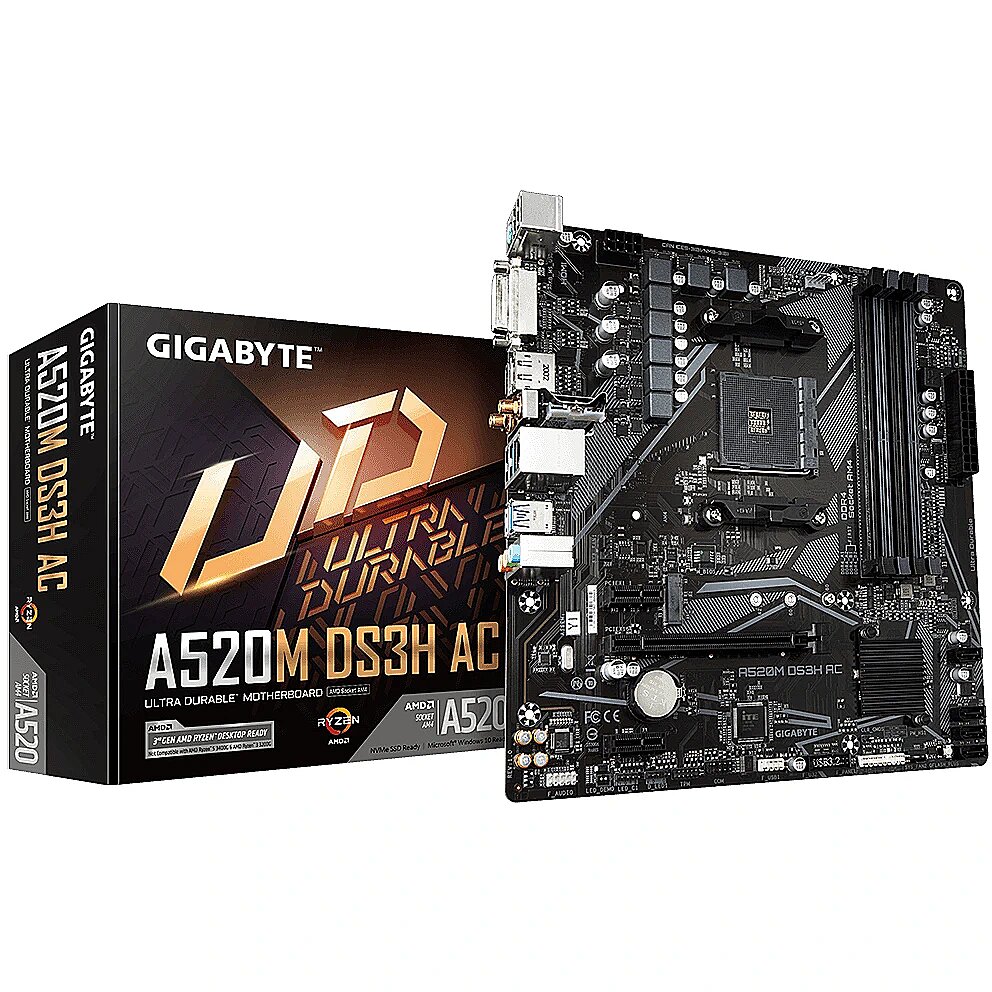

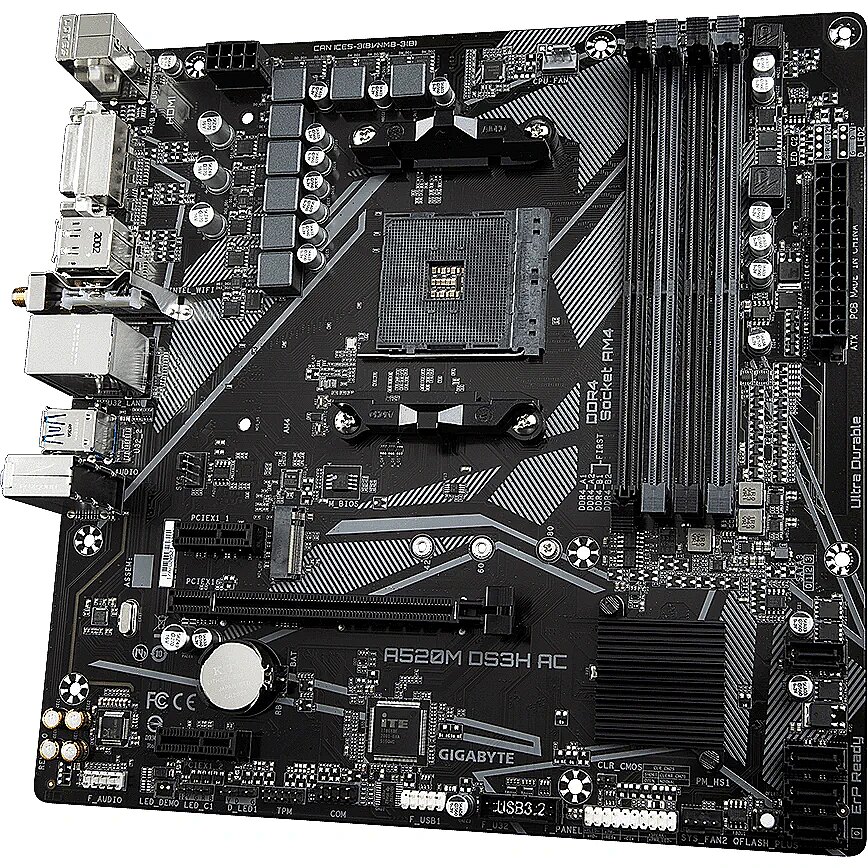

ProductName - A520M DS3H AC Motherboard - AMD Ryzen 5000 Series CPUs, 5+3 Phases VRM, up to 4733MHz DDR5 (OC), 1xPCIe 3.0 M.2, GbE LAN, WIFI 5, USB 3.2 Gen 1
Products per shipping (inner) case Logistics data - 1 pc(s)
PS/2 ports quantity Rear panel I/O ports - 1
RAID - Yes
RAID levels Storage controllers - 0, 1, 10
RAID support Storage controllers - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - WiFi-AP antenna jack - 2
RGB LED pin header Internal I/O - Yes
Screws included Packaging content - Yes
Serial port headers Internal I/O - 1
ShortSummaryDescription - GIGABYTE A520M DS3H AC Motherboard - AMD Ryzen 5000 Series CPUs, 5+3 Phases VRM, up to 4733MHz DDR5 (OC), 1xPCIe 3.0 M.2, GbE LAN, WIFI 5, USB 3.2 Gen 1, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series, Socket AM4, DDR4-SDRAM, 128 GB
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Special functions - Support for APP Center @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 5
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - GIGABYTE A520M DS3H AC Motherboard - AMD Ryzen 5000 Series CPUs, 5+3 Phases VRM, up to 4733MHz DDR5 (OC), 1xPCIe 3.0 M.2, GbE LAN, WIFI 5, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported memory clock speed (max) Memory - 4733 MHz
Supported memory clock speeds Memory - 2133,2400,2667,2933,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4400,4733 MHz
Supported memory types Memory - DDR4-SDRAM
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported processor sockets Processor - Socket AM4
Supported storage drive interfaces Storage controllers - M.2, SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.7
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.40 kg
Technical details > Net weight - 1.00 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - A520M DS3H AC (rev. 1.x)
Title - GIGABYTE A520M DS3H AC Motherboard - AMD Ryzen 5000 Series CPUs, 5+3 Phases VRM, up to 4733MHz DDR5 (OC), 1xPCIe 3.0 M.2, GbE LAN, WIFI 5, USB 3.2 Gen 1
title_en - Gigabyte A520M DS3H AC Motherboards AC / A520 / AM4 / Micro ATX
title_lv - Gigabyte A520M DS3H AC Mātesplate AC / A520 / AM4 / Micro ATX
title_ru - Gigabyte A520M DS3H AC Материнские платы AC / A520 / AM4 / Micro ATX
Top Wi-Fi standard Network - Wi-Fi 5 (802.11ac)
Total number of SATA connectors Internal I/O - 4
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.07
Unit Box Length - 0.27
Unit Box Width - 0.27
Unit Calculated Volume - 0.0060088 cubm
Unit Calculated Weight - 1.03 kg
Units per Shipping Box - 10
URL - https://www.gigabyte.com/
USB 2.0 connectors Internal I/O - 1
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 4
USB ports at back panel - 6
USB ports on motherboard - 4
Vendor Homepage - https://www.gigabyte.com/
vendpn - A520M DS3H AC
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Warranty period Technical details - 3 year(s)
Weight - 0,93
weight - 0.68 kg
Weight - 0.96
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
Weight Other features - 720 g
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Width Weight & dimensions - 244 mm
WiFi-AP antenna jack Rear panel I/O ports - 2
Windows operating systems supported Features - Windows 10 x64, Windows 11
WLAN controller model Network - Intel Dual Band Wireless-AC 3168
