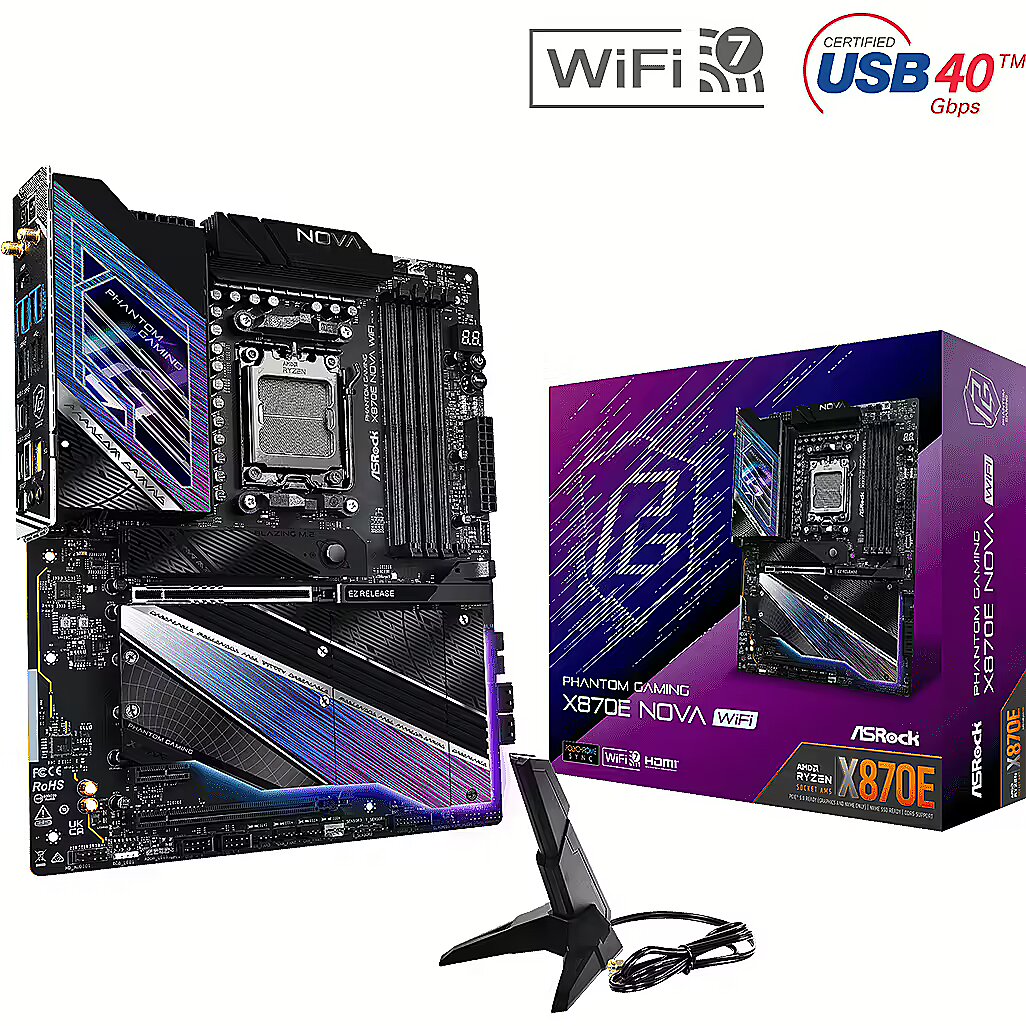

Accessories included - 4 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 1 x ARGB Splitter Cable 3 x Thermistor Cables
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset manufacturer - AMD
Chipset type - AMD X870E
code - 90-MXBPX0-A0UAYZ
COM connector / port - No
CPU socket - Socket AM5
Dane techniczne: Chipset płyty głównej - AMD X870E
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - ATX
Description - Fast, mysterious, and unbeatable
Phantom Gaming was designed by gamers for gamers! Beneath its stunning appearance lies a range of gaming technologies that deliver excellent gaming capabilities. All to provide gamers with the best possible gaming experience!
Exclusive 20K Capacitors with a Capacity of 1000uF
The improved 20K Black capacitors not only extend the lifespan to 20,000 hours, but also increase the capacitance from 560uF to 1000uF, which brings a number of benefits: Higher Capacity: Higher charge storage capacity ensures better handling under heavy loads. Lower Ripple: Reduced output power fluctuations improve performance. More Stable Output Current: Stable power supply, minimizing voltage fluctuations. Improved System Efficiency and Stability: Greater reliability and consistent performance. 20+2+1-Phase Power Design
Reliable components ensure seamless power delivery to the processor. Furthermore, they offer unmatched overclocking capabilities and the highest performance at the lowest temperatures for professional gamers.
SPS (Smart Power Stage)
Dr. MOS incorporates the latest SPS (Smart Power Stage) technology. It monitors the voltage and temperature of each phase to ensure the correct amount of power is delivered to the processor, enhancing its performance and overclocking capabilities.
Hi-Density Power Connector
CPU overclocking requires more power. ASRock Hi-Density Power Connectors are capable of handling higher currents than traditional 8-pin CPU connectors and 24-pin ATX connectors, ensuring more stable system operation and reducing the risk of fire during intense overclocking.
DDR5 XMP and EXPO Support
Based on a design philosophy of stability and reliability, ASRock doesn't compromise on any detail. These motherboards are built with high-quality materials, and enthusiasts can enjoy increased DDR5 memory overclocking performance by enabling pre-tested profiles. Ensure your memory modules support Intel XMP/AMD EXPO technology for affordable, satisfying, and hassle-free overclocking.
M.2 XXL Heatsink
The extra-large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep fast M.2 SSDs as cool as possible. It provides improved stability while maintaining peak performance.
Aluminum Heatsink
The first thing that catches the eye is the optimized aluminum heatsink design. Heatsinks are crucial for efficient heat dissipation, especially during heavy loads like gaming or productivity. A motherboard with heatsinks can effectively manage thermal management, ensuring seamless system stability and durability.
Enhanced USB4 Type-C
USB4 technology brings the speed and versatility of the most advanced USB Type-C, offering a quick and easy connection level at work or at home. It enables lightning-fast 40Gbps data transfer speeds.
Optimized 5Gbps LAN
ASRock's 5Gbps LAN connector features a unique, patented design with excellent electromagnetic interference resistance, ensuring stable high-speed operation and a better networking experience.
POLYCHROME RGB
This motherboard features built-in RGB headers and addressable RGB headers, allowing you to connect the motherboard to compatible LED devices such as strips, CPU fans, coolers, cases, and more. Users can also synchronize RGB LED devices with Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode*
- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode*
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
* PCIE1 will operate on the Gen5x16 bus with 9000 and 7000 series processors, on the Gen4x8 bus with 8000 series processors (Phoenix 1), and on the Gen4x4 bus with 8000 series processors (Phoenix 2).
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x M.2 Socket (M2_5, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
- 2 x SATA3 6.0 Gb/s Connectors
ASMedia ASM1061:
- 2 x SATA3 6.0 Gb/s Connectors
* The M2_1 connector is the first priority for M.2 installations.
The M2_1 will work on the Gen5x4 platform with 9000 and 7000 series processors and on the Gen4x4 platform with 8000 series processors (Phoenix 1 and Phoenix 2).
dimensionalWeight - 1869
dimension depth - 80 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 3065 g
dimension width - 340 mm
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC4082 7.1)
ean - 4710483949654
EAN - 4710483949654
Eans - 4710483949654
EAN_code - 4710483949654
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 5 x M.2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

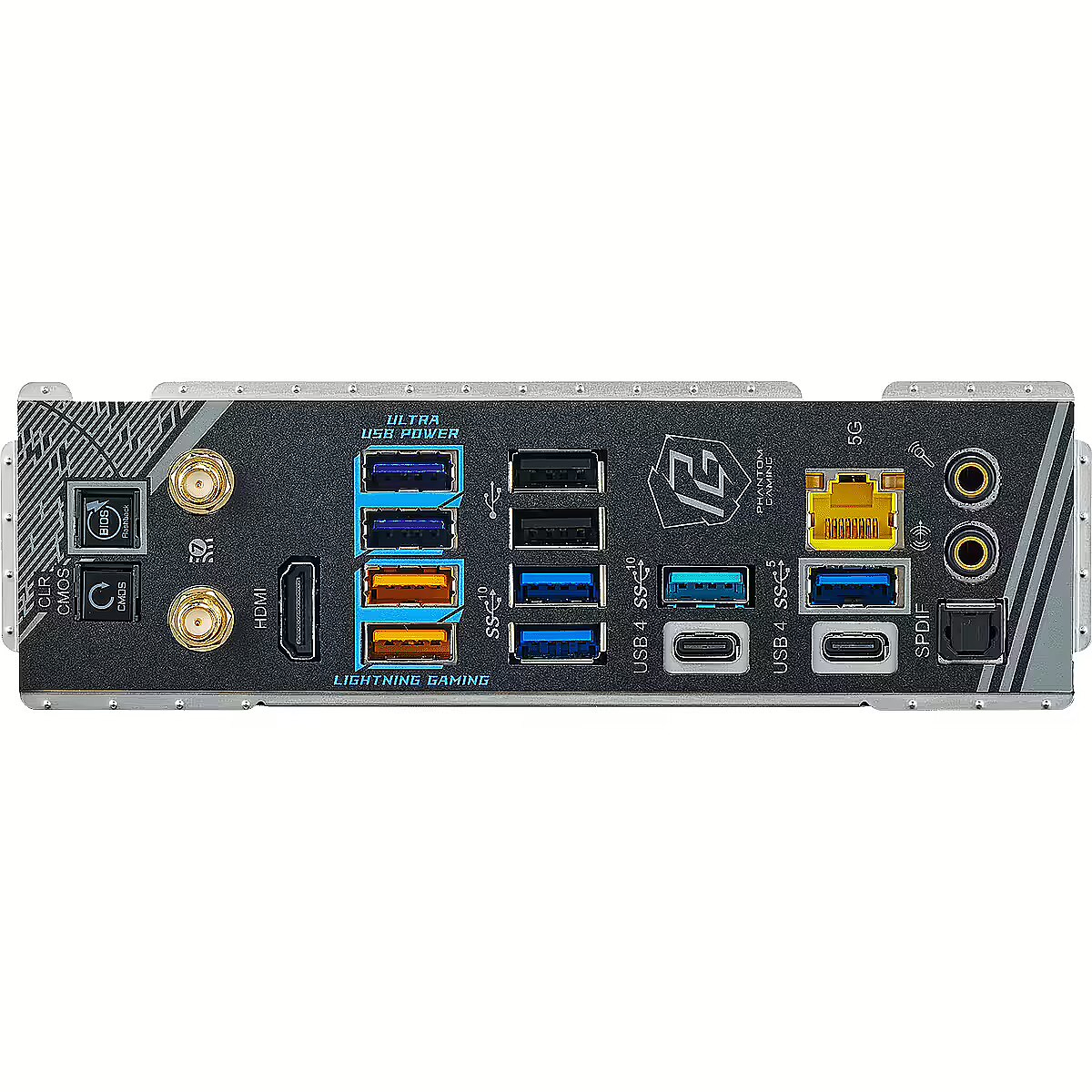

External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 2 x USB4 Type-C
External connectors - 3 x USB 3.2 Gen 1 Type-A
External connectors - 5 x USB 3.1
Features - Audio chip - Realtek ALC4082
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD X870
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Operating system architecture - 64-bit
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - ATX
Graphics - Integrated AMD RDNA graphics (Support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G compatible, supports HDR, HDCP 2.3, and max resolution up to 4K 120Hz 2 x USB 4 ports, supports HDCP 2.3 and max resolution up to 8K 30Hz* *Only processor-integrated graphics can be displayed via USB 4 ports. If you want to display on a Type-C monitor, use AMD Ryzen 9000, 8000, and 7000 processors with integrated graphics.
guarantee - 36
guarantee_type - normal
Integrated CPU - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Komunikacja: Karta bezprzewodowa - Wi-Fi 7 | Bluetooth 5.4
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 5GbE LAN)
LPT connector / port - No
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBPX0-A0UAYZ
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8200+ MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 8200 MHz
Memory type - DDR5
Model - X870E NOVA WIFI
MPN - 90-MXBPX0-A0UAYZ
Name - ASRock X870E Nova WiFi
Name - ASROCK X870E Nova WiFi (AM5) (D)
name - ASRock X870E Nova WiFi, AMD X870E Mainboard - Sockel AM5, DDR5
Name - ASRock X870E Nova WiFi - Socket AM5 - motherboard
name - Motherboard X870E NOVA WIFI AM5 4DDR5 M.2 ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8126
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - LAN 5 Gigabit LAN 10/100/1000/2500/5000 Mbps Realtek RTL8126 Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 160MHz channel bandwidth with 6GHz* frequency band 1 antenna supporting 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 8
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Debug card header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Power led header
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 2 x USB C
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x Thermistor Cable Header
Other information - Incredible Performance
PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 USB4 Type-C Ports (40 Gb/s)
Rock-Solid
Server-Grade Low-Loss PCB 20+2+1 Power Phase, 110A SPS for VCore+SOC with Extended Heatsink Armor Flexible Integrated I/O Port Cover Durable Black 20K Capacitors (High-Quality, High-Conductivity Polymer Capacitors) Ultra-Fast Gaming 5G LAN, 802.11be Wi-Fi 7 Module ASRock Thunderbolt Gaming Ports
EZ Updates
BIOS Flashback Button ASRock Automatic Driver Installer
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Procesor: Gniazdo procesora - Socket AM5
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 9000
Processor - Compatible processor series - AMD Ryzen™ 7000 Series
Processor - Compatible processor series - AMD Ryzen™ 8000 Series
Processor - Compatible processor series - AMD Ryzen™ 9000 Series
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
Producent: Nazwa producenta / importera - ASRockASRock Europe B.V.Bijsterhuizen 11-116546 AR NijmegenHolandiaEmail: sales@asrock.nl
producer - ASRock
Producer - ASRock
producerCode - X870E Nova WiFi
ProducerCode - X870E Nova WiFi
productName - Motherboard - ASRock X870E Nova WiFi
productSize - Normal
RAID - Yes
Rear panel I/O ports - Clear CMOS button - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-out - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 connectors - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 2
Rear panel I/O ports - Wi-Fi antenna socket - Yes
ShortDescription - Socket AM5 | Chipset AMD X870E | DDR5
sizeX - 353
sizeY - 291
sizeZ - 91
Software - Software
ASRock Motherboard Utility (Phantom Gaming Tuning) ASRock Phantom Gaming LAN Software ASRock Polychrome SYNC*
UEFI
ASRock EZ Mode ASRock Full HD UEFI ASRock Automatic Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio with Ochrona Treści (Realtek ALC4082 Audio Codec) Individual PCB Layers for R/L Audio Channel Nahimic Audio
Special functions -
Storage controllers - Supported storage drive interfaces - Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)
Supported operating systems - Windows 10
Supported operating systems - Windows 11
USB ports at back panel - 12
USB ports on motherboard - 9

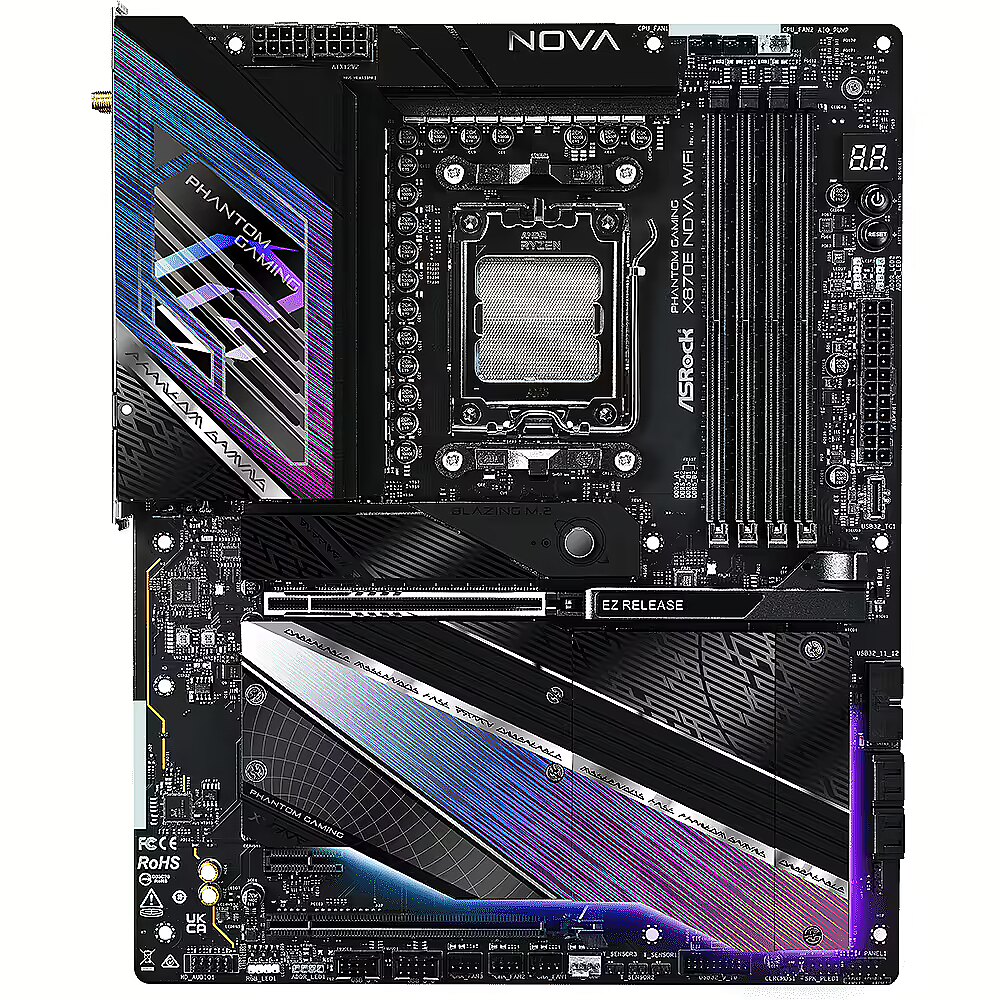

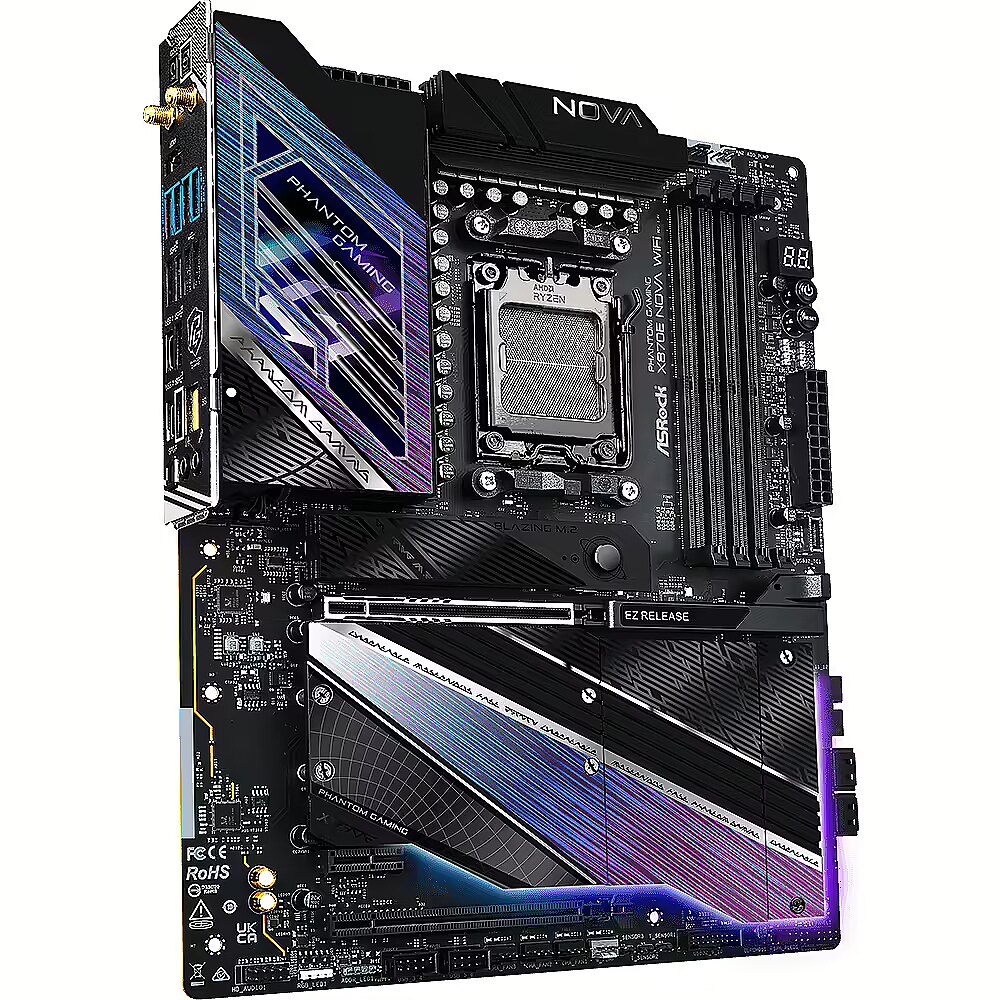

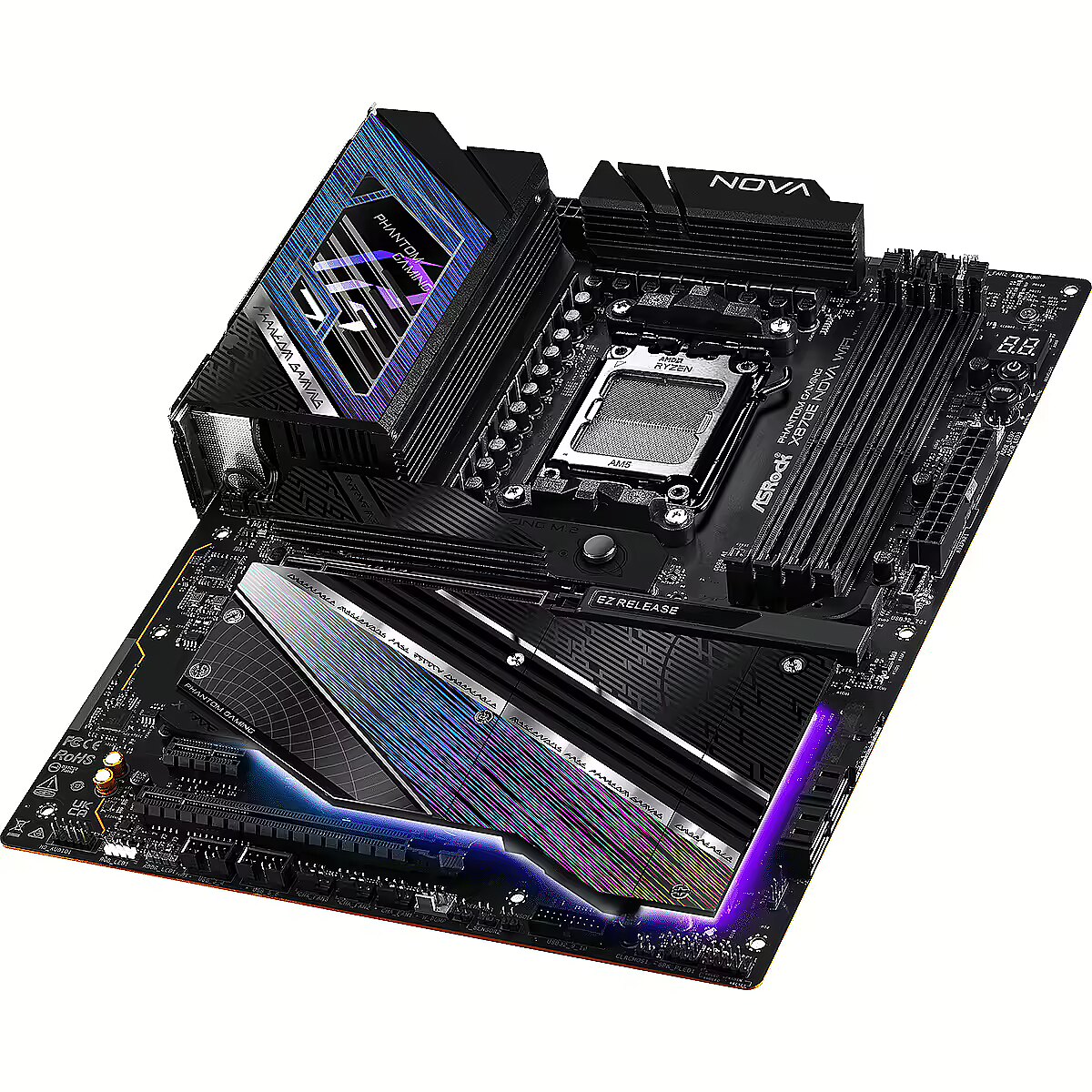

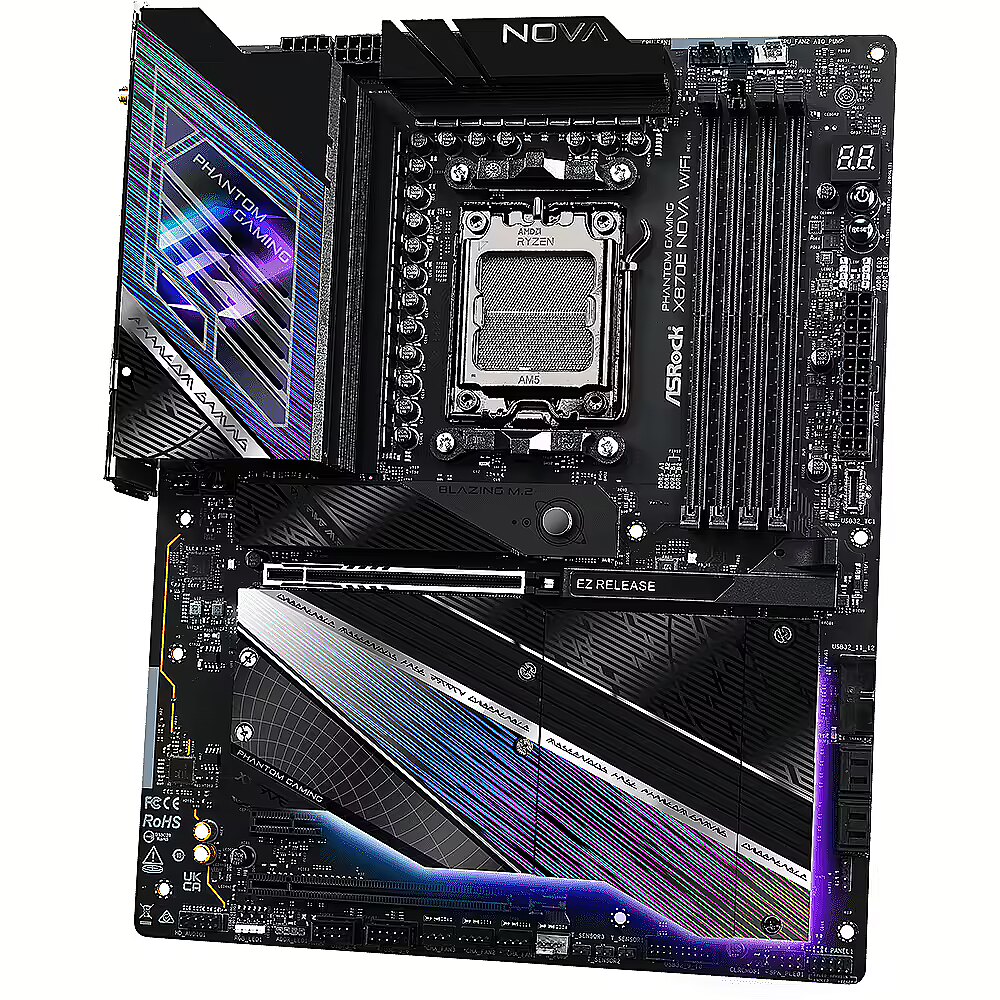

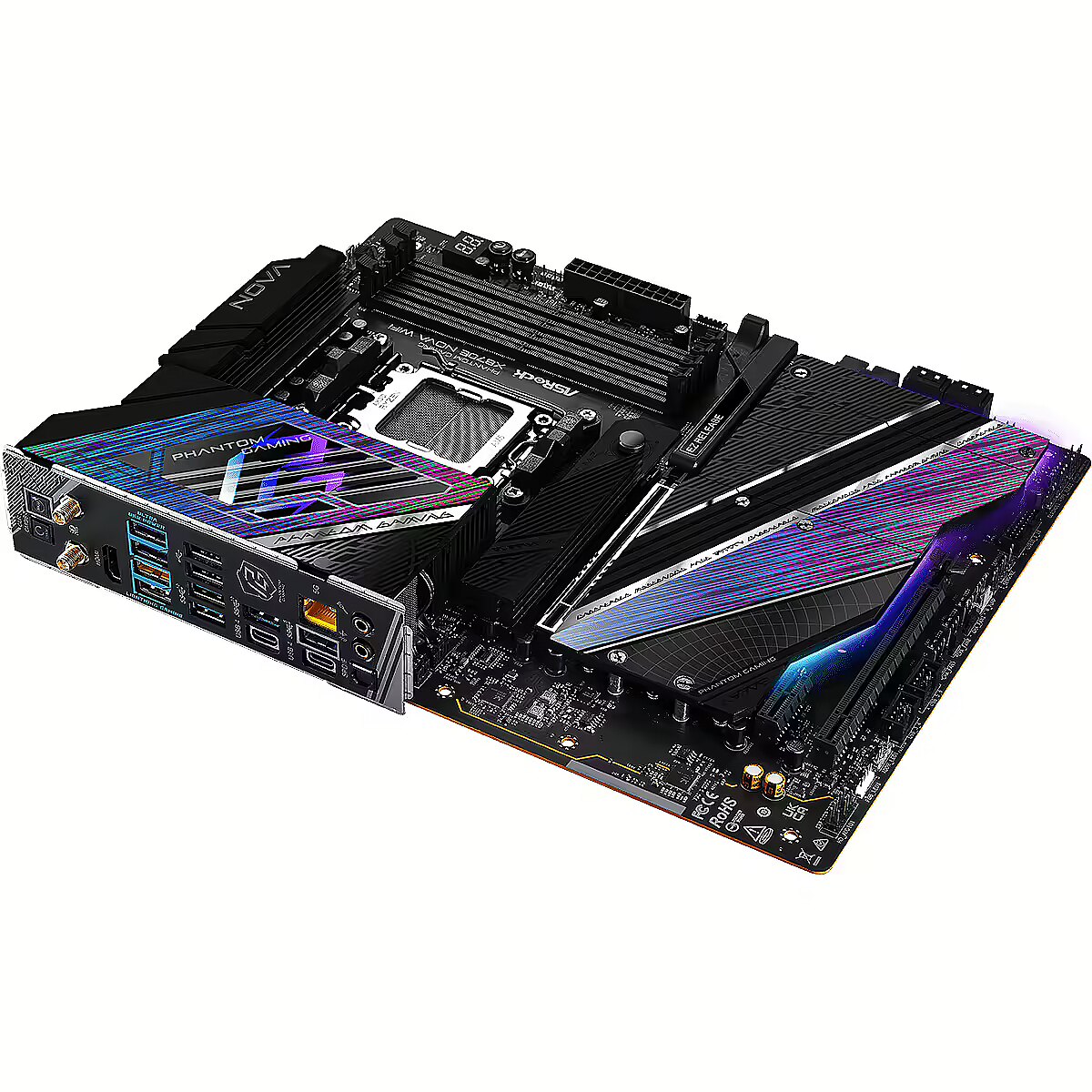

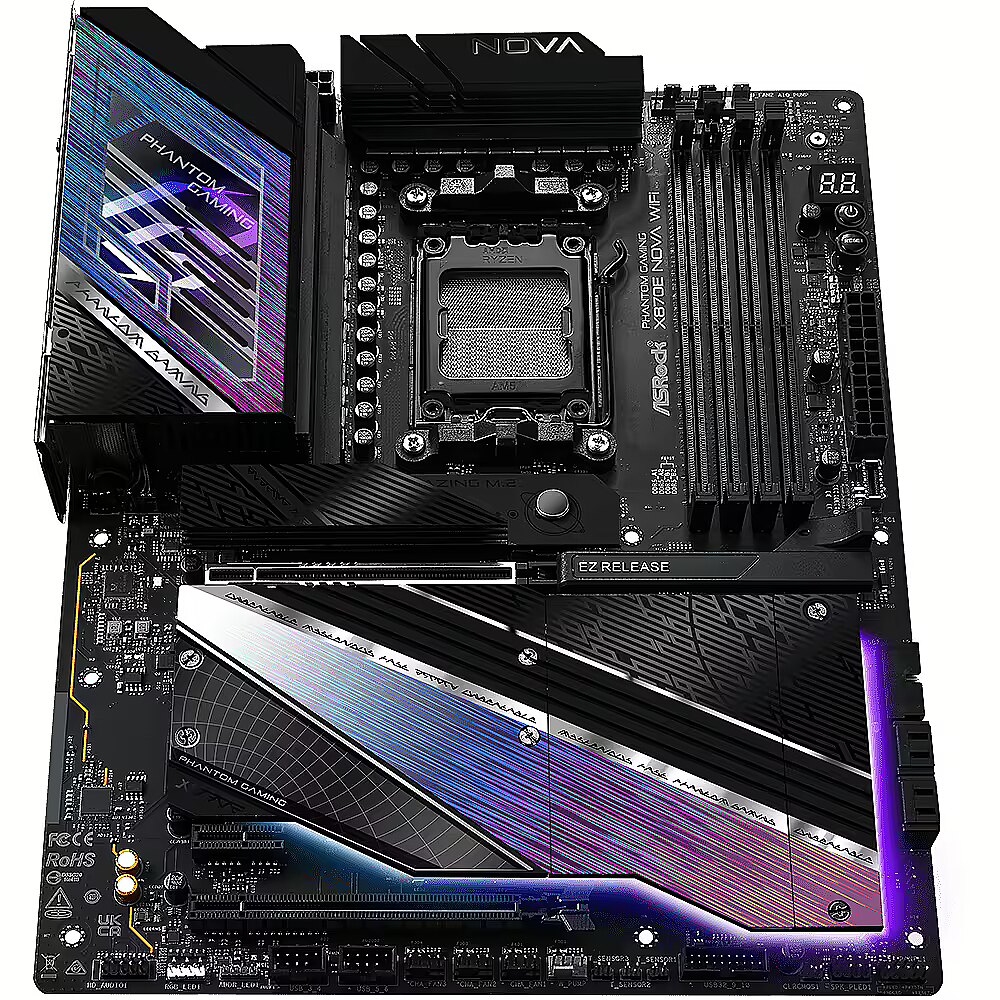

vendpn - X870E NOVA WIFI
warrantyLength - 36
warrantyType - G
Weight - 3,05
Weight - 3.02
weight - 3068
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 3 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 2 x USB4
Złącza: Złącza na tylnym panelu - 3 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 5 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
