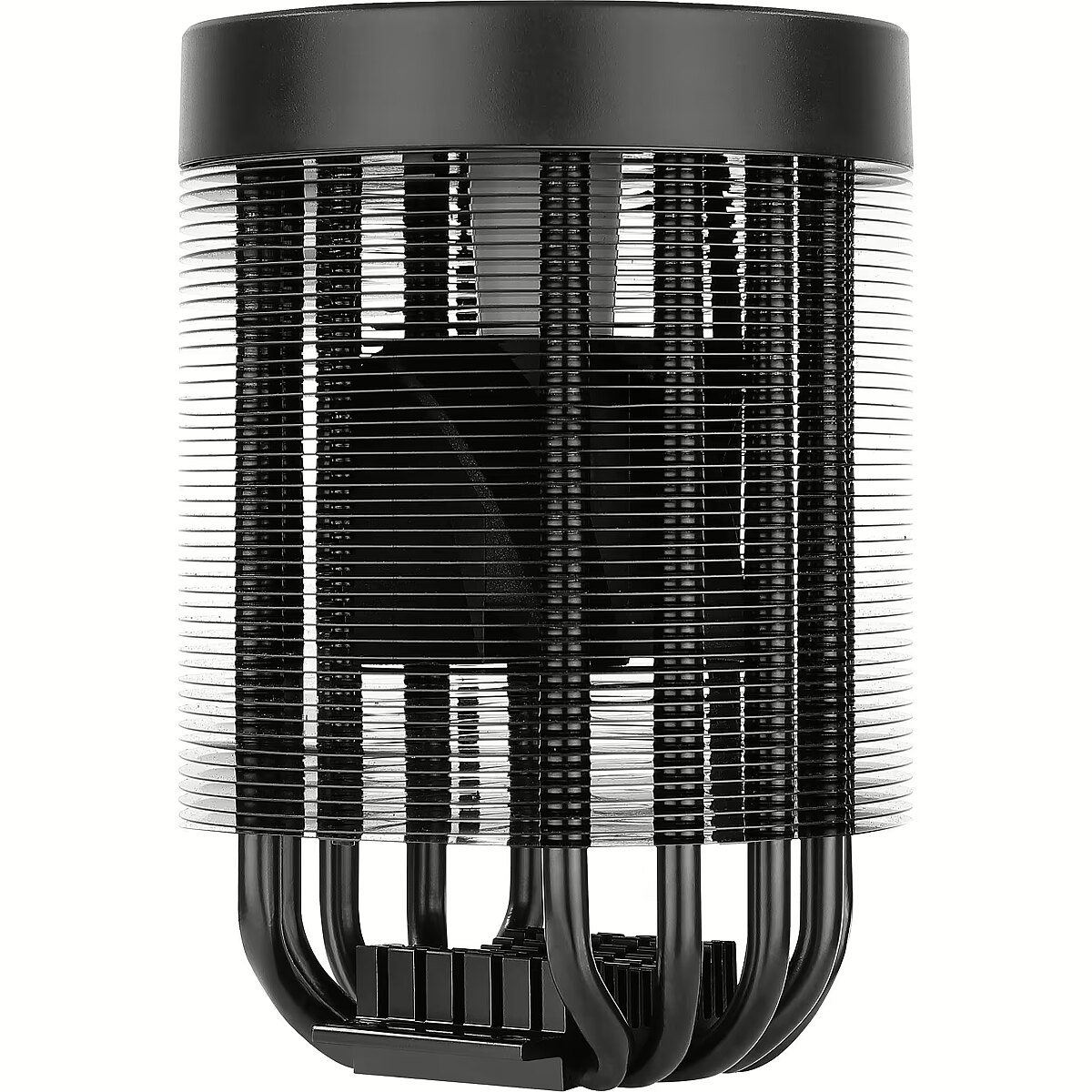

Aerocool Mirage 5 ARGB

Brand - Aerocool
BrandPartCode - MIRAGE5
Category - Computer Cooling Systems

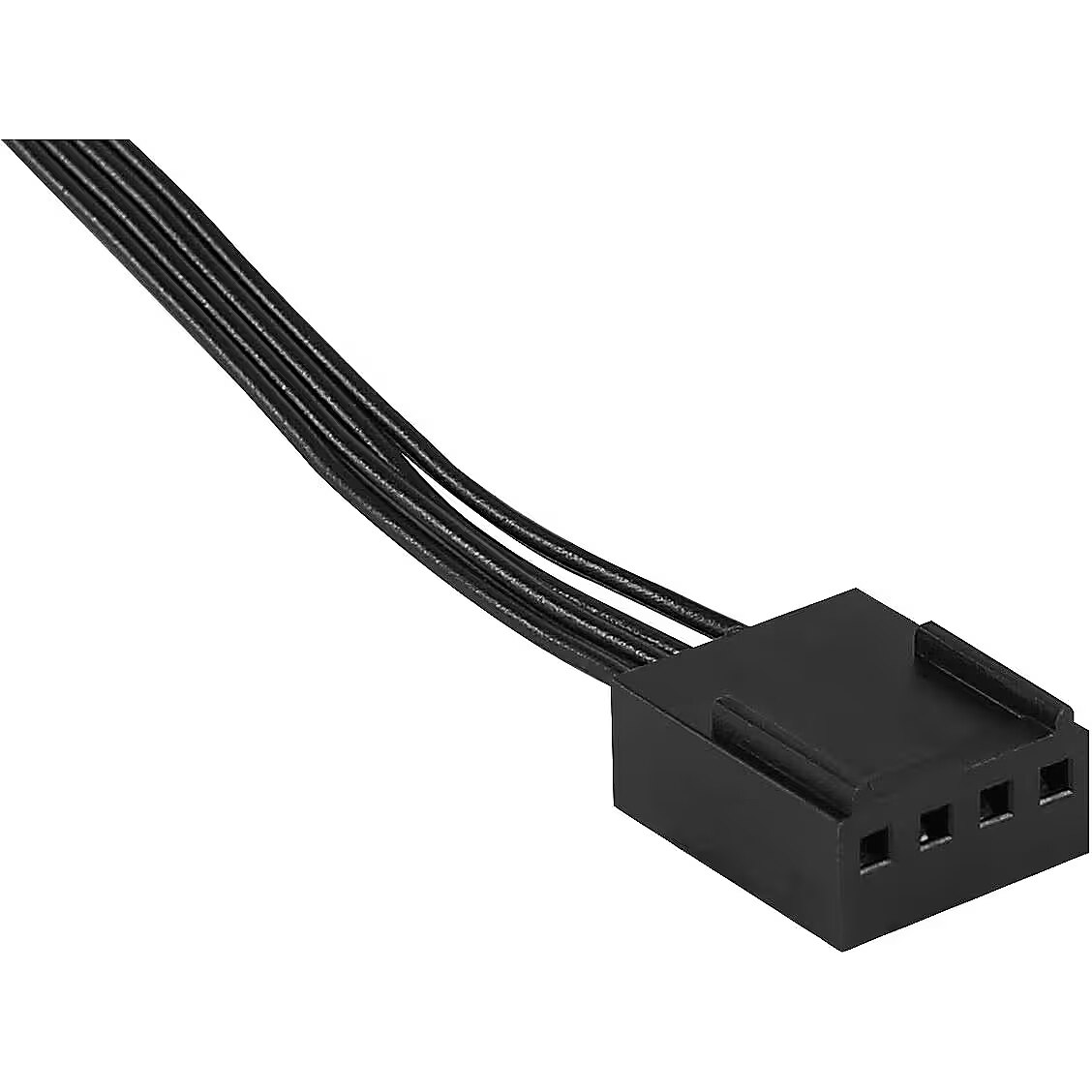

Design - Fan connector - 4-pin
Design - Fins material - Aluminium
Design - Illumination colour - Multi
Design - Illumination LED - Yes
Design - Material - Aluminium
Design - Number of heat pipes - 5
Design - Product colour - Black
dimensionalWeight - 813
GTIN - 4710562756036
Logistics data - Harmonized System (HS) code - 84733080

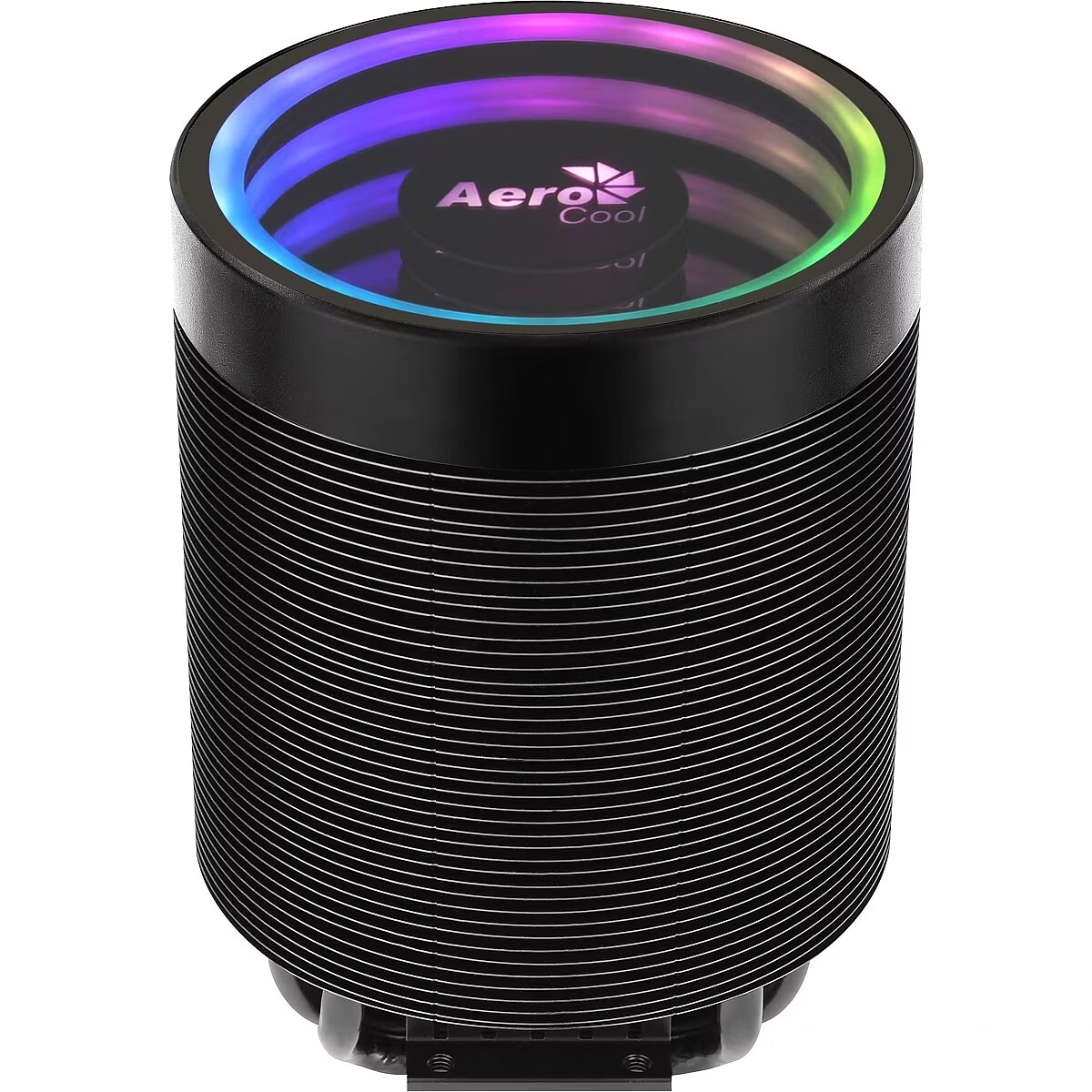

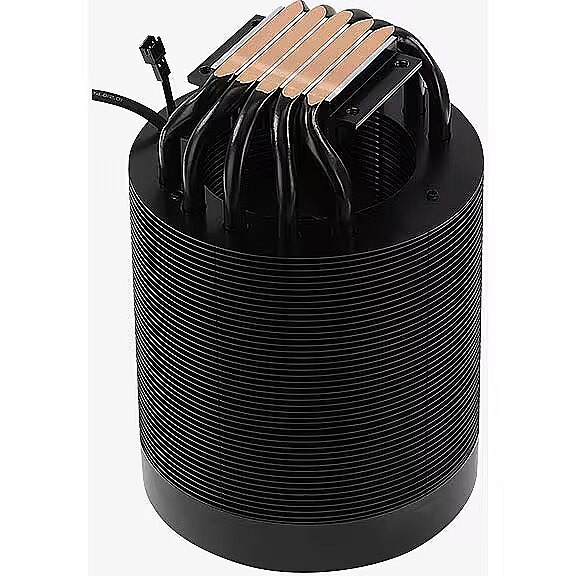

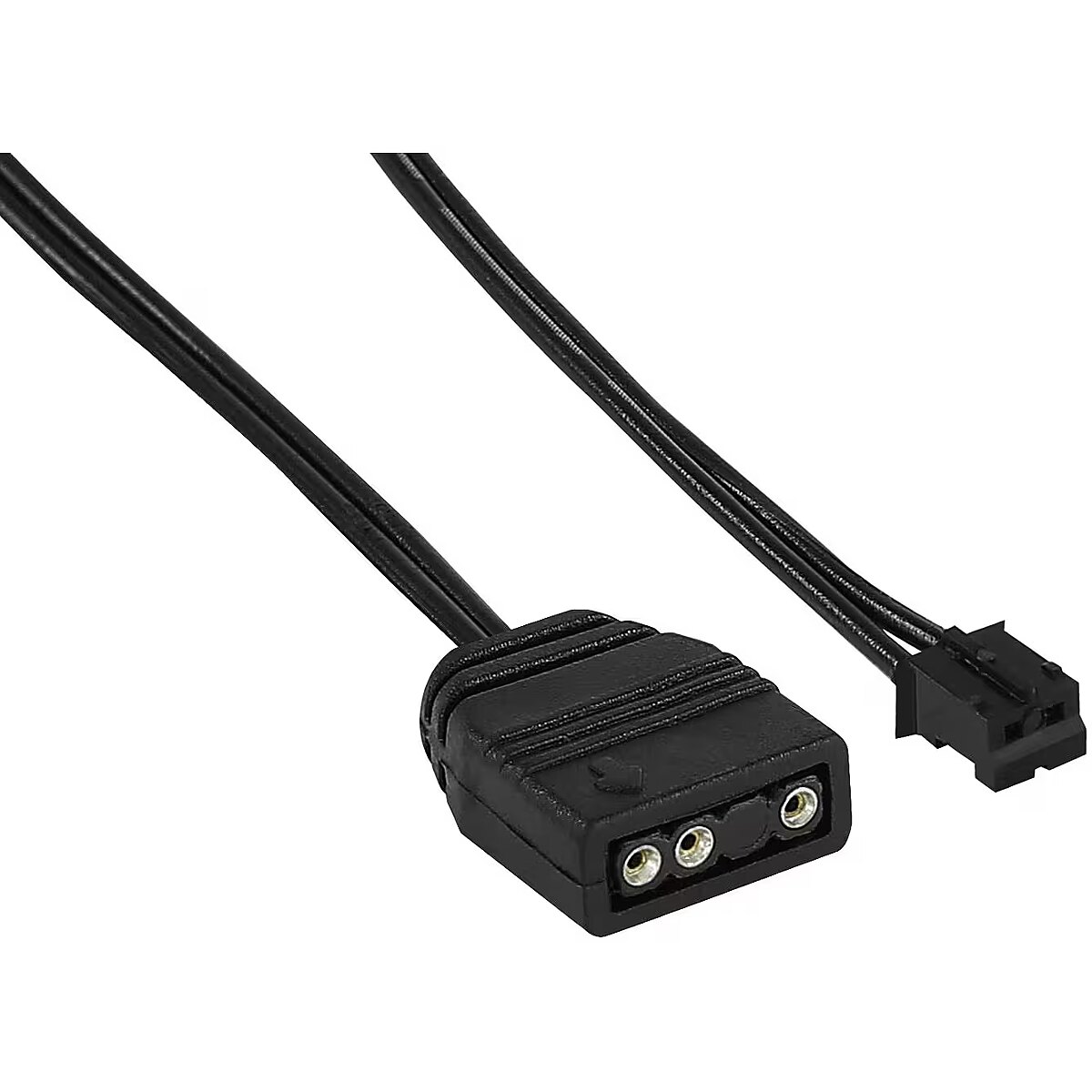

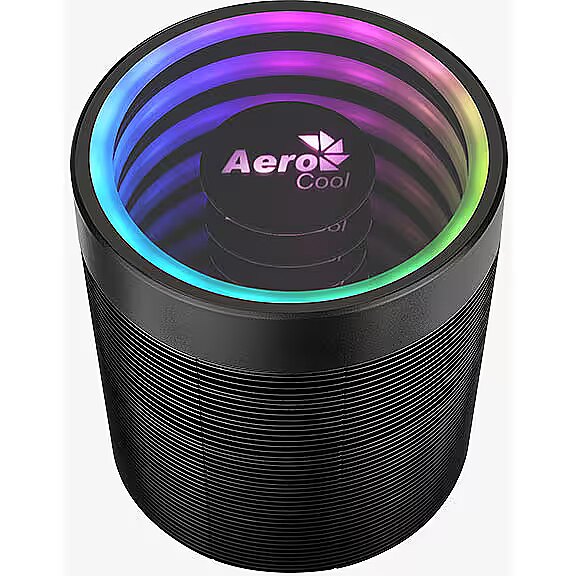

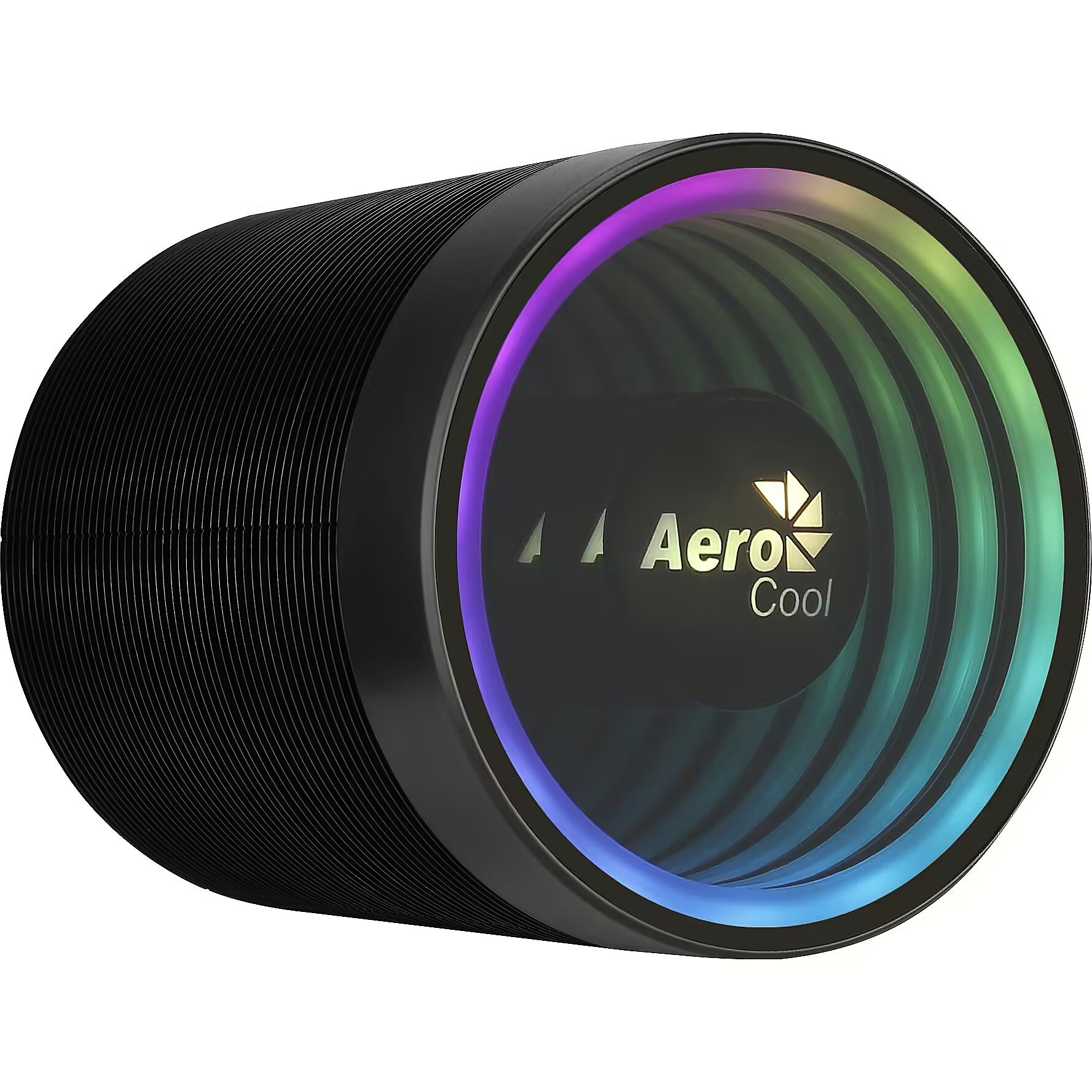

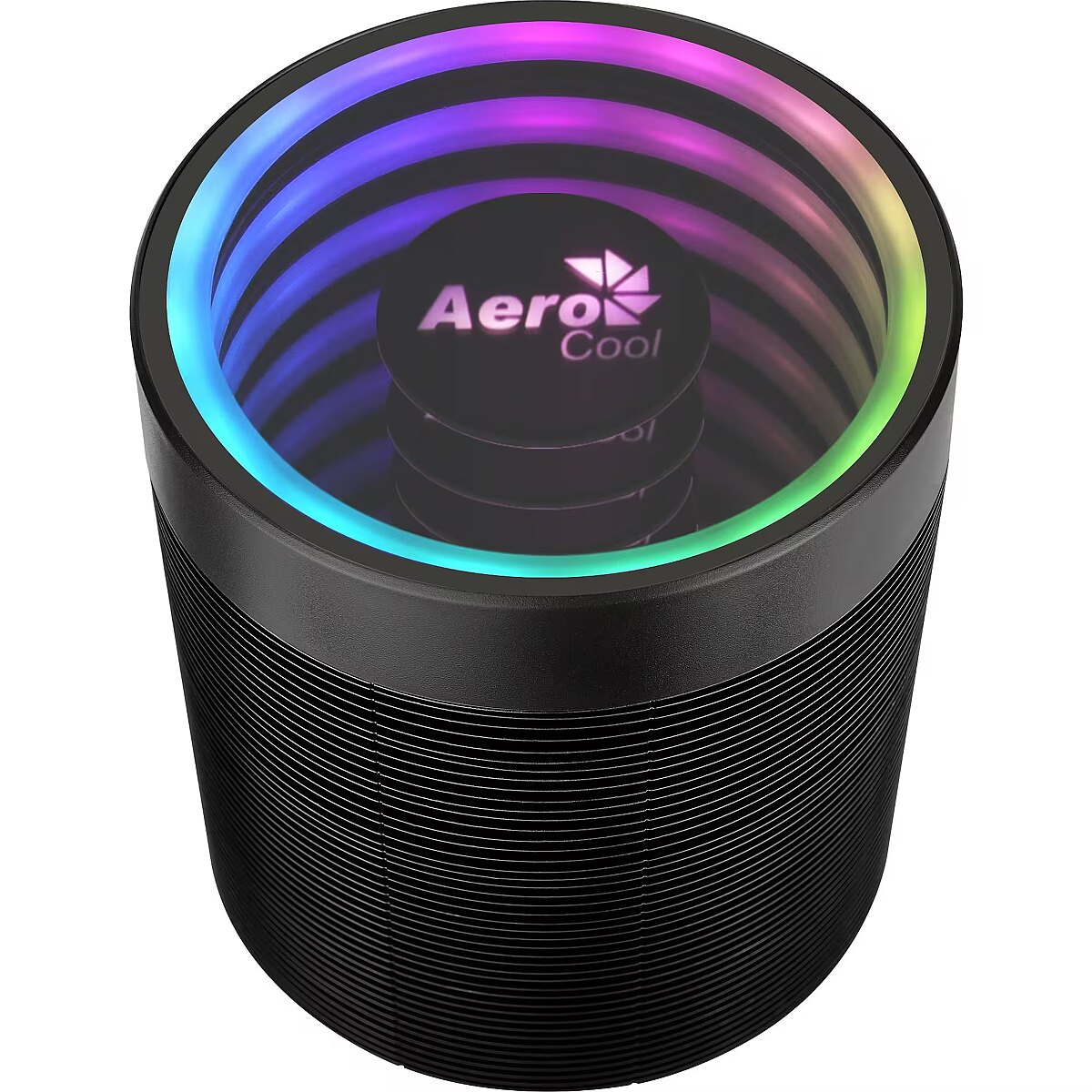

LongDesc - PWM air cooling solution with an Infinity Mirror RGB design delivers a mesmerizing look and feel to your gaming setup. Powered by Heat Core Touch Technology (HCTT) with 5 ultra-efficient thermal heat pipes. Powerful turbojet-inspired cooling fan delivers superior cooling performance and heat dissipation.INFINITY MIRROR RGB DESIGNFeaturing an glass mirror design with a single RGB LED ring, the Mirage 5 CPU cooler achieves an infinity effect with what seems like endless RGB rings to deliver a truly unique and mesmerizing lighting experience.HEAT CORE TOUCH TECHNOLOGY (HCTT)5 Heatpipes provide a perfectly flat and smooth surface to maximize contact surface area.This allows for minimal heat transfer loss while in direct contact with the CPU to increase the efficiency of heat dissipation.ADDRESSABLE RGB COMPATIBLEAccess 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync and MSI Mystic Light Sync as well as Gigabyte RGB Fusion motherboards using 3-Pin XWD connector.POWERFUL COOLING FAN DESIGN Equipped with an innovatively designed cooling fan inspired by turbojets, this CPU cooler dissipates heat at a 360° angle to deliver powerful and efficient cooling performance.HIGH EFFICIENCY FINSUpgraded high efficiency fins for maximum thermal performance.Black coating on fins allows for faster heat absorption, improving the efficiency of heat dissipation.COMPATIBILITY Compatible with most current motherboard designs.Socket compatibility:LGA 2066/2011/1200/115X/775AM4/AM3+/AM3/AM2+/AM2/FM2/FM1COMES WITH PWM 4-PIN CONNECTOR

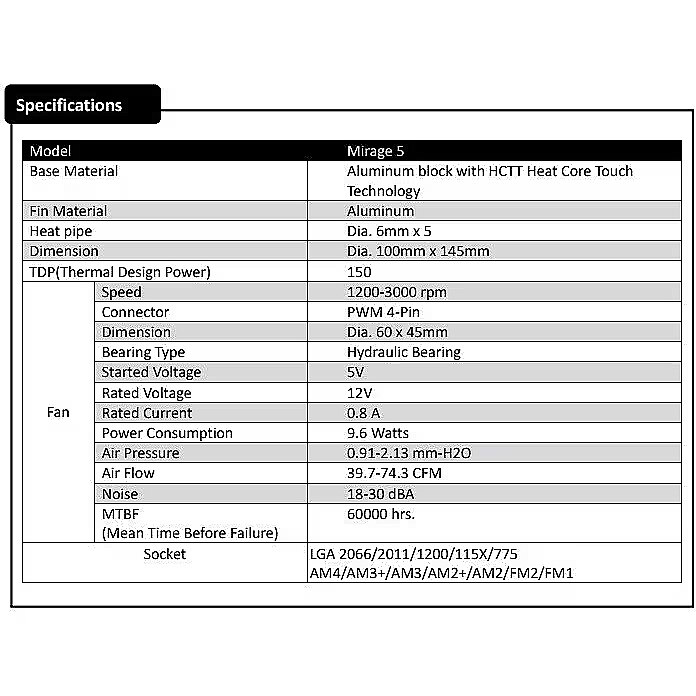

LongProductName - 100 x 145mm, TDP 150W, 1200-3000 rpm, PWM 4-Pin, PWM 4-Pin
LongSummaryDescription - Aerocool Mirage 5. Type: Air cooler, Fan diameter: 6 cm, Rotational speed (min): 1200 RPM, Rotational speed (max): 3000 RPM, Minimum air pressure: 0.91 mmH2O, Maximum air pressure: 2.13 mmH2O, Bearing type: Hydraulic. Width: 100 mm, Height: 145 mm. Product colour: Black
Performance - Bearing type - Hydraulic
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 6 cm
Performance - Maximum airflow - 74.3 cfm
Performance - Maximum air pressure - 2.13 mmH2O
Performance - Mean time between failures (MTBF) - 60000 h
Performance - Minimum airflow (imperial) - 39.7 cfm
Performance - Minimum air pressure - 0.91 mmH2O
Performance - Noise level (high speed) - 30 dB
Performance - Noise level (low speed) - 18 dB
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 3000 RPM
Performance - Rotational speed (min) - 1200 RPM
Performance - Suitable for - Processor
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 775 (Socket T)
Performance - Supported processor sockets - LGA 1200 (Socket H5)
Performance - Supported processor sockets - LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2
Performance - Supported processor sockets - LGA 2011 (Socket R)
Performance - Supported processor sockets - LGA 2066
Performance - Supported processor sockets - Socket AM2
Performance - Supported processor sockets - Socket AM2+
Performance - Supported processor sockets - Socket AM3
Performance - Supported processor sockets - Socket AM3+
Performance - Supported processor sockets - Socket AM4
Performance - Supported processor sockets - Socket FM1
Performance - Supported processor sockets - Socket FM2
Performance - Type - Air cooler
Performance - Type - Internal
Power - Power consumption (typical) - 9.6 W
Power - Rated current - 0.8 A
Power - Rated voltage - 12 V
Power - Starting voltage - 5 V
Power - Thermal Design Power (TDP) - 150 W
producerCode - AEROPGSMIRAGE5-ARGB
productName - Aerocool Mirage 5 Processor Internal 6 cm Black 1 pc(s)
ProductName - Mirage 5
productSize - Normal
ShortSummaryDescription - Aerocool Mirage 5, Air cooler, 6 cm, 1200 RPM, 3000 RPM, Black
sizeX - 170
sizeY - 165
sizeZ - 145
Title - Aerocool Mirage 5 Processor Air cooler 6 cm Black 1 pc(s)
URL - https://aerocool.io/product/mirage-5/
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 755
Weight & dimensions - Fan dimensions (W x D x H) - 60 x 60 x 45 mm
Weight & dimensions - Heat pipes diameter - 6 mm
Weight & dimensions - Height - 145 mm
Weight & dimensions - Width - 100 mm
