Arctic P14 PWM PST, White

Airflow Performance - 123.69 m³/h
Bearing type Performance - Fluid Dynamic Bearing (FDB)
Brand - ARCTIC
BrandPartCode - ACFAN00197A
Cable length Weight & dimensions - 0.4 m
Category - Computer Cooling Systems
Category - Datortehnika :: Datoru komponentes :: Korpusa ventilatori
Category Code - COS
Category_1 - Computer Cases and Cooling
Category_2 - Fans
category_en - Computers & Components > Computer components > Cooling systems
category_lv - Datortehnika > Datoru komponentes > Dzesēšanas sistēmas
category_ru - Datortehnika > Datoru komponentes > Dzesēšanas sistēmas
CnCode - 84145925
Code - ACFAN00197A
Depth Weight & dimensions - 140 mm
Desc - Ligdza (socket): 4-pin, Diametrs: 140 mm, Ventilators ātrums (apgr.min.): 1700 apgr. min., Apgaismojums: Nav, Skaits komplektācijā: 1, Garantija: 2 gadi
Description - ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.Optimised for static pressureIdeal choice on heatsinks, radiators and (partly-) covered case ventsPush- or pull-configurationPWM Sharing Technology (PST) regulates fan speed synchronouslyNewly developed, very quiet motorExtended life span

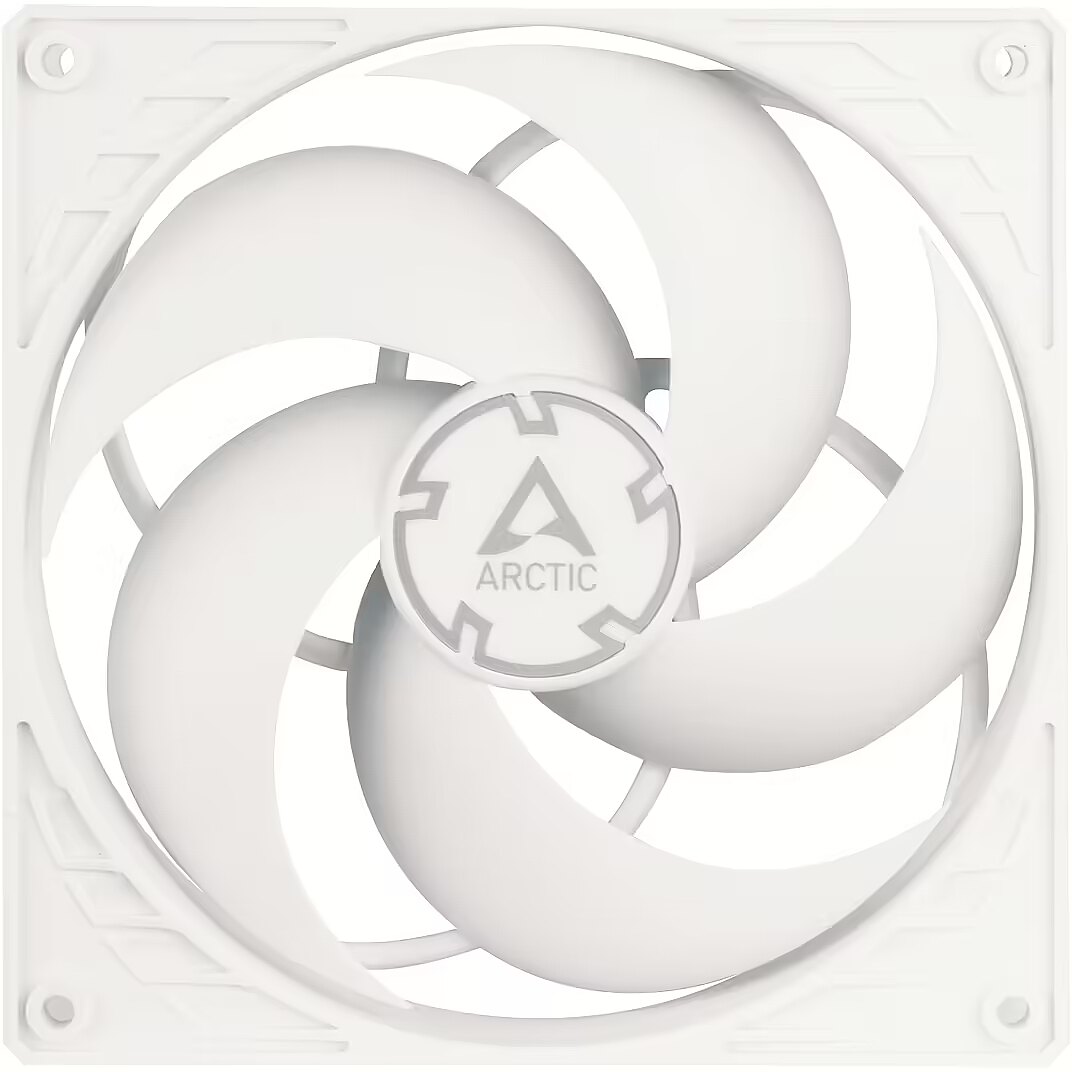

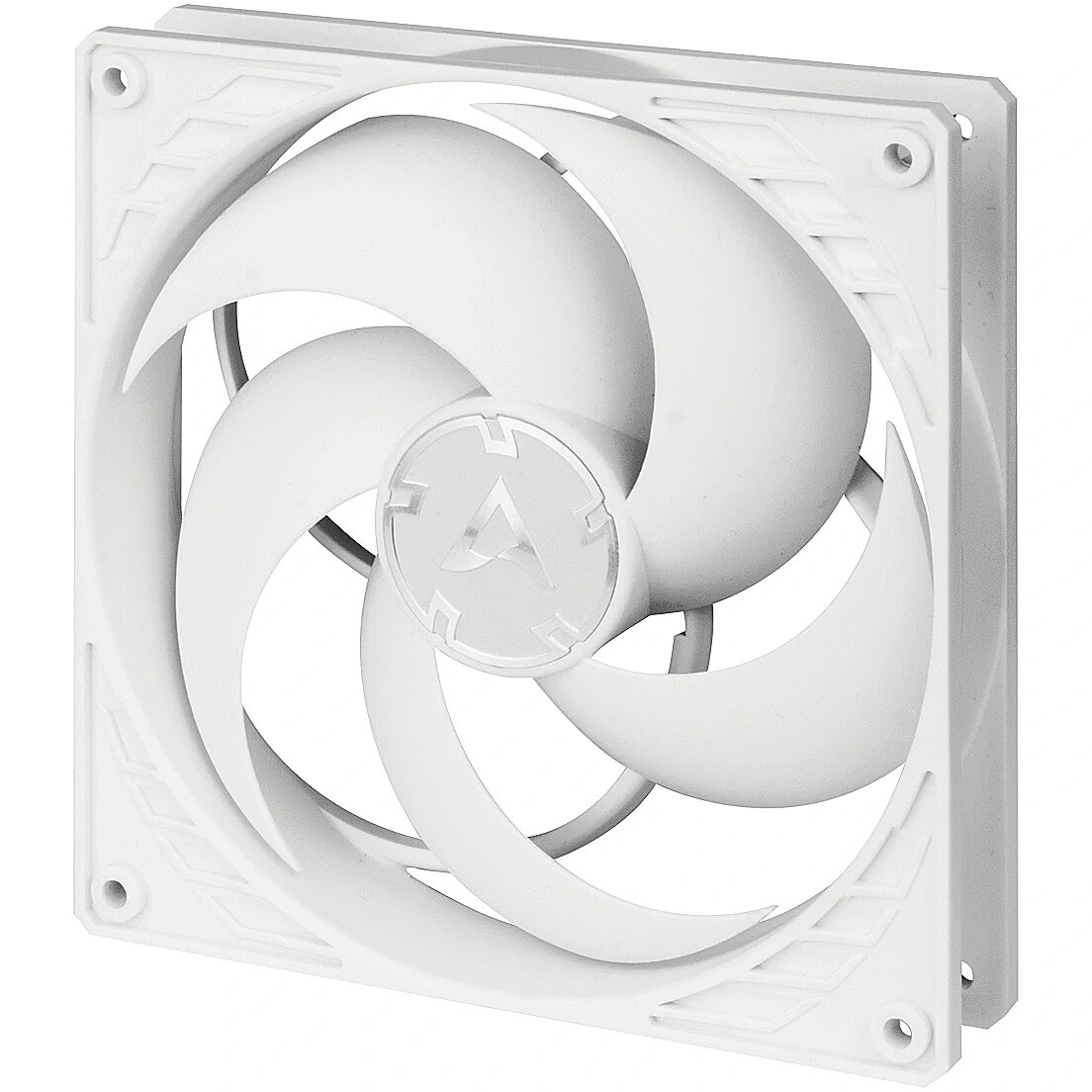

description_en - The ARCTIC P14 PWM PST (model ACFAN00197A) is a high-performance 140 mm case fan designed for efficient cooling of computer components. With an optimized blade design and support for PWM Sharing Technology (PST), the fan delivers powerful airflow at a low noise level and allows synchronizing its speed with other fans in the system for optimal cooling.
Key Features: Dimensions: 140 x 140 x 27 mm
Rotation Speed: 200–1700 RPM (PWM controlled)
Airflow: up to 72.8 CFM
Static Pressure: 2.4 mm H₂O
Noise Level: up to 22.5 dBA
Bearing Type: Fluid Dynamic Bearing
Connection: 4-pin PWM with additional 4-pin socket for PST
Color: White
description_lv - ARCTIC P14 PWM PST (modelis ACFAN00197A) ir augstas veiktspējas 140 mm korpusa ventilators, kas paredzēts efektīvai datora komponentu dzesēšanai. Pateicoties optimizētam lāpstiņu dizainam un PWM Sharing Technology (PST) atbalstam, ventilators nodrošina spēcīgu gaisa plūsmu ar zemu trokšņa līmeni un ļauj sinhronizēt tā ātrumu ar citiem sistēmas ventilatoriem optimālai dzesēšanai.
Galvenās īpašības: Izmēri: 140 x 140 x 27 mm
Rotācijas ātrums: 200–1700 apgr./min (regulējams caur PWM)
Gaisa plūsma: līdz 72,8 CFM
Statiskā spiediena līmenis: 2,4 mm H₂O
Trokšņa līmenis: līdz 22,5 dBA
Gultņa tips: Hidrodinamisks (Fluid Dynamic Bearing)
Pieslēgums: 4-pin PWM ar papildu 4-pin ligzdu PST
Krāsa: Balta
description_ru - ARCTIC P14 PWM PST (модель ACFAN00197A) — это высокопроизводительный 140-мм корпусной вентилятор, предназначенный для эффективного охлаждения компьютерных компонентов. Благодаря оптимизированному дизайну лопастей и поддержке технологии PWM Sharing Technology (PST), вентилятор обеспечивает мощный воздушный поток при низком уровне шума и позволяет синхронизировать его скорость с другими вентиляторами в системе для оптимального охлаждения.
Основные характеристики: Размеры: 140 x 140 x 27 мм
Скорость вращения: 200–1700 об/мин (регулируется через PWM)
Воздушный поток: до 72,8 CFM
Статическое давление: 2,4 мм H₂O
Уровень шума: до 22,5 дБА
Тип подшипника: Гидродинамический (Fluid Dynamic Bearing)
Подключение: 4-pin PWM с дополнительным 4-pin разъемом для PST
Цвет: Белый
Design - Fan connector - 4-pin
Design - Product colour - White
EAN - 4895213703116
EAN_code - 4895213703116
Fan connector Design - 4-pin
Fan diameter Performance - 14 cm
gross_weight - 0.25 kg
GTIN - 4895213703116
Harmonized System (HS) code Logistics data - 84733080
Height Weight & dimensions - 27 mm
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.
LongProductName - P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
LongSummaryDescription - ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1700 RPM, Noise level: 0.3 sone, Airflow: 123.69 m³/h, Maximum air pressure: 2.4 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 140 mm, Depth: 140 mm, Height: 27 mm. Product colour: White
Manual Packaging content - Yes
Manufacturer - Arctic
Manufacturer_code - ACFAN00197A
Maximum airflow Performance - 72.8 cfm
Maximum air pressure Performance - 2.4 mmH2O
Model - P14 PWM PST
Model name - P14 PWM PST
Name - Arctic P14 PWM PST, case fan (white)
Name - Dzesētājs Arctic P14 PWM PST White
Noise level Performance - 0.3 sone
Number of screws Packaging content - 4
Package depth Weight & dimensions - 29 mm
Package height Weight & dimensions - 143 mm
Package weight Weight & dimensions - 230 g
Package width Weight & dimensions - 143 mm
Packaging content - Manual - Yes
Packaging content - Number of screws - 4
Packaging content - Screws included - Yes
Performance - Airflow - 123.69 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Fan diameter - 14 cm
Performance - Maximum airflow - 72.8 cfm
Performance - Maximum air pressure - 2.4 mmH2O
Performance - Noise level - 0.3 sone
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 1700 RPM
Performance - Rotational speed (min) - 200 RPM
Performance - Suitable location - Computer case
Performance - Type - Fan
Power - Rated current - 0.12 A
Power - Starting voltage - 6 V
Power - Voltage - 12 V
Producer - Arctic
Product colour Design - White
ProductName - P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
Pulse-width modulation (PWM) support Performance - Yes
Rated current Power - 0.12 A
Rotational speed (max) Performance - 1700 RPM
Rotational speed (min) Performance - 200 RPM
Screws included Packaging content - Yes
ShortSummaryDescription - ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST, Fan, 14 cm, 200 RPM, 1700 RPM, 0.3 sone, 123.69 m³/h
Starting voltage Power - 6 V
Suitable location Performance - Computer case
Summary - ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1700 RPM, Noise level: 0.3 sone, Airflow: 123.69 m³/h, Maximum air pressure: 2.4 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 140 mm, Depth: 140 mm, Height: 27 mm. Product colour: White
Title - ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
title_en - Arctic P14 PWM PST Fan 4-pin / 140mm
title_lv - Arctic P14 PWM PST Ventilators 4-pin / 140mm
title_ru - Arctic P14 PWM PST Вентилятор 4-pin / 140mm
Type Performance - Fan
Unit Box Height - 0.03
Unit Box Length - 0.15
Unit Box Width - 0.15
Unit Calculated Volume - 0.0007249 cubm
Unit Calculated Weight - 0.244 kg
Units per Shipping Box - 68
URL - https://www.arctic.de/en/P14-PWM-PST/ACFAN00197A
Vendor Homepage - https://www.arctic.de/en/P14-PWM-PST/ACFAN00197A
Voltage Power - 12 V
Warranty - 24 months
WarrantyInfo - 10 Years
Weight - 0,23
weight - 0.23 kg
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Package depth - 29 mm
Weight & dimensions - Package height - 143 mm
Weight & dimensions - Package weight - 230 g
Weight & dimensions - Package width - 143 mm
Weight & dimensions - Weight - 194 g
Weight & dimensions - Width - 140 mm
Weight Weight & dimensions - 194 g
Width Weight & dimensions - 140 mm
