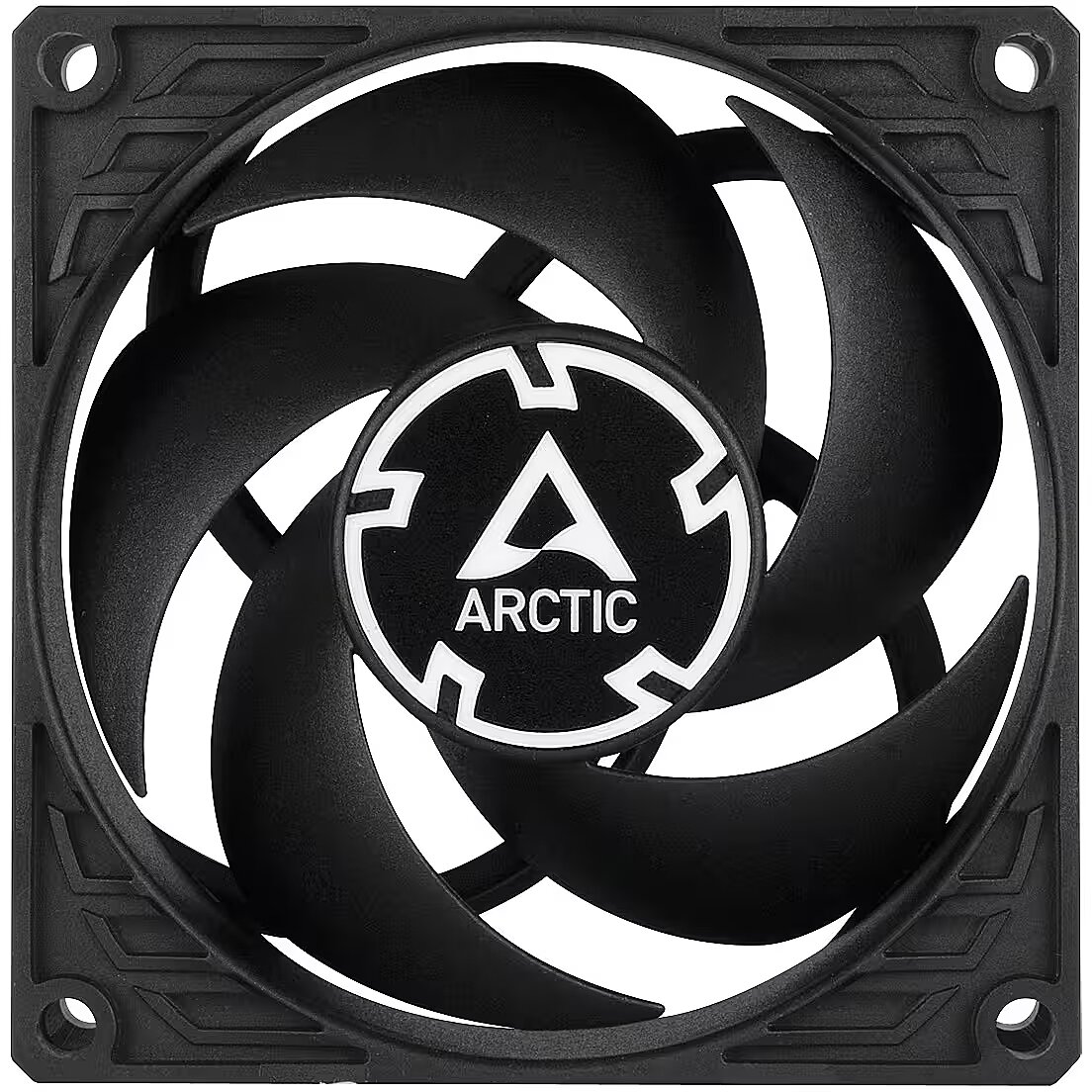

Arctic P8 PWM MAX, Black

Airflow Performance - 67.96 m³/h
Brand - ARCTIC
BrandPartCode - ACFAN00286A
Cable length Weight & dimensions - 0.4 m
category - Aircooling|Fans|PWM Fans
Category - Computer Cooling Systems
Category - Datortehnika :: Datoru komponentes :: Korpusa ventilatori
Category 1 - Gehäuse
Category 2 - Gehäuselüfter
Category Code - COS
category_en - Computers & Components > Computer components > Cooling systems
category_lv - Datortehnika > Datoru komponentes > Dzesēšanas sistēmas
category_ru - Datortehnika > Datoru komponentes > Dzesēšanas sistēmas
Code - ACFAN00286A
code - ACFAN00286A
Country of origin Other features - Hong Kong
Desc - Ligdza (socket): 4-pin, Diametrs: 80 mm, Ventilators ātrums (apgr.min.): 5000 apgr. min., Apgaismojums: Nav, Skaits komplektācijā: 1, Garantija: 2 gadi
description_en - The ARCTIC P8 Max fan (model ACFAN00286A) is designed for use in computer cases, providing effective cooling for system components.
Technical Specifications: Dimensions: 80 x 80 x 25 mm
Rotation Speed: 500–5000 RPM
Airflow: 40 CFM (approximately 68 m³/h)
Static Pressure: 5.3 mm H₂O
Noise Level: 25.3 dBa
Bearing Type: Dual Ball Bearing
Speed Control: PWM (Pulse Width Modulation)
Cable Length: 40 cm
Operating Voltage: 12 V DC
Connector Type: 4-pin
Mean Time Between Failures (MTBF): 500,000 hours
description_lv - ARCTIC P8 Max ventilators (modelis ACFAN00286A) ir paredzēts lietošanai datoru korpusos un nodrošina efektīvu sistēmas komponentu dzesēšanu.
Tehniskās specifikācijas: Izmēri: 80 x 80 x 25 mm
Griešanās ātrums: 500–5000 apgr./min
Gaisa plūsma: 40 CFM (aptuveni 68 m³/h)
Statiskā spiediena: 5.3 mm ūdens kolonna
Troksnis līmenis: 25.3 dBa
Gultņa tips: Divkāršais lodīšu gultnis
Ātruma kontrole: PWM (platuma impulsu modulācija)
Kabeļa garums: 40 cm
Barošanas spriegums: 12 V DC
Savienojuma tips: 4-pin
Vidējais laiks līdz atteicei (MTBF): 500 000 stundas
description_ru - Вентилятор ARCTIC P8 Max (модель ACFAN00286A) предназначен для использования в корпусах компьютеров и обеспечивает эффективное охлаждение компонентов системы.
Технические характеристики: Размеры: 80 x 80 x 25 мм
Скорость вращения: 500–5000 об/мин
Воздушный поток: 40 CFM (около 68 м³/ч)
Статическое давление: 5.3 мм водяного столба
Уровень шума: 25.3 дБа
Тип подшипника: Двойной шарикоподшипник
Управление скоростью: PWM (широтно-импульсная модуляция)
Длина кабеля: 40 см
Напряжение питания: 12 В DC
Тип подключения: 4-pin
Среднее время наработки на отказ (MTBF): 500 000 часов
Design - Fan connector - 4-pin
Design - Number of fan blades - 5
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Design - Rack capacity - 2U
EAN - 4895213704090
ean - 4895213704090
Fan's mean time to failure (MTTF) Performance - 500000 h
Fan bearing technology Performance - Double ball bearing
Fan connector Design - 4-pin
Fan current Power - 0.19 A
Fan diameter Performance - 8 cm
Fan dimensions (W x D x H) Weight & dimensions - 80 x 80 x 25 mm
Fan speed (max) Performance - 5000 RPM
Fan speed (min) Performance - 500 RPM
Fan static pressure Performance - 5.3 mmH2O
Fan voltage Power - 12 V
Fan weight Weight & dimensions - 84 g
gross_weight - 0.2 kg
GTIN - 4895213704090
LargeDescHTML -
LongSummaryDescription - ARCTIC P8 Max - High-Performance 80 mm PWM Fan. Type: Fan, Fan diameter: 8 cm, Noise level: 0.6 sone, Airflow: 67.96 m³/h. Product colour: Black
Manufacturer - ARCTIC
Maximum airflow Performance - 40 cfm
Model - ACFAN00286A
Model - P8 MAX
Model name - P8 Max
Mounting kit Packaging content - Yes
MPN - ACFAN00286A
Name - ARCTIC Lüfter P8 80*80*25 Max-80mm PWM regulated (Black)
name - ARCTIC P8 PWM MAX Lüfter - 80mm
Name - Ventilators Arctic Arctic P8 Max Black
Noise level Performance - 0.6 sone
Number of fan blades Design - 5
Number of fans Design - 1 fan(s)
Operating temperature (T-T) Performance - 0 - 40 °C
Other features - Country of origin - Hong Kong
Package depth Weight & dimensions - 82.5 mm
Package height Weight & dimensions - 26 mm
Package weight Weight & dimensions - 89 g
Package width Weight & dimensions - 82.5 mm
Packaging content - Mounting kit - Yes
Packaging content - Screws included - Yes
Performance - Airflow - 67.96 m³/h
Performance - Fan's mean time to failure (MTTF) - 500000 h
Performance - Fan bearing technology - Double ball bearing
Performance - Fan diameter - 8 cm
Performance - Fan speed (max) - 5000 RPM
Performance - Fan speed (min) - 500 RPM
Performance - Fan static pressure - 5.3 mmH2O
Performance - Maximum airflow - 40 cfm
Performance - Noise level - 0.6 sone
Performance - Operating temperature (T-T) - 0 - 40 °C
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 1 pc(s)
Performance - Suitable location - Computer case
Performance - Type - Fan
Power - Fan current - 0.19 A
Power - Fan voltage - 12 V
Power - Starting voltage - 3.2 V
Producer - Arctic
Product colour Design - Black
ProductName - P8 Max - High-Performance 80 mm PWM Fan
Pulse-width modulation (PWM) support Performance - Yes
Quantity per pack Performance - 1 pc(s)
Rack capacity Design - 2U
Screws included Packaging content - Yes
ShortSummaryDescription - ARCTIC P8 Max - High-Performance 80 mm PWM Fan, Fan, 8 cm, 0.6 sone, 67.96 m³/h, Black
Starting voltage Power - 3.2 V
Suitable location Performance - Computer case
Summary - ARCTIC P8 Max - High-Performance 80 mm PWM Fan. Type: Fan, Fan diameter: 8 cm, Noise level: 0.6 sone, Airflow: 67.96 m³/h. Product colour: Black
Title - ARCTIC P8 Max - High-Performance 80 mm PWM Fan
title_en - Arctic P8 MAX Fan 4-pin / 80mm
title_lv - Arctic P8 MAX Ventilators 4-pin / 80mm
title_ru - Arctic P8 MAX Вентилятор 4-pin / 80mm
Type Performance - Fan
Unit Box Height - 0.03
Unit Box Length - 0.085
Unit Box Width - 0.085
Unit Calculated Volume - 0.0002376 cubm
Unit Calculated Weight - 0.105 kg
Units per Shipping Box - 150
Vendor Homepage - www.arctic.de/en/P8-Max/ACFAN00286A
Warranty - 24 months
Weight - 0.099
weight - 0.15 kg
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Fan dimensions (W x D x H) - 80 x 80 x 25 mm
Weight & dimensions - Fan weight - 84 g
Weight & dimensions - Package depth - 82.5 mm
Weight & dimensions - Package height - 26 mm
Weight & dimensions - Package weight - 89 g
Weight & dimensions - Package width - 82.5 mm
