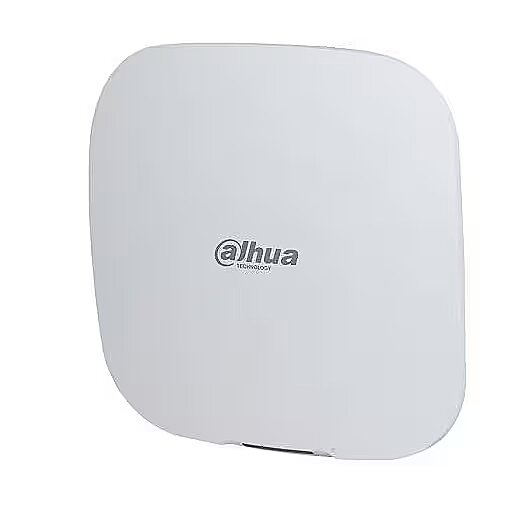

Dahua CONTROL PANEL ALARM HUB/868MHZ ARC3000H-FW2

Brand - Dahua Technology
BrandPartCode - ARC3000H-FW2(868)
Category - Security Alarm Systems
Category Code - CNP
CnCode CnCode - 85311030
Description - Supports 150 wireless peripherals (6 sirens, 64 wireless keyfobs). Peripherals status display (signal strength, battery level, temperature,program version). Wired, Wi-Fi, 4G, 3G or GPRS network connection. Dual SIM and Single Standby. Automatic network replenishment (ANR). Video linkage on App. Frequency hopping function and two-way communication technology ensure communication stability. Cloud update and automatic recovery from update failure. 1 × RJ-45 10 M/100 M Ethernet port Single SIM (GSM:900/1800MHz, WCDMA:B1/B5/B8, LTE-FDD:B1/B3/B5/B7/B8/B20, LTE-TDD:B38/B40/B41); dual SIM single standby SMS, Calling Alarm Built-in lithium battery, standby for 12 hour Carrier Frequency: 868.0 MHz–868.6 MHz Communication Distance: Up to 2,000 m in an open space Encryption Mode: AES128 Wi-Fi: 2.4G/5G Power Supply 12V included Operating Temperature: –10 °C to +50 °C Product Dimensions: 163.0 mm × 163.0 mm × 32.0 mm
Dimensions - 163.0 mm × 163.0 mm × 32.0 mm
Features - Auto-arming - Yes
Features - Certification - CE
Features - Control type - Buttons, Wireless
Features - Housing material - Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Features - Maximum number of subscribers supported - 5
Features - Mounting type - Desk/Wall
Features - Noise detection - Yes
Features - Product colour - White
GTIN - 6923172504869
LongDesc - An all new industrial design and advanced technological system, makes the new generation of wireless alarm products easier to install, look better, communicate more reliably and perform more stably. From the comfort of the mobile apps DMSS (for end users) and COS Pro (for installers), receive notifications in real-time, control and manage your devices, perform remote operations, and more.
LongProductName - 150 channel, 868.0 MHz – 868.6 MHz, 10 / 100 M, LTE, 380 g
LongSummaryDescription - Dahua Technology ARC3000H-FW2(868). Product colour: White, Control type: Buttons, Wireless, Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC). Wi-Fi standards: Wi-Fi 5 (802.11ac), Mobile operating systems supported: Android, iOS, Alert notification type: Phone line, Wi-Fi. Connectivity technology: Wired & Wireless, Input voltage: 12 V, Battery technology: Lithium. Alarm control panel dimensions (W x D x H): 163 x 163 x 32 mm, Alarm control panel weight: 380 g. Package width: 187 mm, Package depth: 219 mm, Package height: 91 mm
Packaging content - Alarm control panel - No
Packaging data - Package depth - 219 mm
Packaging data - Package height - 91 mm
Packaging data - Package weight - 800 g
Packaging data - Package width - 187 mm
Performance - 2G standards - GSM
Performance - Alert notification type - Phone line, Wi-Fi
Performance - Backup battery - Yes
Performance - GSM bands supported - 900,1800 MHz
Performance - Mobile network generation - 4G
Performance - Mobile operating systems supported - Android, iOS
Performance - Number of simultaneously connected devices (max) - 150
Performance - Number of telephone numbers supported (max) - 5
Performance - Operating relative humidity (H-H) - 10 - 90%
Performance - Operating temperature (T-T) - -10 - 50 °C
Performance - SIM card support - Yes
Performance - Smartphone/tablet remote support - Yes
Performance - Wi-Fi - Yes
Performance - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Power - Autonomy mode - Yes
Power - Battery life - 12 h
Power - Battery technology - Lithium
Power - Connectivity technology - Wired & Wireless
Power - Input voltage - 12 V
ProductName - ARC3000H-FW2(868)
Product Net Weight - 0.4 kg
Shipping Box Depth Shipping/Package Box Dimensions - 22 cm
Shipping Box Height Shipping/Package Box Dimensions - 18.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.799 kg
Shipping Box Width Shipping/Package Box Dimensions - 9 cm
ShortSummaryDescription - Dahua Technology ARC3000H-FW2(868), White, Buttons, Wireless, Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Desk/Wall, CE, Wi-Fi 5 (802.11ac)
Title - Dahua Technology ARC3000H-FW2(868) security alarm system Wi-Fi White
Unit Box Height - 0.185
Unit Box Length - 0.22
Unit Box Width - 0.09
Unit Calculated Volume - 0.003663 cubm
Unit Calculated Weight - 0.799 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Alarms/Wireless-Products/Controllers/ARC3000H-FW2(868)
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Alarms/Wireless-Products/Controllers/ARC3000H-FW2(868)
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Alarm control panel dimensions (W x D x H) - 163 x 163 x 32 mm
Weight & dimensions - Alarm control panel weight - 380 g
