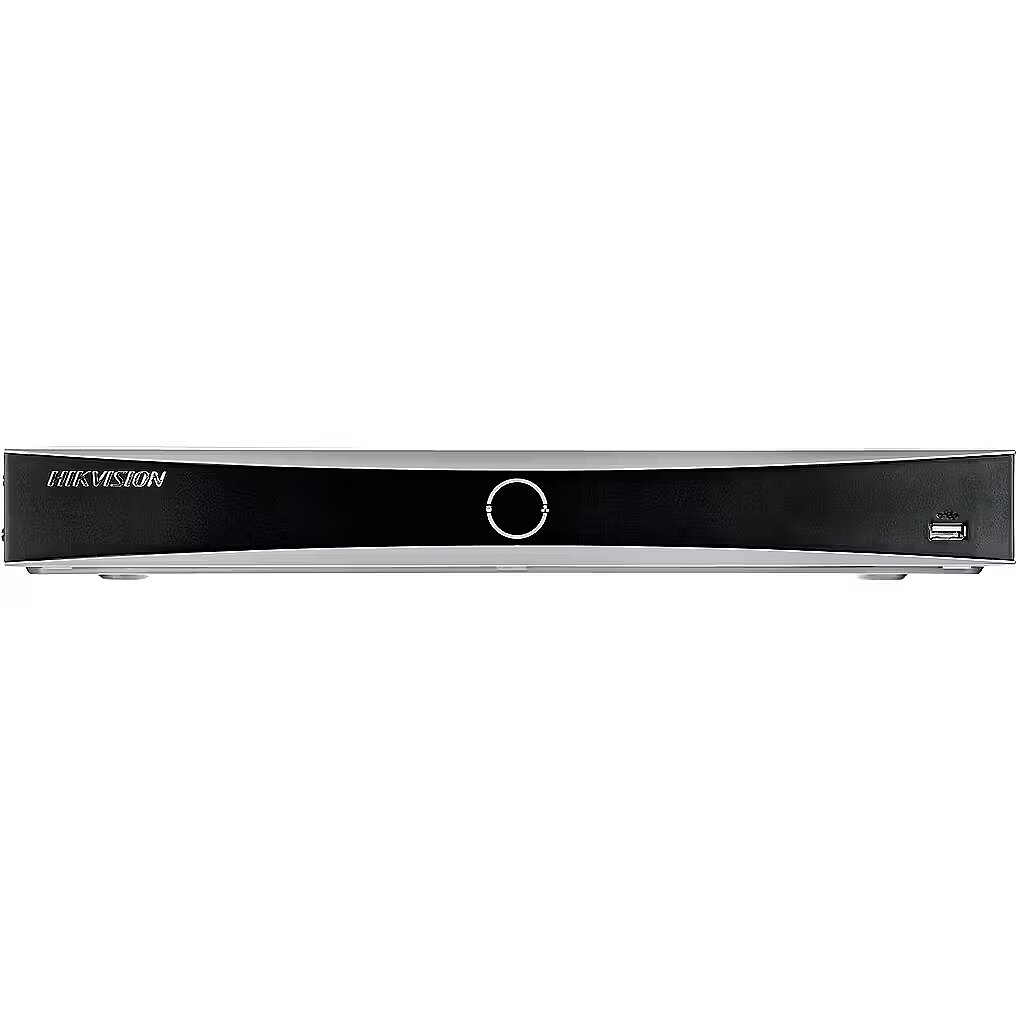

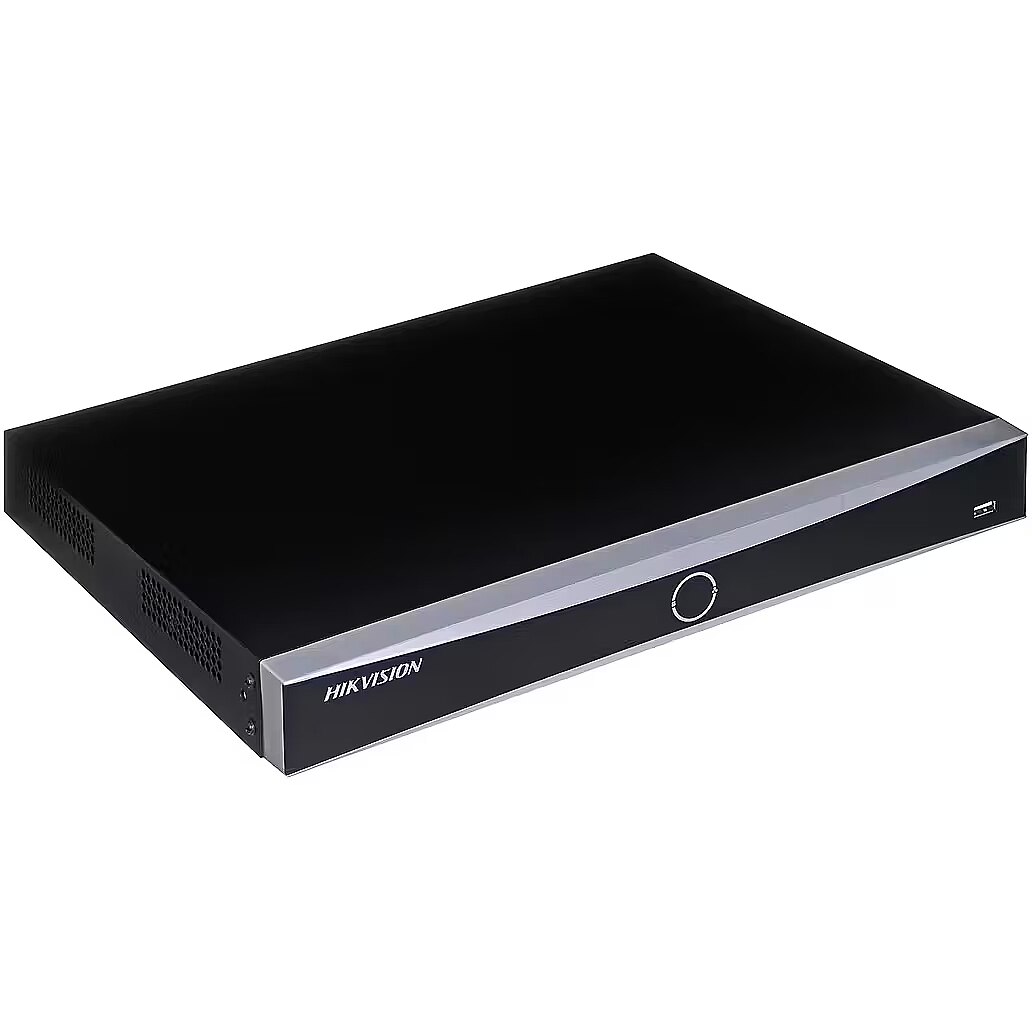

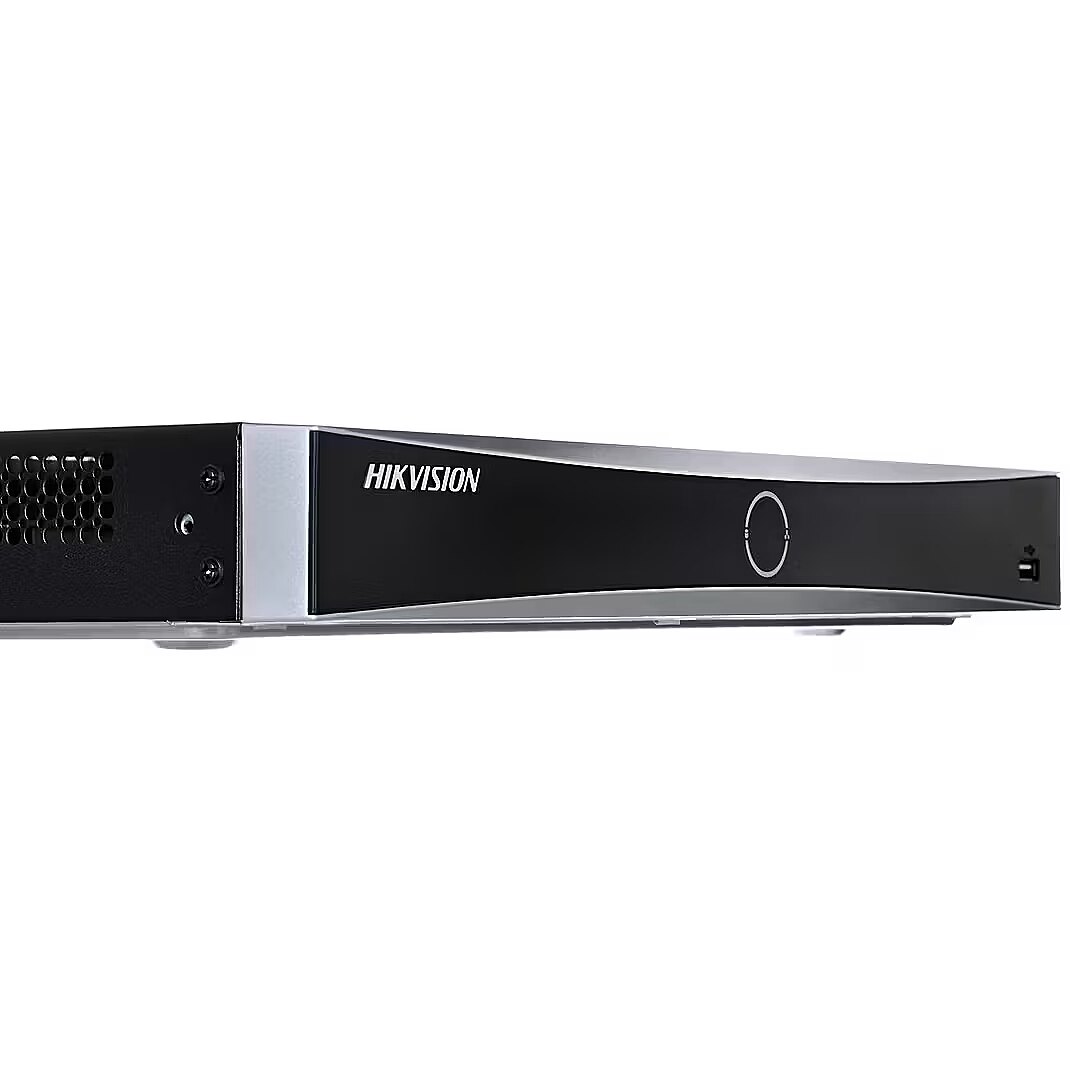

Hikvision Pro Series DS-7616NXI-K1(D) network video recorder 1U Black

Category - Root/Electronics/Networks and communication/Monitoring/Car video recorders
dimensionalWeight - 2031
Display - Built-in display - No
Eans - 6942160489803
Features - Brand compatibility - Hikvision Digital Technology
Features - On/off switch - Yes
Features - Product colour - Black
Features - Rack capacity - 1U
Features - Rack mounting - Yes
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 10 TB
Hard drive - Number of HDDs supported - 1
Name - Hikvision DS-7616NXI-K1(D)
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Performance - Audio formats supported - AAC
Performance - Audio formats supported - G.711 A-law
Performance - Audio formats supported - G.711 μ-law
Performance - Audio formats supported - G.722
Performance - Audio formats supported - G.726
Performance - Face detection - Yes
Performance - Input bandwidth - 160 Mbit/s
Performance - Maximum frame rate - 30 fps
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Number of simultaneously playbacked channels - 16 channels
Performance - Output bandwidth - 80 Mbit/s
Performance - Supported resolutions - 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Performance - Two-way talk - Yes
Performance - Video formats supported - H.264
Performance - Video formats supported - H.264+
Performance - Video formats supported - H.265
Performance - Video formats supported - H.265+
Performance - Video input channels - 16 channels
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10
Ports & interfaces - Ethernet LAN data rates - 100 Mbit/s
Ports & interfaces - Ethernet LAN data rates - 1000 Mbit/s
Ports & interfaces - HDMI output - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Internal SATA ports quantity - 1
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - Supported network protocols - TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 1.5 A
Power - Output voltage - 12 V
Power - Power consumption (max) - 10 W
Producer - HIKvision
producerCode - DS-7616NXI-K1(D)
ProducerCode - DS-7616NXI-K1(D)
productName - Hikvision Pro Series DS-7616NXI-K1(D) network video recorder 1U Black
productSize - Normal
ShortDescription -
sizeX - 420
sizeY - 295
sizeZ - 82
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - Federal Communications Commission (FCC)
Technical details - Sustainability compliance - Yes
warrantyLength - 24
warrantyType - F
weight - 1660
Weight & dimensions - Depth - 240 mm
Weight & dimensions - Height - 48 mm
Weight & dimensions - Weight - 1 kg
Weight & dimensions - Width - 320 mm
Wireless LAN features - Wi-Fi - No
