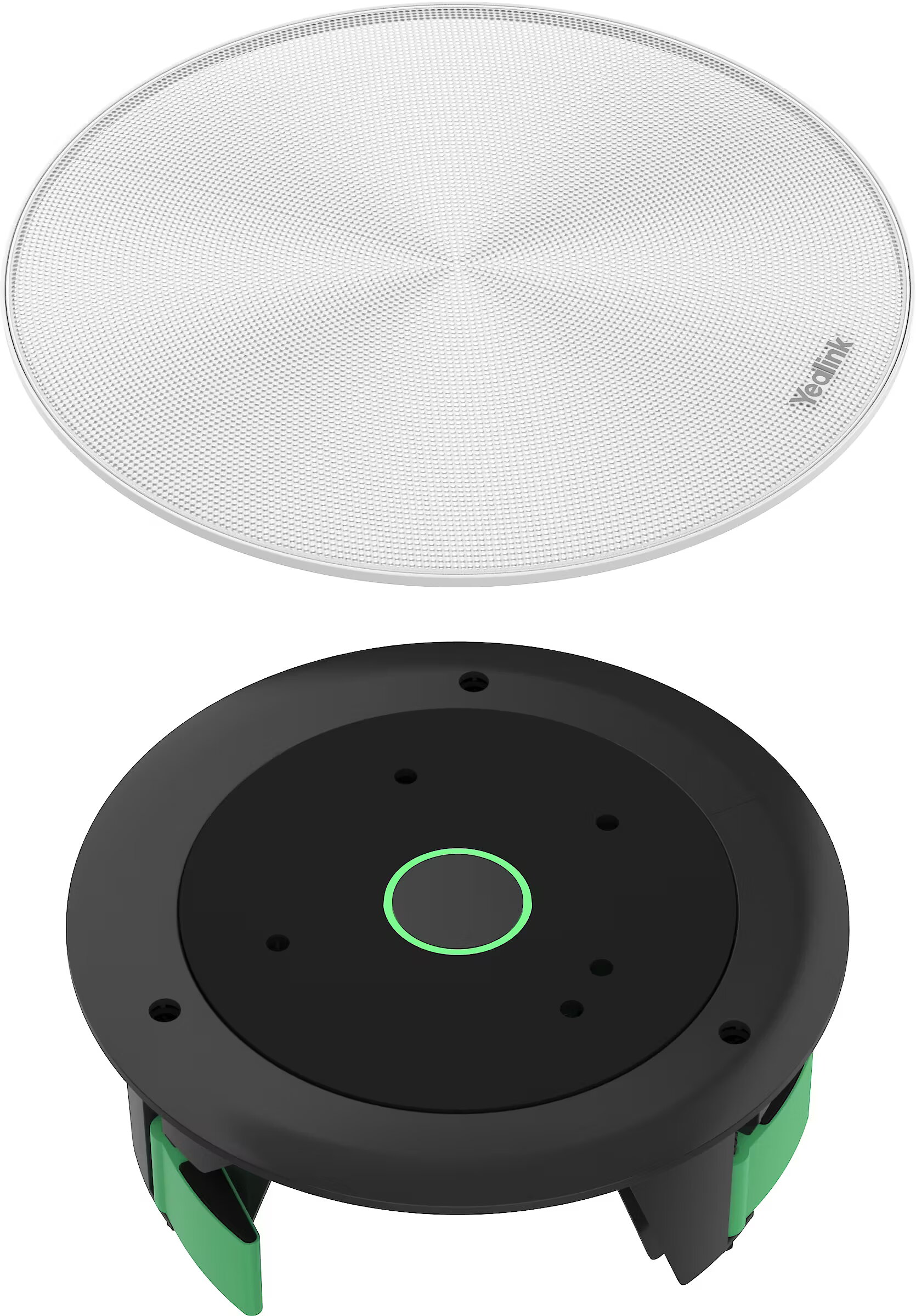

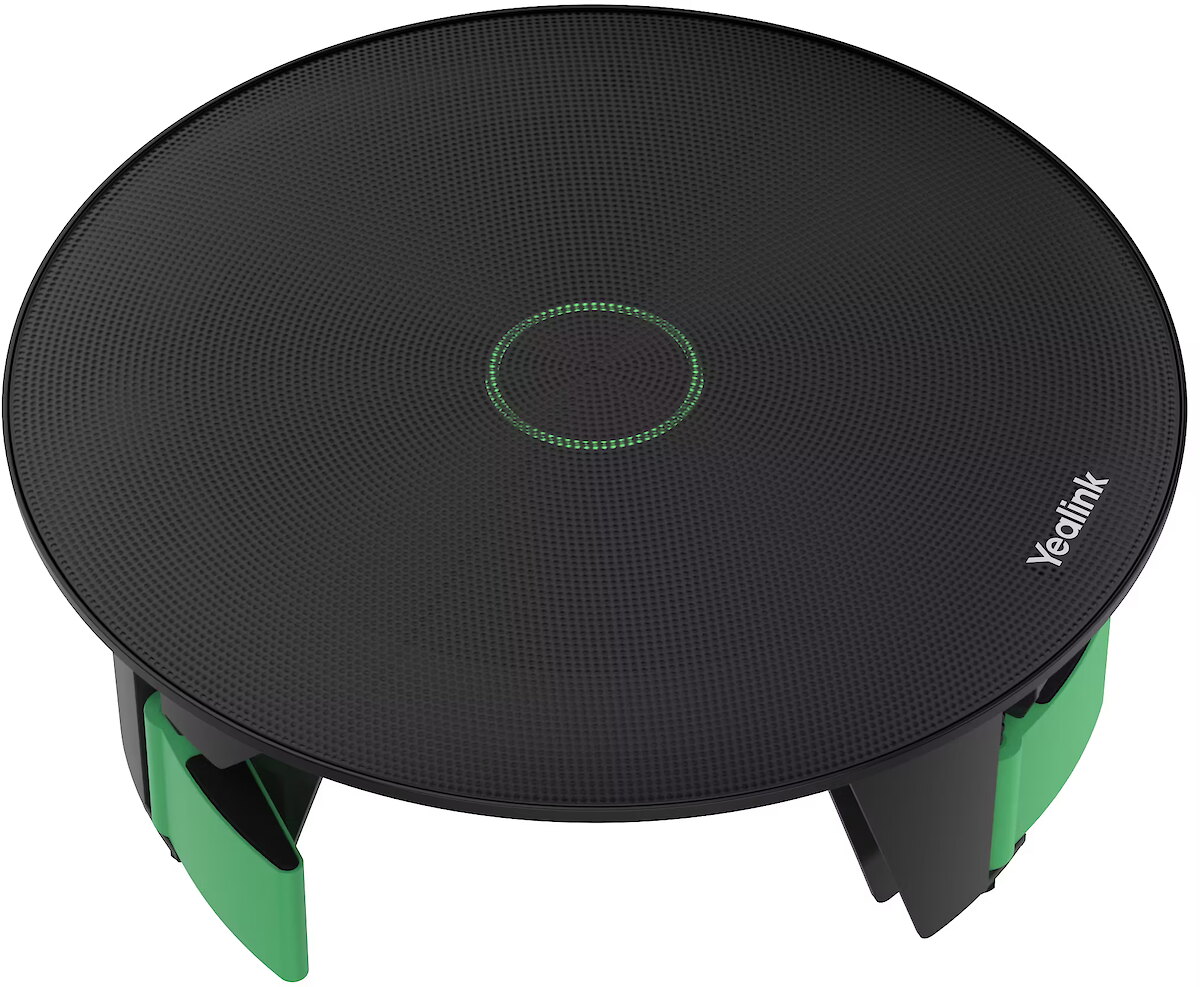

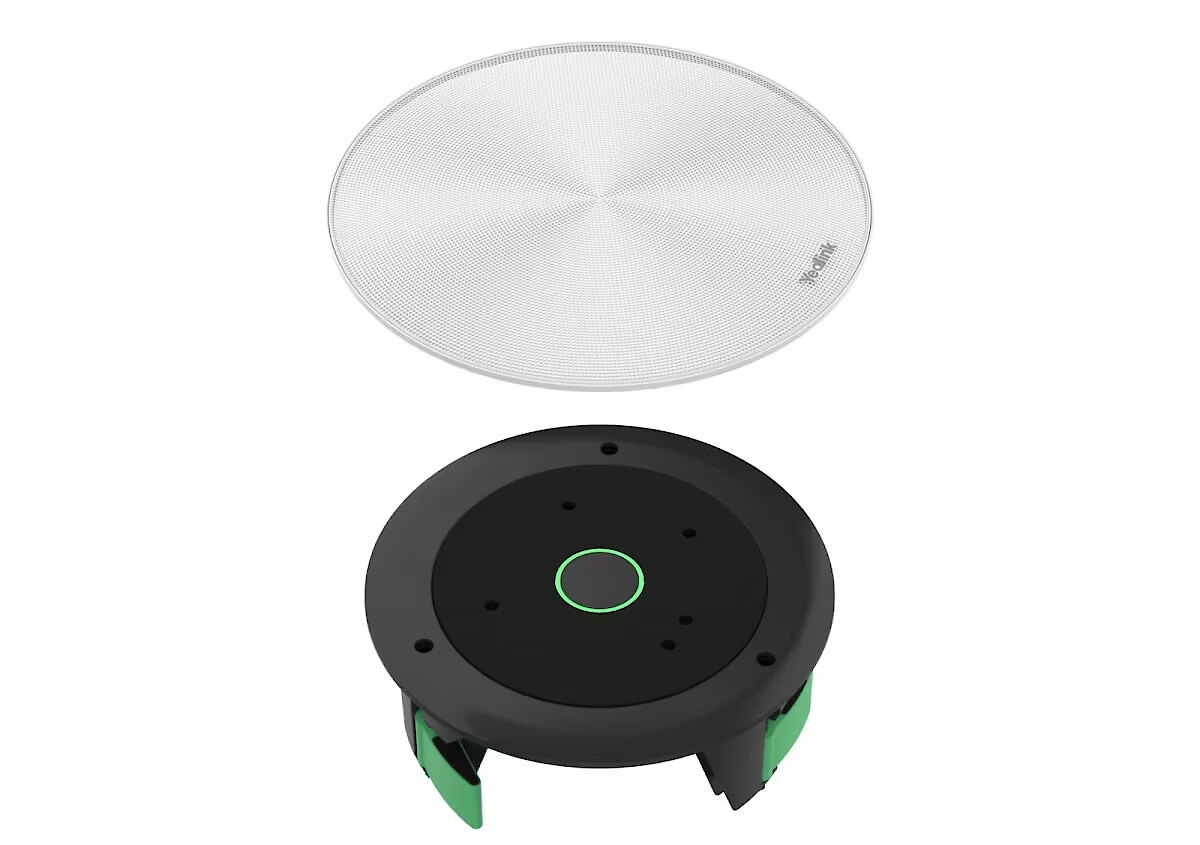

Yealink CM20 Ceiling, Video Conferencing Microphone

Brand - Yealink
BrandPartCode - 1303095
Category - Video Conferencing Accessories
Color - Black
Color - Green
Color - White
Connection - Wired
Data Act - Link
Description - CM20 Ceiling Video Conferencing Microphone 1303095 Array Superior Coverage Intelligent Sound Processing Intelligent Tracking Network and Deployment Efficiency Versatile Ceiling Integration
Designation - CE+WEEE
dimension depth - 410 mm
dimension height - 155 mm
Dimensions - 223 x 83 mm (with cover mesh) 215 x 81 mm (without cover mesh)
dimension weight - 2500 g
dimension width - 330 mm
ean - 6938818317970
Features - Housing material - Acrylonitrile butadiene styrene (ABS), Polycarbonate
Features - Placement supported - Ceiling
Features - Product colour - Grey
Features - Product type - Microphone
GTIN - 0841885120786
GTIN - 841885120786
GTIN - 5715328093881
GTIN - 6938818317970
guarantee - 24
guarantee_type - normal
I/O connectors - 1 x RJ-45 LAN
Logistics data - Country of origin - China
LongDesc - The Yealink CM20 is a premium ceiling microphone, expertly crafted to enhance audio performance in professional conference settings. Boasting an advanced array of 16 omnidirectional microphones, the CM20 captures sound in 360°, ensuring clarity and inclusivity in every discussion. With an integrated DSP, CM20 offers plug-and-play functionality with Yealink MVC systems, removing the need for external audio processing.Designed for medium to large conference rooms, the CM20 combines advanced technology with a sleek, elegant design, making it a perfect blend of functionality and style.
LongProductName - CM20, beamforming ceiling microphone
LongSummaryDescription - Yealink CM20. Product type: Microphone, Product colour: Grey, Placement supported: Ceiling. Microphone sensitivity: 94 dB, Microphone frequency: 120 - 16000 Hz, Microphone direction type: Omnidirectional. Device interface: RJ-45. Power source type: PoE, Power consumption (typical): 5.7 W, Power consumption (max): 9 W. Width: 223 mm, Depth: 223 mm, Height: 83 mm
Microphone - Microphone direction type - Omnidirectional
Microphone - Microphone frequency - 120 - 16000 Hz
Microphone - Microphone sensitivity - 94 dB
Microphone - Number of microphone arrays - 16
Microphone - Signal-to-Noise Ratio (SNR) - 86 dB
name - CM20 Ceiling Video Conferencing Microphone 1303095
Operational conditions - Operating relative humidity (H-H) - 5 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - 0 - 70 °C
Packaging content - Mounting kit - Yes

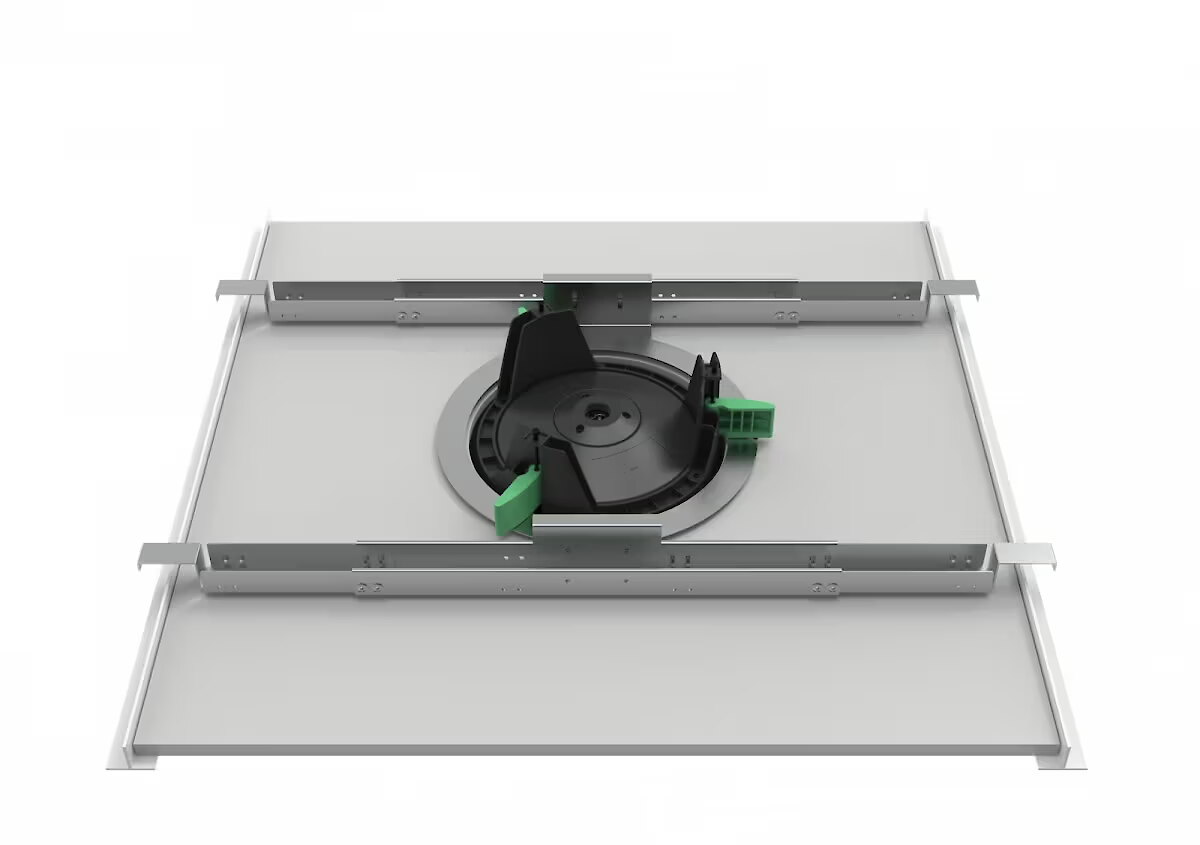

Packaging content - Packaging content - CM20 Microphone, White Mesh Cover (Black Optional), Quick Start Guide, Assembly Fixing Bracket, Dust Cover, Length-Adjustable Pole (Optional), Bracing Bridge*1 pair, Suspend Pole Adapter (Optional), Expansion Bolt*6 (φ6 * 30 mm, white, Polyamide), Self-tapping Screw*6 (T4*30mm), Machine Screw*5 (3*6PMOZN3+), Bracing Bredge Screw*20 (M3*6PWMHOZN3)
Packaging content - Quantity - 1
Packaging content - Screws included - Yes
Packaging content - User guide - Yes
Packaging data - Package depth - 310 mm
Packaging data - Package height - 135 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.46 kg
Packaging data - Package width - 398 mm
Pass band (max) - 16 Hz
Pass band (min) - 120 Hz
Ports & interfaces - Device interface - RJ-45
Power - PoE
Power - Power consumption (max) - 9 W
Power - Power consumption (typical) - 5.7 W
Power - Power source type - PoE
producer - Yealink
ProductName - CM20
ShortSummaryDescription - Yealink CM20, Microphone, Grey, Ceiling, Acrylonitrile butadiene styrene (ABS), Polycarbonate, 94 dB, 120 - 16000 Hz
Signal to Noise Ratio - 86 dB
Title - Yealink CM20 Microphone Grey
URL - https://www.yealink.com/en
vendpn - 1303095
WarrantyInfo -
Weight - 0.615 kg
Weight & dimensions - Depth - 223 mm
Weight & dimensions - Height - 83 mm
Weight & dimensions - Weight - 615 g
Weight & dimensions - Width - 223 mm
