Axagon PCES-SA4M2 PCIe Controller 2x internal SATA 6G port + 2x internal M.2 B-key SATA port + LP

Accessories included - PCI-Express controller with standard bracket, low profile bracket, mounting material,  multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA, packed in a cardboard box.
Box Weight Brutto (kg) - 0.1 kg
Brand - Axagon
BrandPartCode - PCES-SA4M2
Category - Interface Cards/Adapters
category - PC Components|Network & Adapter Cards|Adapter Cards|Serial ATA
Category Code - HDA
Chipset type - ASMedia ASM1164
CnCode - 84733080
code - PCES-SA4M2
Controller Features - Native Command Queuing Hot-plug Drive Support TRIM Support Boot from Connected Disk
Controller Form Factor - Plug-in Card
Controller type - SATA
Controller type - SSD
Data Transfer Rate - 6 Gbps

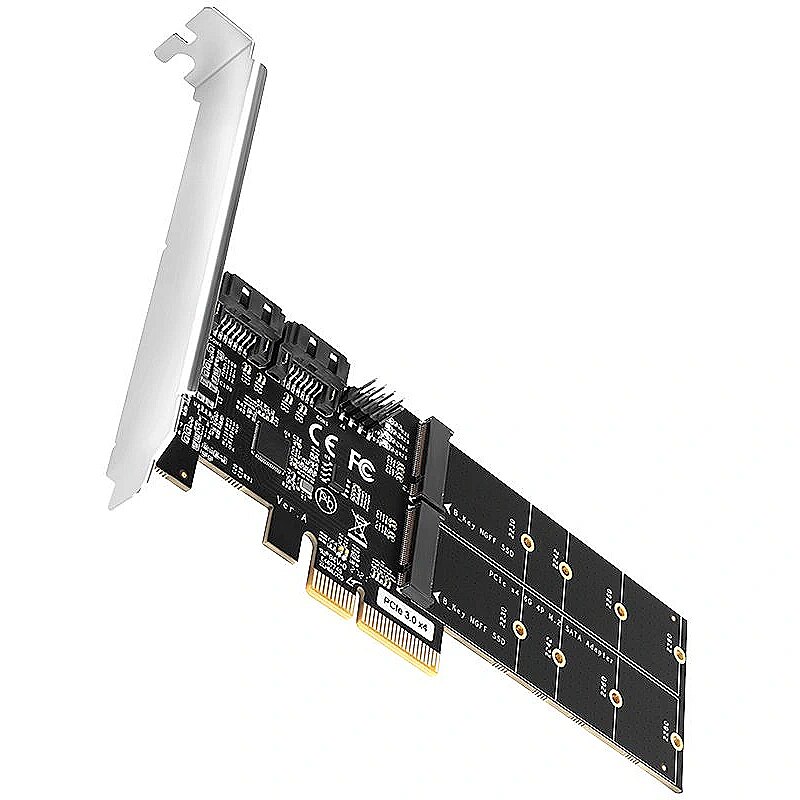

Description - PCES-SA4M2 PCIe controller 2x SATA 6G + 2x SATA M.2 Four-channel SATA III PCI-Express controller with two internal SATA ports and two slots for SATA M.2 disks. Standard & Low profile. The AXAGON PCES-SA4M2 PCI-Express controller extends your desktop PC with two SATA III ports and two slots for SATA M.2 disks with a transmission rate up to 6Gb/s. The combination of a two-port SATA III controller and two SATA M.2 slots makes the card a very useful device for expanding your computer. You can easily connect up to four disks, such as two 3.5" disks or optical drives and two SATA M.2 disks. The card equipped with ASMedia chipset not only supports SATA 3.0 specification, but also other SATA technologies such as Hot-Plug, Native Command Queue (NCQ), TRIM, or Port Multiplier. Easy installation without the need to install drivers on most operating systems. Included low profile bracket allow controller installation into standard and also low profile PC cases.
Description - The AXAGON PCES-SA4M2 PCI-Express controller extends your desktop PC with two SATA III ports and two slots for SATA M.2 disks with a transmission rate up to 6Gb/s. The combination of a two-port SATA III controller and two SATA M.2 slots makes the card a very useful device for expanding your computer. You can easily connect up to four disks, such as two 3.5" disks or optical drives and two SATA M.2 disks. The card equipped with ASMedia chipset not only supports SATA 3.0 specification, but also other SATA technologies such as Hot-Plug, Native Command Queue (NCQ), TRIM, or Port Multiplier. Easy installation without the need to install drivers on most operating systems. Included low profile bracket allow controller installation into standard and also low profile PC cases. Input:
PCI-Express 3.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.0 /2.1.  Number of 2-Lane (x2) lines, compatible with x4 / x8 / x16 PCIe slots.  The bandwidth of 2-Lane PCI-Express 3.0 bus 4 GB/s bidirectional. Outputs:
2x independent Serial ATA port, SATA III 6G standard. 2x internal 7-pin SATA data connector.  Supports all SATA I / SATA II / SATA III optical drives, SSDs and hard disks of all capacities. 2x independent NGFF 75-pin B-key slot for SATA M.2 drives. designed for B+M-key and B-key disks with 2230, 2242, 2260 a 2280 mm dimensions. Support of both one-sided and double-sided SATA M.2 SSD disks of all capacities. Other features:
Full Plug and Play support.  Compliant with Serial ATA 3.0 specification (SATA/600), transmission rates of up to 6 Gb/s (600 MB/s).  Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s).  Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s).  Compliant with the ATA AHCI (Advanced Host Controller Interface) specification revision 1.4.  Fully supports Hot Plug connecting and disconnecting of SATA devices while running. Supports Native Command Queuing (NCQ). TRIM feature support for SSD disks. Port Multiplier Command Based Switching feature support. Boot support from connected disk incl. cooperation with computer motherboard BIOS / UEFI. 4x LED to indicate connected disks activity. Four 2-pin sockets for connecting the HDD LEDs of the computer case. The ASMedia ASM1164 chipset is used. Supported OS:
MS Windows 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2008 / 2012 / 2016 / 2019 / 2022 and later (supported are all 32- and 64-bit Windows OS versions), Linux with kernel 2.6.x and above. Package contains:
PCI-Express controller with standard bracket, low profile bracket, mounting material,  multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA, packed in a cardboard box.
Design - Certification - CE
Design - Country of origin - China
Design - Easy to install - Yes
Design - Hot-Plug support - Yes
Design - Internal - Yes
Designation - CE+WEEE
dimension depth - 30 mm
dimension height - 225 mm
Dimensions -
dimension weight - 150 g
dimension width - 155 mm
ean - 8595247906984
EAN Code - 8595247906984
Features - Native Command Queuing (NCQ) - Yes
Features - Plug and Play - Yes
Features - TRIM support - Yes
GTIN - 8595247906984
guarantee - 24
guarantee_type - normal
Image - https://content.it4profit.com/pimg/s/resize/800x800x800x800/230119090014892554.jpg
Included Accessories - • PCI-Express controller with standard bracket,
• low profile bracket,
• mounting material
Interface - PCIe
LongDesc - The AXAGON PCES-SA4M2 PCI-Express controller extends your desktop PC with two SATA III ports and two slots for SATA M.2 disks with a transmission rate up to 6Gb/s. The combination of a two-port SATA III controller and two SATA M.2 slots makes the card a very useful device for expanding your computer. You can easily connect up to four disks, such as two 3.5" disks or optical drives and two SATA M.2 disks.The card equipped with ASMedia chipset not only supports SATA 3.0 specification, but also other SATA technologies such as Hot-Plug, Native Command Queue (NCQ), TRIM, or Port Multiplier. Easy installation without the need to install drivers on most operating systems. Included low profile bracket allow controller installation into standard and also low profile PC cases.Input: • PCI-Express 3.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.0 /2.1. • Number of 2-Lane (x2) lines, compatible with x4 / x8 / x16 PCIe slots. • The bandwidth of 2-Lane PCI-Express 3.0 bus 4 GB/s bidirectional.Outputs:• 2x independent Serial ATA port, SATA III 6G standard.• 2x internal 7-pin SATA data connector. • Supports all SATA I / SATA II / SATA III optical drives, SSDs and hard disks of all capacities.• 2x independent NGFF 75-pin B-key slot for SATA M.2 drives.• designed for B+M-key and B-key disks with 2230, 2242, 2260 a 2280 mm dimensions.• Support of both one-sided and double-sided SATA M.2 SSD disks of all capacities.Other features:• Full Plug and Play support. • Compliant with Serial ATA 3.0 specification (SATA/600), transmission rates of up to 6 Gb/s (600 MB/s). • Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s). • Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s). • Compliant with the ATA AHCI (Advanced Host Controller Interface) specification revision 1.4. • Fully supports Hot Plug connecting and disconnecting of SATA devices while running.• Supports Native Command Queuing (NCQ).• TRIM feature support for SSD disks.• Port Multiplier Command Based Switching feature support.• Boot support from connected disk incl. cooperation with computer motherboard BIOS / UEFI.• 4x LED to indicate connected disks activity.• Four 2-pin sockets for connecting the HDD LEDs of the computer case.• The ASMedia ASM1164 chipset is used.Supported OS:• MS Windows 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2008 / 2012 / 2016 / 2019 / 2022 and later (supported are all 32- and 64-bit Windows OS versions), Linux with kernel 2.6.x and above.Package contains:• PCI-Express controller with standard bracket,• low profile bracket,• mounting material, • multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,• packed in a cardboard box.
LongProductName - PCES-SA4M2 PCIe controller 2x SATA 6G + 2x SATA M.2
LongSummaryDescription - Axagon PCES-SA4M2 PCIe Controller 2x internal SATA 6G port+ M.2 B-key. Host interface: PCIe, Output interface: M.2, SATA, Expansion card standard: PCIe 3.0. Country of origin: China, Certification: CE. Quantity per pack: 1 pc(s), Package width: 155 mm, Package depth: 230 mm
M.2 - 2 (M.2 (Key B))
Model - PCES-SA4M2
name - AXAGON PCES-SA4M2 PCIe Controller 2x internal SATA 6G port + 2x internal M.2 B-key SATA port + LP
name - AXAGON PCES-SA4M2 PCIe controller 2x port + M.
Number of Input-Output Channels - 4
Other features -
Package Type - Retail
Packaging data - Manual - Yes
Packaging data - Package depth - 230 mm
Packaging data - Package height - 30 mm
Packaging data - Package type - Box
Packaging data - Package weight - 144 g
Packaging data - Package width - 155 mm
Packaging data - Quantity per pack - 1 pc(s)
Packs in Box - 1
Pack Weight Brutto (kg) - 0.05 kg
Pack Weight Netto (kg) - 0.1 kg
Pieces in pack - 1
Ports - 2 x M.2 SATA
Ports - 2 x SATA
Ports & interfaces - Expansion card standard - PCIe 3.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Internal SATA ports quantity - 2
Ports & interfaces - Number of M.2 (B) slots - 2
Ports & interfaces - NVMe - No
Ports & interfaces - Output interface - M.2, SATA
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=230118151542995753&THEME=asbis&LANG=lv
ProductCategory - Adapteri
ProductCode - PCES-SA4M2
ProductDescription - Axagon Four-channel SATA III PCI-Express controller with two internal SATA ports and two slots for SATA M.2 disks. Standard & Low profile.
ProductName - PCES-SA4M2 PCIe Controller 2x internal SATA 6G port+ M.2 B-key
Product Net Weight - 0.1 kg
ProductType - Adaptors
Provides Data Channel - SATA III
Requires Expansion Slot Convention - Low-profile Card
Requires Expansion Slot Standard - PCI Express 3.0 x4
Requires Operating System - Microsoft Windows Server 2008 Linux Microsoft Windows Server 2003 Microsoft Windows Server 2012 Microsoft Windows 7 or Later Microsoft Windows Server 2016 Microsoft Windows Server 2019 Microsoft Windows Server 2022
Retail Packaging Net Weight Carton - 0.1 kg
Retail Packaging Net Weight Plastic - 0.1 kg
SATA III - 2 (7-pin SATA)
ShortSummaryDescription - Axagon PCES-SA4M2 PCIe Controller 2x internal SATA 6G port+ M.2 B-key, PCIe, M.2, SATA, PCIe 3.0, China, CE, 1 pc(s)
System Requirements -
System requirements - Linux operating systems supported - Yes
System requirements - Server operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Technical details - Compliance certificates - RoHS
Title - Axagon PCES-SA4M2 PCIe Controller 2x internal SATA 6G port+ M.2 B-key interface cards/adapter M.2, SATA
Unit Box Height - 0.03
Unit Box Length - 0.155
Unit Box Width - 0.23
Unit Calculated Volume - 0.001069 cubm
Unit Calculated Weight - 0.14 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/pces-sa4m2
Vendor - AXAGON
Vendor Homepage - www.axagon.eu/en/produkty/pces-sa4m2?ami=252
vendpn - PCES-SA4M2
Warranty - 24 months
WarrantyInfo - 2 years
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
