Accessories included -
Brand - ICY BOX
BrandPartCode - 60729
Category - Storage Drive Enclosures
Category_1 - Computers and Laptops
Category_2 - Computers - Accessories
Color - Black
Connectors - 1 x USB (Type C)

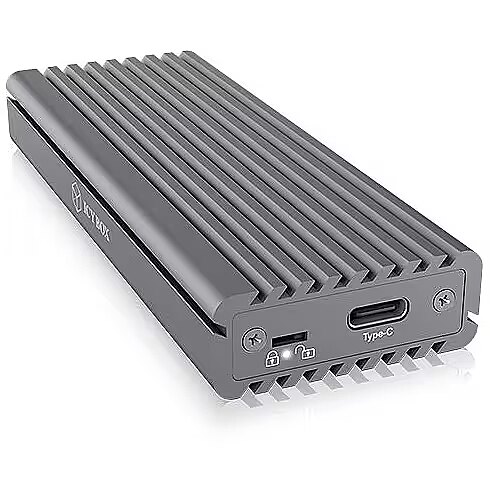

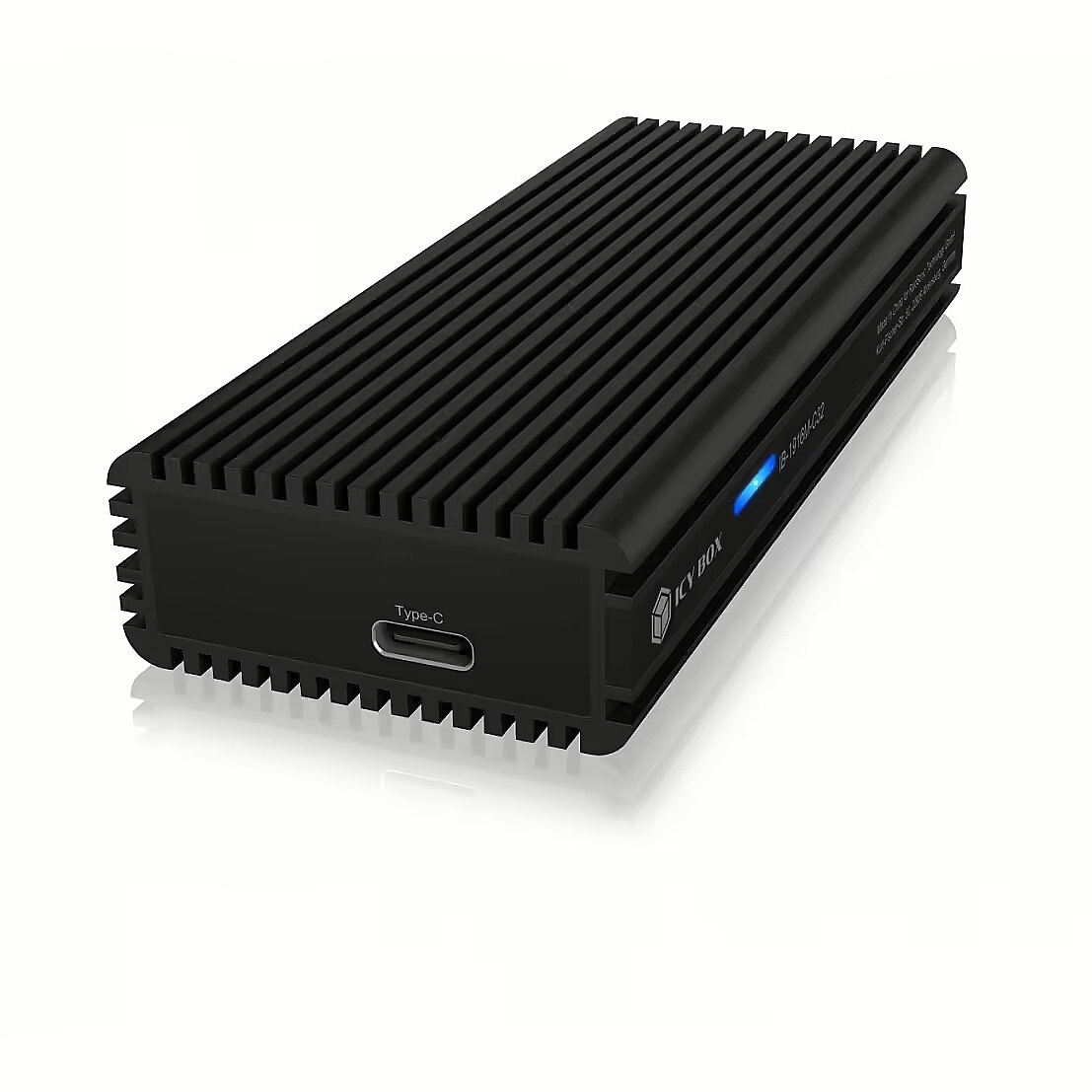

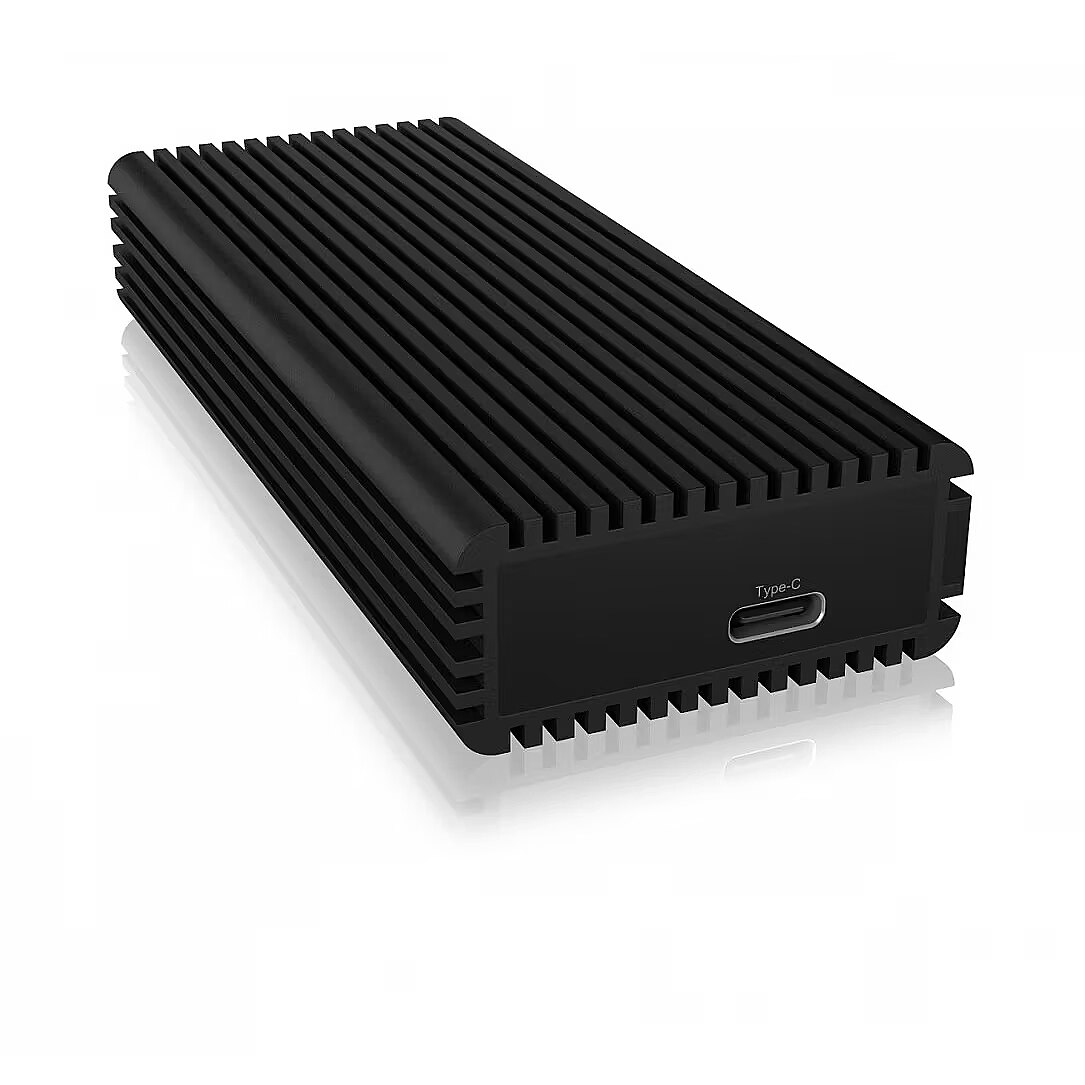

Description - External Type-C enclosure for M.2 NVMe SSD High-grade aluminium enclosure with innovative heat sink design
PCIe 3.0 x4 data transfer rates of up to 20 Gbit per second
M-Key socket for M.2 NVMe SSDs, 22x 80 mm
Interface to host computer: USB 3.2 (Gen 2x2) Type-C
Backwards compatible to USB 3.1/3.0/2.0

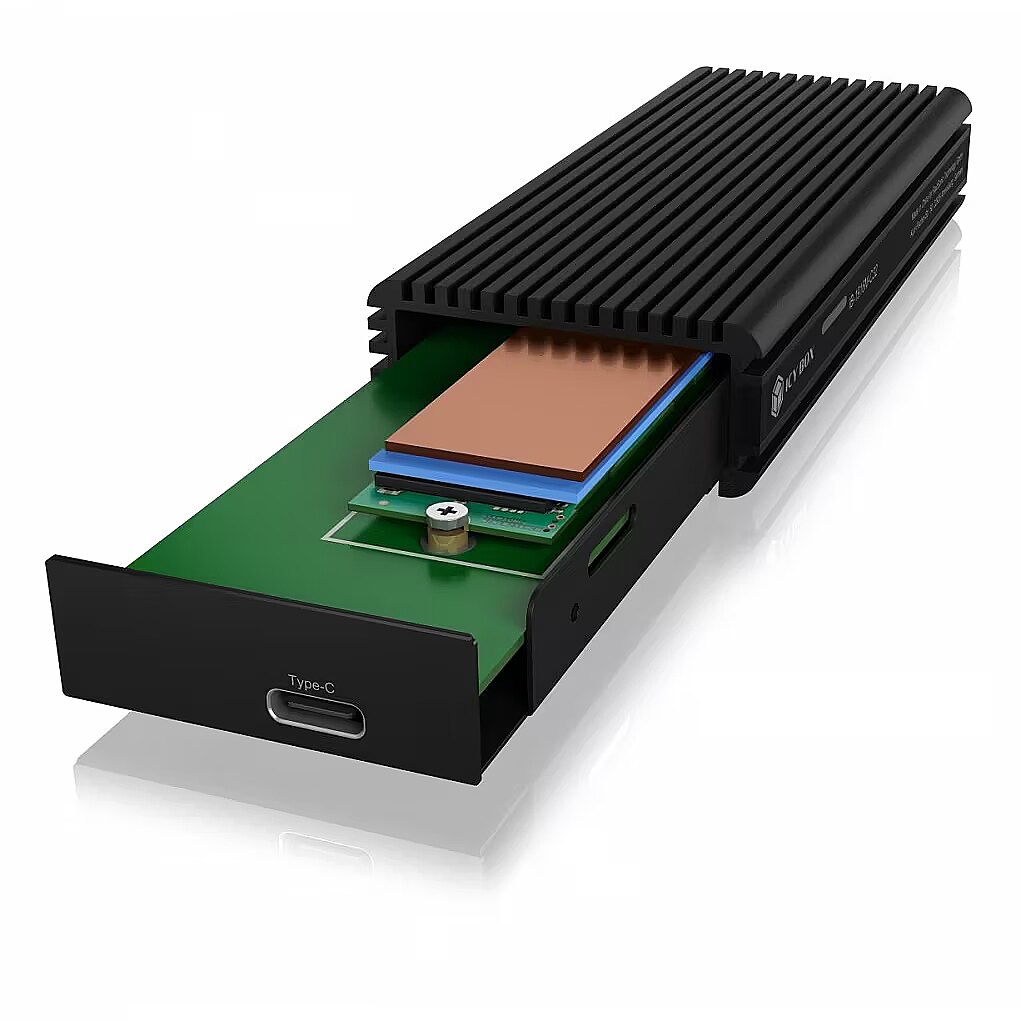

Including an additional copper heat sink and silicone thermal pad inside
Supports Windows, macOS
Design - LED indicators - Access, Power
Design - Material - Acrylic, Aluminium, Steel
Design - Product colour - Black
Design - Product type - SSD enclosure
Designation - CE+WEEE
dimension depth - 40 mm
dimension height - 200 mm
Dimensions - 110x45x19 mm
dimension weight - 26 g
dimension width - 100 mm
ean - 4250078170655
EAN_code - 4250078170655
Form factor (width) - M.2
GTIN - 4250078170655
guarantee - 24
guarantee_type - normal
HDD interface - USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - USB 3.2 (Gen 2x2)Motherboards and external enclosures that support USB 20 Gbps ports are gaining ground even before the new USB 4 standard becomes widely available. If you are keeping up with the times, all your hard drives will seem lazy now, because the new ICY BOX M.2 NVMe enclosure is faster and more versatile than ever before!Perfect SymbiosisUSB 3.2 (Gen 2x2)-capable connections on computers are far from being standard, even though some of the latest generations of desktop motherboards already have them. This makes it all the more important to pay attention to the new USB specification. If you want to be a technology pioneer, you will be surprised by the incredible data transfer rates of the IB-1916M-C32 and use the perfect combination with our IB-PCI1901-C32 expansion card!Two for AllCompare the contents of the package with the specific connections of your PC. If you only have USB 3.0 Type-A capable connections, the IB-1916M-C32 can still be connected and used but only a connection via USB 3.2 (Gen 2x2) will reach the full transfer rate.
LongProductName - Enclosure for 1x NVMe with USB 3.2 (Gen 2x2) Type-C® and Type-A interface
LongSummaryDescription - ICY BOX IB-1916M-C32. Product type: SSD enclosure. Number of storage drives supported: 1, Storage drive size: M.2, Supported storage drive interfaces: PCI Express 3.0, Maximum storage capacity: 2 TB. Data transfer rate: 20 Gbit/s. Product colour: Black. USB connector type: USB Type-C
Manufacturer - Icy Box
Manufacturer_code - 60729
name - ICY BOX IB-1916M-C32 USB 3.2 (Gen 2x2), NVMe
Name - ICY BOX IB-1916M-C32, drive housing
Other features -

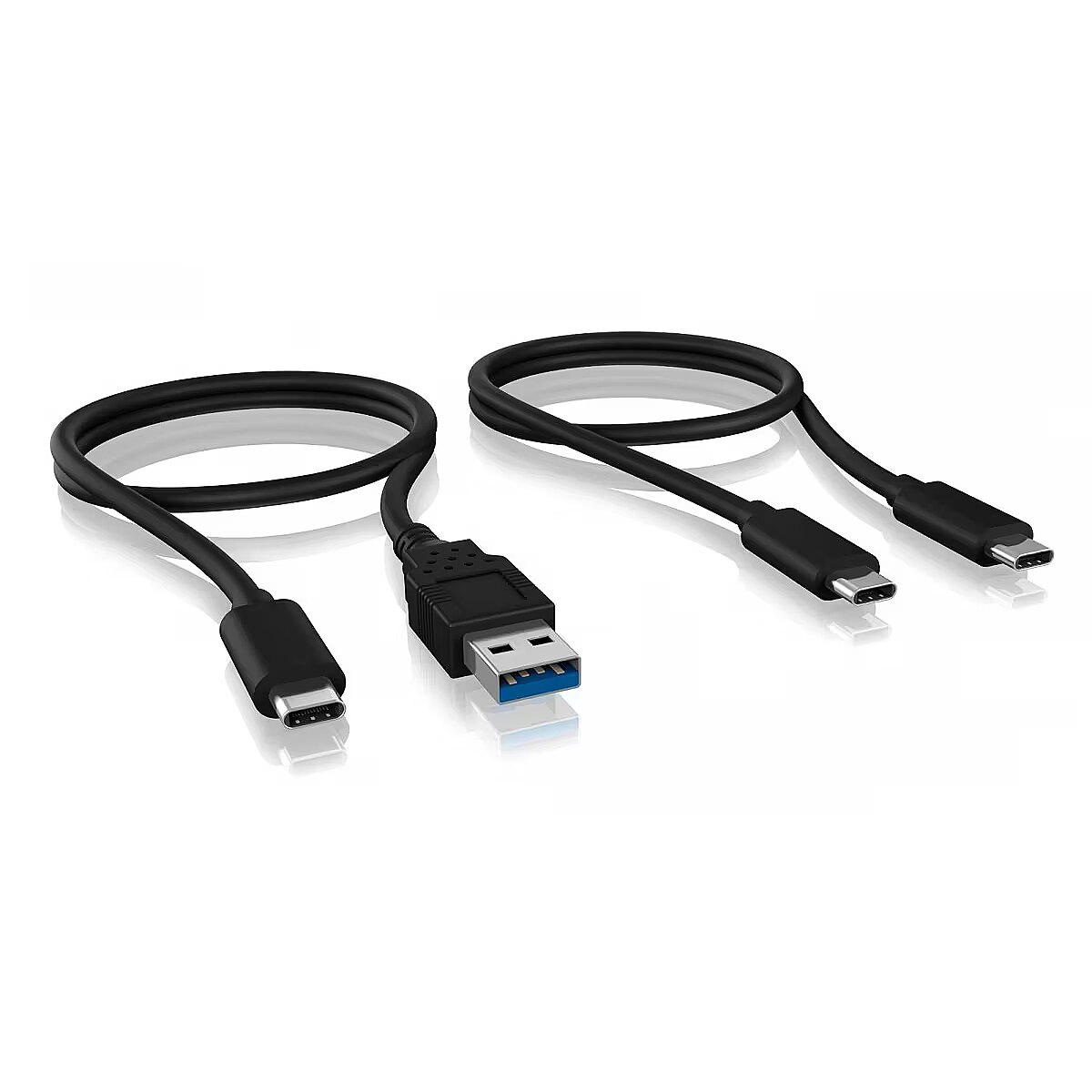

Packaging content - Cables included - USB Type-A to USB Type-C, USB Type-C to USB Type-C
Packaging content - Manual - Yes
Packaging content - Screwdriver included - Yes
Packaging content - Screws included - Yes
Performance - Country of origin - China
Performance - Data transfer rate - 20 Gbit/s
Performance - Plug and Play - Yes
Ports & interfaces - USB connectivity - Yes
Ports & interfaces - USB connector gender - Female

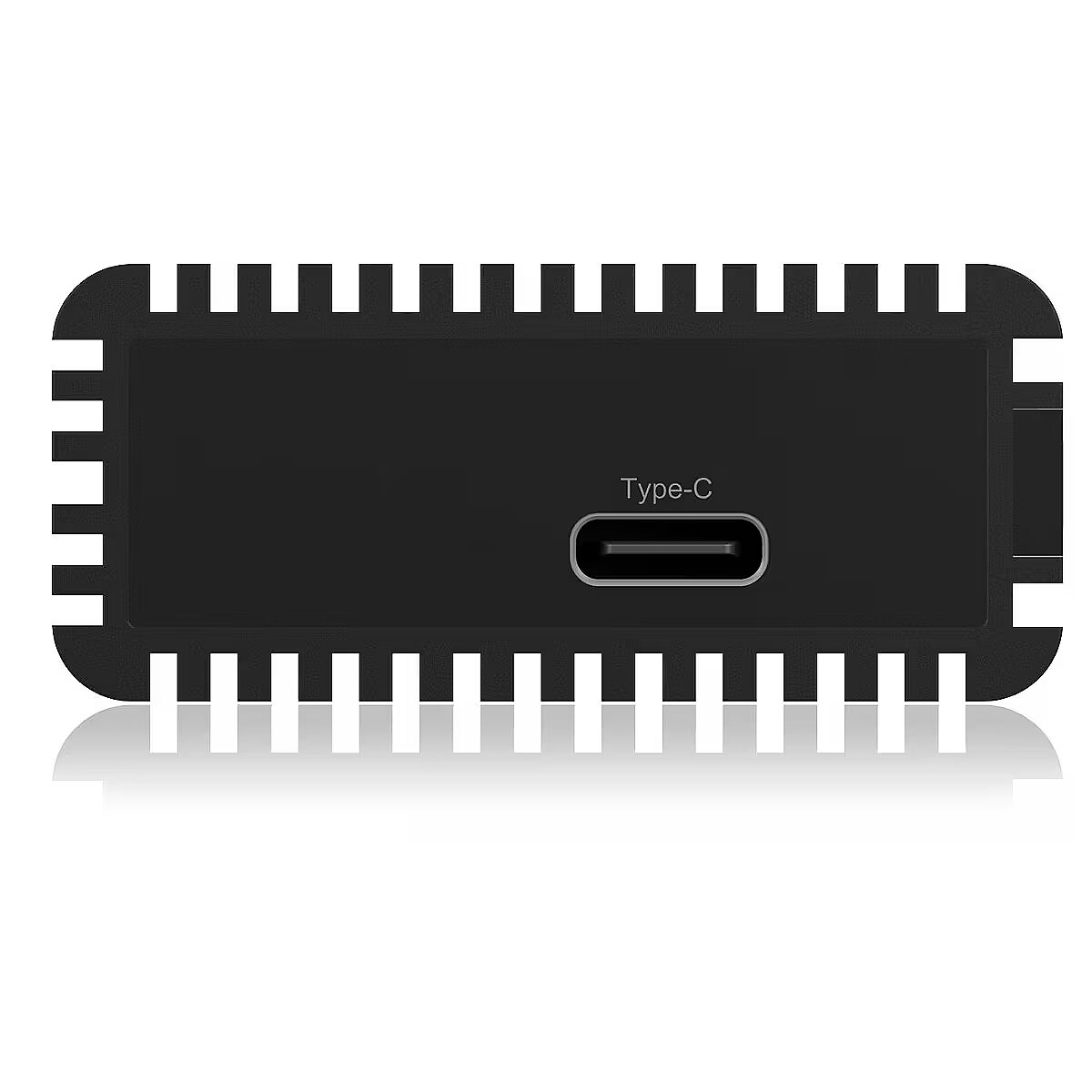

Ports & interfaces - USB connector type - USB Type-C
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - USB version - 3.2 Gen 2 (3.1 Gen 2)
Power - Power source type - USB
producer - IcyBox
ProductName - IB-1916M-C32
ShortSummaryDescription - ICY BOX IB-1916M-C32, SSD enclosure, M.2, PCI Express 3.0, 20 Gbit/s, USB connectivity, Black
Storage - Maximum storage capacity - 2 TB
Storage - Number of storage drives supported - 1
Storage - Storage drive size - M.2
Storage - Supported storage drive heights - 22 mm
Storage - Supported storage drive interfaces - PCI Express 3.0
Storage - Supported storage drive lengths - 80 mm
Stuff - Aluminum
Supported operating systems - Mac OS
Supported operating systems - Windows
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Title - ICY BOX IB-1916M-C32 SSD enclosure Black M.2
Type - External enclosure
URL - https://icybox.de/en/product.php?id=61
vendpn - IB-1916M-32
WarrantyInfo -
Weight - 0,28
Weight - 0.138 kg
Weight & dimensions - Cable length - 0.45 m
Weight & dimensions - Depth - 45 mm
Weight & dimensions - Height - 19 mm
Weight & dimensions - Package depth - 35 mm
Weight & dimensions - Package height - 200 mm
Weight & dimensions - Package weight - 269 g
Weight & dimensions - Package width - 100 mm
Weight & dimensions - Weight - 138 g
Weight & dimensions - Width - 110 mm
