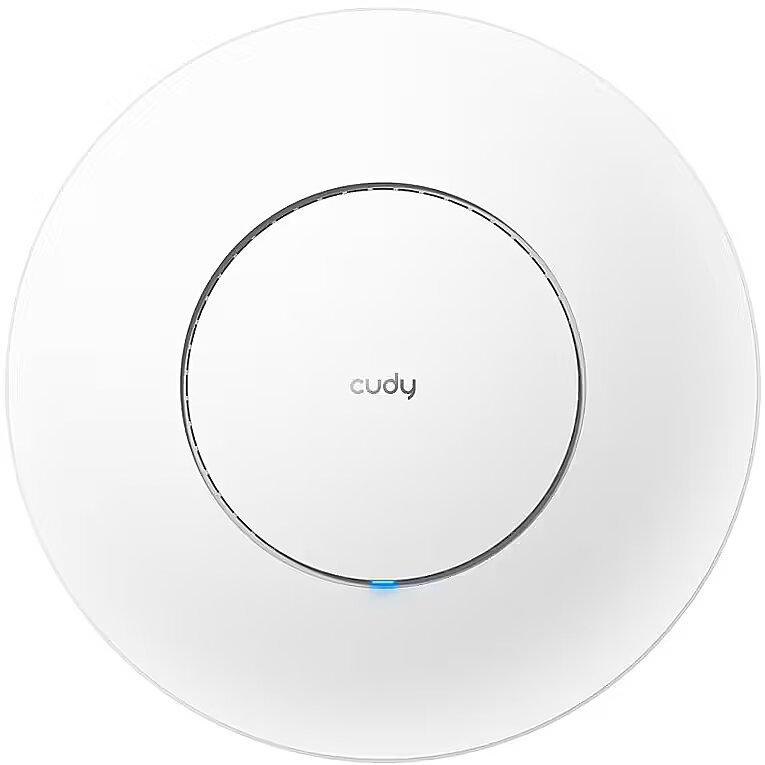

Cudy AP3600 wireless access point 2882 Mbit/s White

Antenna - Antenna gain level (max) - 5.5 dBi
Antenna - Antennas quantity - 4
Antenna - Antenna type - Internal
Brand - Cudy
BrandPartCode - AP3600
Category - Wireless Access Points
Category1 - Network Wireless
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC)
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Description1 - Cudy wifi Access Point AP3600 - 2.4 / 5 GHz
Design - LED indicators - System
Design - Placement - Ceiling, Wall
Design - Product colour - White
Design - Reset button - Yes
dimensionalWeight - 1101
EAN - 6971690793999
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - Bluetooth - No
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 10,100,1000,2500 Mbit/s
Features - Ethernet LAN data rates - 100
Features - Ethernet LAN data rates - 1000
Features - Ethernet LAN data rates - 2500 Mbit/s
Features - Maximum data transfer rate - 3570 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 688 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 2882 Mbit/s
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Networking standards - IEEE 802.3af
Features - Networking standards - IEEE 802.3at
Features - Networking standards - IEEE 802.11ac
Features - Networking standards - IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Features - Networking standards - IEEE 802.11ax
Features - Networking standards - IEEE 802.11be
Features - Networking standards - IEEE 802.11g
Features - Networking standards - IEEE 802.11n
Features - Quality of Service (QoS) support - Yes
Features - VLAN support - Yes
GTIN - 6971690793999
Logistics data - Country of origin - China
LongDesc - A wall/ceiling-mounted WiFi 7 AP designed for malls, offices, campuses, and other high-density scenarios, featuring a 2.5G PoE IN port and a PoE Out port.
LongProductName - BE3600 2.5G Wi-Fi 7 Access Point
LongSummaryDescription - Cudy AP3600. 2.4 GHz, 5 GHz, Maximum data transfer rate: 3570 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 10 W
Management features - Cloud-managed - Yes
Management features - Syslog - Yes
Manufacturer - Cudy
ManufacturerID - AP3600
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - AC adapter included - No
Packaging content - Bundled software - Cudy Software
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Mounting kit - Yes
Packaging content - PoE adapter included - No
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 238 mm
Packaging data - Package height - 73 mm
Packaging data - Package weight - 843 g
Packaging data - Package width - 310 mm
Performance - Built-in processor - Yes
Performance - Flash memory - 128 MB
Performance - Internal memory - 512 MB
Performance - Processor frequency - 2000 MHz
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Power - DC voltage range - 48-57 V
Power - Output current - 1 A
Power - Output voltage - 12 V
Power - Power consumption (max) - 10 W
Power - Power over Ethernet (PoE) - Yes
Power - Power over Ethernet (PoE) type supported - Passive PoE
producerCode - AP3600
ProductName - AP3600
productName - Cudy AP3600 wireless access point 3570 Mbit/s White Power over Ethernet (PoE)
productSize - Normal
Protocols - DHCP server - Yes
Security - Guest access - Yes
Security - IGMP snooping - Yes
Security - Number of SSID supported - 8
Security - Security algorithms - WPA
Security - Security algorithms - WPA, WPA2, WPA3
Security - Security algorithms - WPA2
Security - Security algorithms - WPA3
ShortSummaryDescription - Cudy AP3600, 2.4 GHz, 5 GHz, 3570 Mbit/s, WPA, WPA2, WPA3, 10,100,1000,2500 Mbit/s
sizeX - 74
sizeY - 240
sizeZ - 310
Technical details - Products per shipping (inner) case - 10 pc(s)
Title - Cudy AP3600 wireless access point 3570 Mbit/s White Power over Ethernet (PoE)
URL - https://www.cudy.com/products/ap3600-1-0
WarrantyInfo -
warrantyLength - 24
warrantyType - G
WEEE - DE46285170
weight - 915
Weight & dimensions - Depth - 231.9 mm
Weight & dimensions - Height - 57.1 mm
Weight & dimensions - Weight - 435 g
Weight & dimensions - Width - 231.9 mm
