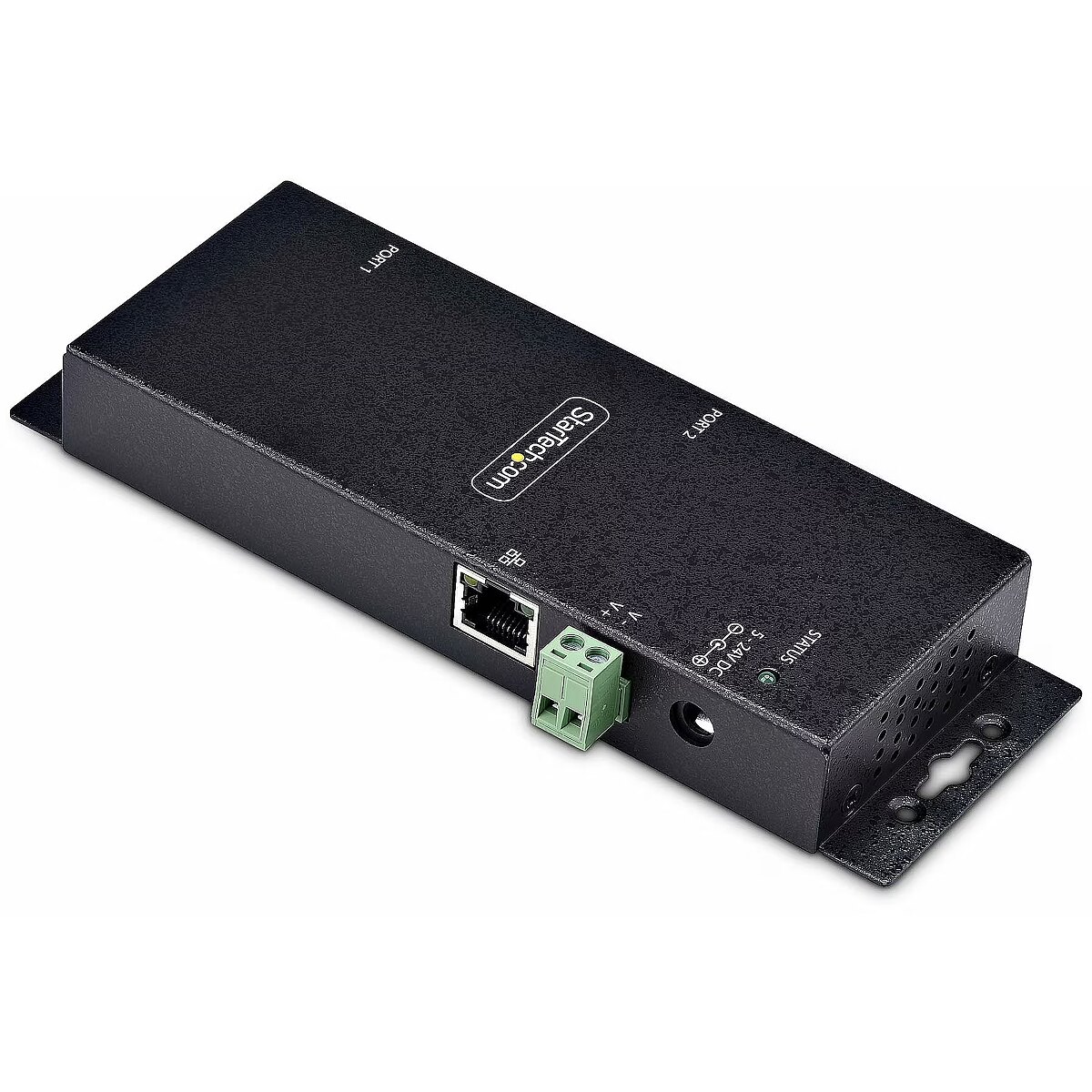

Startech 2P SERIAL TO ETHERNET ADAPTER .

ARTIKEL1 - 2P SERIAL TO ETHERNET ADAPTER
ARTIKEL2 - .
Brand - StarTech.com
BrandPartCode - I23-SERIAL-ETHERNET
Breite - 0
Category - Serial Converters/Repeaters/Isolators
EANCode - 0065030905992
GRUPPE1 - Cables
GRUPPE2 - Serial Cable
GTIN - 0065030905992
GTIN - 065030905992
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - I23-SERIAL-ETHERNET
Indication - LED indicators - Yes
Laenge - 0
Logistics data - Master (outer) case height - 275 mm
Logistics data - Master (outer) case length - 420 mm
Logistics data - Master (outer) case width - 410 mm
Logistics data - Products per master (outer) case - 15 pc(s)
LongDesc - Streamline RS-232 connectivity for serial device management over IPThis 2-port serial to IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network.Configuration and ManagementThe DB9 to Ethernet Adapter family shares the same Windows Virtual COM Port software and Web User Interface (WebUI) for a unified experience. Users can employ the Windows software to view and manage all device servers within a network and to set up virtual COM ports. Alternatively, the WebUI provides a platform-independent method, allowing users to access and configure these device servers from any operating system. This flexibility ensures that administrators can manage their network of device servers efficiently, regardless of the operating system they are using.The product family includes the following options:• 1-Port Serial to Ethernet Adapter with PoE (I13P-SERIAL-ETHERNET)• 1-Port Serial to Ethernet Adapter (I13-SERIAL-ETHERNET)• 2-Port Serial to Ethernet Adapter (I23-SERIAL-ETHERNET)• 4-Port Serial to Ethernet Adapter (I43-SERIAL-ETHERNET)Flexible Installation and Rugged ChassisDual power options, DC jack and terminal block, provide installation flexibility and convenience. The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. Dimensions of 7x2.3x0.9in (178x59.4x23mm).Ethernet and Power OptionsThe TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports Level-4 ESD protection (15kV air/8kV contact), and can supply 5VDC over pin 9 if required.The StarTech.com Advantage
LongProductName - StarTech.com 2-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail, LAN to DB9
LongSummaryDescription - StarTech.com 2-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter. Networking standards: IEEE 802.3i, IEEE 802.3u. Width: 179 mm, Depth: 60 mm, Height: 23 mm. Input voltage: 100 - 240 V, Input current: 0.48 A, Output voltage: 5 V. Housing material: Steel. Number of screws included: 2 pc(s)
Material - Housing material - Steel
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.3i, IEEE 802.3u
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 60 °C
Operational conditions - Storage temperature (T-T) - -20 - 75 °C

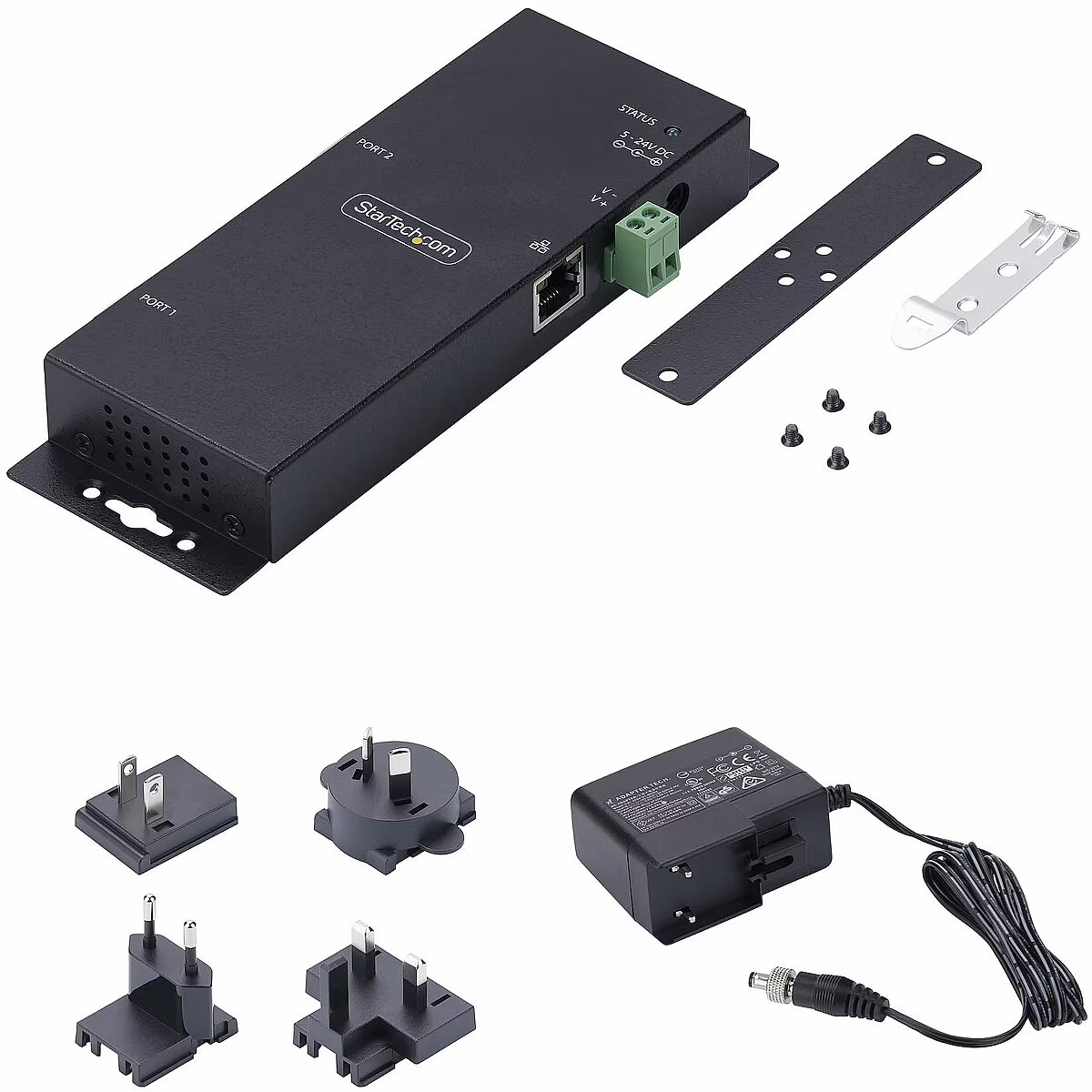

Packaging content - AC adapter included - Yes
Packaging content - DIN rail included - Yes
Packaging content - Number of screws included - 2 pc(s)
Packaging data - Manual - Yes
Power - Input current - 0.48 A
Power - Input voltage - 100 - 240 V
Power - Output current - 3 A
Power - Output voltage - 5 V
Power - Power consumption (typical) - 15 W
ProductName - 2-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter
ShortSummaryDescription - StarTech.com 2-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter, IEEE 802.3i, IEEE 802.3u, 0 - 60 °C, -20 - 75 °C, 5 - 95%, 179 mm, 60 mm
Software - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Technical details - Baud rate - 921.6 Kbit/s
Technical details - Compliance certificates - Trade Agreements Act (TAA)
Technical details - Connector 1 - DB-9
Technical details - Connector 2 - RJ-45
Technical details - Connector gender - Female/Female
Technical details - Data bits - 7, 8
Technical details - Electrostatic Discharge (ESD) protection (air) - 15 kV
Technical details - Electrostatic Discharge (ESD) protection (contact) - 8 kV
Technical details - Flow Control type - No, RTS/CTS, XON/XOFF
Technical details - Host interface - RS-232

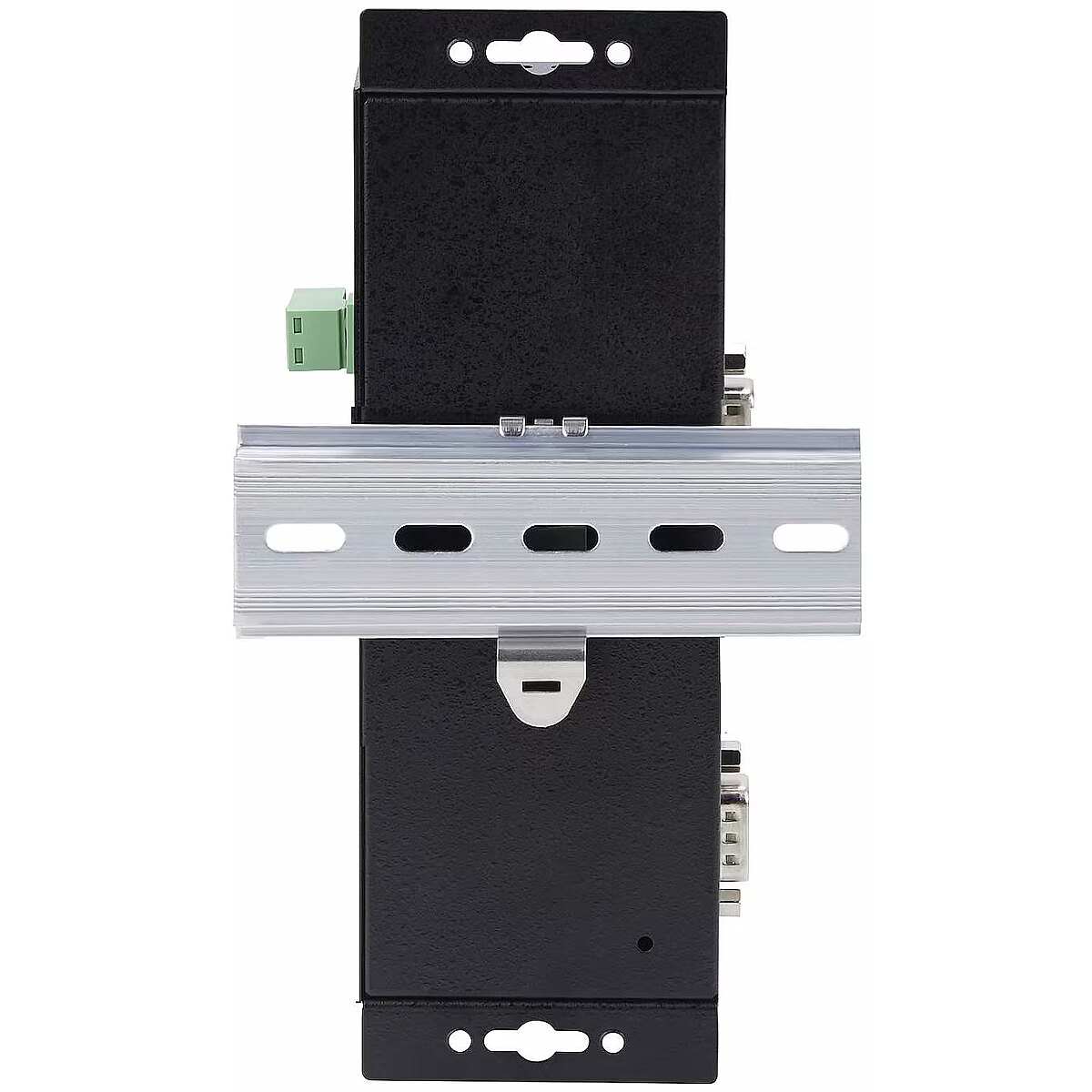

Technical details - Mounting - Wall/DIN
Technical details - Output interface - RJ-45
Technical details - Parity bit - Even, Mark, No, Odd, Space
Technical details - Product colour - Black
Technical details - Serial ports quantity - 2
Technical details - Stop bits - 1, 2
Title - StarTech.com 2-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter
URL - https://www.startech.com/
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 60 mm
Weight & dimensions - Height - 23 mm
Weight & dimensions - Package depth - 242 mm
Weight & dimensions - Package height - 55 mm
Weight & dimensions - Package weight - 600 g
Weight & dimensions - Package width - 166 mm
Weight & dimensions - Weight - 315 g
Weight & dimensions - Width - 179 mm
