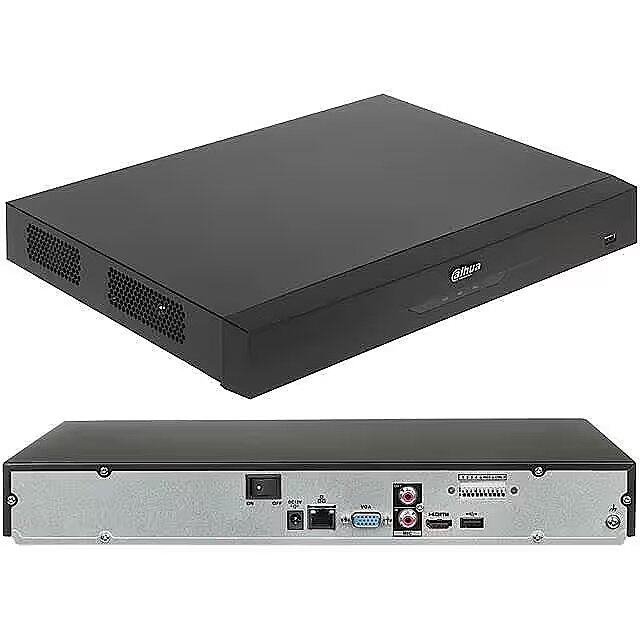

Dahua NET VIDEO RECORDER 16CH/NVR4216-EI

15pin D-sub Input/Output connectors - 1
Accessories included -
Alarm In Input/Output connectors - 4
Alarm inputs - 4
Alarm Out Input/Output connectors - 2
Alarm outputs - 2
Audio - Audio codecs - G.711a, G.711Mu, G.726, PCM
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Audio compression - G.711a
Audio compression - G.711u
Audio compression - G.726
Audio compression - PCM
Brand - Dahua Technology
BrandPartCode - NVR4216-EI
Category - Network Video Recorders (NVR)
Category Code - NVR
Channels - 16
Connectors - 1 x D-Sub
Connectors - 1 x HDMI
Connectors - 2 x USB 2.0
Connectors - RJ-45
Description - - 16 IP channel max, up to 16MP resolution - Max: 256Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG - VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps - 2 SATA III ports, up to 16 TB for a single HDD - No front panel control, 4/2 alarm I/O, 2 USB, Two-way Talk: 1/1 - Desktop mounted chassis - AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus. - AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK - Other brands IP cameras supported
Description - Seria NVR4000-EI to nowa generacja rejestratorów sieciowych oferująca potężne możliwości dekodowania oraz wysoką przepustowość. Zawiera funkcje wysokoprecyzyjnego rozpoznawania twarzy, ochrony obwodowej oraz SMD (inteligentna detekcja ruchu), która w czasie rzeczywistym potrafi rozróżniać pojazdy i ludzi od innych obiektów. Po podłączeniu do wybranych kamer IPC technologia Quick Pick umożliwia łatwe wyszukiwanie i identyfikację celów ludzkich oraz pojazdów.
Designation - CE+WEEE
dimensionalWeight - 4522
dimension depth - 140 mm
dimension height - 360 mm
Dimensions - 375 mm × 284.3 mm × 53 mm
Dimensions - 375 × 284.3 × 53 mm
dimension weight - 2766 g
dimension width - 430 mm
ean - 6923172585608
Features - Certification - CE, FCC, UL
Features - Certification - CE EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014; CE LVD: EN 62368-1:2014; FCC: 47 CFR FCC Part15, SubpartB, Class A 2023-06-15
Features - Product colour - Black
Features - Rack capacity - 1U
Features - Rack mounting - Yes
Full Description Line - Channels 16|Drives/bays 2|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|4xAlarm In|2xAlarm Out|Power supply requirements 12 VDC, 4 A|Power consumption 10 Watts|Dim. 375 mm × 284.3 mm × 53 mm|Temp. range –10 °C to +55 °C
GTIN - 6923172585608
guarantee - 36
guarantee_type - normal
Hard drive - HDD capacity - 0 GB
Hard drive - Maximum storage capacity - 6 TB
Hard drive - Number of HDDs supported - 2
HDD interface - SATA
HDMI Input/Output connectors - 1
LongDesc -
LongProductName - 16CH 1U 2HDDs Network Video Recorder
LongSummaryDescription - Dahua Technology WizSense NVR4216-EI. Video input channels: 16 channels, Maximum resolution: 1920 x 1080 pixels, Supported resolutions: 1920 x 1080 1280 x 1024 1280 x 720 1024 x 768. Maximum storage capacity: 6 TB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm.... Rack capacity: 1U, Product colour: Black, Certification: CE, FCC, UL. Power consumption (typical): 10 W, Output current: 4 A, Output voltage: 12 V
Max. capacity of disks - 16 TB
Max. number of disks - 2
Model - NVR4216-EI
name - 16-channel recorder NVR4216-EI
Number of Channels - 16
Number of drives/bays - 2
Operating temperature range - –10 °C to +55 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 93%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features -
Performance - Alarm input channels - 4
Performance - Backup function - Yes
Performance - Bit rate - 20000 Kbit/s
Performance - Input bandwidth - 180 / 256 Mbit/s
Performance - Maximum resolution - 1920 x 1080 pixels
Performance - Maximum resolution - 4608 x 3472 pixels
Performance - Multi-screen - Yes
Performance - Number of motion detection zones - 396
Performance - Number of users - 128 user(s)
Performance - On Screen Display (OSD) - Yes
Performance - Operating system installed - Embedded LINUX
Performance - Output bandwidth - 180 / 256 Mbit/s
Performance - People counting function - Yes
Performance - Playback controls - Yes
Performance - Playback modes - Backup selection, Digital zoom, Forward, Next camera, Pause, Play, Previous camera, Repeat, Shuffle, Stop
Performance - PTZ control - Yes
Performance - Recording modes - Manual, Schedule
Performance - Recording time - 60 min
Performance - Supported resolutions - 1920 x 1080
1280 x 1024
1280 x 720
1024 x 768
Performance - Total megapixels - 16 MP
Performance - Two-way talk - Yes
Performance - Video formats supported - H.264
Performance - Video formats supported - H.264+
Performance - Video formats supported - H.264, H.264+, M-JPEG
Performance - Video formats supported - H.265
Performance - Video formats supported - H.265+
Performance - Video formats supported - M-JPEG
Performance - Video input channels - 16 channels
Performance - Video loss detection - Yes
Performance - Video motion detection - Yes
Ports & interfaces - Alarm input channels - 4
Ports & interfaces - Alarm output channels - 2
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Internal SATA ports quantity - 2
Ports & interfaces - Networking standards - IEEE 802.3af, IEEE 802.3at
Ports & interfaces - Number of SATA connectors - 2
Ports & interfaces - Power over Ethernet (PoE) - No
Ports & interfaces - RCA input - 1
Ports & interfaces - RS-232 interface - Yes
Ports & interfaces - RS-485 ports - 1
Ports & interfaces - Supported network protocols - HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Current - 4 A
Power - DC output voltage - 12
Power - Output current - 4 A
Power - Output voltage - 12 V
Power - Power consumption (typical) - 10 W
Power - Power source type - DC
Power consumption - 10 Watts
Power supply requirements - 12 VDC, 4 A
Processor - Built-in processor - Yes
Processor - Processor cores - 2
producer - Dahua
producerCode - NVR4216-EI
productName - Network video recorder DAHUA NVR4216-EI Black
ProductName - NVR4216-EI
Product Net Weight - 1.51 kg
productSize - Normal
RCA inputs - 1
RCA outputs - 1
Recording modes -
Resolution - 4608 x 3472
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 43.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 36 cm
Shipping Box Weight Shipping/Package Box Dimensions - 2.77 kg
Shipping Box Width Shipping/Package Box Dimensions - 14 cm
ShortSummaryDescription - Dahua Technology WizSense NVR4216-EI, 16 channels, 1920 x 1080 pixels, 1920 x 1080 1280 x 1024 1280 x 720 1024 x 768, 20000 Kbit/s, 128 user(s), H.264, H.264+, M-JPEG
sizeX - 437
sizeY - 367
sizeZ - 141
Special functions -
Storage - HDD interface - SATA
Storage - Maximum storage capacity - 2 x 16 TB
System requirements - Mobile operating systems supported - Android
Title - Dahua Technology WizSense NVR4216-EI network video recorder 1U Black
Unit Box Height - 0.36
Unit Box Length - 0.435
Unit Box Width - 0.14
Unit Calculated Volume - 0.02192 cubm
Unit Calculated Weight - 2.77 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/2-HDD/NVR4216-EI
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/2-HDD/NVR4216-EI
vendpn - 6923172585608
Video compression - H.264
Video compression - H.264+
Video compression - H.265
Video compression - H.265+
Video compression - MJPEG
Viewing modes -
Warranty - 36 months
WarrantyInfo -
warrantyLength - 24
warrantyType - F
Weight - 1.51 kg
weight - 2728
Weight & dimensions - Depth - 284 mm
Weight & dimensions - Depth - 284.2 mm
Weight & dimensions - Height - 53 mm
Weight & dimensions - Package depth - 141 mm
Weight & dimensions - Package height - 366 mm
Weight & dimensions - Package weight - 2.76 kg
Weight & dimensions - Package width - 433 mm
Weight & dimensions - Weight - 1.51 kg
Weight & dimensions - Width - 375 mm
Wireless communication - No
