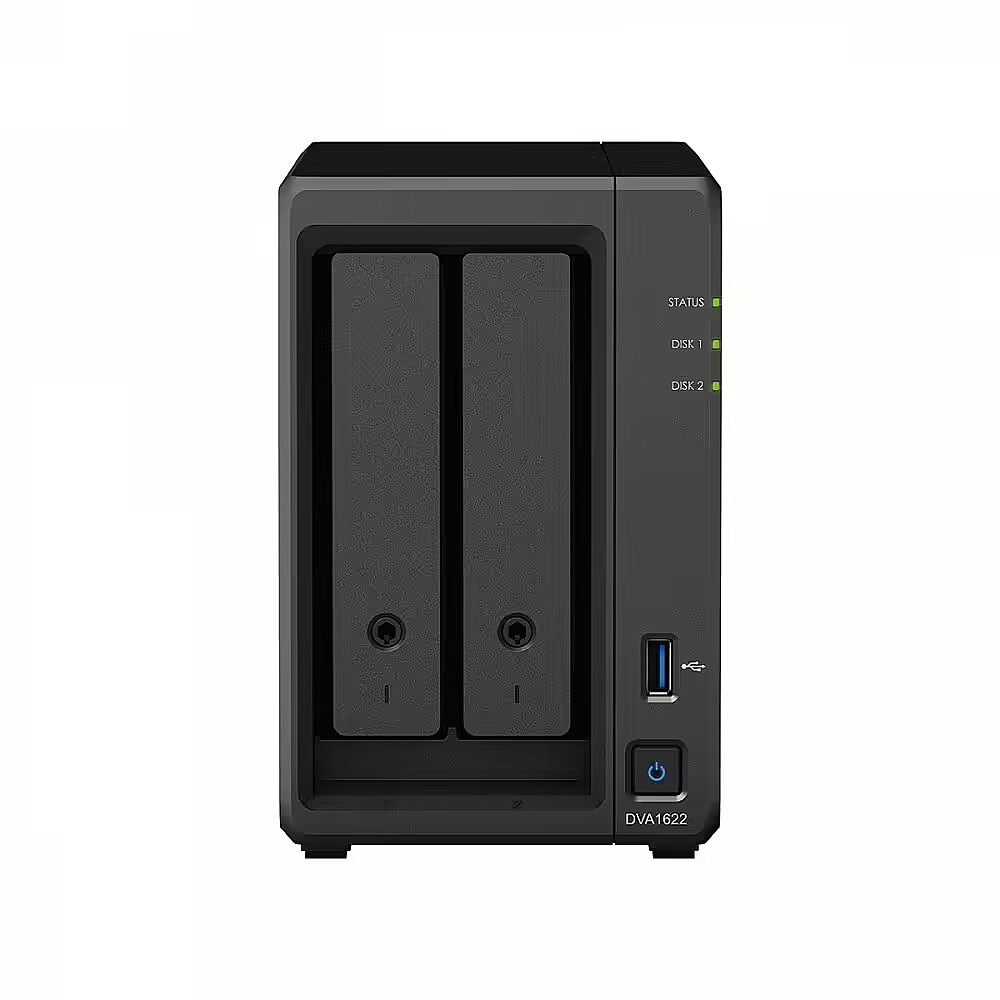

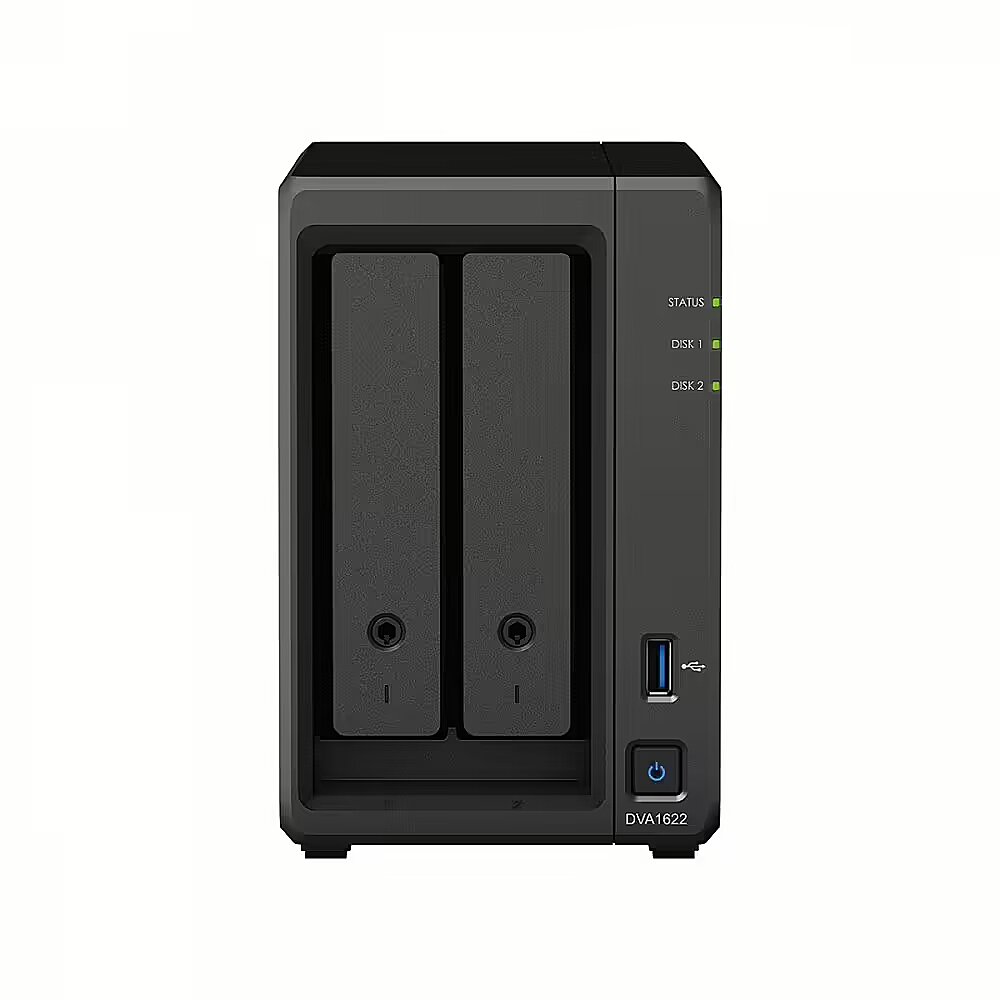

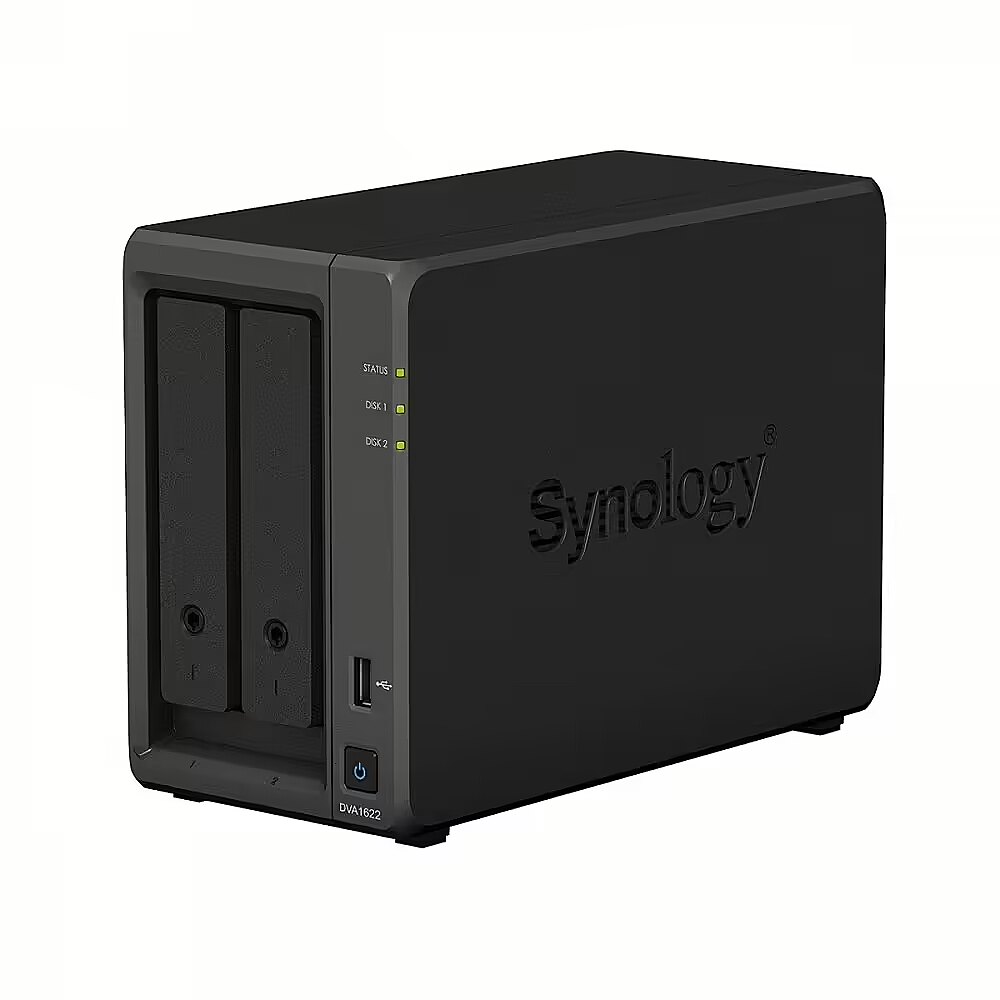

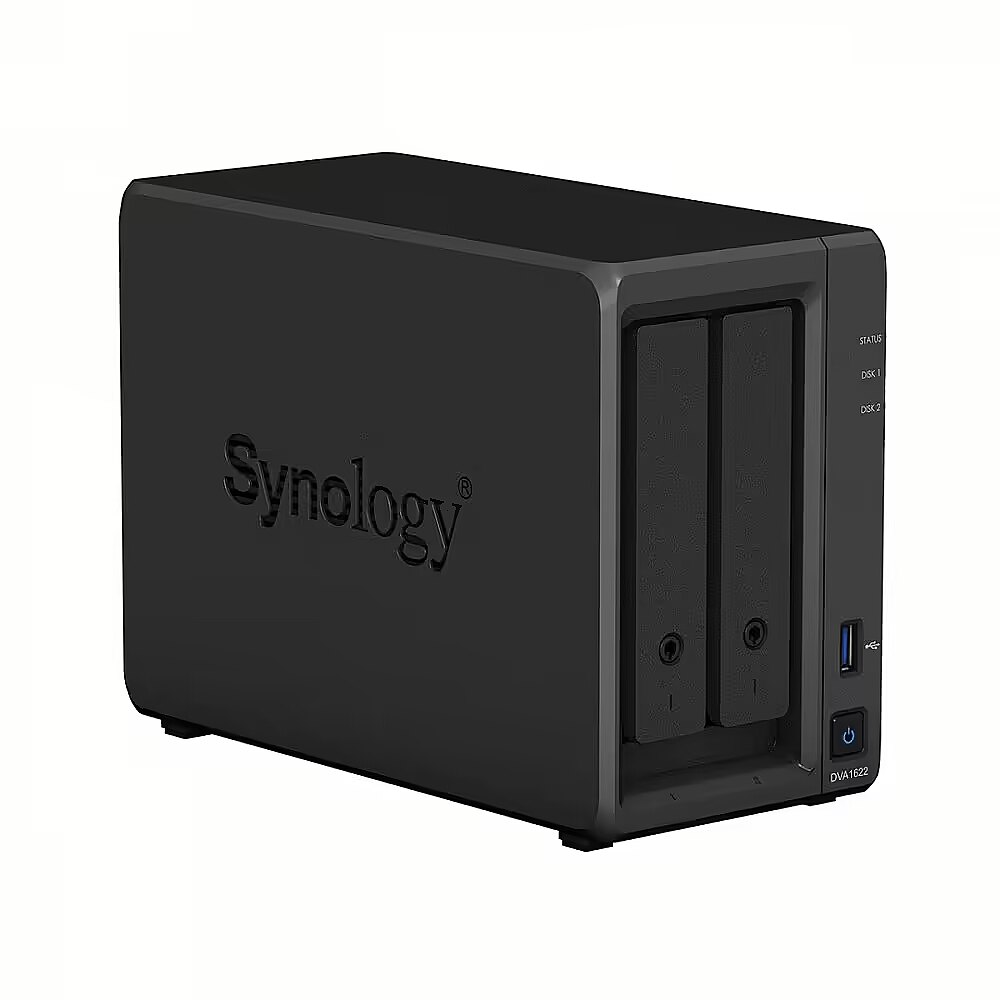

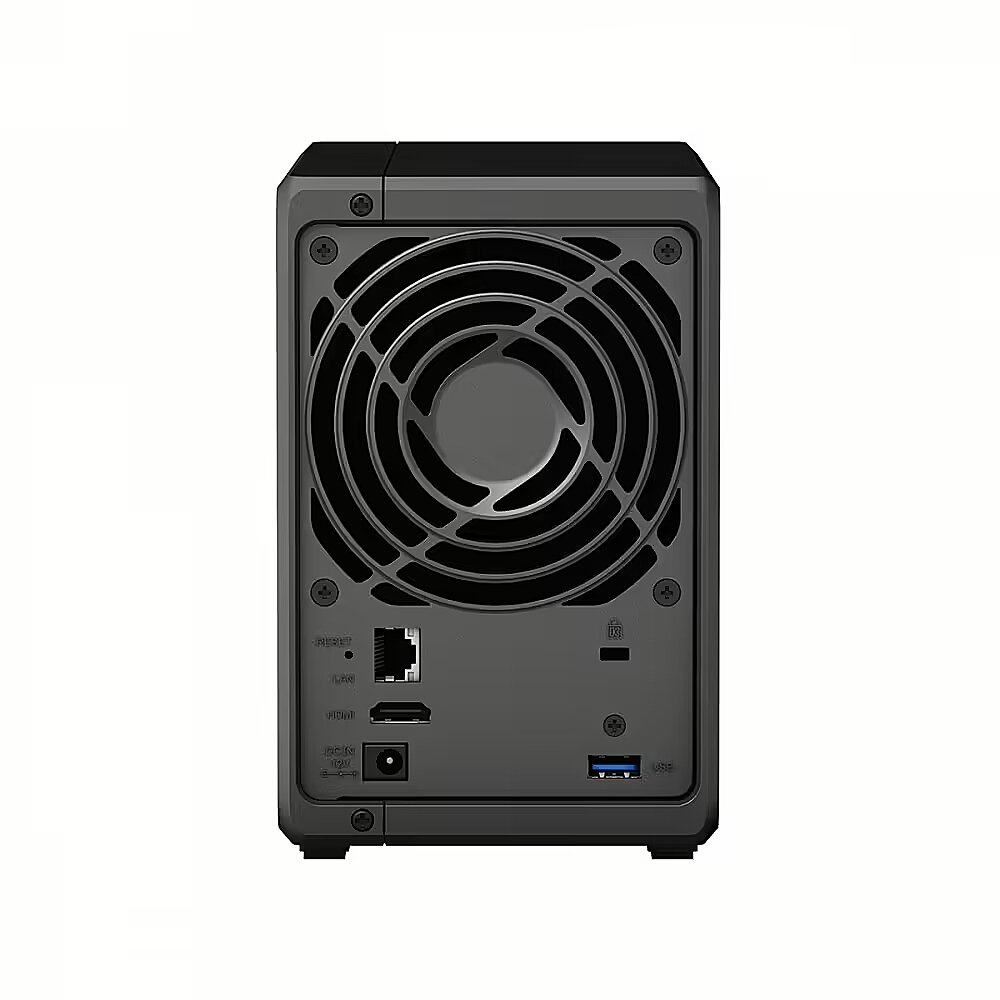

Synology DVA1622 Netzwerk-Videorekorder [0/2 3,5" SATA HDD, 1x Gigabit LAN, 2x USB 3.0, 1x HDMI, 6GB RAM]

Accessories included - Main unit Accessories package Power supply Power cable LAN cable RJ-45 Quick Installation Guide
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 100 - 240 V
Built-in RAM memory - 6 GB
Category 1 - Netzwerk
Category 2 - NAS-Systeme
Category Code - NSS
Certificates - FCC CE BSMI VCCI RCM UKCA EAC KC RoHS
Chassis type Design - Tower
Code - DVA1622
Data Act - Link
Depth Weight & dimensions - 223 mm
Description - NVR series with deep learning technology Artificial intelligence-based surveillance system for deployments of all sizes. Smarter Surveillance Combine the comprehensive video management features of Synology Surveillance Station with advanced analytics to accelerate incident response and gather better business intelligence. Information based on artificial intelligence Enhance site security while increasing productivity. Comprehensive monitoring Watch over your deployment in the best way for you. Easy deployment Quickly set up your monitoring system with minimal effort. Advanced analytics platform Monitor and secure your sites more effectively with locally processed analytics data, ensuring security and confidentiality. Perimeter protection Locate intruders who may exploit poorly monitored areas, discourage loitering in sensitive areas such as driveways or car park entrances, and strengthen access control to facilities without the need to keep dedicated staff on site. Building management Reduce health and safety risks by preventing overcrowding, optimising visitor flow with real-time and historical occupancy data and ensuring that only authorised staff have access to premises. Person and vehicle detection Allows immediate or threshold-based alarms to be triggered based on periods of inactivity in specific areas for vehicles or persons. Number plate recognition Identify number plates and configure accompanying triggers based on configurable allowed or blocked lists. Intrusion detection Configure bi-directional or uni-directional virtual boundaries to generate alerts to notify when people or vehicles enter a specific area. Count people and vehicles Measure occupancy levels based on combined counts of people and vehicles entering and leaving an area, with automatic alerts when a certain number of people is reached. Overload alerts Avoid excessive numbers of people in sensitive areas by detecting when the number of people moving through a defined zone exceeds a set threshold. Face recognition Easily manage your facility with support for detecting up to 10,000 staff profiles with over 97% accuracy. Shrouded face detection Determine whether visitors comply with local regulations or policies and alert on-site staff to take appropriate action. Flexible monitoring options Take advantage of highly customisable options and automation features to act quickly in potentially dangerous situations. Map-enabled View real-time previews of detected incidents on interactive maps of multiple floors and multiple sites supported by Google Maps and OpenStreetMap. Automation rules Reduce workload by triggering responses to specific situations, such as activating recording when a microswitch detects a door opening.  Notifications Specify which events should trigger a notification and whether alerts should be sent as SMS, email or push notifications on mobile devices. Comprehensive access options Enjoy a unified way of monitoring wherever you are. Tailor your surveillance system to your needs - not the other way around. Space-saving installation Minimise the footprint of your monitoring installation. Local management capability makes the DVA1622 ideal for compact home surveillance systems and security kiosks when space is limited. High-resolution video output Connect an external display directly to the built-in HDMI port to start monitoring your facility within minutes. Local management By connecting a mouse and keyboard directly to the DVA1622, you can control your Surveillance Station installation without setting up a dedicated computer. Surveillance anywhere, anytime Investigate incidents from anywhere to minimise response time and take appropriate action faster. Multi-platform support Monitor real-time streams or view recorded footage using browsers, desktop clients and mobile apps.
Description - Synology NVR DVA1622 is a 2-bay desktop recording server that gives home and small business users access to fast, smart, and accurate video surveillance powered by deep learning-based algorithms. Built-in automated event detection helps safeguard properties by detecting people, vehicles, or objects and alerting staff when selfconfigured rules or thresholds are breached. Complete Surveillance Solution With Built-in AI Capabilities The DVA1622 makes powerful AI-enabled surveillance available for everyone in a compact solution that includes everything you need to create an efficient surveillance system Everything You Need in Monitor Center Quickly view your business or home from all angles, see where and when issues were detected, or spin back time to get to the bottom of things without ever leaving your main overview. Better Situational Awareness With Maps Dynamic maps not only help you determine camera and event locations, but also provide instant access to video feeds for more efficient site monitoring Actionable Insights and Automated Actions Advanced deep learning-based algorithms built into the DVA1622 convert unstructured video data into business intelligence and security insights, to bolster and automate security. Powerful Video Management Platform Powered by Synology Surveillance Station running on Synology DSM, the DVA1622 offers powerful and convenient video recording, management, and analysis capabilities while making deployment of new or existing cameras fast and efficient. Central Surveillance Management Monitor, manage, and protect multiple Synology Deep Learning NVR and NAS systems from a single interface as part of a larger surveillance network over multiple sites with Surveillance Station Centralized Management Server (CMS).Intel™ Celeron J4125 processor6 GB DDR4 (2 GB + 4 GB)support for over 8,300 IP cameras, H.264/H.265, and 4K resolution1
Design - Chassis type - Tower
Design - LED indicators - Status
Design - Number of fans - 1 fan(s)
Design - Reset button - Yes
Design > Chassis type - Tower
Designation - CE+WEEE
dimensionalWeight - 1947
dimension depth - 120 mm
dimension height - 270 mm
Dimensions - 166 x 106 x 223 mm
dimension weight - 2366 g
dimension width - 280 mm
Disk type - HDD
EAN - 4711174724680
ean - 4711174724680
Environment requirements - Operating temperature: 0°C to 40°C (32°F to 104°F) Storage temperature: -20°C to 60°C (-5°F to 140°F) Relative humidity: 5% to 95% RH
Ethernet interface type Ports & interfaces - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Fan - 9.2 cm
Form factor (width) - 3,5'' (LFF)
Gross Weight Kg - 1,88
guarantee - 36
guarantee_type - normal
HDD interface - SATA
HDD interface Storage - SATA
HDD size Storage - 3.5"
HDMI ports quantity Ports & interfaces - 1
Height Weight & dimensions - 166 mm
Hot-swapping support - Yes
Hot-swap Storage - Yes
Housing - Desktop
I/O connectors - 1 x HDMI
I/O connectors - 2 x USB 3.0
Internal memory Memory - 6 GB
Internal memory type Memory - DDR4
LED indicators Design - Status
Link - https://www.synology.com/en-global/products/DVA
Lockable drive bays Storage - Yes
Management, monitoring, configuration -
Manufacturer - Synology
Manufacturer Code - DVA1622
Manufacturer Name - Synology
Max. number of disks - 2
Maximum storage capacity Storage - 108 TB
Memory - Internal memory - 6 GB
Memory - Internal memory type - DDR4
Memory - Memory layout (slots x size) - 1 x 2 + 1 x 4 GB
Memory > Internal memory type - DDR4 non-ECC
Memory > Internal RAM - 6 GB
Memory layout (slots x size) Memory - 1 x 2 + 1 x 4 GB
Memory type - DDR4
Model - DVA1622
Model name - DVA1622
MPN - DVA1622
name - Recorder DVA1622 2x0HDD 6GB DDR4 HDMI 1x1GbE RJ45
Name - Synology DVA1622 Deep Learning NVR 16CH
Name - Synology DVA1622 | Intel | Celeron J4125 | 6 GB | DDR4 non-ECC
Network architecture - GigabitEthernet
Network interface - 1 x 10/100/1000 Mbit/s
Network protocols -
Number of fans - 1
Number of fans Design - 1 fan(s)
Number of HDDs installed - 0
Number of HDDs supported Storage - 2
Number of memory slots used - 2
Operating relative humidity (H-H) Operational conditions - 8 - 80%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating relative humidity (H-H) - 8 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other disk parameters -
Other features - GPU model: Intel UHD Graphics 600 Supported video resolution: 1080p 60Hz Wake on LAN / WAN function Power recovery Scheduled power on/off Volume: 18.4 dB(A)
Other features > Drive bays - 2
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 11.00 mm
Package features > Gross height (mm) - 127.00 mm
Package features > Gross width (mm) - 90.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 6872 pc(s)
Package features > Paper/Pasteboard - 10.00 g
Package features > Tare weight (kg) - 0.01 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Ports & interfaces - Ethernet interface type - Gigabit Ethernet
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power supply - Power supply / adapter: 60 W AC input voltage: 100 V to 240 V AC Power frequency: 50/60 Hz, Single phase Power consumption: 19.93 W (access), 4.02 W (hard drive hibernation) British thermal unit: 67.96 BTU/hr (access); 13.71 BTU/hr (hard drive hibernation)
Processor - Intel Celeron J4125 Processor architecture: 64-bit Quad-core 2.0 (baseline) / 2.7 (burst) GHz Hardware encryption mechanism (AES-NI)
Processor - Processor boost frequency - 2.7 GHz
Processor - Processor cores - 4
Processor - Processor family - Intel® Celeron®
Processor - Processor frequency - 2 GHz
Processor - Processor manufacturer - Intel
Processor - Processor model - J4125
Processor - Processor threads - 4
Processor > Processor family - Intel
Processor > Processor model - Celeron J4125
Processor boost frequency Processor - 2.7 GHz
Processor cores Processor - 4
Processor family Processor - Intel® Celeron®
Processor frequency Processor - 2 GHz
Processor manufacturer Processor - Intel
Processor model Processor - J4125
Processor threads Processor - 4
producer - Synology
producerCode - DVA1622
productName - Synology DVA1622 network surveillance server Tower Gigabit Ethernet
productSize - Normal
RAID levels Storage - 0, 1, JBOD
RAID support Storage - Yes
Reset button Design - Yes
Short description - Synology Network Video Recorder DVA1622 (2 Bay)
sizeX - 295
sizeY - 275
sizeZ - 120
Storage - HDD interface - SATA
Storage - HDD size - 3.5"
Storage - Hot-swap - Yes
Storage - Lockable drive bays - Yes
Storage - Maximum storage capacity - 108 TB
Storage - Number of HDDs supported - 2
Storage - RAID levels - 0
Storage - RAID levels - 1
Storage - RAID levels - JBOD
Storage - RAID support - Yes
Summary - Synology DVA1622. Processor manufacturer: Intel, Processor family: Intel® Celeron®, Processor model: J4125. Internal memory: 6 GB, Internal memory type: DDR4, Memory layout (slots x size): 1 x 2 + 1 x 4 GB. HDD size: 3.5", HDD interface: SATA, Maximum storage capacity: 108 TB. Ethernet interface type: Gigabit Ethernet. Chassis type: Tower, LED indicators: Status, Number of fans: 1 fan(s)
Technical details > Gross weight - 0.04 kg
Technical details > Net weight - 0.03 kg
Technical details > Producer - Synology
Technical details > Producer product name - DVA1622
Unit Box Height - 0.275
Unit Box Length - 0.285
Unit Box Width - 0.12
Unit Calculated Volume - 0.01155 cubm
Unit Calculated Weight - 2.58 kg
Units per Shipping Box - 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Ports & interfaces - 1
Vendor Homepage - https://www.synology.com/
vendpn - DVA1622
Warranty - 36 months
Warranty - 60
Warranty - 60 month(s)
warrantyLength - 36
warrantyType - F
Weight - 1.51 kg
Weight - 2.342
weight - 2340
Weight & dimensions - Depth - 223 mm
Weight & dimensions - Height - 166 mm
Weight & dimensions - Weight - 1.51 kg
Weight & dimensions - Width - 106 mm
Weight Weight & dimensions - 1.51 kg
Width Weight & dimensions - 106 mm
