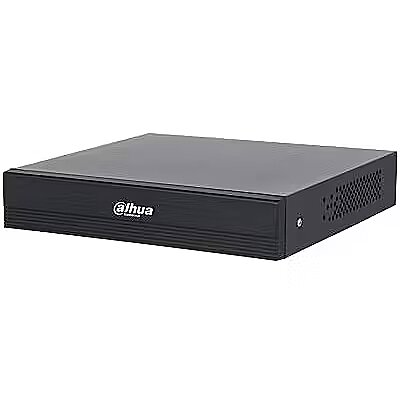

Dahua DVR 8CH HDCVI PENTABRID/XVR1B08-I/T

Audio formats supported Performance - G.711, G.711u, PCM
BNC input ports Ports & interfaces - 8
Category Code - STD
Certification Performance - CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN
61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020,
EN 55035:2017+A11:2020, EN 55024:2010+A1:2015,
EN 50130-4:2011+A1:2014
Channels quantity Performance - 8 channels
DC current (max) Power - 1.5 A
DC voltage Power - 12 V
Depth Weight & dimensions - 204.3 mm
Description - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.Dolynk cloud compatible version: DMSS V2.0.1 and above, Dolynk Care V2.5.1 and above8-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder8-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videosSupports HDCVI, AHD, TVI, CVBS and IP video inputSupports up to 10-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 40 MbpsSupports accessing Wi-Fi cameras, making it suitable for a wide range of scenesSmart H.265+ and H.265 dual-stream video compression
Dual stream support Performance - Yes
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Network - 1
Ethernet LAN Network - Yes
HDMI ports quantity Ports & interfaces - 1
Height Weight & dimensions - 41.5 mm
Internal Performance - No
Model - XVR1B08-I/T
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating system installed Performance - Embedded LINUX
Operating temperature (T-T) Operational conditions - -10 - 45 °C
Package depth Packaging data - 64 mm
Package height Packaging data - 240 mm
Package weight Packaging data - 970 g
Package width Packaging data - 332 mm
Power consumption (typical) Power - 7 W
Power supply type Power - DC
Product colour Performance - Black
SSD interface Solid state drive - SATA
Storage temperature (T-T) Operational conditions - -20 - 60 °C
Summary - Dahua Technology DH-XVR1B08-I/T. Product colour: Black, Audio formats supported: G.711, G.711u, PCM, Channels quantity: 8 channels. Video resolutions: 1280 x 1024,1280 x 720,1920 x 1080. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS;.... SSD interface: SATA. Power supply type: DC, DC voltage: 12 V, Power consumption (typical): 7 W
Supported network protocols Network - HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Unit Box Height - 0.24
Unit Box Length - 0.33
Unit Box Width - 0.06
Unit Calculated Volume - 0.006003 cubm
Unit Calculated Weight - 1.02 kg
Units per Shipping Box - 10
USB 2.0 ports quantity Ports & interfaces - 2
USB connectivity Performance - Yes
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/Cooper-I-Series/XVR1B08-I/T
VGA (D-Sub) output ports Ports & interfaces - 1
Video resolutions Video - 1280 x 1024,1280 x 720,1920 x 1080
Warranty - 36 months
Weight Weight & dimensions - 570 g
Width Weight & dimensions - 197 mm
