Adjustment shutter speed Camera - Auto/Manual
Angle of rotation Camera - 360°
Back Light Compensation (BLC) Video - Yes
Bit rate control Video - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate Video - 32 Kbps–8192 Kbps
Bluetooth Network - No
Built-in microphone Audio - Yes
Camera shutter speed Camera - 1/3 s–1/100000 s
Camera shutter type Camera - Electronic
Card reader integrated Storage - Yes
Category Code - FNC
Certification Performance - CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Compatible memory cards Storage - MicroSD (TransFlash)
Connectivity technology Performance - Wired
Day/night mode Performance - Yes
DC output voltage Power - 12
Description - 1/2.7” 5Megapixel progressive scan CMOSH.265 & H.264 triple-stream encoding20 fps@2592 × 1944, 50/60 fps@1080P (1920 × 1080)WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLCMultiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS2.8 mm fixed lens (3.6 mm, 6.0 mm optional)Built-in MIC · Max. IR LEDs Length 50 mMicro SD memory, IP67
Diameter Weight & dimensions - 10.6 cm
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Fixed focal length Lens system - 2.8 mm
Flip & mirror Video - Yes
Form factor Design - Dome
Frame rate Video - 60 fps
Gain control type Video - Auto/Manual
Height Weight & dimensions - 93.6 mm
Highlight Compensation (HLC) Video - Yes
Housing material Design - Metal
Infrared (IR) cut-off filter Performance - Yes
Intelligent Video Surveillance (IVS) system features Security - Crossing line, Heat map, Intrusion, People counting, Tripwire
Internal memory Storage - 512 MB
International Protection (IP) code Design - IP67
LED type Night vision - IR
Lens viewing angle, horizontal Camera - 102°
Lens viewing angle, vertical Camera - 71°
Maximum aperture number Lens system - 1.6
Maximum resolution Video - 2592 x 1944 pixels
Minimum illumination Camera - 0.005 lx
Mobile operating systems supported System requirements - Android, iOS
Model - IPC-HDW5541TM-ASE-0280B-S3
Mounting type Design - Ceiling
Networking standards Network - IEEE 802.3af
Night vision distance Night vision - 50 m
Night vision Night vision - Yes
Noise reduction technology Video - 3D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of effective pixels (H x V) Image sensor - 2592 x 1944 pixels
Number of illumination LEDs Night vision - 2
Number of lenses Lens system - 1
Number of sensors Image sensor - 1
Number of users Network - 20 user(s)
Operating relative humidity (H-H) Operational conditions - 0 - 95%
Operating temperature (T-T) Operational conditions - -30 - 60 °C
Optical sensor size Image sensor - 25.4 / 2.7 mm (1 / 2.7")
Package weight Packaging data - 710 g
Pan range Camera - 0 - 360°
Placement supported Performance - Indoor & outdoor
Power consumption (typical) Power - 7.2 W
Power source type Power - DC, PoE
Privacy masking Video - Yes
Product colour Design - White
Progressive scan Image sensor - Yes
Quality of Service (QoS) support Network - Yes
Region of Interest (ROI) encoding Video - Yes
ROM capacity Storage - 128 MB
Sensor type Image sensor - CMOS
Storage temperature (T-T) Operational conditions - -30 - 60 °C
Streaming method Network - Multicast, Unicast

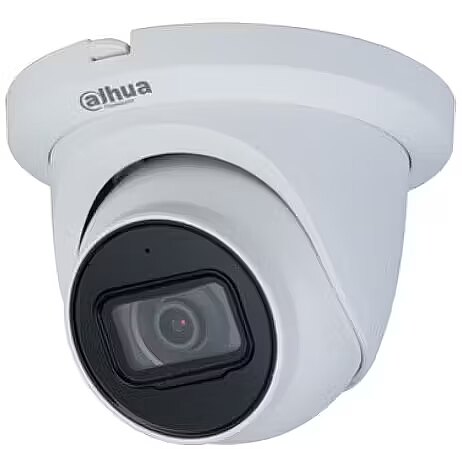

Summary - Dahua Technology IPC-HDW5541TM-AS. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 102°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 2592 x 1944 pixels. Fixed focal length: 2.8 mm
Supported graphics resolutions Video - 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2592 x 1520
Supported network protocols Network - IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Tilt angle range Camera - 0 - 78°
Total megapixels Video - 5 MP
Type Performance - IP security camera
Unit Box Height - 0.13
Unit Box Length - 0.14
Unit Box Width - 0.15
Unit Calculated Volume - 0.00348 cubm
Unit Calculated Weight - 0.8 kg
Units per Shipping Box - 24
Vendor Homepage - https://www.dahuasecurity.com/products/productDetail/32947
Video compression formats Video - H.264
Video motion detection Security - Yes
Video streaming Video - Yes
Voice codecs Audio - AAC, G.711Mu, G.711a, G.723, G.726
Warranty - 36 months
Web browser Management features - Yes
Weight Weight & dimensions - 550 g
White balance Camera - Auto, Lamp, Manual, Natural, Outdoor
Wi-Fi Network - No
Wide Dynamic Range (WDR) Performance - Yes
