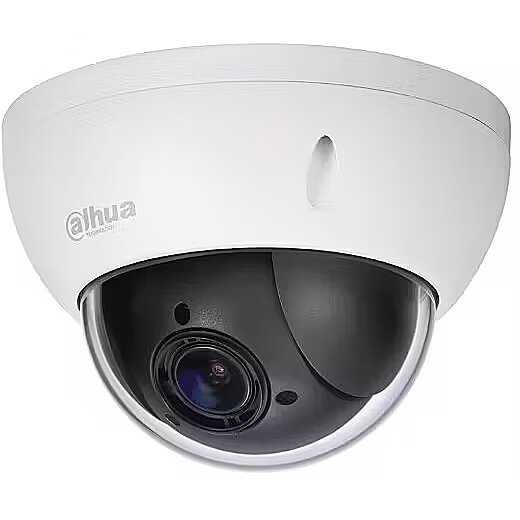

Dahua Dome PTZ, 1440p, 4MP, White

Audio - Signal-to-Noise Ratio (SNR) - 55 dB
Brand - Dahua Technology
BrandPartCode - DH-SD22404DB-GNY
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1 - 1/30000 s
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 105.7 - 33.6°
Camera - Lens viewing angle, horizontal - 90.3 - 29.4°
Camera - Lens viewing angle, vertical - 48.5 - 16.6°
Camera - Minimum illumination - 0.0005 lx
Camera - Pan manual speed - 0.1 - 100 °/sec
Camera - Pan preset speed - 100 °/sec
Camera - Pan range - 0 - 355°
Camera - Tilt angle range - 0 - 90°
Camera - Tilt manual speed - 0.1 - 60 °/sec
Camera - Tilt preset speed - 60 °/sec
Camera - White balance - ATW
Camera - White balance - ATW, Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera - White balance - Auto
Camera - White balance - Indoor
Camera - White balance - Manual
Camera - White balance - Natural
Camera - White balance - Outdoor
Camera - White balance - Sodium lamp
Camera - White balance - Street lamp
Category - Security Cameras
Design - Fog proof - Yes
Design - Form factor - Dome
Design - IK code - IK10
Design - International Protection (IP) code - IP66
Design - Mounting type - Ceiling/Wall/Pole
Design - Product colour - White
dimensionalWeight - 675
dimensionalWeight - 678
GTIN - 6923172536334
Image sensor - Optical sensor size - 25.4 / 2.8 mm (1 / 2.8")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Lens system - Auto focus - Yes
Lens system - Closest focusing distance - 1.5 m
Lens system - Detect distance - 240 m
Lens system - Digital zoom - 16x
Lens system - Focal length range - 2.8 - 12 mm
Lens system - Identify distance - 24 m
Lens system - Maximum aperture number - 3
Lens system - Minimum aperture number - 1.6
Lens system - Number of lenses - 1
Lens system - Observe distance - 94.8 m
Lens system - Optical zoom - 4x
Lens system - Recognize distance - 48 m
Lens system - Zoom capability - Yes
LongDesc - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions. With its powerful optical zoom, and accurate pan and tilt capabilities, this series of cameras provides a wide monitoring range and great detail. It displays images in 4 MP resolution at 25/30 fps. These cameras offer smooth control and high-grade protection that enable them to meet the requirements of video surveillance in small-sized scenes.Starlight TechnologyWith advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.Face DetectionDahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.Smart H.265+ & Smart H.264+With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.PFA TechnologyPFA technology has introduced new methods of judgment that ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms that ensure image clarity when zooming and that shorten focus time. This makes the camera highly advanced in its functions, substantially improving the quality of your experience.
LongProductName - 4MP 4x Starlight WizSense Network PTZ Camera, 1/2.8" CMOS, 2.8 mm - 12 mm, RJ-45, IP66
LongSummaryDescription - Dahua Technology WizSense SD22404DB-GNY. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 90.3 - 29.4°, Lens viewing angle, vertical: 48.5 - 16.6°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 4x, Digital zoom: 16x, Detect distance: 240 m
Management features - Web-based management - Yes
Management features - Web browser - Yes
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Number of users - 20 user(s)
Network - Quality of Service (QoS) support - Yes
Network - Streaming method - Multicast
Network - Streaming method - Multicast, Unicast
Network - Streaming method - Unicast
Network - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS
Network - Wi-Fi - No
Night vision - LED type - IR
Night vision - Night vision - Yes
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -30 - 60 °C
Packaging content - Number of cameras - 1
Packaging data - Package weight - 700 g
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Placement supported - Outdoor
Performance - Preset points - Yes
Performance - PTZ control - Yes
Performance - PTZ modes - 5 Pattern
Performance - PTZ modes - 5 Pattern, 8 Tour
Performance - PTZ modes - 8 Tour
Performance - PTZ protocols - Pelco-P/D
Performance - Tour recording - Yes
Performance - Type - IP security camera
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output current - 1 A
Power - DC output voltage - 12
Power - Power consumption (max) - 6.1 W
Power - Power consumption (typical) - 2.3 W
Power - Power source type - DC, PoE
producerCode - 40982
producerCode - SD22404DB-GNY
productName - CAMERA IP DAHUA SD22404DB-GNY
productName - KAMERA IP DAHUA SD22404DB-GNY
ProductName - SD22404DB-GNY
productSize - Normal
Safety warning - Warnings - Avoid direct contact with water to prevent electrical damage.
Safety warning - Warnings - Ensure that the product is properly installed and protected against falling.
Safety warning - Warnings - The product contains electronic components; do not dispose of with the normal household waste.
Security - Active tampering alarm - Yes
Security - Intelligent Video Surveillance (IVS) system features - Abandoned object
Security - Intelligent Video Surveillance (IVS) system features - Abandoned object, Crossing line, Face detection, Intrusion, Missing object, Moving object, Tripwire, Vehicle detection
Security - Intelligent Video Surveillance (IVS) system features - Crossing line
Security - Intelligent Video Surveillance (IVS) system features - Face detection
Security - Intelligent Video Surveillance (IVS) system features - Intrusion
Security - Intelligent Video Surveillance (IVS) system features - Missing object
Security - Intelligent Video Surveillance (IVS) system features - Moving object
Security - Intelligent Video Surveillance (IVS) system features - Tripwire
Security - Intelligent Video Surveillance (IVS) system features - Vehicle detection
Security - Video motion detection - Yes
ShortSummaryDescription - Dahua Technology WizSense SD22404DB-GNY, IP security camera, Outdoor, Wired, 5 Pattern, 8 Tour, Pelco-P/D, Ceiling/Wall/Pole
sizeX - 157
sizeX - 160
sizeY - 135
sizeY - 137
sizeZ - 157
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 512 GB
Storage - RAM capacity - 512 MB
Storage - ROM capacity - 128 MB
Title - Dahua Technology WizSense SD22404DB-GNY Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling/Wall/Pole
URL - https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD2/SD22404DB-GNY
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - H.264: 2816Kbps – 13056Kbps; H.265: 1024Kbps – 7936Kbps
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Gain control type - Auto/Manual
Video - Highlight Compensation (HLC) - Yes
Video - Image stabilizer - Yes
Video - Maximum resolution - 2560 x 1440 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 2D noise reduction, 3D noise reduction
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 352 x 288
Video - Supported graphics resolutions - 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440
Video - Supported graphics resolutions - 640 x 480 (VGA)
Video - Supported graphics resolutions - 704 x 576
Video - Supported graphics resolutions - 1280 x 720 (HD 720)
Video - Supported graphics resolutions - 1280 x 960
Video - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Video - Supported graphics resolutions - 2304 x 1296
Video - Supported graphics resolutions - 2560 x 1440
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264+
Video - Video compression formats - H.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG
Video - Video compression formats - H.264B
Video - Video compression formats - H.264H
Video - Video compression formats - H.265
Video - Video compression formats - H.265+
Video - Video compression formats - M-JPEG
Video - Video streaming - Yes
WarrantyInfo -
warrantyLength - 36
warrantyType - F
weight - 720
weight - 730
Weight & dimensions - Diameter - 12.2 cm
Weight & dimensions - Height - 89 mm
Weight & dimensions - Weight - 500 g
