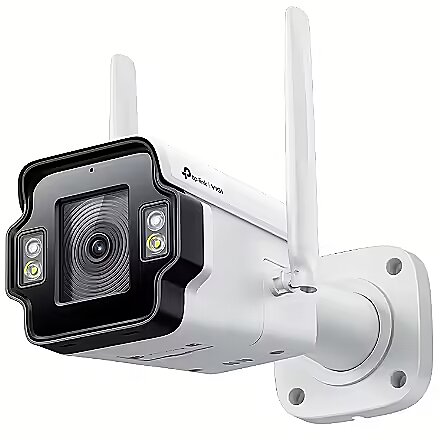

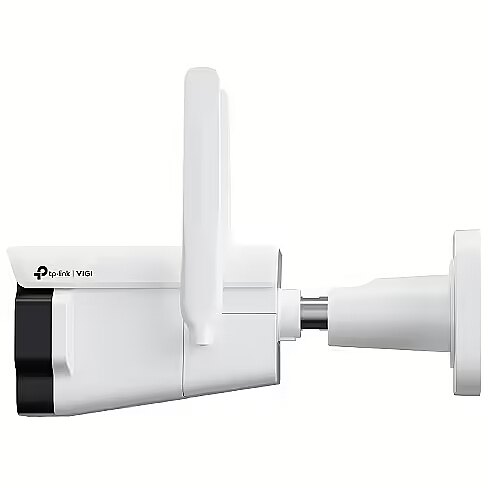

TP-LINK S345-4G(4mm), 1520p, 4MP, White

4G standard Network - LTE-TDD & LTE-FDD
Accessories included - InSight S3454G camera Cable sealing components Mounting accessories Power adapter
Alert notification type Security - Push notification
Antennas quantity Performance - 2
Antenna type Performance - External
ARTIKEL1 - VIGI 4MP OUTDOOR 4G BULLET CAM
ARTIKEL2 - FULL-COLOR 4MM
Audio - Audio formats supported - G.711 A-law
Audio - Audio input channels - 1.0 channels
Audio - Audio output channels - 1.0 channels
Audio - Audio system - 2-way
Audio - Bit rate range - 0 - 64 Kbit/s
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Number of microphones - 1
Audio - Sample rate - 8 kHz
Audio formats supported Audio - G.711 A-law
Audio input channels Audio - 1.0 channels
Audio output channels Audio - 1.0 channels
Audio system Audio - 2-way
Back Light Compensation (BLC) Video - Yes
Bit rate control Video - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate range Audio - 0 - 64 Kbit/s
Bit rate Video - Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
Bluetooth Network - No
Brand - TP-Link
BrandPartCode - INSIGHT S345-4G(4MM)
Breite - 0
Built-in microphone Audio - Yes
Built-in siren Security - Yes
Built-in speaker(s) Audio - Yes
Camera - Camera shutter speed - 1/3 to 1/10000
Camera - Lens viewing angle, diagonal - 98.7°
Camera - Lens viewing angle, horizontal - 80.4°
Camera - Lens viewing angle, vertical - 41.8°
Camera - Minimum illumination - 0 lx
Camera - Tilt angle range - 0 - 90°
Camera shutter speed Camera - 1/3 to 1/10000 s
Category - Security Cameras
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
Category Code - FNC
Certificates - WPS WHQL Energy Star RoHS CE NCC NTRA KC RCM ONVIF IP66
Cloud-managed Management features - Yes
Color - White
Compatible memory cards Storage - MicroSD (TransFlash)
Connectivity technology Performance - Wired
Connectors - 3 x RJ-45
Day/night mode Performance - Yes
DC-in jack Ports & interfaces - Yes
DC output voltage Power - 12
Description - 4G and 3 LAN Ports, Hassle-free Deployment
4MP Outdoor Full-Color 4G Bullet Network Camera 3 LAN Ports Meet Minimal Deployment Effort InSight S345-4G offers industry-first three LAN ports, enabling simultaneous connectivity for up to three devices as you need. It is ideal for coupling with solar power systems to eliminate additional wiring deployments. Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications. LightPro Night Vision Technology The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios. Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△ Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage. 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details. White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions. Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.4MP Super-High Definition and 24h Full-ColorPeople & Vehicle Analytics§Human & Vehicle ClassificationSmart DetectionSmart Video Enhancement TechnologyActive Defense and Two-Way AudioIP67 WaterproofH.265+ Compression Technology
Description - Outdoor InSight S345-4G VIGI Bullet Camera, 4G, 4MP People and Vehicle Classification
Distinguish people and vehicles from other objects and receive more accurate event notifications. LightPro Night Vision Technology
VIGI LightPro technology intelligently switches between infrared night vision and full-color night vision based on the detection of a person or vehicle. This allows the camera to capture clearer and more detailed images with white-light illumination enabled, while reducing light pollution and lowering energy consumption by using infrared light for most of the time, which is suitable for the majority of scenarios. Smart Video Enhancement Technologies True WDR: Analyzes and combines different exposures so that both bright and dark areas are properly exposed, delivering a balanced and natural image even in high-contrast lighting environments. Smart IR: Dynamically adjusts infrared illumination to prevent overexposure and glare, improving visibility at various distances and producing a clearer image. 3D DNR: Noise reduction technology that analyzes image data across multiple frames to selectively reduce noise while preserving important details. White Balance: Ensures neutral whites in the image regardless of lighting conditions. Efficient H.265+ Compression Technology
H.265+ reduces bandwidth and storage requirements while maintaining excellent image quality. It enables savings of up to 57.5% and 15% of storage space compared to H.264 and H.265, respectively.
Design - Form factor - Bullet
Design - Housing material - Metal
Design - International Protection (IP) code - IP66
Design - Mounting type - Wall
Design - Product colour - White
Design - Protection features - Waterproof
Design - Weatherproof - Yes
Designation - CE+WEEE
Detect distance Lens system - 80 m
Detection distance Security - 120 m
Digest authentication Security - Yes
Digital Wide Dynamic Range (DWDR) Video - Yes
dimension depth - 160 mm
dimension height - 130 mm
Dimensions - 101 x 122 x 256 mm
dimension weight - 1650 g
dimension width - 330 mm
Drilling template included Packaging content - Yes
Dynamic range Performance - 120 dB
ean - 8885020625585
EAN - 8885020625585
EANCode - 8885020625585
Environment requirements - Operating Temperature: -30°C to 60°C (-22°F to 140°F) Storage Temperature: -40°C to 60°C (-40°F to 140°F) Operating Humidity: 95% or less (non-condensing) Storage Humidity: 95% or less (non-condensing)

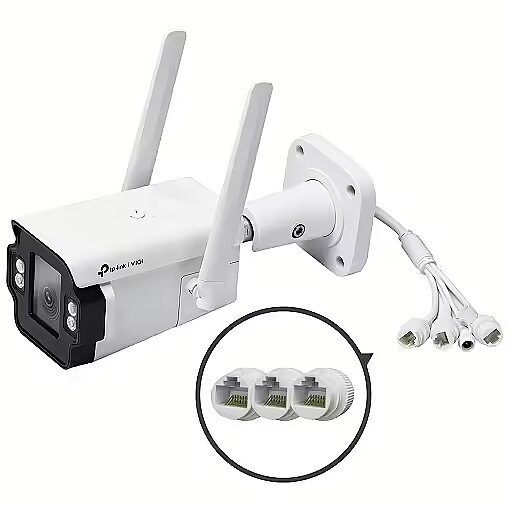

Ethernet LAN (RJ-45) ports Ports & interfaces - 3
Ethernet LAN Network - Yes
Fixed focal length Lens system - 4 mm
Fixed focus Lens system - Yes
Form factor Design - Bullet
GRUPPE1 - Security
GRUPPE2 - Network Cameras
GTIN - 8885020625585
guarantee - 24
guarantee_type - normal
Height Weight & dimensions - 101 mm
HERSTELLER - TP-LINK
Highlight Compensation (HLC) Video - Yes
Hoehe - 0
Housing material Design - Metal
HSTNUMMER - INSIGHT S345-4G(4MM)
HTTPS encryption Security - Yes
Human and vehicle targets classification Security - Yes
Identify distance Lens system - 8 m
Image quality adjustment Video - Brightness/Contrast/Mirror/Saturation/Sharpness
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Infrared (IR) cut-off filter Performance - Yes
International Protection (IP) code Design - IP66
IP address filtering Security - Yes
Laenge - 0
LED type Night vision - IR/White
Length Weight & dimensions - 256 mm
Lens - Type: Fixed-focus lens Focal length: 4 mm Aperture: F1.6 Lens mount: M12 DORI distance: Detection: 80 m; Observation: 33 m; Recognition: 16 m; Identification: 8 m
Lens system - Detect distance - 80 m
Lens system - Fixed focal length - 4 mm
Lens system - Fixed focus - Yes
Lens system - Identify distance - 8 m
Lens system - Maximum aperture number - 1.6
Lens system - Observe distance - 33 m
Lens system - Recognize distance - 16 m
Lens viewing angle, diagonal Camera - 98.7 °
Lens viewing angle, horizontal Camera - 80.4 °
Lens viewing angle, vertical Camera - 41.8 °
Live view Network - Yes
LongDesc - 4G and 3 LAN Ports, Hassle-free Deployment4MP Outdoor Full-Color 4G Bullet Network Camera3 LAN Ports Meet Minimal Deployment EffortInSight S345-4G offers industry-first three LAN ports, enabling simultaneous connectivity for up to three devices as you need. It is ideal for coupling with solar power systems to eliminate additional wiring deployments.Human & Vehicle ClassificationDistinguish humans and vehicles from other objects and receive more accurate event notifications.LightPro Night Vision TechnologyThe VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.Smart Video Enhancement TechnologyTrue WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.Efficient H.265+ Compression TechnologyH.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
LongProductName - VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera, 4 mm, 1/2.7”, 1/3 to 1/10000 s, F1.6, 2688 x 1520, CBR, VBR, BLC/3D DNR/HLC/SmartIR, 120 dB, 12V DC ± 5%, Max. 10.59 W, 5.5 mm Coaxial Power Plug, 690~960, 1710~2690MHz Dipole Omni-Directional Antenna, IP66, 256 x 122 x 101 mm, 1.09 kg, White
LongSummaryDescription - TP-Link INSIGHT S345-4G. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 80.4°, Lens viewing angle, vertical: 41.8°, Lens viewing angle, diagonal: 98.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m
Management, monitoring, configuration - Zdarzenia Smart: Wykrywanie wtargnięcia Wykrywanie przekroczenia linii Wykrywanie wejścia do strefy Wykrywanie wyjścia ze strefy Wykrywanie pozostawienia obiektu Wykrywanie zabrania obiektu Wykrywanie włóczęgi Wykrywanie ludzi Wykrywanie pojazdów Wykrywanie nieoczekiwanego dźwięku Wykrywanie zmiany sceny Zdarzenia podstawowe: Wykrywanie ruchu (wspomagane przez Klasyfikację ludzi i pojazdów, w celu uzyskania dokładniejszych alertów) Wykrywanie sabotażu kamery Wyjątek (błędne logowanie) Połączenie alarmu : Nagrywanie wideo na kartę pamięci Wysyłanie na Serwer FTP Powiadomienia Push Wysyłanie na Serwer alarmów Aktywna obrona - Alarm dźwiękowy Aktywna obrona - Alarm świetlny Alarm drogą email
Management features - Cloud-managed - Yes
Management features - Reset button - Yes
Management features - Web-based management - Yes
Management features - Web browser - Yes
Manual Packaging content - Yes
Manufacturer - TP-Link
Maximum aperture number Lens system - 1.6
Maximum memory card size Storage - 512 GB
Maximum operating distance Performance - 80 m
Maximum resolution Video - 2688 x 1520 pixels
Memory card reader - Yes
Memory standard - SD
Memory standard - SDHC
Memory standard - SDXC
Microphone - Yes
Min. illuminance - 0.005 lx
Minimum illumination Camera - 0 lx
Mirror Security - Yes
Mobile network generation Network - 4G
Mobile support - Android
Mobile support - iOS
Model - InSight S345-4G
Motion detection - Yes
Motion sensor Security - Yes
Mounting kit Packaging content - Yes
Mounting type Design - Wall
MPN - InSight S345-4G(4mm)
name - InSight S345 VIGI 4MP Outdoor Full-Color Bullet Network Camera
Name - TP-Link Omada InSight S345-4G(4mm) 4MP Outdoor Bullet Netzwerkkamera
Network - 4G standard - LTE-TDD & LTE-FDD
Network - Bluetooth - No
Network - Ethernet LAN - Yes
Network - Live view - Yes
Network - Mobile network generation - 4G

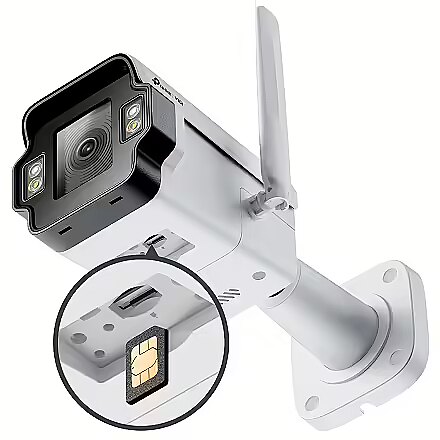

Network - SIM card slot - Yes
Network - SIM card type - NanoSIM
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Network - Wi-Fi - No
Network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP
Night mode - Yes
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Night vision Night vision - Yes
Number of cameras Packaging content - 1
Number of microphones Audio - 1
Observe distance Lens system - 33 m
Operating relative humidity (H-H) Operational conditions - 0 - 95 %
Operating temperature (T-T) Operational conditions - -30 - 60 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Optical sensor size Image sensor - 1/2.7 "
Other features - Omnidirectional Dipole Antenna 690~960MHz i 1710~2690MHz Antenna 1: 0,84dBi@690~960MHz, 2,85dBi@1710~2690MHz Antenna 2: 0,74dBi@690~960MHz, 3,06dBi@1710~2690MHz
Packaging content - Drilling template included - Yes
Packaging content - Manual - Yes
Packaging content - Mounting kit - Yes
Packaging content - Number of cameras - 1
Packaging content - Screws included - Yes
Password protection Security - Yes
Performance - Antennas quantity - 2
Performance - Antenna type - External
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Dynamic range - 120 dB
Performance - Infrared (IR) cut-off filter - Yes
Performance - Maximum operating distance - 80 m
Performance - Placement supported - Outdoor
Performance - Remote viewing - Yes
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Placement supported Performance - Outdoor
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Power - DC output voltage - 12
Power - Power consumption (max) - 9.7 W
Power - Power consumption (Power over Ethernet (PoE)) - 10.7 W
Power - Power source type - DC
Power consumption (max) Power - 9.7 W
Power consumption (Power over Ethernet (PoE)) Power - 10.7 W
Power source type Power - DC
Power supply - 12V DC / 1A 5.5 mm coaxial power plug
producer - TP-LINK
Product colour Design - White
ProductName - INSIGHT S345-4G
Progressive scan Image sensor - Yes
Protection class - IP66
Protection features Design - Waterproof
Recognize distance Lens system - 16 m
Remote viewing Performance - Yes
Reset button Management features - Yes
Resolution - 160 x 120
Sample rate Audio - 8 kHz
Screws included Packaging content - Yes
Security - Transmission Security: Password protection HTTPS encryption IP address filtering Digest authentication
Security - Alert notification type - Push notification
Security - Built-in siren - Yes
Security - Detection distance - 120 m
Security - Digest authentication - Yes
Security - HTTPS encryption - Yes
Security - Human and vehicle targets classification - Yes
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Motion sensor - Yes
Security - Password protection - Yes
Security - Video motion detection - Yes
Sensor - 1/2.7" Progressive Scan CMOS
Sensor type Image sensor - CMOS
ShortSummaryDescription - TP-Link INSIGHT S345-4G, IP security camera, Outdoor, Wired, 80 m, External, 120 dB
SIM card slot Network - Yes
SIM card type Network - NanoSIM
Speakers built-in - Yes
Special functions - Image Settings: Mirror Brightness Contrast Saturation Sharpness Exposure WDR (Wide Dynamic Range) White balance Infrared overexposure prevention Image Correction: BLC (Back Light Compensation) 3D DNR (3D Digital Noise Reduction) HLC (High Light Compensation) Smart IR
Standards - 802.11a
Standards - IPv4
Standards - IPv6
Stck_Kart - 6
Stck_Pal - 0
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 512 GB
Storage relative humidity (H-H) Operational conditions - 0 - 95 %
Storage temperature (T-T) Operational conditions - -40 - 60 °C
Storno - N
Summary - TP-Link INSIGHT S345-4G. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 80.4°, Lens viewing angle, vertical: 41.8°, Lens viewing angle, diagonal: 98.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m
Supported graphics resolutions Video - 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/2688 x 1520
Supported network protocols Network - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Tilt angle range Camera - 0 - 90 °
Title - TP-Link INSIGHT S345-4G Bullet IP security camera Outdoor 2688 x 1520 pixels Wall
Total megapixels Video - 4 MP
Two-way transmission - Yes
type - Fixed bullet type camera
Type Performance - IP security camera
Unit Box Height - 0.16
Unit Box Length - 0.325
Unit Box Width - 0.13
Unit Calculated Volume - 0.00676 cubm
Unit Calculated Weight - 1.61 kg
Units per Shipping Box - 1
URL - https://www.tp-link.com/ae/business-networking/vigi-network-camera/insight-s345-4g/
Vendor Homepage - https://www.tp-link.com/ae/business-networking/vigi-network-camera/insight-s345-4g/
vendpn - InSight S345-4G(4mm)
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Highlight Compensation (HLC) - Yes
Video - Image quality adjustment - Brightness, Contrast, Mirror, Saturation, Sharpness
Video - Maximum resolution - 2688 x 1520 pixels
Video - Supported graphics resolutions - 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video recording - Yes
Video compression - H.264
Video compression - H.264+
Video compression - H.265
Video compression - H.265+
Video compression formats Video - H.264/H.264+/H.265/H.265+
Video motion detection Security - Yes
Video recording Video - Yes
Viewing angle, horizontal - 80 °
Viewing angle, vertical - 41 °
Visual angle diagonal - 98 °
Warranty - 36 months
WarrantyInfo -
Weatherproof Design - Yes
Web-based management Management features - Yes
Web browser Management features - Yes
Weight - 1.09 kg
Weight & dimensions - Height - 101 mm
Weight & dimensions - Length - 256 mm
Weight & dimensions - Weight - 1.09 kg
Weight & dimensions - Width - 122 mm
Weight Weight & dimensions - 1090 g
Wi-Fi Network - No
Wide Dynamic Range (WDR) Performance - Yes
Width Weight & dimensions - 122 mm
Wireless communication - LTE
