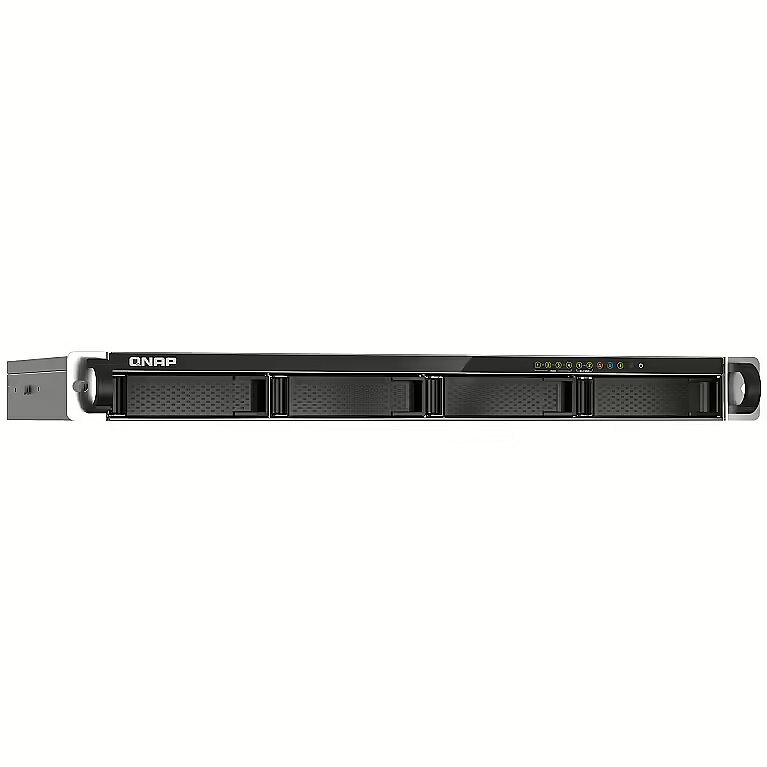

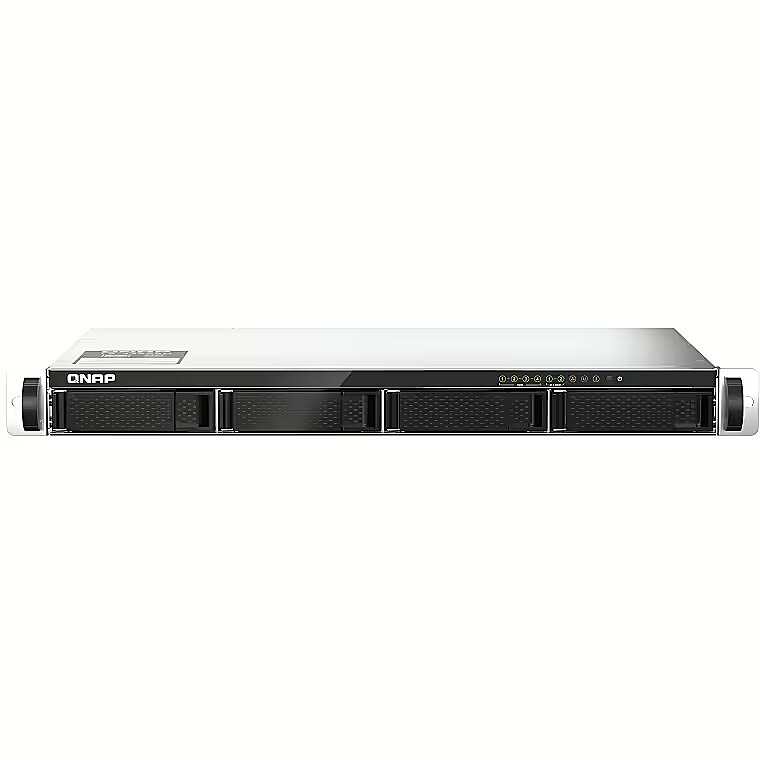

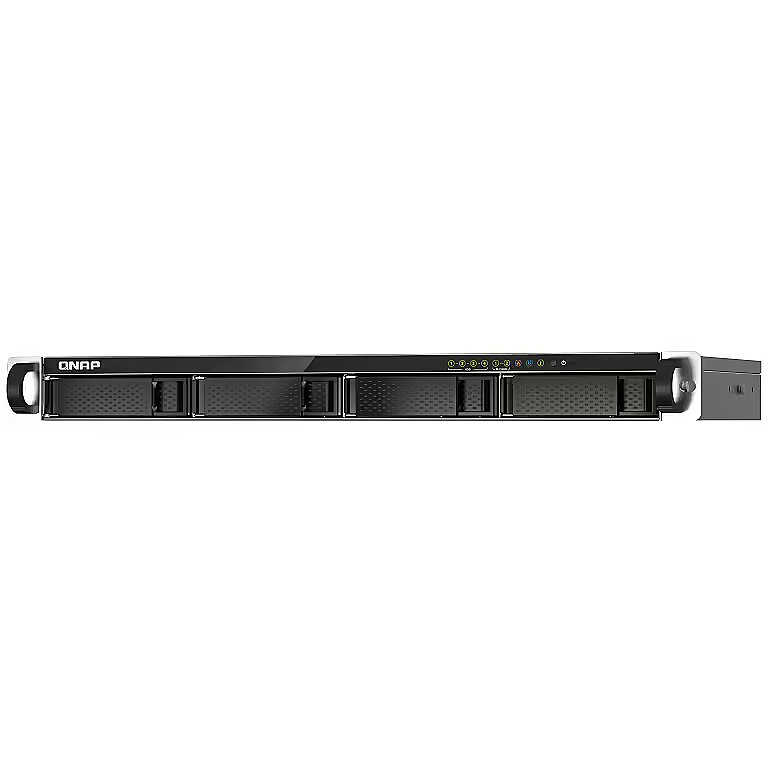

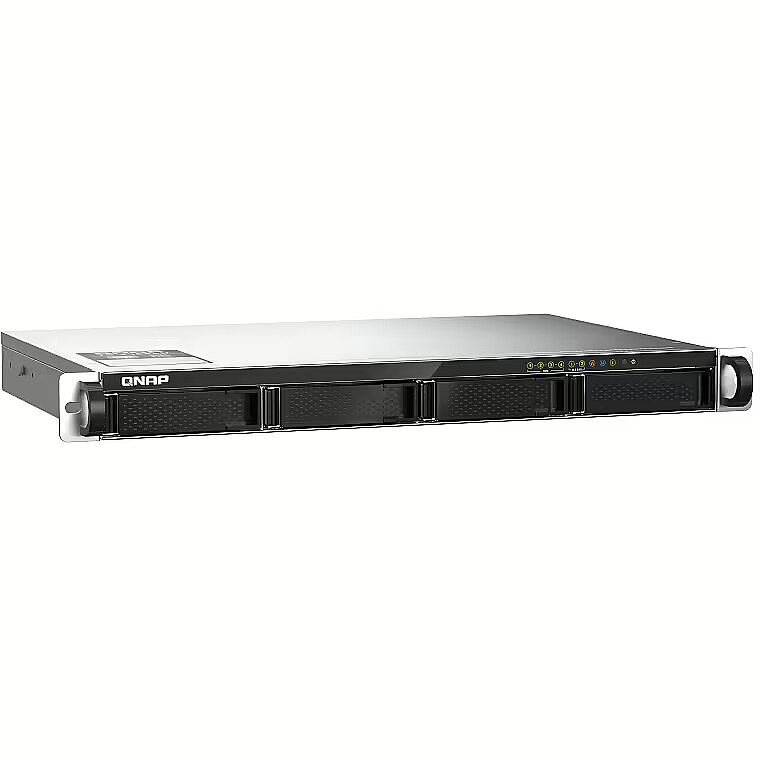

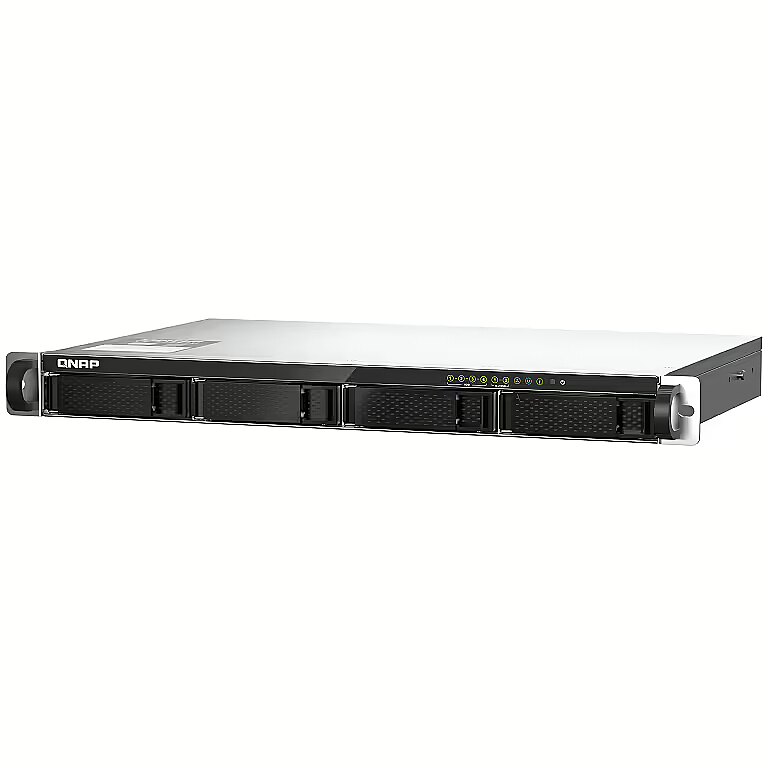

Qnap TS-435XeU-4G, 1U 4-Bay

Access Control List (ACL) Performance - Yes
Accessories included - TS-435XeU Ethernet cable x 1 Power Cord x 1 Flat head screw x 16 (for 3.5" HDD) Flat head screw x 12 (for 2.5" HDD) Hanger x 2 Holder x 2 Quick Installation Guide (QIG)
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 100 - 240 V
Auto-rebuild Storage - Yes
Backup features Performance - Cloud, iSCSI LUN
Backup function Performance - Yes
Bad block scan Storage - Yes
Brand - QNAP
BrandPartCode - TS-435XEU-4G
Browser supported Performance - Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox, Microsoft Edge
Built-in flash memory - 4 GB
Built-in FTP server Performance - Yes
Built-in RAM memory - 4 GB
Buzzer Performance - Yes
Cable lock slot Design - Yes
Cable lock slot type Design - Kensington
Cables included Packaging content - AC, LAN (RJ-45)
Category - NAS & Storage Servers
Category - Root/Electronics/Networks and communication/NAS - file servers
Category1 - NAS
Category 1 - Netzwerk
Category 2 - NAS-Systeme
Category Code - STS
Category_1 - Network and Servers
Category_2 - NAS
Chassis type Design - Rack (1U)
Code - TS-435XeU-4G
Concurrent connections Ports & interfaces - 1500
Cooling type Design - Active
Dane techniczne: Całkowita liczba gniazd pamięci - 1 szt.
Dane techniczne: Częstotliwość procesora - 2200 MHz
Dane techniczne: Format szerokości dysku twardego - 2.5 cala
Dane techniczne: Format szerokości dysku twardego - 3.5 cala
Dane techniczne: Format szerokości dysku twardego - M.2 NVMe (2280)
Dane techniczne: Grupa produktowa - NAS - serwery plików Qnap
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Ilość pamięci RAM - 4 GB
Dane techniczne: Inne cechy - pamięć flash: 4GB
Dane techniczne: Interfejs dysku twardego - Serial ATA III
Dane techniczne: Interfejs LAN - 2 x 2.5 Gigabit RJ45 | 2 x 10 Gigabit SFP+
Dane techniczne: Maks. ilość dysków twardych - 6 (4 x 2.5/3.5 + 2 x M.2)
Dane techniczne: Maks. rozmiar pamięci - 32 GB
Dane techniczne: Obsługiwany typ RAID - JBOD
Dane techniczne: Obsługiwany typ RAID - RAID 0
Dane techniczne: Obsługiwany typ RAID - RAID 1
Dane techniczne: Obsługiwany typ RAID - RAID 5
Dane techniczne: Obsługiwany typ RAID - RAID 6
Dane techniczne: Obsługiwany typ RAID - RAID 10
Dane techniczne: Obsługiwany typ RAID - Single Disk
Dane techniczne: Obudowa - RACK
Dane techniczne: Procesor - Marvell OCTEON TX2 CN9130 / CN9131 ARMv8 Cortex-A72
Dane techniczne: Producent - Qnap
Dane techniczne: Typ pamięci - SO-DIMM (DDR4)
Dane techniczne: Waga - 4.17 kg
Dane techniczne: Wymiana dysków hot-swap - tak
Dane techniczne: Wymiary - 433 × 430 × 2921.2 mm
Dane techniczne: Zarządzanie - WWW
Dane techniczne: Zasilanie - zasilacz wbudowany
Dane techniczne: Zastosowanie - kopie zapasowe
Dane techniczne: Zastosowanie - media serwer
Dane techniczne: Zastosowanie - serwer baz danych
Dane techniczne: Zastosowanie - serwer FTP
Dane techniczne: Zastosowanie - serwer iTunes
Dane techniczne: Zastosowanie - serwer plików
Dane techniczne: Zastosowanie - serwer syslog
Dane techniczne: Zastosowanie - serwer VPN
Dane techniczne: Zastosowanie - serwer WWW
Dane techniczne: Zastosowanie - serwer wydruku
Dane techniczne: Zastosowanie - stacja fotograficzna
Dane techniczne: Zastosowanie - stacja monitoringu
Dane techniczne: Zastosowanie - stacja pobierająca dane
Dane techniczne: Złącza zewnętrzne - 2 x 10 Gigabit SFP+
Dane techniczne: Złącza zewnętrzne - 2 x RJ-45
Dane techniczne: Złącza zewnętrzne - 2 x USB 2.0
Dane techniczne: Złącza zewnętrzne - 2 x USB 3.2 Gen 1
Depth Weight & dimensions - 291 mm
Description - Compact and feature-rich, the TS-435XeU offers a professional quad-core NAS solution in a shallow server rack enclosure. Native 10GbE SFP+ and 2.5GbE connectivity, along with M.2 NVMe SSD slots for cache acceleration, allow businesses to efficiently handle everyday tasks such as file backup/restore and improve team collaboration with higher productivity. The shallow chassis saves space, making it easy to mount the TS-435XeU in small media cabinets or areas with a lot of cabling. The TS-435XeU supports numerous business applications (including file sharing and synchronisation, snapshot protection, containerisation, cloud storage gateways and video streaming) and on-demand applications, making it an ideal and cost-effective entry-level rack-mount NAS solution. 10GbE connectivity with two SFP+ ports accelerates intensive file access, large backup/restore jobs and media transfers. By setting up port trunking with two built-in 2.5GbE ports (2.5G/1G/100M), transfer speeds of up to 5Gb/s can be achieved. Dual M.2 PCIe Gen 3 NVMe SSD slots allow for accelerated cache or SSD memory pools for increased performance. Support multiple containerised applications for different services and programmes. Build a monitoring system with lower total cost of ownership and higher scalability with QVR Elite's subscription-based intelligent monitoring solution. Scale storage capacity to accommodate growing data needs by connecting QNAP expansion modules.
Description - TS-435XeU
Short depth rackmount 4-bay NAS, supporting 2.5GbE/10GbE connectivity and M.2 NVMe SSD caching The compact and feature-rich TS-435XeU provides a professional-grade quad-core NAS solution in short depth rackmount form factor. The native 10GbE SFP+ and 2.5GbE connectivity alongside M.2 NVMe SSD slots that enable cache acceleration allows businesses to efficiently tackle everyday tasks like file backup/restore and to boost team collaboration with higher productivity. The space-efficient short depth design makes the TS-435XeU easy to install in small media cabinets or places with a lot of cabling. Supporting abundant business applications (including file sharing and sync, snapshot protection, containerization, cloud storage gateways, and video streaming), expandable storage capacity, and install-on-demand apps, the TS-435XeU is an ideal cost-effective entry-level rackmount NAS. Smaller footprint for bigger opportunities
Compared to a traditional 4-bay rackmount NAS, the compact TS-435XeU has a depth of only 11.49 inches (292 mm). This makes the TS-435XeU an excellent choice for smaller racks, and the unused space can be reserved for cabling or ventilation. The TS-435XeU is space-saving for flexible deployment and is especially suitable for multiple locations and applications including offices, audiovisual rooms, and security surveillance recording. Robust quad-core 2.2 GHz processor
The TS-435XeU is powered by an OCTEON TX2™ infrastructure Marvell® CN9130 series CN9131 ARM®v8 Cortex-A72 quad-core 2.2 GHz processor that features integrated workload-optimized hardware accelerators to meet performance, power and total cost of ownership requirements. The TS-435XeU comes with 4 GB DDR4 memory that can be upgraded to 32 GB for enhanced multi-tasking capabilities, and SATA 6 Gb/s support ensures maximum performance from storage drives. Streamlined workflows with high-speed 10GbE and 2.5GbE

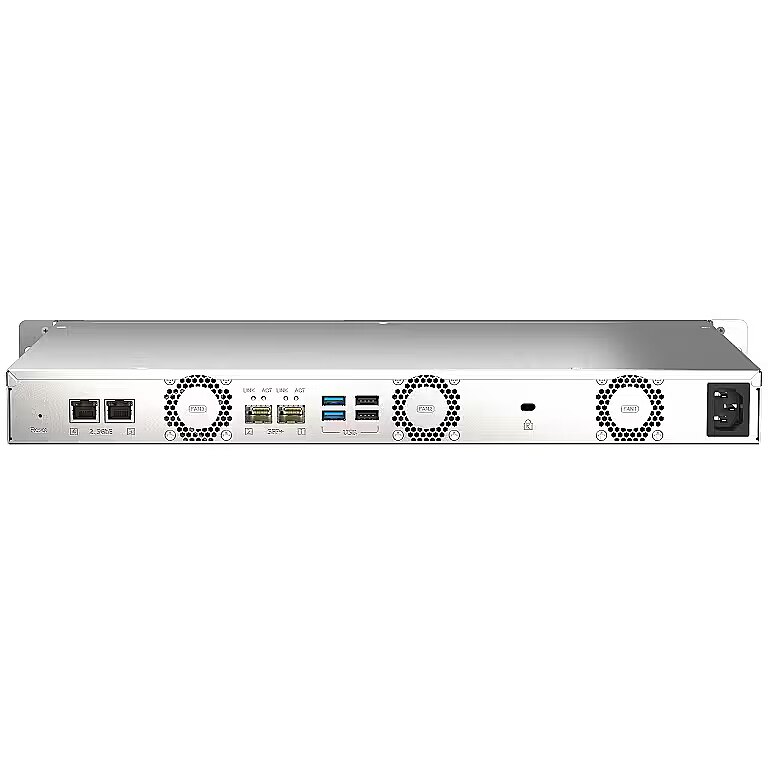

The TS-435XeU has two 10GbE SFP+ ports and two 2.5GbE RJ45 ports for high-speed networking to satisfy bandwidth-demanding applications (including massive file transfer, high-speed backup/restoration, containers, and multimedia transmission) with the support of port trunking and load balancing. QNAP’s managed and unmanaged 2.5GbE/10GbE switches are a perfect match for organizations to build budget-friendly high-speed networks for productive team collaboration. Future-proof your IT infrastructure for high-speed networks
QNAP provides comprehensive, budget-friendly storage and networking solutions, allowing you to easily and flexibly upgrade network environments for bandwidth-hungry applications. 2.5GbE/10GbE NAS
A fast NAS with one or more 2.5GbE/10GbE LAN ports. Upgrade computers and servers
Computers and servers with available PCIe slots can install QNAP network expansion cards that support 10G/5G/2.5G/1G/100M Multi-Gig. Add Ethernet ports to laptops
Laptops and computers can use a QNAP USB 3.2 Gen 1 to 5GbE adapter that supports N-BASET/Multi-Gig. A switch that supports 2.5GbE+
QNAP switches allow connecting multiple workstations and devices for high-speed collaboration. Get performance benefits from SSD caching and Qtier Technology
To attain optimal I/O and reduce latency, you can configure SSD caching by using either 2.5-inch SSDs or the two built-in M.2 2280 SSD slots (supports high-performance NVMe PCIe Gen 3 SSDs, sold separately) in the TS-435XeU. Coupled with QNAP’s SSD-aware features, the TS-435XeU maximizes performance with high cost-effectiveness. SSD over-provisioning
(Over-provisioning)
Add additional SSD over-provisioning to avoid write amplification and improve SSD random write speeds and endurance. You can potentially attain enterprise-grade SSD performance levels from affordable consumer-grade SSDs! SSD cache acceleration
Enables SSD caching for increasing IOPS performance and reducing latency for storage volumes, ideal for IOPS-demanding applications. Qtier for auto-tiering
Qtier Technology drives auto-tiered storage with continuous data optimization across high-performance SSDs and high-capacity HDDs based on access frequency. I/O-Aware Qtier can reserve a cache-like space in the SSD tiered to handle burst I/O in real time. Host container applications
Container Station integrates Docker®, LXD, and Kata Containers lightweight virtualization technologies. You can download apps from the built-in Docker Hub® to easily import/export container apps and manage access controls, enjoying the benefit of easy installation, transferability and high-efficiency. A multimedia server for video streaming
The short depth TS-435XeU can be easily placed in a media cabinet. By installing streaming apps such as Plex® Media Server from the QTS App Center, you can stream media files stored on the TS-435XeU to mobiles and media streaming devices (including DLNA®, Roku®, Amazon Fire TV® and Google Chromecast™). Comprehensive backup and disaster recovery solution
The TS-435XeU supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed. PC/Laptop backup
For Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data. Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-435XeU to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy. Cloud backup for NAS
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time. Multi-version snapshots mitigate ransomware threats
The TS-435XeU supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware. Volume and LUN snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data. Instantly restore snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side. Back up snapshots
Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-435XeU to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis. Comprehensive security and privilege settings
The TS-435XeU is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers. myQNAPcloud secures remote access
myQNAPcloud allows convenient connection to the TS-435XeU through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits. Simplified privilege settings
The TS-435XeU supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems. QuFirewall protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security. Superior security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-435XeU as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection. Security Counselor
A security portal for the TS-435XeU to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software. Malware Remover
Regularly scan your TS-435XeU using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security. The best file storage and collaboration center
The TS-435XeU integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files. File Station
Manage, access, and share all the files in the TS-435XeU and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage. Qsync
Make any file uploaded to a TS-435XeU available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Qsirch
QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria. Qfiling
Automate your file organization ─ all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin. Smart surveillance solution for 24/7 security
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-435XeU and enjoy simplified camera management, storage space allocation, camera live viewing and playback. Flexible and economical storage expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-435XeU storage as needed to accommodate data and business growth. Connect expansion enclosures to the TS-435XeU, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app. Mount cloud storage or remote file servers
Mount cloud storage or remote file servers to expand the capacity of the TS-435XeU while also centrally managing files on the NAS, cloud storage, and remote devices. Migrate to a new NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations. Upgrade RAID capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business. More productivity-boosting applications
The TS-435XeU provides an App Center that includes feature-rich apps to expand your NAS potential! QuMagie
An AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS® Live Photo display, and powerful search tools for the ultimate photo management and sharing solution. Notification Center
Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status. Qmiix
An Integration Platform as a Service (iPaaS) solution that enables you to connect apps and devices with QNAP NAS for automating daily tasks for greater productivity. Proxy Server
By using a high-capacity TS-435XeU as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time. QmailAgent
Centralize multiple email accounts and protect your data by using secondary backup, making managing and backing up emails absolutely easy. QuFTP
The TS-435XeU can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported. A health check for your hard drives
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files. S.M.A.R.T. and back block scanning
If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs. DA Drive Analyzer
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss
Seagate® IronWolf™ Health Management
When using supported IronWolf™ or IronWolf Pro™ hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.Dual-port 10GbE SFP+ connectivity accelerates intensive file access, large backup/restoration tasks, and media transferUp to 5 Gbps transfer speeds can be made by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) portsDual M.2 PCIe Gen 3 NVMe SSD slots enable cache acceleration or SSD storage pools for improved performanceHost multiple containerized apps to run a wide range of applications and servicesBuild a surveillance system with lower TCO and higher scalability with the subscription-based QVR Elite smart surveillance solutionScale your storage capacity to fit growing data needs by connecting QNAP’s expansion units
Description1 - QNAP NAS Server TS-435XEU-4G - 0 GB
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - Rack (1U)
Design - Cooling type - Active
Design - Fan diameter - 4 cm
Design - LED indicators - Yes
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Product colour - Black, Grey
Design - Product colour - Grey
Design > Chassis type - Rack
Design > Number of 3.5" bays - 4
Designation - CE+WEEE
Device class Performance - Small & Medium Business
DHCP client Network - Yes
DHCP server Network - Yes
dimensionalWeight - 9434
dimension depth - 420 mm
dimension height - 180 mm
Dimensions - 43.3 × 430 × 292.12 mm
dimension weight - 5860 g
dimension width - 540 mm
Disk roaming Storage - Yes
Disk scan Performance - Yes
Disk type - HDD
Disk type - SSD
Dynamic DNS (DDNS) Network - Yes
EAN - 4713213519332
ean - 4713213519332
Eans - 4713213519332
EAN_code - 4713213519332
Ethernet LAN (RJ-45) ports Ports & interfaces - 2
Ethernet LAN data rates Network - 100,1000,2500,10000 Mbit/s
Ethernet LAN Network - Yes
Expansion slots - 2 x PCIe 3.0 x 1
Fan - 4 cm
Fan diameter Design - 4 cm
Fan voltage Power - 12 V
Fiber optic connector Ports & interfaces - SFP+
Fiber ports quantity Ports & interfaces - 2
Flash memory Memory - 4000 MB
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
Gross Weight Kg - 5,86
GTIN - 0885022021550
GTIN - 885022021550
GTIN - 4713213519332
guarantee - 36
guarantee_type - normal
Harmonized System (HS) code Logistics data - 84714100
HDD interface - SATA
Height Weight & dimensions - 44 mm
Hot-swap drive bays Storage - Yes
Hot-swapping support - No
Hot spare Performance - Yes
Housing - Rack 1U
I/O connectors - 2 x USB 2.0
I/O connectors - 2 x USB 3.0
Installed storage drive type Storage - No
Internal memory Memory - 4 GB
Internal memory type Memory - DDR4
iSCSI support Network - Yes
Jumbo frames support Network - Yes
LED indicators Design - Yes
Link - https://www.qnap.com/en/product/ts-435xeu/specs/hardware
Link aggregation Network - Yes
Linux operating systems supported Software - Yes
Load balancing system Network - Yes
Logistics data - Harmonized System (HS) code - 84714100
LongDesc - TS-435XeUShort depth rackmount 4-bay NAS, supporting 2.5GbE/10GbE connectivity and M.2 NVMe SSD cachingThe compact and feature-rich TS-435XeU provides a professional-grade quad-core NAS solution in short depth rackmount form factor. The native 10GbE SFP+ and 2.5GbE connectivity alongside M.2 NVMe SSD slots that enable cache acceleration allows businesses to efficiently tackle everyday tasks like file backup/restore and to boost team collaboration with higher productivity. The space-efficient short depth design makes the TS-435XeU easy to install in small media cabinets or places with a lot of cabling. Supporting abundant business applications (including file sharing and sync, snapshot protection, containerization, cloud storage gateways, and video streaming), expandable storage capacity, and install-on-demand apps, the TS-435XeU is an ideal cost-effective entry-level rackmount NAS.Smaller footprint for bigger opportunitiesCompared to a traditional 4-bay rackmount NAS, the compact TS-435XeU has a depth of only 11.49 inches (292 mm). This makes the TS-435XeU an excellent choice for smaller racks, and the unused space can be reserved for cabling or ventilation. The TS-435XeU is space-saving for flexible deployment and is especially suitable for multiple locations and applications including offices, audiovisual rooms, and security surveillance recording.Robust quad-core 2.2 GHz processorThe TS-435XeU is powered by an OCTEON TX2™ infrastructure Marvell® CN9130 series CN9131 ARM®v8 Cortex-A72 quad-core 2.2 GHz processor that features integrated workload-optimized hardware accelerators to meet performance, power and total cost of ownership requirements. The TS-435XeU comes with 4 GB DDR4 memory that can be upgraded to 32 GB for enhanced multi-tasking capabilities, and SATA 6 Gb/s support ensures maximum performance from storage drives.Streamlined workflows with high-speed 10GbE and 2.5GbEThe TS-435XeU has two 10GbE SFP+ ports and two 2.5GbE RJ45 ports for high-speed networking to satisfy bandwidth-demanding applications (including massive file transfer, high-speed backup/restoration, containers, and multimedia transmission) with the support of port trunking and load balancing. QNAP’s managed and unmanaged 2.5GbE/10GbE switches are a perfect match for organizations to build budget-friendly high-speed networks for productive team collaboration.Future-proof your IT infrastructure for high-speed networksQNAP provides comprehensive, budget-friendly storage and networking solutions, allowing you to easily and flexibly upgrade network environments for bandwidth-hungry applications.2.5GbE/10GbE NASA fast NAS with one or more 2.5GbE/10GbE LAN ports.Upgrade computers and serversComputers and servers with available PCIe slots can install QNAP network expansion cards that support 10G/5G/2.5G/1G/100M Multi-Gig.Add Ethernet ports to laptopsLaptops and computers can use a QNAP USB 3.2 Gen 1 to 5GbE adapter that supports N-BASET/Multi-Gig.A switch that supports 2.5GbE+QNAP switches allow connecting multiple workstations and devices for high-speed collaboration.Get performance benefits from SSD caching and Qtier TechnologyTo attain optimal I/O and reduce latency, you can configure SSD caching by using either 2.5-inch SSDs or the two built-in M.2 2280 SSD slots (supports high-performance NVMe PCIe Gen 3 SSDs, sold separately) in the TS-435XeU. Coupled with QNAP’s SSD-aware features, the TS-435XeU maximizes performance with high cost-effectiveness.SSD over-provisioning(Over-provisioning)Add additional SSD over-provisioning to avoid write amplification and improve SSD random write speeds and endurance. You can potentially attain enterprise-grade SSD performance levels from affordable consumer-grade SSDs!SSD cache accelerationEnables SSD caching for increasing IOPS performance and reducing latency for storage volumes, ideal for IOPS-demanding applications.Qtier for auto-tieringQtier Technology drives auto-tiered storage with continuous data optimization across high-performance SSDs and high-capacity HDDs based on access frequency. I/O-Aware Qtier can reserve a cache-like space in the SSD tiered to handle burst I/O in real time.Host container applicationsContainer Station integrates Docker®, LXD, and Kata Containers lightweight virtualization technologies. You can download apps from the built-in Docker Hub® to easily import/export container apps and manage access controls, enjoying the benefit of easy installation, transferability and high-efficiency.A multimedia server for video streamingThe short depth TS-435XeU can be easily placed in a media cabinet. By installing streaming apps such as Plex® Media Server from the QTS App Center, you can stream media files stored on the TS-435XeU to mobiles and media streaming devices (including DLNA®, Roku®, Amazon Fire TV® and Google Chromecast™).Comprehensive backup and disaster recovery solutionThe TS-435XeU supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.PC/Laptop backupFor Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.Remote backup for NASHybrid Backup Sync makes it easy to back up data from a TS-435XeU to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.Cloud backup for NASHybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.Multi-version snapshots mitigate ransomware threatsThe TS-435XeU supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.Volume and LUN snapshotsTake snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.Instantly restore snapshotsSnapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.Back up snapshotsMultiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-435XeU to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.Comprehensive security and privilege settingsThe TS-435XeU is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.myQNAPcloud secures remote accessmyQNAPcloud allows convenient connection to the TS-435XeU through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.Simplified privilege settingsThe TS-435XeU supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.QuFirewall protectionSupports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.Superior security with QVPNA virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-435XeU as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.Security CounselorA security portal for the TS-435XeU to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.Malware RemoverRegularly scan your TS-435XeU using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.The best file storage and collaboration centerThe TS-435XeU integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.File StationManage, access, and share all the files in the TS-435XeU and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.QsyncMake any file uploaded to a TS-435XeU available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.QsirchQNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.QfilingAutomate your file organization ─ all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.Smart surveillance solution for 24/7 securityQVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-435XeU and enjoy simplified camera management, storage space allocation, camera live viewing and playback.Flexible and economical storage expansionQNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-435XeU storage as needed to accommodate data and business growth.Connect expansion enclosures to the TS-435XeU, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.Mount cloud storage or remote file serversMount cloud storage or remote file servers to expand the capacity of the TS-435XeU while also centrally managing files on the NAS, cloud storage, and remote devices.Migrate to a new NASInstall your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.Upgrade RAID capacityHot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.More productivity-boosting applicationsThe TS-435XeU provides an App Center that includes feature-rich apps to expand your NAS potential!QuMagieAn AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS® Live Photo display, and powerful search tools for the ultimate photo management and sharing solution.Notification CenterConsolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.QmiixAn Integration Platform as a Service (iPaaS) solution that enables you to connect apps and devices with QNAP NAS for automating daily tasks for greater productivity.Proxy ServerBy using a high-capacity TS-435XeU as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.QmailAgentCentralize multiple email accounts and protect your data by using secondary backup, making managing and backing up emails absolutely easy.QuFTPThe TS-435XeU can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.A health check for your hard drivesHard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.S.M.A.R.T. and back block scanningIf any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.DA Drive AnalyzerThe DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data lossSeagate® IronWolf™ Health ManagementWhen using supported IronWolf™ or IronWolf Pro™ hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.
LongProductName - 4 x 3.5", Marvell OCTEON TX2 CN9130 / CN9131, 4 GB SODIMM DDR4, 4 GB Flash, LAN, 100 W, 100-240 V, 43.3 x 430 x 292.12 mm, 4.17 kg
LongSummaryDescription - QNAP TS-435XEU. Type: NAS. Chassis type: Rack (1U). Device class: Small & Medium Business. Processor family: Marvell, Processor model: CN9131, Processor frequency: 2.2 GHz. Internal memory: 4 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QNAP QTS
Mac operating systems supported Software - Yes
Management, monitoring, configuration -
Manufacturer - Qnap
Manufacturer - QNAP
Manufacturer Code - TS-435XEU-4G
ManufacturerID - TS-435XEU-4G
Manufacturer Name - QNAP
Manufacturer_code - TS-435XeU-4G
Max. number of disks - 4
Maximum RAM supported Memory - 32 GB
Max memory size - 32 GB
Memory - Flash memory - 4000 MB
Memory - Internal memory - 4 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 32 GB
Memory - Memory form factor - SO-DIMM
Memory - Memory slots - 1
Memory > Internal memory type - DDR4
Memory > Internal RAM - 4 GB
Memory form factor Memory - SO-DIMM
Memory slots Memory - 1
Memory type - SODIMM DDR4
Model name - TS-435XEU
MPN - TS-435XEU-4G
Multilingual support Performance - Yes
Name - 4-Bay QNAP TS-435XeU Rack SATA 6Gb/s RAID 0, 1, 5, 6, 10, JBOD 4GB RAM
Name - QNAP TS-435XEU-4G
Name - Qnap TS-435XeU-4G (gray/black)
Name - QNAP | 4-Bay NAS | TS-435XeU-4G | Up to 4 HDD/SSD Hot-Swap | Marvell OCTEON TX2 | CN9130 / CN9131 ARMv8 Cortex-A72 Quad-Core | Processor frequency 2.2 GHz | 4 GB | DDR4
name - TS-435XeU-4G 4-bay 1U CN9130/9131 2x10Gbe SFP
Network - DHCP client - Yes
Network - DHCP server - Yes
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 100,1000,2500,10000 Mbit/s
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Ethernet LAN data rates - 2500
Network - Ethernet LAN data rates - 10000 Mbit/s
Network - iSCSI support - Yes
Network - Jumbo frames support - Yes
Network - Link aggregation - Yes
Network - Load balancing system - Yes
Network - Wake-on-LAN ready - Yes
Network architecture - GigabitEthernet
Network interface - 2 x 10/100 Mbit/s
Network interface - 2 x 10Gbit/s SFP+
Network protocols -
Number of fans - 3
Number of fans Design - 3 fan(s)
Number of memory slots used - 1
Number of power supply units Power - 1
Number of screws Packaging content - 28
Number of storage drives supported Storage - 4
On/off switch Performance - Yes
Online RAID expansion Storage - Yes
Online RAID migration Storage - Yes
Operating relative humidity (H-H) Operational conditions - 5 - 95%
Operating system installed Software - QNAP QTS
Operating system version Software - 5.0.0
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other disk parameters -
Other features -
Other features - Warranty period - 3 year(s)
Other features > Drive bays - 4
Other features > Ethernet LAN (RJ-45) ports - 4
Package depth Weight & dimensions - 179 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 540 mm
Package features > Gross height (mm) - 180 mm
Package features > Gross width (mm) - 420 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 21 pc(s)
Package features > Paper/Pasteboard - 586.00 g
Package features > Plastic (No PET) - 223 g
Package features > Tare weight (kg) - 0.59 kg
Package features > Volume (m3) - 0.040824 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PackageHeight - 185
Package height Weight & dimensions - 542 mm
PackageLength - 540
Package type Packaging content - Box
PackageWeight - 5800
Package weight Weight & dimensions - 5.86 kg
PackageWidth - 420
Package width Weight & dimensions - 415 mm
Packaging content - Cables included - AC
Packaging content - Cables included - AC, LAN (RJ-45)
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Number of screws - 28
Packaging content - Package type - Box
Packaging content - Power cables quantity - 1
Packaging content - Rack mount kit - Yes
PDF - https://www.blobs.lt/products/8/4/5/3/6/3/c6dbc9d016647414ab0f0ea3b962118f/original.pdf
Performance - Access Control List (ACL) - Yes
Performance - Backup features - Cloud
Performance - Backup features - Cloud, iSCSI LUN
Performance - Backup features - iSCSI LUN
Performance - Backup function - Yes
Performance - Browser supported - Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox, Microsoft Edge
Performance - Built-in FTP server - Yes
Performance - Buzzer - Yes
Performance - Device class - Small & Medium Business
Performance - Disk scan - Yes
Performance - Hot spare - Yes
Performance - Multilingual support - Yes
Performance - On/off switch - Yes
Performance - Remotely operated - Yes
Performance - Reset button - Yes
Performance - S.M.A.R.T. support - Yes
Performance - Share folder - Y
Performance - Snapshot - Yes
Performance - System log - Yes
Performance - Type - NAS
Performance - Universal Plug and Play (UPnP) - Yes
Ports & interfaces - Concurrent connections - 1500
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Fiber optic connector - SFP+
Ports & interfaces - Fiber ports quantity - 2
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB port - Yes
Ports & interfaces > Interface - 2x10 Gigabit Ethernet SFP+; 2x2.5 Gigabit Ethernet; 2 x M.2 2280 1x PCIe Gen 3; 2x USB 3.2 Gen 1; 2x USB 2.0
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Fan voltage - 12 V
Power - Number of power supply units - 1
Power - Power consumption (HDD standby) - 17.367 W
Power - Power consumption (typical) - 30.878 W
Power - Power supply location - Built-in
Power - Power supply unit (PSU) capacity - 100 W
Power cables quantity Packaging content - 1
Power consumption (HDD standby) Power - 17.367 W
Power consumption (typical) Power - 30.878 W
Power supply - 100 W PSU, 100240 V
Power supply location Power - Built-in
Power supply unit (PSU) capacity Power - 100 W
Processor - Marvell OCTEON TX2 CN9130 / CN9131 ARMv8 Cortex-A72 4-core 2.2GHz processor
Processor - Processor cores - 4
Processor - Processor family - Marvell
Processor - Processor frequency - 2.2 GHz
Processor - Processor manufacturer - Marvell
Processor - Processor model - CN9131
Processor > Processor family - Marvell OCTEON TX2
Processor > Processor frequency - 2.2 GHz
Processor > Processor model - CN9130 / CN9131 ARMv8 Cortex-A72 Quad-Core
Processor cores Processor - 4
Processor family Processor - Marvell
Processor frequency Processor - 2.2 GHz
Processor manufacturer Processor - Marvell
Processor model Processor - CN9131
Producent: Nazwa producenta / importera - Qnap
QNAP GmbH
Karl-Arnold-Straße 26
47877 Willich
producer - QNAP
Producer - Qnap
producerCode - TS-435XEU-4G
ProducerCode - TS-435XEU-4G
Producer product family - 4-Bay NAS
Producer product name - TS-435XeU-4G
Product colour Design - Black, Grey
productName - Qnap TS-435XeU-4G, 1U, 4 x 2.5"/3.5" SATA , Marvell Octeon TX2 CN9130 / CN9131 quad-core, 4GB DDR4 SODIMM (Max. 32GB), 2 x 10GbE SFP+, 2 x 2.5GbE, Single PSU
ProductName - TS-435XEU
productSize - Normal
Rack mount kit Packaging content - Yes
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RAID levels - JBOD
RAID levels Storage - 0, 1, 5, 6, 10, JBOD
RAID rebuild Storage - Yes
RAID support Storage - Yes
Remotely operated Performance - Yes
Reset button Performance - Yes
S.M.A.R.T. support Performance - Yes
Safety warning - Warnings - Avoid contact with liquids.
Safety warning - Warnings - Do not dismantle the appliance yourself.
Safety warning - Warnings - Do not dispose of the device in the regular rubbish bin. The product requires special disposal.
Server operating systems supported Software - Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Share folder Performance - Y
ShortDescription -
Short description - QNAP NAS TS-435XeU-4G (4 Bay) 1U
ShortSummaryDescription - QNAP TS-435XEU, NAS, Rack (1U), Marvell, CN9131, 4 GB, DDR4
sizeX - 174
sizeY - 583
sizeZ - 465
Snapshot Performance - Yes
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Yes
Software - Operating system installed - QNAP QTS
Software - Operating system version - 5.0.0
Software - Server operating systems supported - Windows Server 2008 R2
Software - Server operating systems supported - Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Software - Server operating systems supported - Windows Server 2012
Software - Server operating systems supported - Windows Server 2012 R2
Software - Server operating systems supported - Windows Server 2016
Software - Server operating systems supported - Windows Server 2019
Software - Windows operating systems supported - Yes
Storage - Auto-rebuild - Yes
Storage - Bad block scan - Yes
Storage - Disk roaming - Yes
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Number of storage drives supported - 4
Storage - Online RAID expansion - Yes
Storage - Online RAID migration - Yes
Storage - RAID levels - 0
Storage - RAID levels - 0, 1, 5, 6, 10, JBOD
Storage - RAID levels - 1
Storage - RAID levels - 5
Storage - RAID levels - 6
Storage - RAID levels - 10
Storage - RAID levels - JBOD
Storage - RAID rebuild - Yes
Storage - RAID support - Yes
Storage - Storage drives installed - No
Storage - Storage drive sizes supported - 2.5
Storage - Storage drive sizes supported - 2.5,3.5,M.2
Storage - Storage drive sizes supported - 3.5"
Storage - Storage drive sizes supported - M.2
Storage - Supported file systems - exFAT
Storage - Supported file systems - ext3
Storage - Supported file systems - ext4
Storage - Supported file systems - FAT32
Storage - Supported file systems - FAT32, HFS+, NTFS, exFAT, ext3, ext4
Storage - Supported file systems - HFS+
Storage - Supported file systems - NTFS
Storage - Supported storage drive interfaces - M.2, Serial ATA II, Serial ATA III
Storage - Supported storage drive types - HDD & SSD
Storage - Total installed storage capacity - 0 TB
Storage > Number of storage drives supported - Up to 4 HDD/SSD Hot-Swap
Storage drives installed Storage - No
Storage drive sizes supported Storage - 2.5,3.5,M.2
Storage temperature (T-T) Operational conditions - -20 - 70 °C
Summary - QNAP TS-435XEU. Type: NAS. Chassis type: Rack (1U). Device class: Small & Medium Business. Processor family: Marvell, Processor model: CN9131, Processor frequency: 2.2 GHz. Internal memory: 4 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QNAP QTS
Supported file systems Storage - FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces Storage - M.2, Serial ATA II, Serial ATA III
Supported storage drive types Storage - HDD & SSD
System log Performance - Yes
Technical details > Gross weight - 5.8 kg
Technical details > Net weight - 5.214 kg
Technical details > Other features - 3 x 40mm, 12VDC; Power Supply Unit 100W PSU, 100-240V
Technical details > Producer - QNAP
Title - QNAP TS-435XEU NAS Rack (1U) Marvell CN9131 4 GB DDR4 0 TB QNAP QTS Black, Grey
Total installed storage capacity Storage - 0 TB
Total number of memory slots - 1
Type Performance - NAS
Unit Box Height - 0.185
Unit Box Length - 0.545
Unit Box Width - 0.425
Unit Calculated Volume - 0.04285 cubm
Unit Calculated Weight - 5.8 kg
Units per Shipping Box - 1
Universal Plug and Play (UPnP) Performance - Yes
URL - https://www.qnap.com/en/product/ts-435xeu
USB 2.0 ports quantity Ports & interfaces - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Ports & interfaces - 2
USB port Ports & interfaces - Yes
Vendor Homepage - https://www.qnap.com/en/product/ts-435xeu
vendpn - TS-435XeU-4G
Wake-on-LAN ready Network - Yes
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 Years
warrantyLength - 36
Warranty period Other features - 3 year(s)
warrantyType - F
WEEE - DE83654239
Weight - 4.17 kg
Weight - 5,86
Weight - 6
weight - 6200
Weight & dimensions - Depth - 291 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Package depth - 179 mm
Weight & dimensions - Package height - 542 mm
Weight & dimensions - Package weight - 5.86 kg
Weight & dimensions - Package width - 415 mm
Weight & dimensions - Weight - 4.17 kg
Weight & dimensions - Width - 439 mm
Weight Weight & dimensions - 4.17 kg
Width Weight & dimensions - 439 mm
Windows operating systems supported Software - Yes
