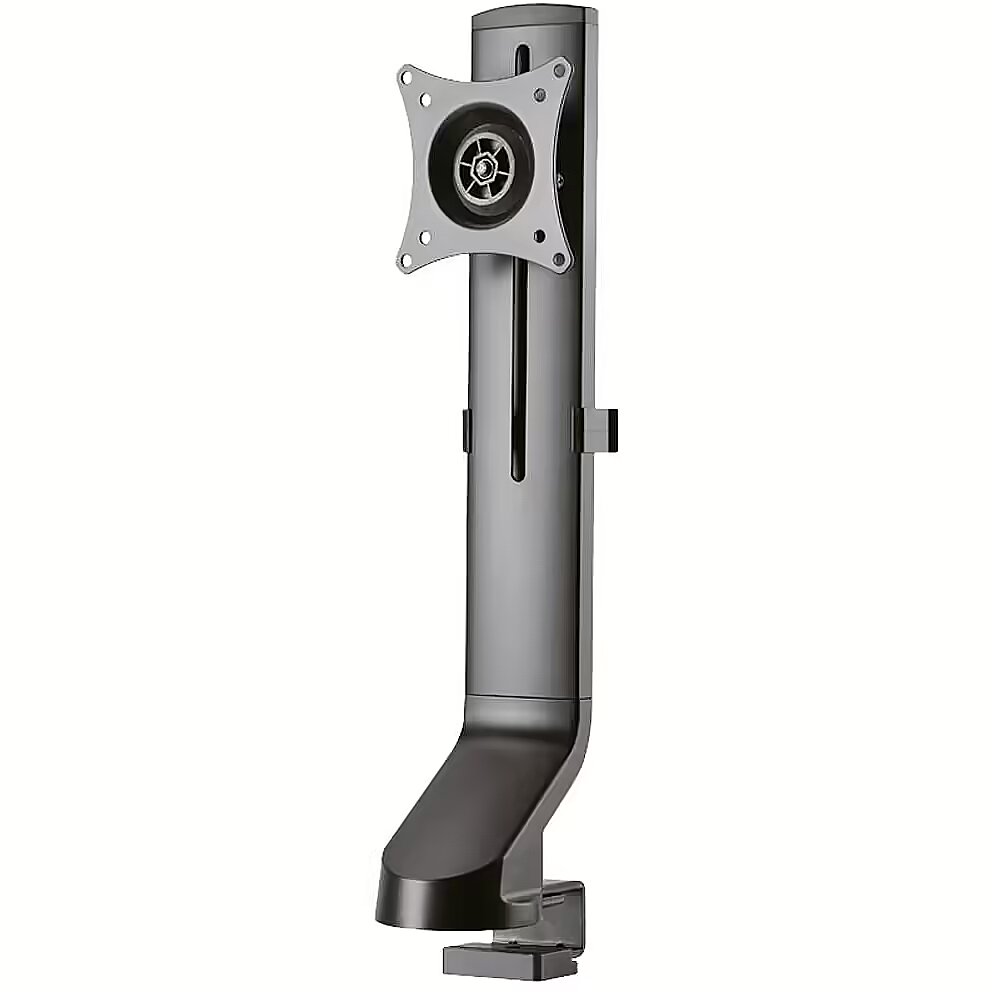

Newstar Desk monitor arm with height adjustable, 10-32"

Angle of rotation Ergonomics - 360°
Brand - Neomounts
BrandPartCode - FPMA-D860BLACK
Cable management Ergonomics - Yes
Category - Monitor Mounts & Stands
Category Code - MAS
Country of origin Logistics data - China
Depth adjustment range Ergonomics - 0 - 50 mm
Depth Weight & dimensions - 50 mm
Description - NEWSTAR FLAT SCREEN DESK MOUNT (CLAMP/GROMMET) 10-32" BLACK
Description - The Neomounts desk mount, model FPMA-D860BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks. Neomounts' versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 26 to 45 centimetres. Depth 5 centimetres. Neomounts FPMA-D860BLACK has one pivot point and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates. By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. All installation material is included with the product.
Design - Housing material - Steel
Design - Product colour - Black
Desk thickness (max) Mounting - 2.5 cm
Ergonomics - Angle of rotation - 360°
Ergonomics - Cable management - Yes
Ergonomics - Depth adjustment range - 0 - 50 mm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 260 - 450 mm
Ergonomics - Height adjustment type - Manual
Ergonomics - Number of pivot points - 1
Ergonomics - Pivot angle - -180 - 180°
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 20°
Ergonomics - Swivel angle range - -10 - 10°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -10 - 10°
GTIN - 8717371446710
Harmonized System (HS) code Logistics data - 7326909890
Height - 95.000000
Height adjustment - Yes
Height adjustment Ergonomics - Yes
Height adjustment range Ergonomics - 260 - 450 mm
Height adjustment type Ergonomics - Manual
Height Weight & dimensions - 450 mm
Housing material Design - Steel
Length - 406.000000
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 12.5 kg
Logistics data - Master (outer) case height - 445 mm
Logistics data - Master (outer) case length - 320 mm
Logistics data - Master (outer) case net weight - 10 kg
Logistics data - Master (outer) case width - 540 mm
Logistics data - Products per master (outer) case - 8 pc(s)
Logistics data - Products per pallet (EU) - 176 pc(s)
LongDesc - The Neomounts desk mount, model FPMA-D860BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks.Neomounts' versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 26 to 45 centimetres. Depth 5 centimetres.Neomounts FPMA-D860BLACK has one pivot point and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.All installation material is included with the product.
LongProductName - Neomounts FPMA-D860BLACK Single monitor arm - 10-32" - 0-8 kg - black
LongSummaryDescription - Neomounts FPMA-D860BLACK Monitor arm 10-32". Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -10 - 10°, Tilt angle range: -10 - 10°. Product colour: Black
Manufacturer - Neomounts
ManufacturerPartNumber - FPMA-D860BLACK
Master (outer) case gross weight Logistics data - 12.5 kg
Master (outer) case height Logistics data - 445 mm
Master (outer) case length Logistics data - 320 mm
Master (outer) case net weight Logistics data - 10 kg
Master (outer) case width Logistics data - 540 mm
Maximum screen size Mounting - 81.3 cm (32")
Maximum VESA mount Mounting - 100 x 100 mm
Maximum weight (capacity), kg - 8
Maximum weight capacity (per display) Mounting - 8 kg
Maximum weight capacity Mounting - 8 kg
Minimum screen size Mounting - 25.4 cm (10")
Minimum VESA mount Mounting - 75 x 75 mm
Motorized - No
Mounting - Desk thickness (max) - 2.5 cm
Mounting - Maximum screen size - 81.3 cm (32")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 8 kg
Mounting - Maximum weight capacity (per display) - 8 kg
Mounting - Minimum screen size - 25.4 cm (10")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting - Clamp/Grommet
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 100,75 x 75 mm
Mounting Mounting - Clamp/Grommet
Mounting type Mounting - Desk
Number of displays supported Mounting - 1
Number of pivot points Ergonomics - 1
Package depth Packaging data - 90 mm
Package height Packaging data - 405 mm
Package weight Packaging data - 2.4 kg
Package width Packaging data - 130 mm
Packaging data - Package depth - 90 mm
Packaging data - Package height - 405 mm
Packaging data - Package weight - 2.4 kg
Packaging data - Package width - 130 mm
Panel mounting interface Mounting - 100 x 100,75 x 75 mm
PeriodofWarranty - 5 Y
Pivot angle Ergonomics - -180 - 180°
Product colour Design - Black
ProductName - Neomounts FPMA-D860BLACK Monitor arm 10-32"
Products per master (outer) case Logistics data - 8 pc(s)
Products per pallet (EU) Logistics data - 176 pc(s)
Rotating Ergonomics - Yes
Short summary - Neomounts FPMA-D860BLACK Single monitor arm - 10-32" - 0-8 kg - black
ShortSummaryDescription - Neomounts FPMA-D860BLACK Monitor arm 10-32", Clamp/Grommet, 8 kg, 25.4 cm (10"), 81.3 cm (32"), 100 x 100 mm, Black
Stand/mount type - Table
Summary - Neomounts FPMA-D860BLACK Monitor arm 10-32". Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -10 - 10°, Tilt angle range: -10 - 10°. Product colour: Black
Swivel angle Ergonomics - 20°
Swivel angle range Ergonomics - -10 - 10°
Swivelling Ergonomics - Yes
Tilt - Yes
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -10 - 10°
Title - Neomounts FPMA-D860BLACK Monitor arm 10-32"
Turn - Yes
Unit Box Height - 0.135
Unit Box Length - 0.405
Unit Box Width - 0.095
Unit Calculated Volume - 0.005194 cubm
Unit Calculated Weight - 2.26 kg
Units per Shipping Box - 1
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-D860BLACK
Vendor Homepage - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-D860BLACK
VESA-standard, mm - 75 x 75
VESA-standard, mm - 100 x 100
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 2.280000
Weight & dimensions - Depth - 50 mm
Weight & dimensions - Height - 450 mm
Weight & dimensions - Weight - 2.08 kg
Weight Weight & dimensions - 2.08 kg
Wheels - No
Width - 135.000000
