Newstar Desk monitor arm, 10-32"

Angle of rotation Ergonomics - 360°
Brand - Neomounts
BrandPartCode - FPMA-D510BLACK
Cable management Ergonomics - Yes
Category - Monitor Mounts & Stands
Category Code - MAS

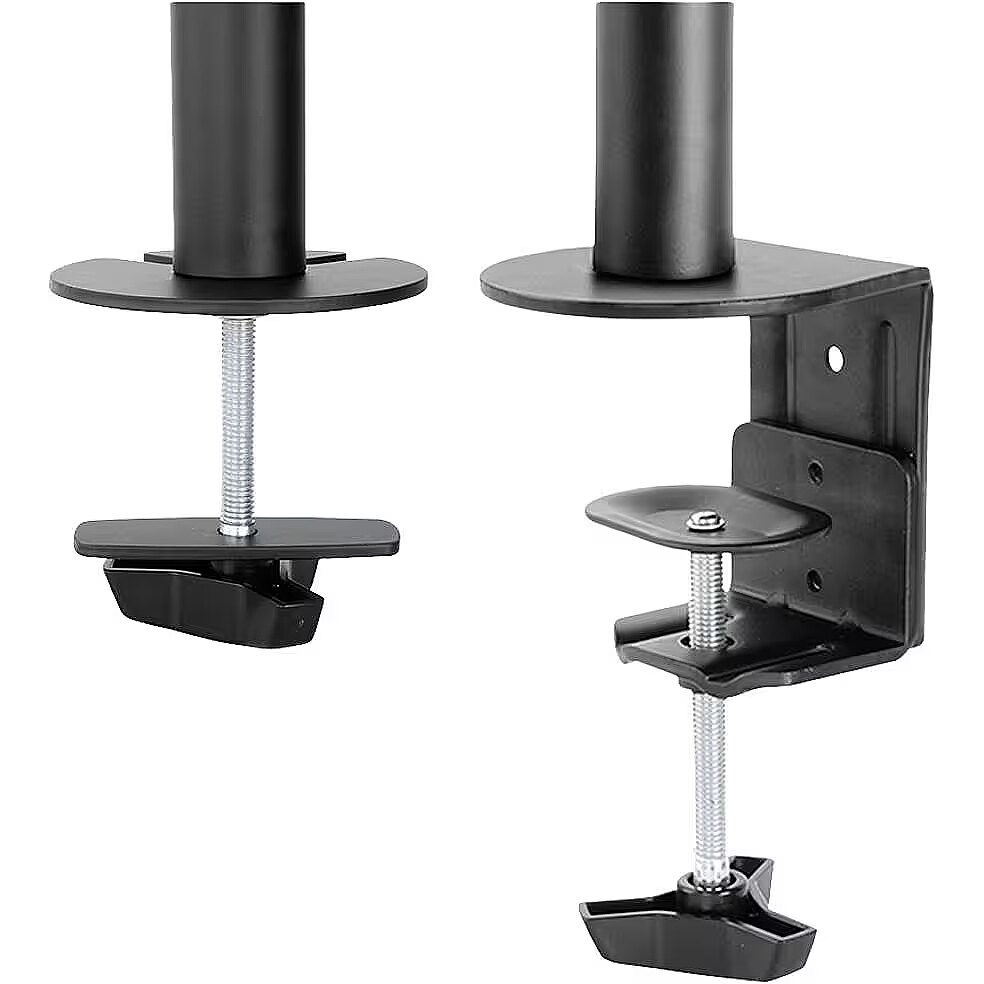

Clamp included Packaging content - Yes
Country of origin Logistics data - China
Depth adjustment range Ergonomics - 0 - 88 mm
Depth Weight & dimensions - 88 mm
Description - NEWSTAR FLAT SCREEN DESK MOUNT (CLAMP/GROMMET) 10-32" BLACK

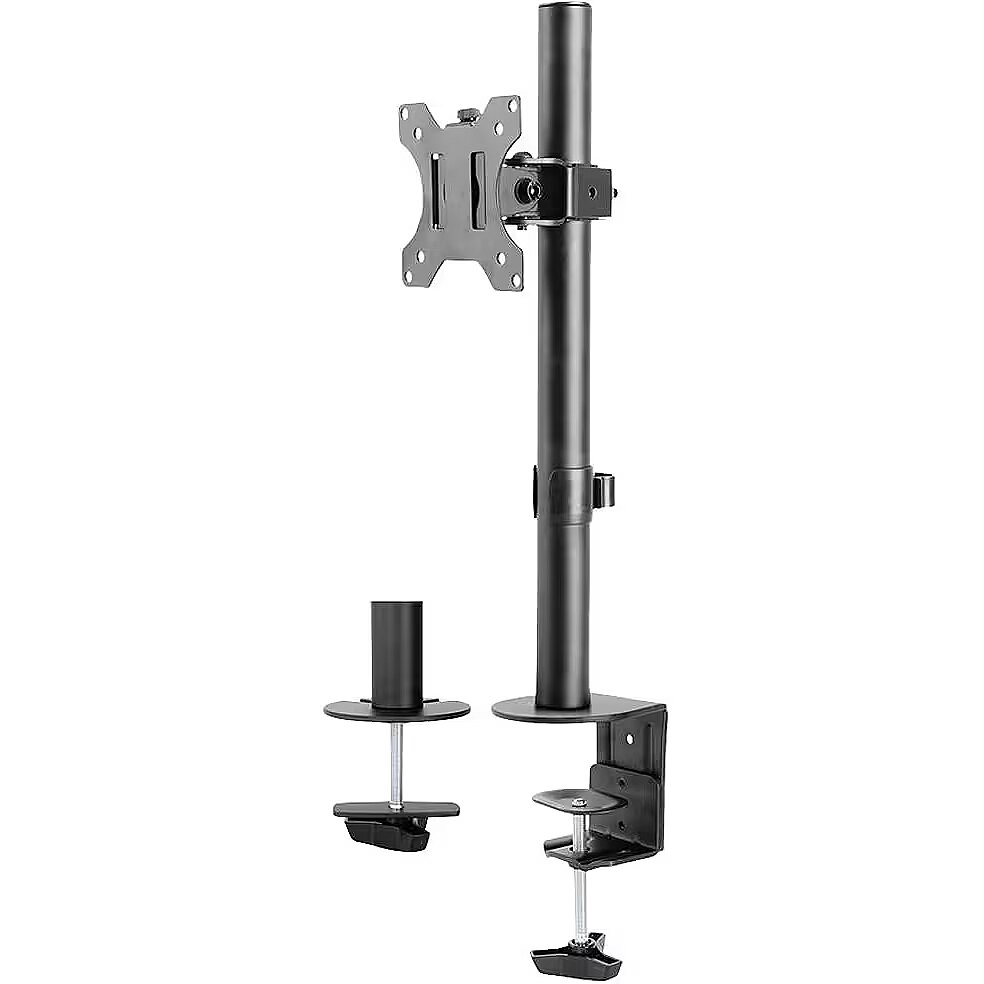

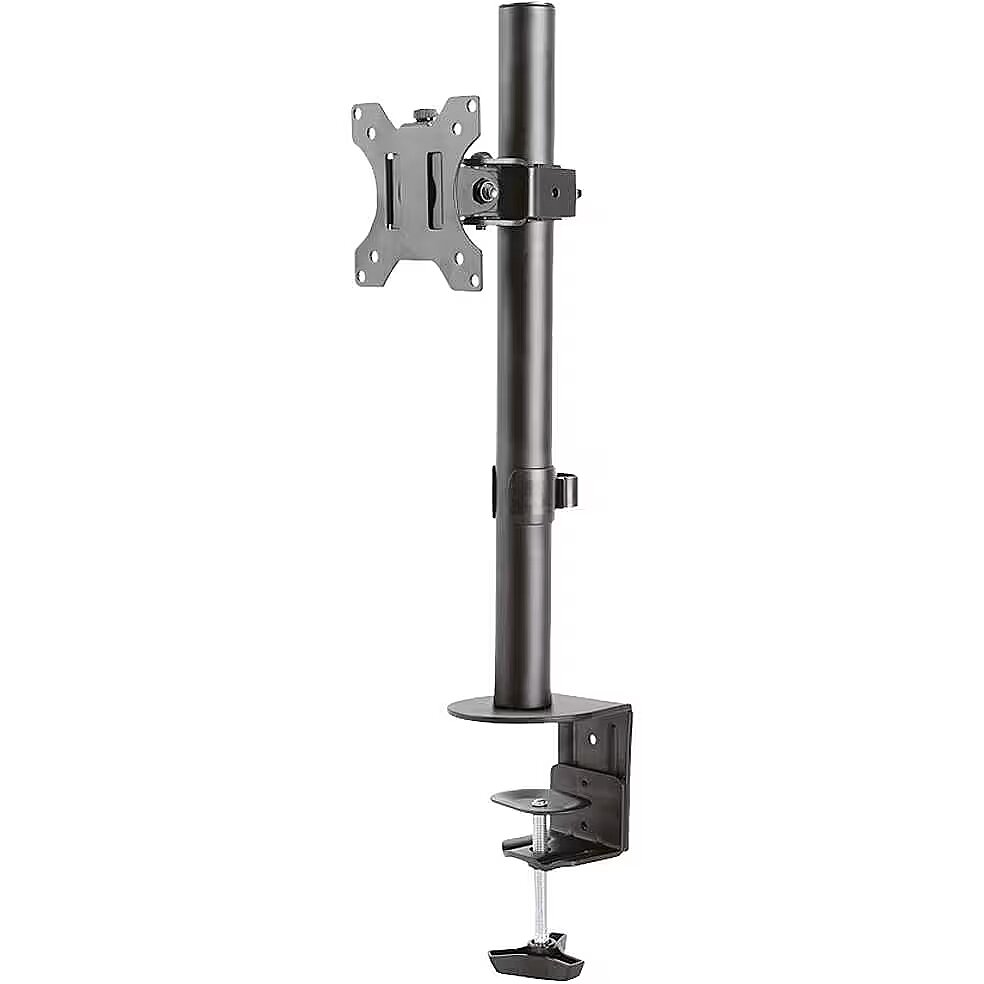

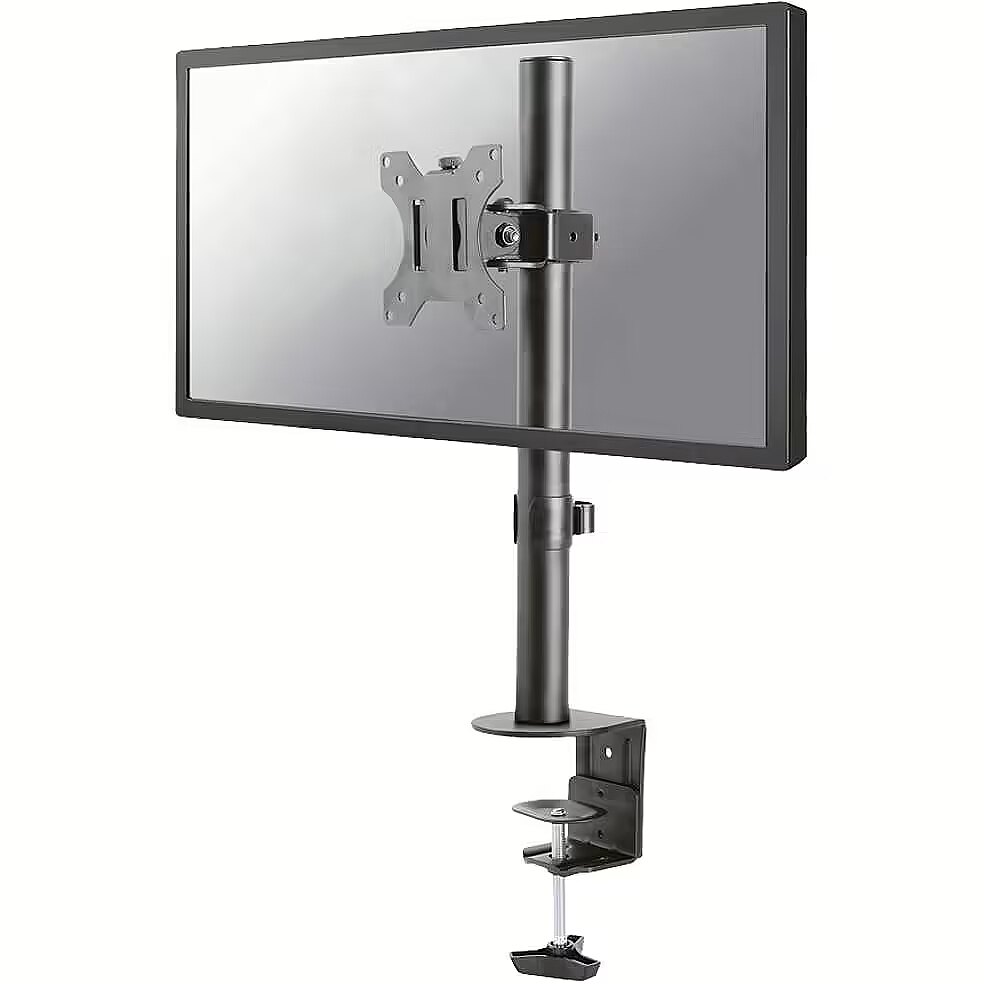

Description - The Neomounts desk mount, model FPMA-D510BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount. Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. Neomounts FPMA-D510BLACK has one pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates. By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. All installation material is included with the product.
Design - Housing material - Steel
Design - Product colour - Black

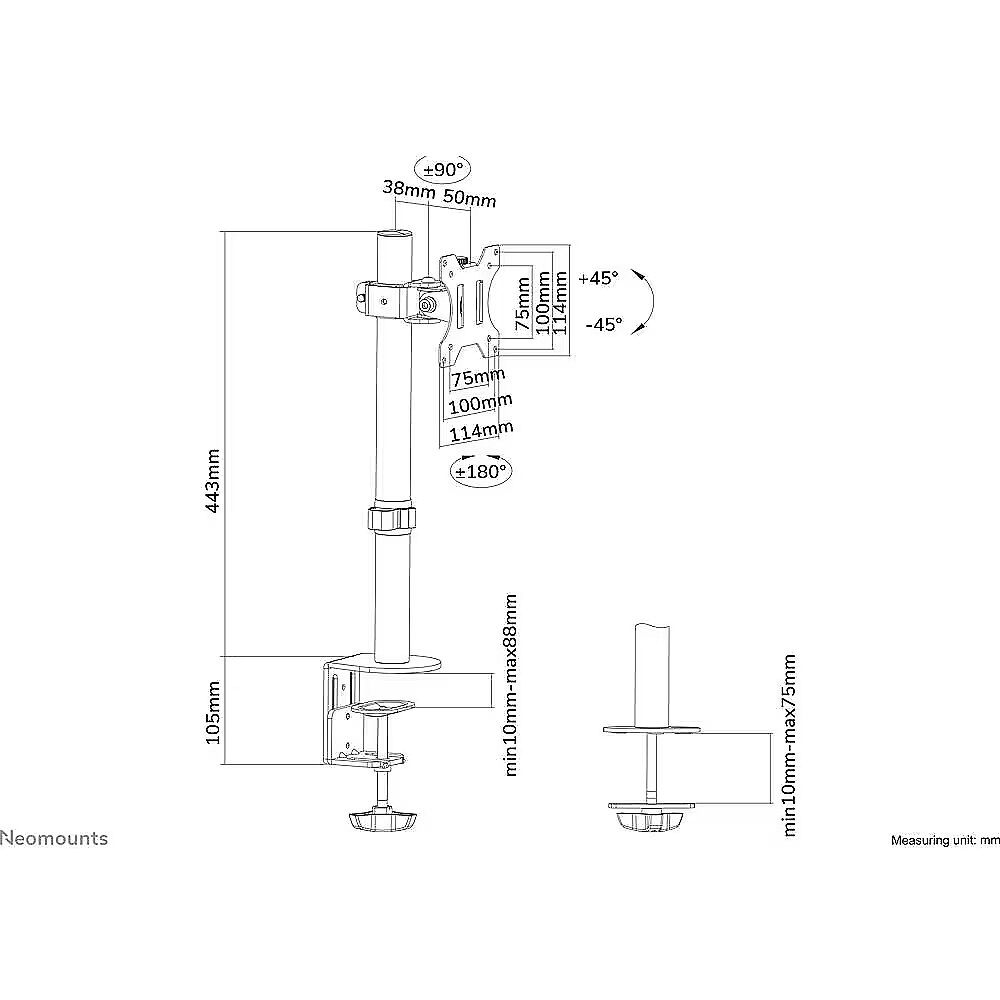

Desk thickness (max) Mounting - 7.5 cm
Ergonomics - Angle of rotation - 360°
Ergonomics - Cable management - Yes
Ergonomics - Depth adjustment range - 0 - 88 mm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 0 - 425 mm
Ergonomics - Height adjustment type - Manual
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 180°
Ergonomics - Swivel angle range - 0 - 180°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - 0 - 90°
GTIN - 8717371447458
Harmonized System (HS) code Logistics data - 7326909890
Height - 123.000000
Height adjustment - Yes
Height adjustment Ergonomics - Yes
Height adjustment range Ergonomics - 0 - 425 mm
Height adjustment type Ergonomics - Manual
Height Weight & dimensions - 425 mm
Housing material Design - Steel
Length - 110.000000
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 19.6 kg
Logistics data - Master (outer) case height - 505 mm
Logistics data - Master (outer) case length - 350 mm
Logistics data - Master (outer) case net weight - 19.6 kg
Logistics data - Master (outer) case width - 260 mm
Logistics data - Products per master (outer) case - 6 pc(s)
Logistics data - Products per pallet (EU) - 144 pc(s)
LongDesc - The Neomounts desk mount, model FPMA-D510BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.Neomounts FPMA-D510BLACK has one pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.All installation material is included with the product.
LongProductName - Neomounts FPMA-D510BLACK Single monitor arm - 10-32" - 0-8 kg - black
LongSummaryDescription - Neomounts FPMA-D510BLACK Monitor arm 10-32". Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 180°, Tilt angle range: 0 - 90°. Product colour: Black
Manufacturer - Neomounts
ManufacturerPartNumber - FPMA-D510BLACK
Master (outer) case gross weight Logistics data - 19.6 kg
Master (outer) case height Logistics data - 505 mm
Master (outer) case length Logistics data - 350 mm
Master (outer) case net weight Logistics data - 19.6 kg
Master (outer) case width Logistics data - 260 mm
Maximum screen size Mounting - 81.3 cm (32")
Maximum VESA mount Mounting - 100 x 100 mm
Maximum weight (capacity), kg - 8
Maximum weight capacity (per display) Mounting - 8 kg
Maximum weight capacity Mounting - 8 kg
Minimum screen size Mounting - 25.4 cm (10")
Minimum VESA mount Mounting - 75 x 75 mm
Motorized - No
Mounting - Desk thickness (max) - 7.5 cm
Mounting - Maximum screen size - 81.3 cm (32")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 8 kg
Mounting - Maximum weight capacity (per display) - 8 kg
Mounting - Minimum screen size - 25.4 cm (10")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting - Clamp/Grommet
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 100,75 x 75 mm
Mounting Mounting - Clamp/Grommet
Mounting type Mounting - Desk
Number of displays supported Mounting - 1
Package depth Packaging data - 110 mm
Package height Packaging data - 489 mm
Package net weight Packaging data - 3.3 kg
Package weight Packaging data - 3.3 kg
Package width Packaging data - 120 mm
Packaging content - Clamp included - Yes
Packaging content - VESA mount included - Yes
Packaging data - Package depth - 110 mm
Packaging data - Package height - 489 mm
Packaging data - Package net weight - 3.3 kg
Packaging data - Package weight - 3.3 kg
Packaging data - Package width - 120 mm
Panel mounting interface Mounting - 100 x 100,75 x 75 mm
PeriodofWarranty - 5 Y
Product colour Design - Black
ProductName - Neomounts FPMA-D510BLACK Monitor arm 10-32"
Products per master (outer) case Logistics data - 6 pc(s)
Products per pallet (EU) Logistics data - 144 pc(s)
Rotating Ergonomics - Yes
Short summary - Neomounts FPMA-D510BLACK Single monitor arm - 10-32" - 0-8 kg - black
ShortSummaryDescription - Neomounts FPMA-D510BLACK Monitor arm 10-32", Clamp/Grommet, 8 kg, 25.4 cm (10"), 81.3 cm (32"), 100 x 100 mm, Black
Stand/mount type - Table
Summary - Neomounts FPMA-D510BLACK Monitor arm 10-32". Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 180°, Tilt angle range: 0 - 90°. Product colour: Black
Swivel angle Ergonomics - 180°
Swivel angle range Ergonomics - 0 - 180°
Swivelling Ergonomics - Yes
Tilt - Yes
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - 0 - 90°
Title - Neomounts FPMA-D510BLACK Monitor arm 10-32"
Turn - Yes
Unit Box Height - 0.12
Unit Box Length - 0.5
Unit Box Width - 0.11
Unit Calculated Volume - 0.0066 cubm
Unit Calculated Weight - 3 kg
Units per Shipping Box - 1
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-D510BLACK
Vendor Homepage - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-D510BLACK
VESA-standard, mm - 75 x 75
VESA-standard, mm - 100 x 100
VESA mount included Packaging content - Yes
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 3.050000
Weight & dimensions - Depth - 88 mm
Weight & dimensions - Height - 425 mm
Weight & dimensions - Weight - 2.78 kg
Weight Weight & dimensions - 2.78 kg
Wheels - No
Width - 490.000000
