Newstar TV/Monitor Ceiling Mount, 10-40"

Accessories included - Akcesoria montażowe
Angle of rotation Ergonomics - 360°
Brand - Neomounts
BrandPartCode - FPMA-C200BLACK
Cable management Ergonomics - Yes
Category - TV Mounts & Stands
Category Code - TMS
Color - Black
Corner mount - No
Country of origin Technical details - Taiwan
Depth adjustment range Other features - 0 - 90 mm
Depth Weight & dimensions - 90 mm
Description -
Description - NEWSTAR FLAT SCREEN CEILING MOUNT (HEIGHT: 64-105 CM) 10-40" BLACK

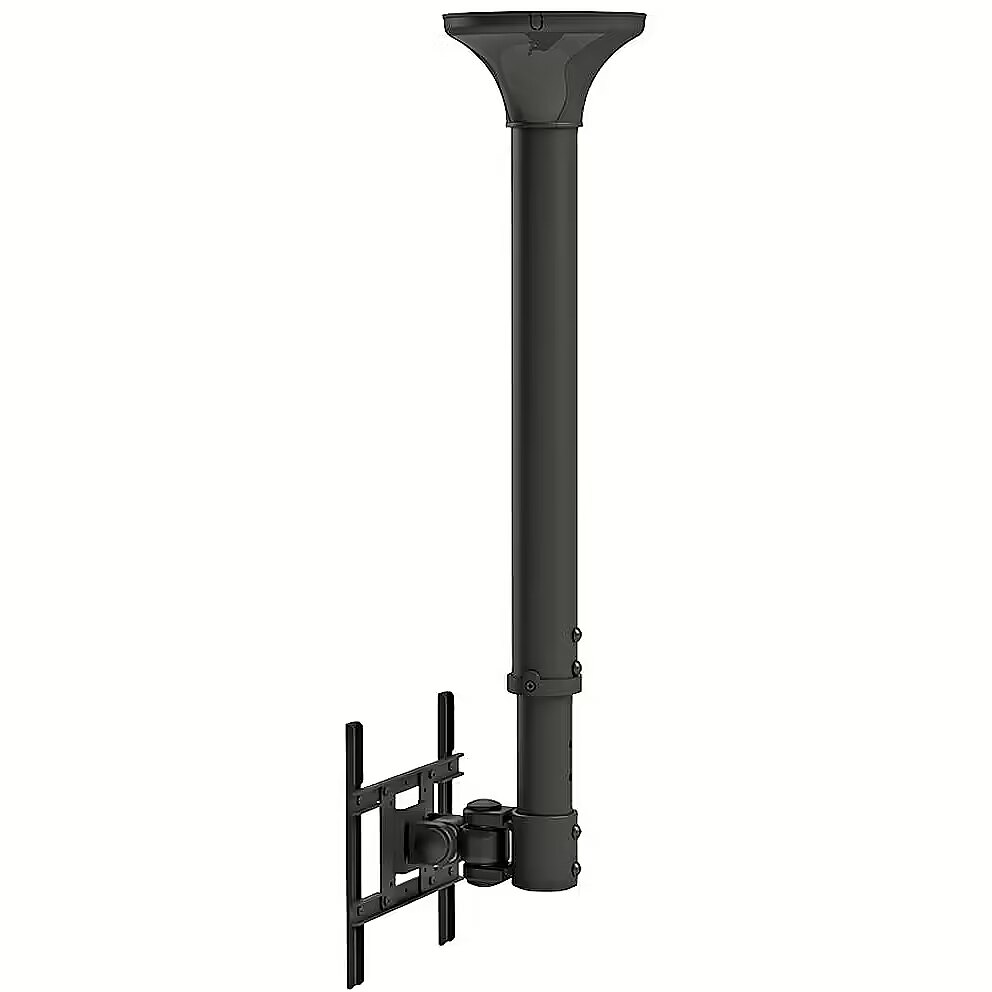

Description - The Neomounts ceiling mount, model FPMA-C200BLACK is a tilt- and swivel ceiling mount for flat screens up to 40". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option. Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 64 to 104 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy. Neomounts FPMA-C200BLACK has two pivot points and is suitable for screens up to 40" (102 cm). The weight capacity of this product is 20 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 to 200x200mm. Different hole patterns can be covered using Neomounts VESA adapter plates. All installation material is included with the product.
Design - Housing material - Steel
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 185 mm
dimension height - 740 mm
Dimensions -
dimension weight - 6600 g
dimension width - 220 mm
ean - 8717371444235
Ergonomics - Angle of rotation - 360°
Ergonomics - Cable management - Yes
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 640 - 1040 mm
Ergonomics - Height adjustment type - Manual
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 180°
Ergonomics - Swivel angle range - 0 - 180°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle - 180°
Ergonomics - Tilt angle range - 0 - 180°
GTIN - 8717371444235
guarantee - 60
guarantee_type - normal
Harmonized System (HS) code Logistics data - 7326909890
Height - 190.000000
Height adjustment - Yes
Height adjustment Ergonomics - Yes
Height adjustment range Ergonomics - 640 - 1040 mm
Height adjustment type Ergonomics - Manual
Height Weight & dimensions - 1040 mm
Horizontal adjustment - 180 °
Housing material Design - Steel
Length - 750.000000
Load (max) - 20 kg
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 6.6 kg
Logistics data - Master (outer) case height - 190 mm
Logistics data - Master (outer) case length - 225 mm
Logistics data - Master (outer) case net weight - 6 kg
Logistics data - Master (outer) case width - 760 mm
Logistics data - Products per master (outer) case - 1 pc(s)
Logistics data - Products per pallet (EU) - 40 pc(s)
LongDesc - The Neomounts ceiling mount, model FPMA-C200BLACK is a tilt- and swivel ceiling mount for flat screens up to 40". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 64 to 104 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.Neomounts FPMA-C200BLACK has two pivot points and is suitable for screens up to 40" (102 cm). The weight capacity of this product is 20 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 to 200x200mm. Different hole patterns can be covered using Neomounts VESA adapter plates.All installation material is included with the product.
LongProductName - Neomounts FPMA-C200BLACK Monitor/TV mount ceiling 1 screen - 10-40" - max 20 kg - VESA 75x75-200x200 - h 64-104 cm - black
LongSummaryDescription - Neomounts FPMA-C200BLACK Monitor/TV mount ceiling 10-40" - h 64-104 cm. Maximum weight capacity: 20 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 101.6 cm (40"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 200 mm. Height adjustment range: 640 - 1040 mm, Tilt angle range: 0 - 180°, Swivel angle range: 0 - 180°, Angle of rotation: 360°. Product colour: Black
Manufacturer - Neomounts
ManufacturerPartNumber - FPMA-C200BLACK
Master (outer) case gross weight Logistics data - 6.6 kg
Master (outer) case height Logistics data - 190 mm
Master (outer) case length Logistics data - 225 mm
Master (outer) case net weight Logistics data - 6 kg
Master (outer) case width Logistics data - 760 mm
Maximum screen size Mounting - 101.6 cm (40")
Maximum VESA mount Mounting - 200 x 200 mm
Maximum weight (capacity), kg - 20
Maximum weight capacity (per display) Mounting - 20 kg
Maximum weight capacity Mounting - 20 kg
Minimum screen size Mounting - 25.4 cm (10")
Minimum VESA mount Mounting - 75 x 75 mm
Motorized - No
Mounting - Maximum screen size - 101.6 cm (40")
Mounting - Maximum VESA mount - 200 x 200 mm
Mounting - Maximum weight capacity - 20 kg
Mounting - Maximum weight capacity (per display) - 20 kg
Mounting - Minimum screen size - 25.4 cm (10")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting type - Ceiling
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 200,100 x 100,200 x 100,200 x 200,75 x 75
Mounting type Mounting - Ceiling
name - FPMA-C200BLACK LCD CEILING MOUNT
Number of displays supported Mounting - 1
Number of supported monitors - 1
Other features -
Other features - Depth adjustment range - 0 - 90 mm
Package depth Packaging data - 225 mm
Package height Packaging data - 190 mm
Package weight Packaging data - 4.5 kg
Package width Packaging data - 760 mm
Packaging data - Package depth - 225 mm
Packaging data - Package height - 190 mm
Packaging data - Package weight - 4.5 kg
Packaging data - Package width - 760 mm
Panel mounting interface Mounting - 100 x 200,100 x 100,200 x 100,200 x 200,75 x 75
PeriodofWarranty - 5 Y
producer - Neomounts
Product colour Design - Black
ProductName - Neomounts FPMA-C200BLACK Monitor/TV mount ceiling 10-40" - h 64-104 cm
Products per master (outer) case Logistics data - 1 pc(s)
Products per pallet (EU) Logistics data - 40 pc(s)
Range (max) - 104 cm
Range (min) - 64 cm
Range adjustment - Yes
Rotating Ergonomics - Yes
Screen size (max) - 40 ''
Screen size (min) - 10 ''
Short summary - Neomounts FPMA-C200BLACK Monitor/TV mount ceiling 1 screen - 10-40" - max 20 kg - VESA 75x75-200x200 - h 64-104 cm - black
ShortSummaryDescription - Neomounts FPMA-C200BLACK Monitor/TV mount ceiling 10-40" - h 64-104 cm, 75 x 75 mm, 200 x 200 mm, 0 - 180°, 0 - 180°, 360°, Black
Stand/mount type - Ceiling
Summary - Neomounts FPMA-C200BLACK Monitor/TV mount ceiling 10-40" - h 64-104 cm. Maximum weight capacity: 20 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 101.6 cm (40"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 200 mm. Height adjustment range: 640 - 1040 mm, Tilt angle range: 0 - 180°, Swivel angle range: 0 - 180°, Angle of rotation: 360°. Product colour: Black
Swivel angle Ergonomics - 180°
Swivel angle range Ergonomics - 0 - 180°
Swivelling Ergonomics - Yes
Technical details - Country of origin - Taiwan
Tilt - Yes
Tilt adjustment Ergonomics - Yes
Tilt angle Ergonomics - 180°
Tilt angle range Ergonomics - 0 - 180°
Title - Neomounts FPMA-C200BLACK Monitor/TV mount ceiling 10-40" - h 64-104 cm
Turn - Yes
Type - Ceiling
Unit Box Height - 0.22
Unit Box Length - 0.75
Unit Box Width - 0.19
Unit Calculated Volume - 0.03135 cubm
Unit Calculated Weight - 6.7 kg
Units per Shipping Box - 1
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-C200BLACK
Usage - Monitors
Usage - TV
Vendor Homepage - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-C200BLACK
vendpn - FPMA-C200BLACK
Vertical adjustment - 180 °
VESA - 75 x 75
VESA - 200 x 200
VESA-standard, mm - 75 x 75
VESA-standard, mm - 200 x 200
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 6.610000
Weight & dimensions - Depth - 90 mm
Weight & dimensions - Height - 1040 mm
Weight & dimensions - Weight - 5.83 kg
Weight Weight & dimensions - 5.83 kg
Wheels - No
Width - 215.000000
