Newstar Ultra-flat fixed wall mount for Samsung screens, 43-85"

Accessories included -
Brand - Neomounts
BrandPartCode - WL30-265BL1
Cable management Ergonomics - No
Category - TV Mounts & Stands
Category Code - TMS
Color - Black
Compatible products Features - - 43-85": Crystal UHD Signage Displays QMC, QBC, QHC
2023 Samsung
- 43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000
- 50-85": The Frame (2021-2023)
2022 Samsung
- 43-85": OLED S90BD, S90BQN95B, Neo
Corner mount - No
Country of origin Technical details - China
Depth (max) Weight & dimensions - 7.5 mm
Depth Weight & dimensions - 7.5 mm
Description - NEOMOUNTS ULTRA-FLAT WALL MOUNT FOR SAMSUNG QMC, QMB & QHC SIGNAGE DISPLAYS

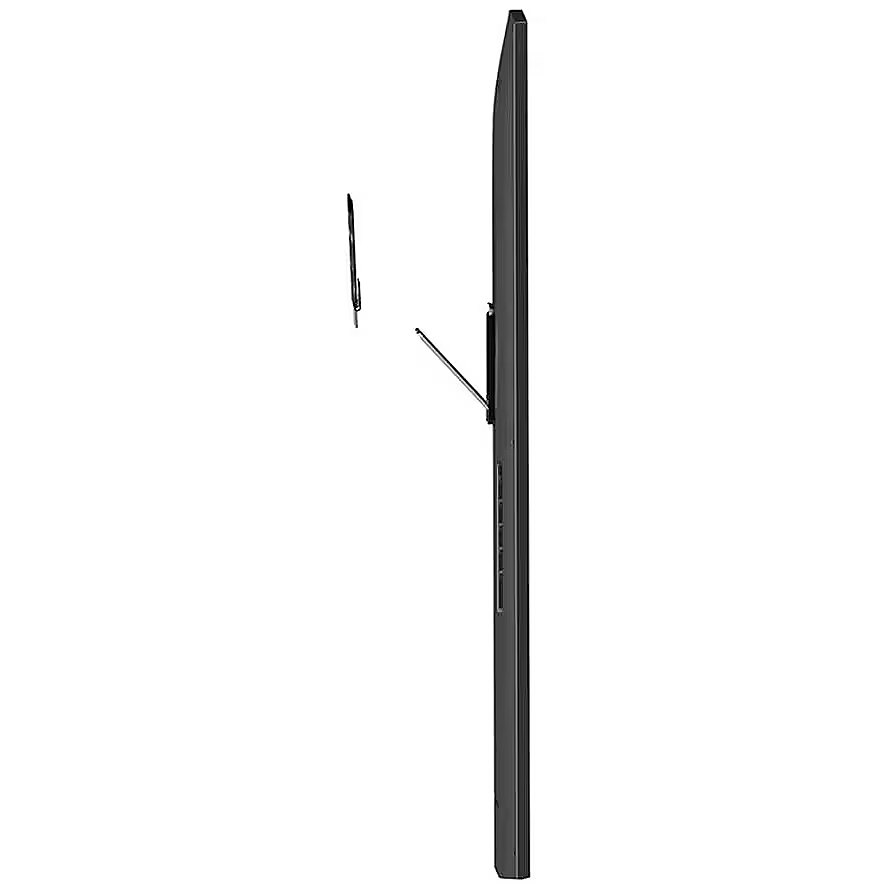

Description - Neomounts WL30-265BL1 is the perfect, ultra-slim solution for various Samsung screens* up to 85", including professional Crystal UHD advertising displays. This mount allows you to install your screen extremely close to the wall, leaving just 3-7.5mm of space depending on the TV model. Your TV will look like a painting on the wall. Level adjustment is available to ensure a perfect installation.

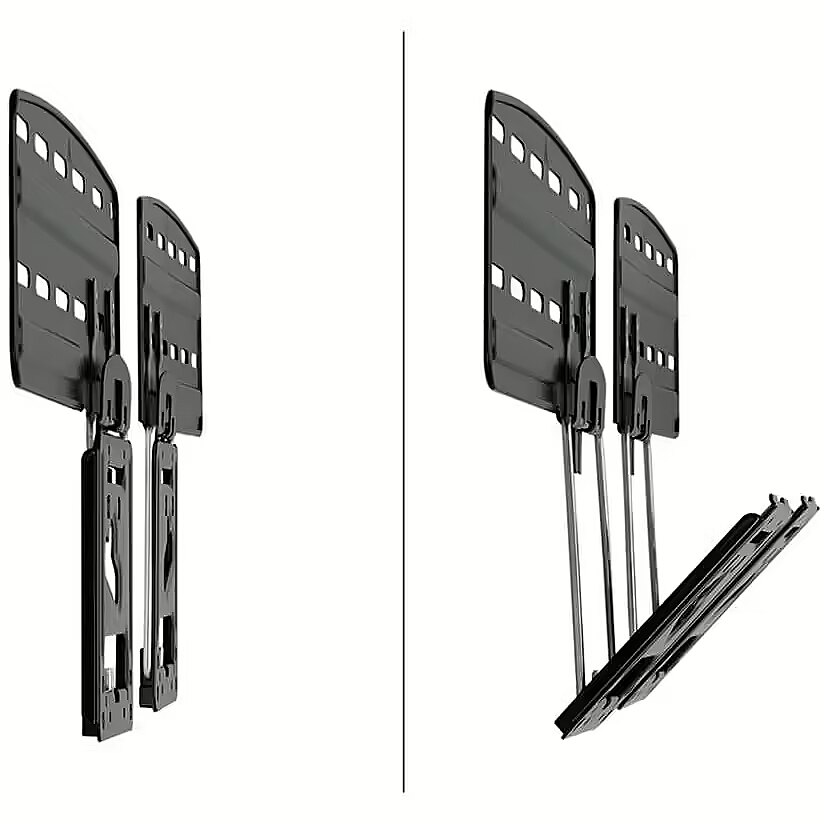

The WL30-265BL1 is suitable for screens that meet the VESA hole pattern requirements of 150x100 to 1200x800 mm and supports a maximum weight of 60 kg. Strong magnetic contacts ensure the screen is firmly placed, while a convenient stand option allows easy access to cables and connectors behind the screen. Non-slip pads ensure a safe and scratch-free installation of the screen on the mount.
Description - The Neomounts WL30-265BL1 offers the ideal ultra-slim solution for various Samsung screens* up to 85", including the Crystal UHD professional signage displays. This mount allows your screen to be installed incredibly close to the wall, leaving just 3-7,5 mm space depending on the TV model. Your TV will look like a painting on the wall. Level adjustment is available for the perfect installation. The WL30-265BL1 is suitable for screens that meet VESA hole pattern 150x100 to 1200x800 mm and supports a maximum weight of 60kg. Strong magnetic contacts ensure solid placement of the screen while the convenient kickstand option allows easy access to cables and connectors behind the screen. Anti-skid pads ensure safe and scratch-free installation of the screen to the mount. * The Neomounts WL30-265BL1 wall mount is optimised for the following Samsung models: 2025 Samsung models
- 43-85": QN1EF, QN70F,QN85F, QN84F, QN90F 2024 Samsung models
-\t43-85": Crystal UHD Signage Displays QMC, QBC, QHC, QN95D/C, QN90D/C, QN85D/C 2023 Samsung models
-\t43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000
-\t50-85": The Frame (2021-2023) 2022 Samsung models
-\t43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B 2021 Samsung models
-\t43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000) NOT compatible with Samsung models
-\t77": OLED S90C, S95C, QLED Q80A, Q80C, Neo QLED QN95D, QN95C -\tCrystal UHD CU7000 For detailed compatibility, please refer to the online manual.
Design - Housing material - Steel
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 65 mm
dimension height - 170 mm
Dimensions - 23.6 x 64 x 0.75 cm
dimension weight - 1500 g
dimension width - 360 mm
Distance to the wall (max) Ergonomics - 7.5 cm
ean - 8717371443900
Ergonomics - Cable management - No
Ergonomics - Distance to the wall (max) - 7.5 mm
Ergonomics - Type - Fixed
Features - Compatible products - - 43-85": Crystal UHD Signage Displays QMC, QBC, QHC
2023 Samsung
- 43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000
- 50-85": The Frame (2021-2023)
2022 Samsung
- 43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B
2021 Samsung
- 43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000)
GTIN - 8717371443900
guarantee - 60
guarantee_type - normal
Harmonized System (HS) code Logistics data - 7326909890
Height - 62.000000
Height adjustment - No
Height Weight & dimensions - 236 mm
Housing material Design - Steel
Length - 165.000000
Load (max) - 60 kg
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 16.5 kg
Logistics data - Master (outer) case height - 380 mm
Logistics data - Master (outer) case length - 345 mm
Logistics data - Master (outer) case net weight - 12 kg
Logistics data - Master (outer) case width - 350 mm
Logistics data - Products per master (outer) case - 10 pc(s)
Logistics data - Products per pallet (EU) - 243 pc(s)
LongDesc - The Neomounts WL30-265BL1 offers the ideal ultra-slim solution for various Samsung screens* up to 85", including the Crystal UHD professional signage displays. This mount allows your screen to be installed incredibly close to the wall, leaving just 3-7,5 mm space depending on the TV model. Your TV will look like a painting on the wall. Level adjustment is available for the perfect installation.The WL30-265BL1 is suitable for screens that meet VESA hole pattern 150x100 to 1200x800 mm and supports a maximum weight of 60kg. Strong magnetic contacts ensure solid placement of the screen while the convenient kickstand option allows easy access to cables and connectors behind the screen. Anti-skid pads ensure safe and scratch-free installation of the screen to the mount. * The Neomounts WL30-265BL1 wall mount is optimised for the following Samsung models:2025 Samsung models- 43-85": QN1EF, QN70F,QN85F, QN84F, QN90F2024 Samsung models-\t43-85": Crystal UHD Signage Displays QMC, QBC, QHC, QN95D/C, QN90D/C, QN85D/C 2023 Samsung models-\t43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000-\t50-85": The Frame (2021-2023)2022 Samsung models-\t43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B2021 Samsung models-\t43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000)NOT compatible with Samsung models-\t77": OLED S90C, S95C, QLED Q80A, Q80C, Neo QLED QN95D, QN95C -\tCrystal UHD CU7000 For detailed compatibility, please refer to the online manual.
LongProductName - Neomounts WL30-265BL1 Ultra-flat TV mount wall - 43-85" - max 60 kg - VESA 150x100-1200x800 - d 0,75 cm - blacksuitable for Samsung QMC, QBC and QHC screens - black
LongSummaryDescription - Neomounts WL30-265BL1 TV mount wall 43-85" Samsung screens - ultra-flat. Maximum weight capacity: 60 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 2.16 m (85"), Minimum VESA mount: 150 x 100 mm, Maximum VESA mount: 1200 x 800 mm. Distance to the wall (max): 7.5 mm. Product colour: Black
Manufacturer - Neomounts
ManufacturerPartNumber - WL30-265BL1
Master (outer) case gross weight Logistics data - 16.5 kg
Master (outer) case height Logistics data - 380 mm
Master (outer) case length Logistics data - 345 mm
Master (outer) case net weight Logistics data - 12 kg
Master (outer) case width Logistics data - 350 mm
Maximum screen size Mounting - 2.16 m (85")
Maximum VESA mount Mounting - 1200 x 800 mm
Maximum weight (capacity), kg - 60
Maximum weight capacity (per display) Mounting - 60 kg
Maximum weight capacity Mounting - 60 kg
Minimum screen size Mounting - 109.2 cm (43")
Minimum VESA mount Mounting - 150 x 100 mm
Model - WL30-265BL1
Motorized - No
Mounting - Maximum screen size - 2.16 m (85")
Mounting - Maximum VESA mount - 1200 x 800 mm
Mounting - Maximum weight capacity - 60 kg
Mounting - Maximum weight capacity (per display) - 60 kg
Mounting - Minimum screen size - 109.2 cm (43")
Mounting - Minimum VESA mount - 150 x 100 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 1000 x 400,1000 x 600,1000 x 800,1000 x 700,1200 x 600,1200 x 800,1200 x 900,1400 x 800,1500 x 900,1500 x 600,150 x 200,1600 x 600,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 900,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,460 x 640,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,700 x 400,800 x 800,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600,900 x 600
Mounting type Mounting - Wall
name - WL30-265BL1 Wall Mount Black 43-85 inches
Number of displays supported Mounting - 1
Number of supported monitors - 1
Other features -
Package depth Packaging data - 63 mm
Package height Packaging data - 363 mm
Package weight Packaging data - 1.6 kg
Package width Packaging data - 162 mm
Packaging data - Package depth - 63 mm
Packaging data - Package height - 363 mm
Packaging data - Package weight - 1.6 kg
Packaging data - Package width - 162 mm
Panel mounting interface Mounting - 1000 x 400,1000 x 600,1000 x 800,1000 x 700,1200 x 600,1200 x 800,1200 x 900,1400 x 800,1500 x 900,1500 x 600,150 x 200,1600 x 600,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 900,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400
PeriodofWarranty - 5 Y
producer - Neomounts
Product colour Design - Black
ProductName - Neomounts WL30-265BL1 TV mount wall 43-85" Samsung screens - ultra-flat
Products per master (outer) case Logistics data - 10 pc(s)
Products per pallet (EU) Logistics data - 243 pc(s)
Range adjustment - No
Screen size (max) - 85 ''
Screen size (min) - 43 ''
Screen size compatibility, " - 43 - 85
Short summary - Neomounts WL30-265BL1 Ultra-flat TV mount wall - 43-85" - max 60 kg - VESA 150x100-1200x800 - d 0,75 cm - blacksuitable for various Samsung screens - black
ShortSummaryDescription - Neomounts WL30-265BL1 TV mount wall 43-85" Samsung screens - ultra-flat, 109.2 cm (43"), 2.16 m (85"), 150 x 100 mm, 1200 x 800 mm, Steel, Black
Stand/mount type - Wall
Stuff - Steel
Summary - Neomounts WL30-265BL1 TV mount wall 43-85" Samsung screens - ultra-flat. Maximum weight capacity: 60 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 2.16 m (85"), Minimum VESA mount: 150 x 100 mm, Maximum VESA mount: 1200 x 800 mm. Distance to the wall (max): 7.5 cm. Product colour: Black
Technical details - Country of origin - China
Technical details - Lockable - Not lockable
Technical details - Warranty period - 5 year(s)
Tilt - No
Title - Neomounts WL30-265BL1 TV mount wall 43-85" Samsung screens - ultra-flat
Turn - No
Type - Wall
Type Ergonomics - Fixed
Unit Box Height - 0.06
Unit Box Length - 0.36
Unit Box Width - 0.16
Unit Calculated Volume - 0.003456 cubm
Unit Calculated Weight - 1.6 kg
Units per Shipping Box - 1
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=WL30-265BL1
Usage - Monitors
Usage - TV
Vendor Homepage - https://www.neomounts.com/default.asp?pageid=44&artdetail=WL30-265BL1
vendpn - WL30-265BL1
VESA - 200 x 100
VESA - 200 x 200
VESA - 200 x 300
VESA - 200 x 400
VESA - 300 x 100
VESA - 300 x 200
VESA - 300 x 300
VESA - 350 x 350
VESA - 400 x 200
VESA - 400 x 300
VESA - 400 x 400
VESA - 400 x 500
VESA - 400 x 600
VESA - 440 x 400
VESA - 460 x 640
VESA - 500 x 400
VESA - 600 x 200
VESA - 600 x 300
VESA - 600 x 400
VESA - 600 x 500
VESA - 600 x 600
VESA - 680 x 300
VESA - 800 x 200
VESA - 800 x 400
VESA - 800 x 500
VESA - 800 x 600
VESA - 800 x 800
VESA - 900 x 600
VESA-standard, mm - 200 x 100
VESA-standard, mm - 200 x 200
VESA-standard, mm - 200 x 300
VESA-standard, mm - 200 x 400
VESA-standard, mm - 300 x 100
VESA-standard, mm - 300 x 200
VESA-standard, mm - 300 x 300
VESA-standard, mm - 300 x 900
VESA-standard, mm - 350 x 350
VESA-standard, mm - 400 x 200
VESA-standard, mm - 400 x 300
VESA-standard, mm - 400 x 400
VESA-standard, mm - 400 x 500
VESA-standard, mm - 400 x 600
VESA-standard, mm - 440 x 400
VESA-standard, mm - 460 x 640
VESA-standard, mm - 500 x 400
VESA-standard, mm - 600 x 200
VESA-standard, mm - 600 x 300
VESA-standard, mm - 600 x 400
VESA-standard, mm - 600 x 500
VESA-standard, mm - 600 x 600
VESA-standard, mm - 680 x 300
VESA-standard, mm - 800 x 200
VESA-standard, mm - 800 x 400
VESA-standard, mm - 800 x 500
VESA-standard, mm - 800 x 600
VESA-standard, mm - 800 x 800
VESA-standard, mm - 900 x 600
VESA-standard, mm - 1000 x 400
VESA-standard, mm - 1000 x 600
VESA-standard, mm - 1000 x 700
VESA-standard, mm - 1000 x 800
VESA-standard, mm - 1200 x 600
VESA-standard, mm - 1200 x 800
VESA-standard, mm - 1200 x 900
VESA-standard, mm - 1400 x 800
VESA-standard, mm - 1500 x 600
VESA-standard, mm - 1600 x 600
Warranty - 60 months
WarrantyInfo - 5 year
Warranty period Technical details - 5 year(s)
Weight - 1.630000
Weight & dimensions - Depth - 7.5 mm
Weight & dimensions - Depth (max) - 7.5 mm
Weight & dimensions - Height - 236 mm
Weight & dimensions - Weight - 1.2 kg
Weight & dimensions - Width - 640 mm
Weight Weight & dimensions - 1.2 kg
Wheels - No
Width - 368.000000
Width Weight & dimensions - 640 mm
