Newstar Full motion desk monitor arm for 2 screens, 17-32"

Accepts padlock Design - No
Accessories included -
Adjustable depth Ergonomics - Yes
Angle of rotation Ergonomics - 360°
Brand - Neomounts
BrandPartCode - DS70-250WH2
Cable management Ergonomics - Yes
Category - Monitor Mounts & Stands
Category 1 - Displays
Category 2 - Display Zubehör
Category Code - MAS
Color - Black
Colour of product - orange / off-white
Corner mount - No
Country of origin Logistics data - China
Depth adjustment range Ergonomics - 70 - 525 mm
Depth Weight & dimensions - 580 mm
Description - NEOMOUNTS DS70-250WH2 FULL MOTION MONITOR ARM DESK MOUNT FOR 17-32" SCREENS - WHITE
Description - Neomounts DS70-250WH2 NEXT Slim is a fully mobile desk mount designed for two screens up to 32 inches, with a maximum load capacity of 9 kg per screen. Versatile tilt (90°), swivel technology allows you to easily adjust your screens to any viewing angle to fully optimize their capabilities. With height adjustment via a gas spring (21.5-49.5 cm) and depth adjustment, the mount can be effortlessly adjusted to the users ergonomic needs.
The DS70-250WH2 monitor arm features a clever 180° locking mechanism that prevents the mount from touching a wall or partition when mounted near them. The integrated cable management system keeps your desk tidy by allowing you to neatly route your cables.

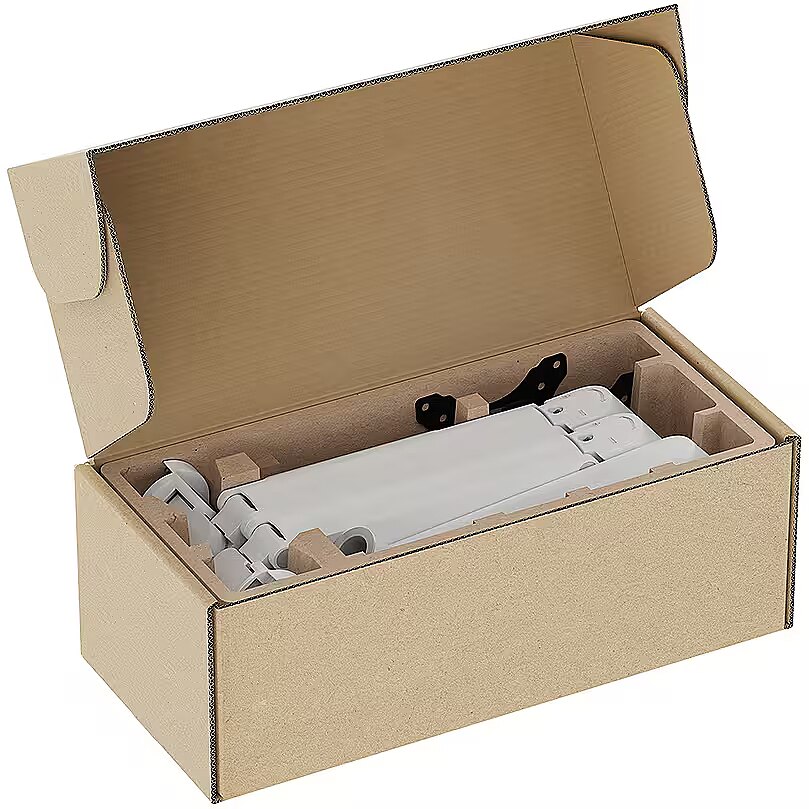

With sustainability in mind, the packaging of the NEXT Slim desk mounts is 100% plastic-free and made entirely from recycled cardboard and paper.
Description - The Neomounts DS70-250WH2 NEXT Slim is a full motion desk mount designed for two screens up to 32", boasting a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen's capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs. The DS70-250WH2 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk. The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75x75 or 100x100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation. Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.
Design - Accepts padlock - No
Design - Housing material - Aluminium
Design - Orientation - Landscape/Portrait
Design - Product colour - White
Designation - CE+WEEE
Desk thickness (max) Mounting - 5 cm
Desk thickness (min) Mounting - 1 cm
dimension depth - 435 mm
dimension height - 190 mm
Dimensions - 55.2 x 11.4 x 58 cm
Dimensions W x D x H, mm - 140 x 580 x 552
dimension weight - 5000 g
dimension width - 150 mm
Distance to the wall (max) Mounting - 40.4 cm
Distance to the wall (min) Mounting - 12 cm
ean - 8717371443023
EAN - 8717371443023
Ergonomics - Adjustable depth - Yes
Ergonomics - Angle of rotation - 360°
Ergonomics - Cable management - Yes
Ergonomics - Depth adjustment range - 70 - 525 mm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 215 - 495 mm
Ergonomics - Height adjustment type - Gas spring
Ergonomics - Pivot angle - -180 - 180°
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle range - -90 - 90°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -45 - 45°
Ergonomics - Width adjustment - 98.4 cm
GTIN - 8717371443023
guarantee - 60
guarantee_type - normal
Harmonized System (HS) code Logistics data - 7616991099
Height - 150.000000
Height adjustment - Yes
Height adjustment Ergonomics - Yes
Height adjustment range Ergonomics - 215 - 495 mm
Height adjustment type Ergonomics - Gas spring
Height Weight & dimensions - 552 mm
Horizontal adjustment - 45 °
Housing material Design - Aluminium
Length - 435.000000
Load (max) - 9 kg
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 7616991099
Logistics data - Master (outer) case gross weight - 20.7 kg
Logistics data - Master (outer) case height - 445 mm
Logistics data - Master (outer) case length - 310 mm
Logistics data - Master (outer) case net weight - 17.4 kg
Logistics data - Master (outer) case width - 405 mm
Logistics data - Products per master (outer) case - 4 pc(s)
Logistics data - Products per pallet (EU) - 80 pc(s)
LongDesc - The Neomounts DS70-250WH2 NEXT Slim is a full motion desk mount designed for two screens up to 32", boasting a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen's capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs.The DS70-250WH2 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk. The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75x75 or 100x100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation. Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.
LongProductName - Neomounts NEXT Slim DS70-250WH2 Dual monitor arm - 17-32" - 1-9 kg/screen (curved 8 kg/screen) - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - white
LongSummaryDescription - Neomounts DS70-250WH2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: White
Manufacturer - Neomounts
Manufacturer - Newstar
ManufacturerPartNumber - DS70-250WH2
Master (outer) case gross weight Logistics data - 20.7 kg
Master (outer) case height Logistics data - 445 mm
Master (outer) case length Logistics data - 310 mm
Master (outer) case net weight Logistics data - 17.4 kg
Master (outer) case width Logistics data - 405 mm
Material - Aluminium
Maximum screen size Mounting - 81.3 cm (32")
Maximum VESA mount Mounting - 100 x 100 mm
Maximum weight (capacity), kg - 9
Maximum weight capacity (per curved/ultra-wide display) Mounting - 8 kg
Maximum weight capacity (per display) Mounting - 9 kg
Maximum weight capacity Mounting - 9 kg
Minimum screen size Mounting - 43.2 cm (17")
Minimum VESA mount Mounting - 75 x 75 mm
Minimum weight Other features - 1 kg
Model - DS70-250WH2
Motorized - No
Mounting - Desk thickness (max) - 5 cm
Mounting - Desk thickness (min) - 1 cm
Mounting - Distance to the wall (max) - 40.4 cm
Mounting - Distance to the wall (min) - 12 cm
Mounting - Maximum screen size - 81.3 cm (32")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 9 kg
Mounting - Maximum weight capacity (per curved/ultra-wide display) - 8 kg
Mounting - Maximum weight capacity (per display) - 9 kg
Mounting - Minimum screen size - 43.2 cm (17")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting - Clamp/Grommet
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 2
Mounting - Panel mounting interface - 100 x 100,75 x 75 mm
Mounting Mounting - Clamp/Grommet
Mounting type Mounting - Desk
MPN - DS70-250WH2
name - DS70-250WH2 NEXT Slim double display 17-32 inch 9kg 75x75-100x100 1800-4000R
Name - Neomounts DS70-250WH2 Tischhalterung für 2 Monitore bis 81cm 32" 9KG Weiß
Number of displays supported Mounting - 2
Number of supported monitors - 2
Orientation Design - Landscape/Portrait
Other features -
Other features - Minimum weight - 1 kg
Other features - Warranty period - 5 year(s)
Other features - Width adjustment range - 0 - 984 mm
Package depth Packaging data - 147 mm
Package height Packaging data - 430 mm
Package weight Packaging data - 4.9 kg
Package width Packaging data - 192 mm
Packaging data - Package depth - 147 mm
Packaging data - Package height - 430 mm
Packaging data - Package weight - 4.9 kg
Packaging data - Package width - 192 mm
Panel mounting interface Mounting - 100 x 100,75 x 75 mm
PeriodofWarranty - 5 Y
Pivot angle Ergonomics - -180 - 180°
producer - Neomounts
Product colour Design - White
ProductName - Neomounts DS70-250WH2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop
Products per master (outer) case Logistics data - 4 pc(s)
Products per pallet (EU) Logistics data - 80 pc(s)
Range (max) - 52.5 cm
Range (min) - 7 cm
Range adjustment - Yes
Rotating Ergonomics - Yes
rotation - 180 °
Rotation, ° - 90
Screen size (max) - 32 ''
Screen size (min) - 17 ''
Screen size compatibility, " - 17-32
Short summary - Neomounts NEXT Slim DS70-250WH2 Dual monitor arm - 17-32" - 1-9 kg/screen (curved 8 kg/screen) - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - white
ShortSummaryDescription - Neomounts DS70-250WH2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop, Clamp/Grommet, 9 kg, 43.2 cm (17"), 81.3 cm (32"), 100 x 100 mm, White
Stand/mount type - Table
Stuff - Aluminum
Summary - Neomounts DS70-250WH2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: White
Swivel angle range Ergonomics - -90 - 90°
Swivelling Ergonomics - Yes
Tilt - Yes
Tilt adjustment, ° - 45
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -45 - 45°
Title - Neomounts DS70-250WH2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop
Turn - Yes
Turn, ° - 180
Type - Desk
Unit Box Height - 0.16
Unit Box Length - 0.2
Unit Box Width - 0.44
Unit Calculated Volume - 0.01408 cubm
Unit Calculated Weight - 5.02 kg
Units per Shipping Box - 1
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-250WH2
Usage - Monitors
Vendor Homepage - https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-250WH2
vendpn - DS70-250WH2
Vertical adjustment - 90 °
VESA - 75 x 75
VESA - 100 x 100
VESA-standard, mm - 75 x 75
VESA-standard, mm - 100 x 100
Warranty - 60 months
WarrantyInfo - 5 year
Warranty period Other features - 5 year(s)
Weight - 5.030000
Weight - 5.06
Weight & dimensions - Depth - 580 mm
Weight & dimensions - Height - 552 mm
Weight & dimensions - Weight - 4.35 kg
Weight & dimensions - Width - 140 mm
Weight Weight & dimensions - 4.35 kg
Wheels - No
Width - 195.000000
Width adjustment Ergonomics - 98.4 cm
Width adjustment range Other features - 0 - 984 mm
Width Weight & dimensions - 140 mm
