3G/4G USB modem compatibility WAN connection - No
brand - MikroTik
Built-in processor Features - Yes
Cables included Packaging content - AC
category - MikroTik > Ethernet rūteri > RouterBoard
Category 1 - Netzwerk
Category 2 - Router
Category Code - ROU
Certificates > Certification - CE, EAC, ROHS
Code - RB1100Dx4
Depth Weight & dimensions - 47 mm
DSL WAN WAN connection - No
EAN - 4752224002648
eSATA ports quantity Ports & interfaces - 2
Ethernet LAN (RJ-45) ports Ports & interfaces - 13
Ethernet LAN data rates Network - 10,100,1000 Mbit/s
Ethernet LAN Network - Yes
Ethernet WAN WAN connection - No
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
Gross weight - 2.093 kg
Hard drive > Storage capacity - 128 MB
Harmonized System (HS) code Logistics data - 85176990
height - 0.098 m
Height Weight & dimensions - 148 mm
Internal storage capacity Features - 60 GB
LED indicators Design - Yes
length - 0.47 m
Link - https://mikrotik.com/product/RB1100Dx4
Manufacturer - MikroTik
mpn - RB1100Dx4
MPN - RB1100DX4
Name - Mikrotik RB1100Dx4

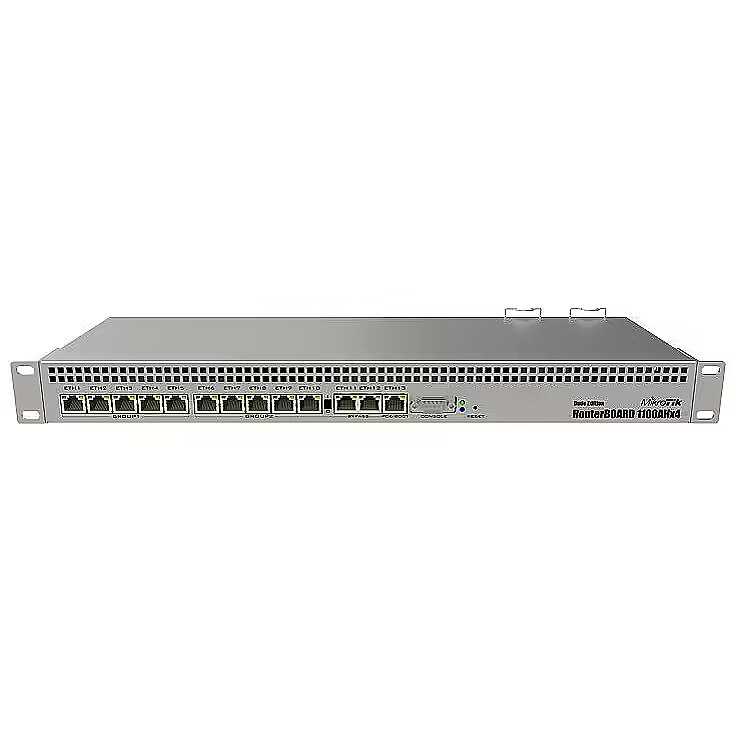

Name - Mikrotik Wired Ethernet Router RB1100AHx4 Dude Edition, 1U Rackmount, Quad core 1.4GHz CPU, 1 GB RAM, 128 MB, 60GB M.2 SSD included, 13xGigabit LAN, 1xSerial console port RS232, 2x SATA3 ports, 2xM.2 slots, PCB Temperature and Voltage Monitor (CAPsMAN, Monitor Devices, Shows Historical Data, Can Write Messeges), IP20, RouterOS L6 | MikroTik | Wired Ethernet Router | RB1100AHx4 Dude Edition | No Wi-Fi | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 13 | Mesh Support No | MU-MiMO No | No mobile broadband | 12 month(s)
Networking > PoE in - 802.3af/at
Networking standards Network - IEEE 802.3af, IEEE 802.3at
Number of SSDs installed Features - 2
Operating system installed Features - RouterOS
Operating temperature (T-T) Operational conditions - -40 - 70 °C
Operational conditions > Operating temperature (T-T) - -40°C to 70°C °C
Other features > Ethernet LAN (RJ-45) ports - 13
Other features > Wi-Fi - No
Output voltage Power - 12 - 57 V
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 470 mm
Package features > Gross height (mm) - 230 mm
Package features > Gross width (mm) - 55 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 291 pc(s)
Package features > Paper/Pasteboard - 336 g
Package features > Plastic (No PET) - 37 g
Package features > Tare weight (kg) - 0.373 kg
Package features > Volume (m3) - 0.0059455 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Internal memory - 1000 MB
Performance > Memory type - NAND
Performance > Processor cores - 4
Performance > Processor frequency - 1400 MHz
Ports & interfaces > RS-232 ports - 1
Power > Power consumption (max) - 33 W
Power > Voltage - (PoE in input Voltage) 20-57 V
Power consumption (typical) Power - 25 W
Power source type Power - DC, PoE
Processor > Processor model - AL21400
Processor cores Features - 4
Processor frequency Features - 1400 MHz
Processor model Features - Annapurna Labs Alpine AL21400
Producer product family - Wired Ethernet Router
Producer product name - RB1100AHx4 Dude Edition
Product colour Design - Silver
RS-232 ports Ports & interfaces - 1
SIM card slot WAN connection - No
SSD capacity Features - 60 GB
Storage media Features - SSD
Summary - Mikrotik RB1100AHx4 Dude Edition. Networking standards: IEEE 802.3af, IEEE 802.3at, Ethernet LAN data rates: 10,100,1000 Mbit/s. Cables included: AC. Processor model: Annapurna Labs Alpine AL21400, Processor frequency: 1400 MHz, Storage media: SSD. Product colour: Silver. Power consumption (typical): 25 W, Power source type: DC, PoE, Output voltage: 12 - 57 V
Technical details > Net weight - 1.72 kg
Technical details > Other features - New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128). Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.
Technical details > Producer - MikroTik
Technical details > Software type - RouterOS (level 6)
Technical details > Warranty - 12 month(s)
Temperature monitoring Features - Yes
title - MikroTik RB1100AHx4 Dude Edition
Unit Box Height - 0.055
Unit Box Length - 0.47
Unit Box Width - 0.23
Unit Calculated Volume - 0.005946 cubm
Unit Calculated Weight - 2.13 kg
Units per Shipping Box - 1
Vendor Homepage - https://mikrotik.com/product/RB1100Dx4#fndtn-specifications
Voltage monitoring Features - Yes
Warranty - 12
Warranty - 12 months
Weight - 2.08
weight - 2.1 kg
width - 0.23 m
Width Weight & dimensions - 444 mm
Wireless LAN features > Wi-Fi band - No Wi-Fi
