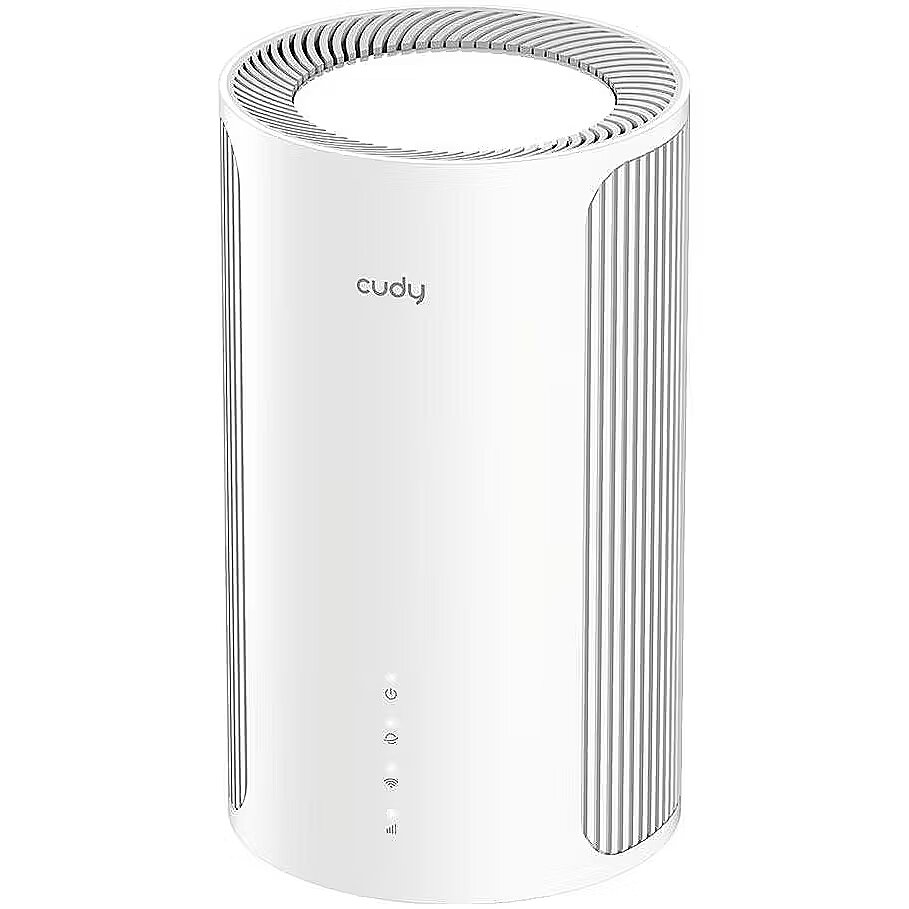

Cudy P4

Accessories included - P4 Odłączane anteny Zasilacz Kabel Ethernet Instrukcja instalacji
Antenna - Built-in
Antenna - Antenna connector type - SMA
Antenna - Antenna design - Internal
Antenna - Antennas quantity - 6
Brand - Cudy
BrandPartCode - P4 1.0
Category - Root/Electronics/Networks and communication/Routers
Category - Wireless Routers
Cechy podstawowe: Ilość rdzeni - 2 szt.
Cechy podstawowe: Pamięć Flash - 128 MB
Cechy podstawowe: Pamięć RAM - 512 MB
Cechy podstawowe: Procesor - 1 GHz
Cechy podstawowe: Zarządzanie - aplikacja (Android)
Cechy podstawowe: Zarządzanie - aplikacja (iOS)
Certificates - FCC CE
Certificates - Compliance certificates - Federal Communications Commission (FCC), CE
Color - White
Dane techniczne: Funkcje urządzenia - router DSL
Dane techniczne: Funkcje urządzenia - router GSM
Dane techniczne: Grupa produktowa - Routery Cudy
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Producent - Cudy
Dane techniczne: Standard - Wi-Fi 6 (802.11a/b/g/n/ac/ax)
Dane techniczne: Tryb pracy - router
Dane techniczne: Tryb pracy - router mesh
Dane techniczne: Zastosowanie - domowy
Data Act - Link
Description - Router Wi-Fi 6 5G SA/NSA AX3000 Router 5G WiFi 6 wykorzystujący standard 3GPP Release 16, zapewniający maksymalną prędkość pobierania 3,4 Gb/s. Posiada dwa chipsety Qualcomm, dwa gniazda SIM i kartę AX3000 WiFi 6 o dużej pojemności. 5G Rel. 16 with Max 3.4 Gbps DL UL/DL 4CA, 4×4 MIMO 4-strumieniowe dwuzakresowe Wi-Fi 6 2402 Mbps + 574 Mbps Wi-Fi 1 3× Gigabit Ethernet Ports 1× Nano SIM Slot Cudy Mesh, VPN Server and Client Cudy App, Cloud Control
Design - Antennas quantity - 6
Design - Antenna type - Internal
Design - LED indicators - Power, WLAN
Design - Product colour - White
Design - Product type - Desktop/pole router
Design - Reset button - Yes
Designation - CE+WEEE
dimensionalWeight - 7746
dimension depth - 135 mm
dimension height - 315 mm
Dimensions - 116 × 202 mm
dimension weight - 1100 g
dimension width - 155 mm
ean - 6971690793562
Eans - 6971690793562
Environment requirements - Temperatura pracy: 0 °C~ 40°C Temperatura przechowywania: -40°C ~ 70°C Wilgotność pracy: 10% ~ 90% bez kondensacji Wilgotność przechowywania: 5% ~ 90% bez kondensacji
Features - BeamForming - Yes
Features - Built-in processor - Yes
Features - DHCP client - Yes
Features - DHCP server - Yes
Features - Firmware upgradeable - Yes
Features - Flash memory - 128 MB
Features - Internal memory - 512 MB
Features - Internal memory type - DDR3
Features - Languages support - Multi
Features - Processor architecture - ARM Cortex-A53
Features - Processor cores - 2
Features - Processor frequency - 1 GHz
Features - Processor frequency - 1000 MHz
Features - Universal Plug and Play (UPnP) - Yes
GTIN - 6971690793562
guarantee - 24
guarantee_type - normal

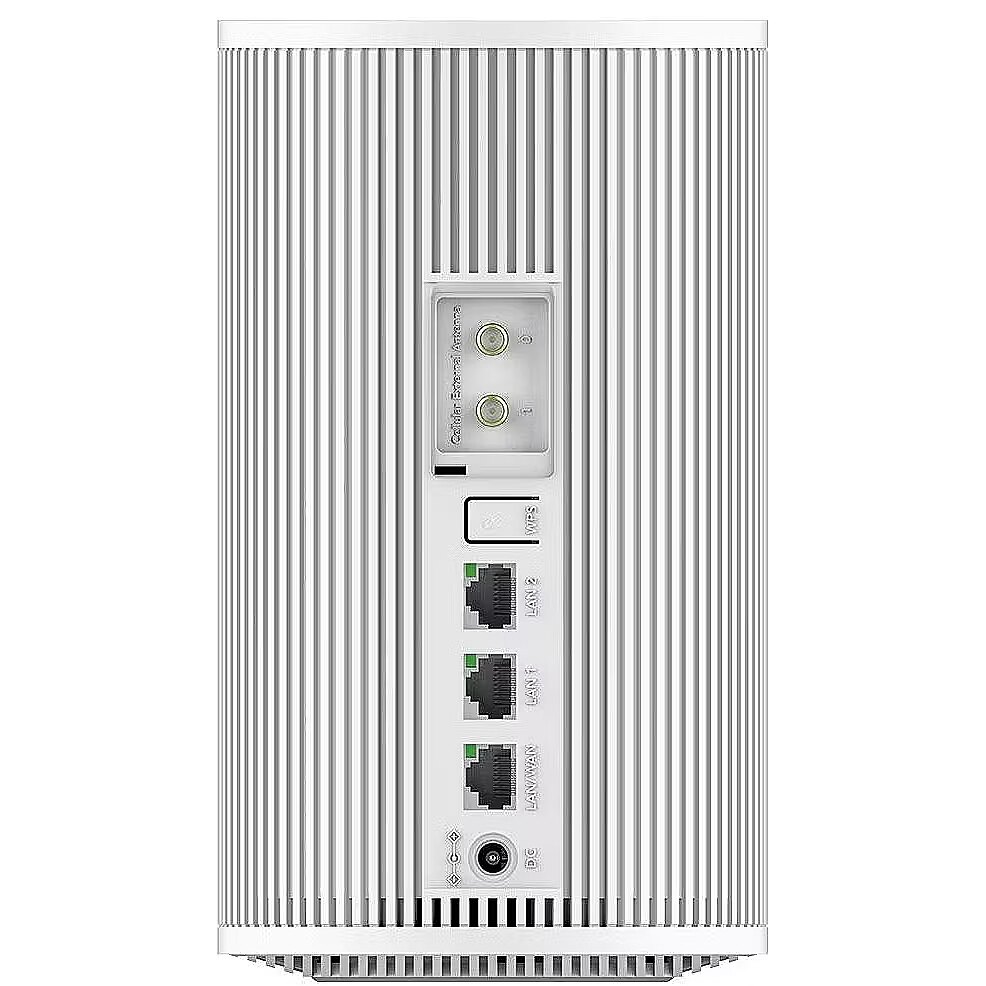

I/O ports - 1 x 10/100/1000 Mbit/s LAN / WAN (Combo)
I/O ports - 1 x SIM card slot
I/O ports - 2 x 10/100/1000 Mbit/s
Logistics data - Master (outer) case gross weight - 9.8 kg
Logistics data - Master (outer) case height - 332 mm
Logistics data - Master (outer) case length - 321 mm
Logistics data - Master (outer) case width - 554 mm
LongDesc - A 5G WiFi 6 router employing the 3GPP Release 16 standard, with a max 3.4 Gbps download speed. It features dual Qualcomm chipsets, one SIM slot, and a high-capacity AX3000 WiFi 6.Qualcomm X62 5G Modem5G. Max 3.4 Gbps Download.Equipped with the advanced 5G Rel. 16 standard, P4 pushes cellular download speed up to 3.4 Gbps that rivals a broadband.Qualcomm Wi-Fi 6 Chipset150% Faster Wi-Fi SpeedThe super-fast AX3000 Wi-Fi 6 built on powerful Qualcomm dual-core CPU provides high-capacity connectivity. Stream 4K live feed and download at full speed with ease.Plug in a SIM Card to Enjoy the NetworkHomePlug and play easy-to-install WiFi for every home—no rigid broadband subscription.AutomobileProvide decent networks for all devices on your road journey.SurveillanceMake sure the network is always on with the backup function.BoothUtilize the flexible pay-as-you-go SIM card plan to equip your temporary booth with a fast network. (SIM card is not included)Multiple PortsAbundant Wired ConnectivityThree Gigabit Ethernet ports provide stable wired network sharing. Two SMA connectors allow you to install customized extension cellular antennas.Tools for a Customized NetworkSecure VPN AccessIn addition to the management via Cudy cloud, this router supports multiple VPN protocols to enable remote Work-From-X, or sharing a commercial VPN for all.Keep You ConnectedSet the WAN/LAN port as WAN mode, connect your network to broadband service, then back it up with a 5G connection.
LongProductName - 5G SA/NSA AX3000 Wi-Fi 6 Router, P4 1.0
LongSummaryDescription - Cudy 5G SA/NSA AX3000 Wi-Fi 6 Router, P4 1.0. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 3400 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 5G, 3G standards: WCDMA, 4G standard: LTE-TDD & LTE-FDD. Number of data streams: 4x4
Management, monitoring, configuration - QoS Per-User Rate Limiting DHCP Address Reservation DHCP Client List Server IP Versions IPv4/IPv6 IPv6 Protocols Relay Dynamic (SLAAC/DHCPv6) Staic (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite IPTV/VLAN Bridge Tag VLAN TTL Customization Extend Spoof Custom IGMP IGMP Proxy IGMP Snooping Forwarding Port Forwarding Port Triggering UPnP DMZ Firewall SPI Firewall DoS Protection Block PING Application Layer Gateway IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Management features - MIMO - Yes
Management features - Number of data streams - 4x4
Management features - Quality of Service (QoS) support - Yes
Management features - Reset button - Yes
Management features - Wake-on-LAN ready - Yes
Management features - WPS push button - Yes
Mobile network - 3G standards - WCDMA
Mobile network - 4G standard - LTE-TDD & LTE-FDD
Mobile network - 5G standard - Sub6, NR
Mobile network - Mobile network generation - 5G
Mobile network - SIM card type - NanoSIM + eSIM
Model -  P4 1.0
Name - Cudy P4
name - P4 Router Mesh Gig abit 5G WiFi 6 AX3000
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Ethernet LAN interface type - Gigabit Ethernet
Network - Ping check - Yes
Network - Port forwarding - Yes
Network - Port triggering - Yes
Network - PPPoE/PPTP/L2TP pass-through - Yes
Network - VPN server - Y
Network architecture - GigabitEthernet
Number of antennas - 6
Number of antennas - Two connectors
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other features - Number of users - 256 user(s)
Packaging content - AC adapter included - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Ethernet cable - Yes
Packaging content - Number of products included - 1 pc(s)
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 152 mm
Packaging data - Package height - 132 mm
Packaging data - Package weight - 1.12 kg
Packaging data - Package width - 313 mm
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Ports & interfaces - Ethernet WAN - Yes
Ports & interfaces - USB port - No
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Current - 2,5 A
Power - DC output voltage - 12 V
Power - Output current - 2.5 A
Power - Output voltage - 12 V
Power - Power consumption (max) - 21.7 W
Power - Power consumption (typical) - 21.7 W
Power - Power source type - DC
Power supply - Wejście: 100 ~ 240 V, 50/60 Hz AC Wyjście: 12 V 2,5 A DC
Pozostałe cechy: Kolor - biały
Pozostałe cechy: Możliwość podłączenia anteny zewnętrznej - tak
Pozostałe cechy: Obsługa VPN - tak
Pozostałe cechy: Rodzaj anteny - wbudowana
Pozostałe cechy: Waga - 656 g
Pozostałe cechy: Wymiary - 116 x 202 mm
Pozostałe cechy: Zasilanie - zasilacz AC
Praca bezprzewodowa: Częstotliwość - 2.4 GHz
Praca bezprzewodowa: Częstotliwość - 5 GHz
Praca bezprzewodowa: Maksymalna ilość podłączonych klientów - 256
Praca bezprzewodowa: Modulacja - 1024-QAM
Praca bezprzewodowa: Modulacja - OFDMA
Praca bezprzewodowa: Szybkość dla 2.4 GHz - 2402 Mbps
Praca bezprzewodowa: Szybkość dla 5 GHz - 574 Mbps
Praca bezprzewodowa: Szybkość dla 5G (pobieranie/wysyłanie) - 3400 / 900 Mbps
Praca bezprzewodowa: Szyfrowanie - filtrowanie adresów MAC
Praca bezprzewodowa: Szyfrowanie - obsługa WPS
Praca bezprzewodowa: Szyfrowanie - WPA
Praca bezprzewodowa: Szyfrowanie - WPA2
Praca bezprzewodowa: Szyfrowanie - WPA3
Praca bezprzewodowa: Wbudowany modem - 4G/LTE
Praca bezprzewodowa: Wbudowany modem - 5G
Praca przewodowa: Interfejsy LAN - RJ45
Praca przewodowa: Interfejsy WAN - 1 x 10/100/1000 Mb/s
Praca przewodowa: Interfejsy WAN - gniazdo SIM
Praca przewodowa: Liczba portów LAN 10/100/1000 - 3 szt.
Praca przewodowa: Liczba portów WAN - 2 szt.
Praca przewodowa: Wbudowany przełącznik [switch] - tak
Praca przewodowa: Złącza - 1 x RJ45 (LAN/WAN)
Praca przewodowa: Złącza - 2 x RJ45
Producent: Nazwa producenta / importera - Cudy
Cudy Polska Sp. z o.o.
Nowogrodzka 50/54/515
00-650 Warszawa

producer - Cudy
Producer - Cudy
ProducerCode - P4
producerCode - P4 1.0
ProductName - 5G SA/NSA AX3000 Wi-Fi 6 Router, P4 1.0
productName - CUDY P4 Wi-Fi 6 5G SA/NSA AX3000 Router
productSize - Normal
Protocols - DHCP client - Yes
Protocols - DHCP server - Yes
Protocols - Universal Plug and Play (UPnP) - Yes
Safety warning - Warnings - Avoid contact with liquids as this may cause electric shock.
Safety warning - Warnings - Do not open the appliance housing - risk of electric shock.
Safety warning - Warnings - The product may emit radio waves that may interfere with other electronic devices.
Security - WPA/WPA2/WPA3
Security - DDoS protection - Yes
Security - DMZ support - Yes
Security - Filtering - Yes
Security - Firewall - Yes
Security - Guest access - Yes
Security - IGMP snooping - Yes
Security - IP address filtering - Yes
Security - MAC address filtering - Yes
Security - Parental control - Yes
Security - Security algorithms - WPA, WPA2, WPA3
Security - System event log - Yes
ShortDescription -
ShortSummaryDescription - Cudy 5G SA/NSA AX3000 Wi-Fi 6 Router, P4 1.0, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, 5G, White, Desktop/pole router
sizeX - 490
sizeY - 510
sizeZ - 155
Software - Sterowanie LED
Metoda sterowania lokalnego Strona internetowa konfiguracji Kontrola aplikacji Metoda zdalnego sterowania Strona konfiguracji przez HTTPS Kontrola aplikacji TR069/TR098/TR111/TR181 Aktualizacja oprogramowania układowego Aktualizacja lokalna Aplikacja (bezprzewodowo) Aktualizacja online Narzędzia diagnostyczne Diagnostyka Ping Traceroute NSLookup Dziennik systemowy
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Standards - IPv4
Standards - IPv6
System Requirements -
Title - Cudy 5G SA/NSA AX3000 Wi-Fi 6 Router, P4 1.0 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White
Type - ADSL
URL - https://www.cudy.com/products/p4-1-0?_pos=1&_psq=P4+1.0&_ss=e&_v=1.0#overview
vendpn - P4_EU
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - Yes
WAN connection - WAN connection type - RJ-45
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 1144
Weight & dimensions - Depth - 116 mm
Weight & dimensions - Height - 202 mm
Weight & dimensions - Product diameter - 116 mm
Weight & dimensions - Weight - 656 g
Weight & dimensions - Width - 116 mm
Wireless LAN features - Channel bandwidth - 120 MHz
Wireless LAN features - Modulation - 1024-QAM, OFDMA
Wireless LAN features - Security algorithms - WPA
Wireless LAN features - Security algorithms - WPA2
Wireless LAN features - Security algorithms - WPA3
Wireless LAN features - Static IP - Yes
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - WLAN data transfer rate (first band) - 574 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 3400 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 2402 Mbit/s
