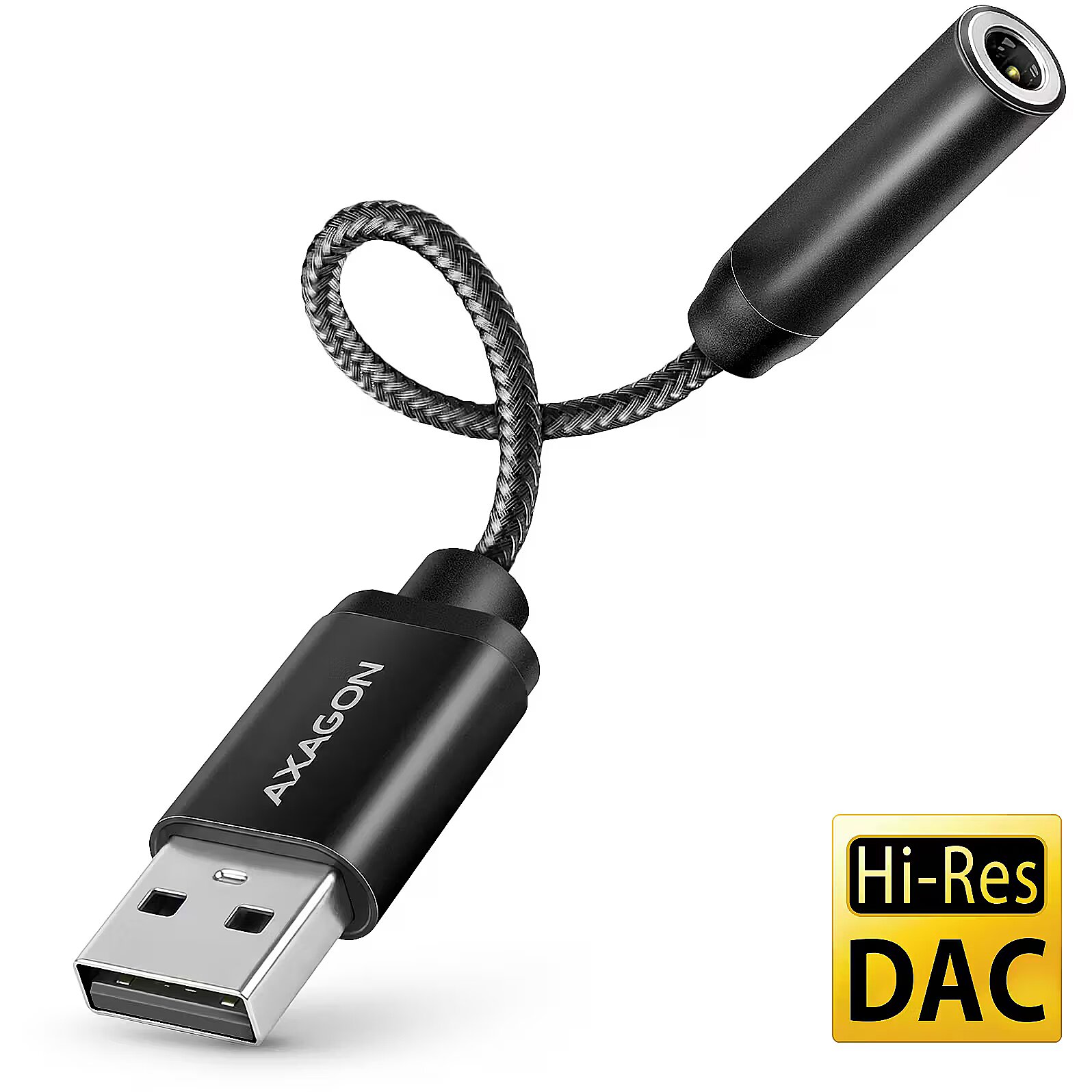

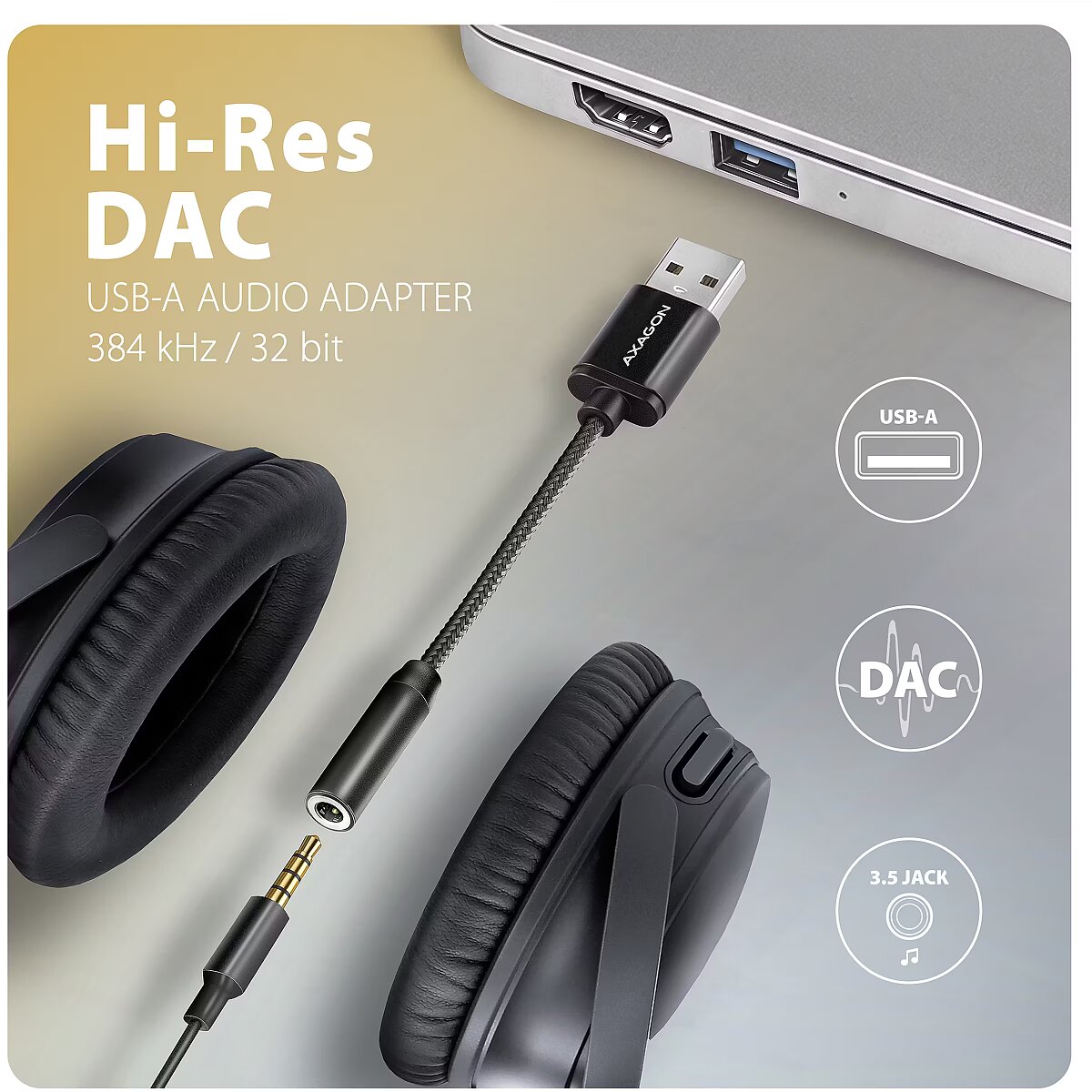

Axagon ADA-HA USB-A Hi-Res Audio-Adapter, 3,5-mm-Klinke, 32 Bit und 384kHz - schwarz

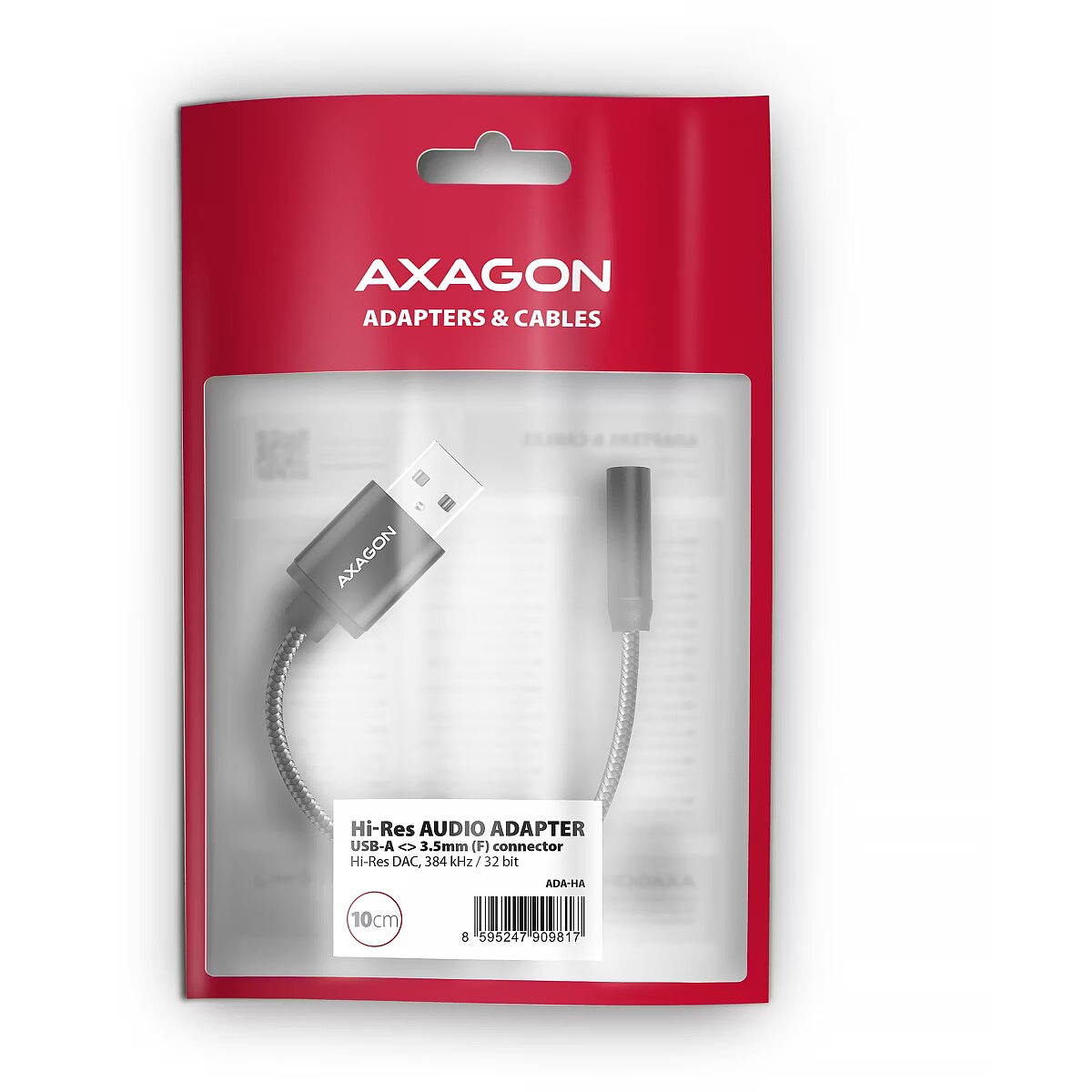

Accessories included - USB-A audio adapter, Packed in foil packaging with hanging hole.
Audio - Audio A/D Converter (ADC) - 16-bit/48kHz
Audio - Audio output channels - 2.0 channels
Audio - Audio quality - 32 bit

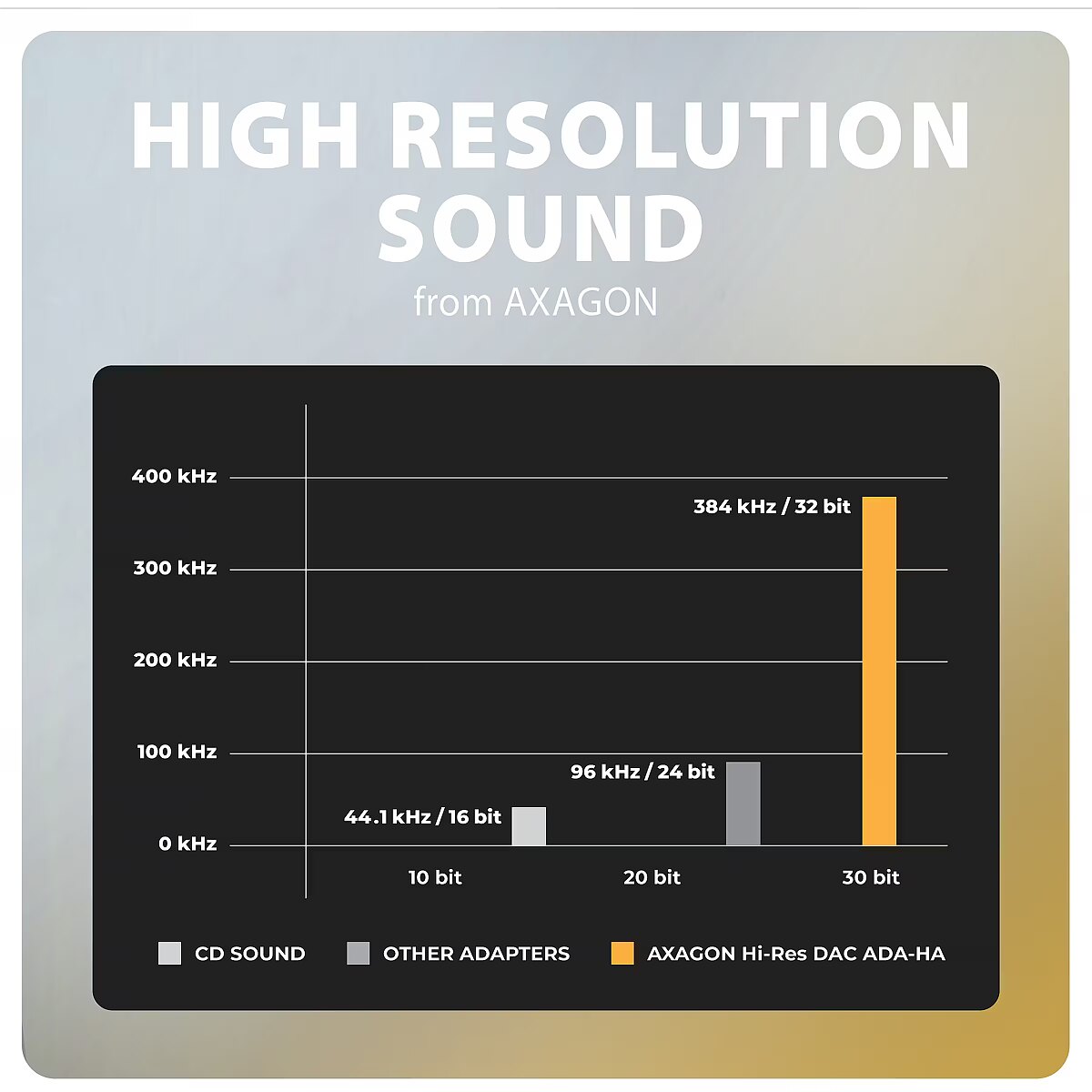

Audio - Digital-to-Analog Conversion (DAC) - 32-bit/384kHz
Audio - Internal - No
Audio - Line-in Signal-to-Noise Ratio (SNR) - 90 dB
Audio - Line-out Signal-to-Noise Ratio (SNR) - 101 dB
Audio channels - 2.0
Audio channels - 2.1
Audio channels - Mono
Brand - Axagon
BrandPartCode - ADA-HA
Category - Audio Cards
category - Peripherals|HiFi & Audio|Audio Accessories|Adapters
code - ADA-HA
Color - Black
Connectors - 1x 3,5mm minijack Headphones
Connectors - 1x 3,5mm minijack Microphone

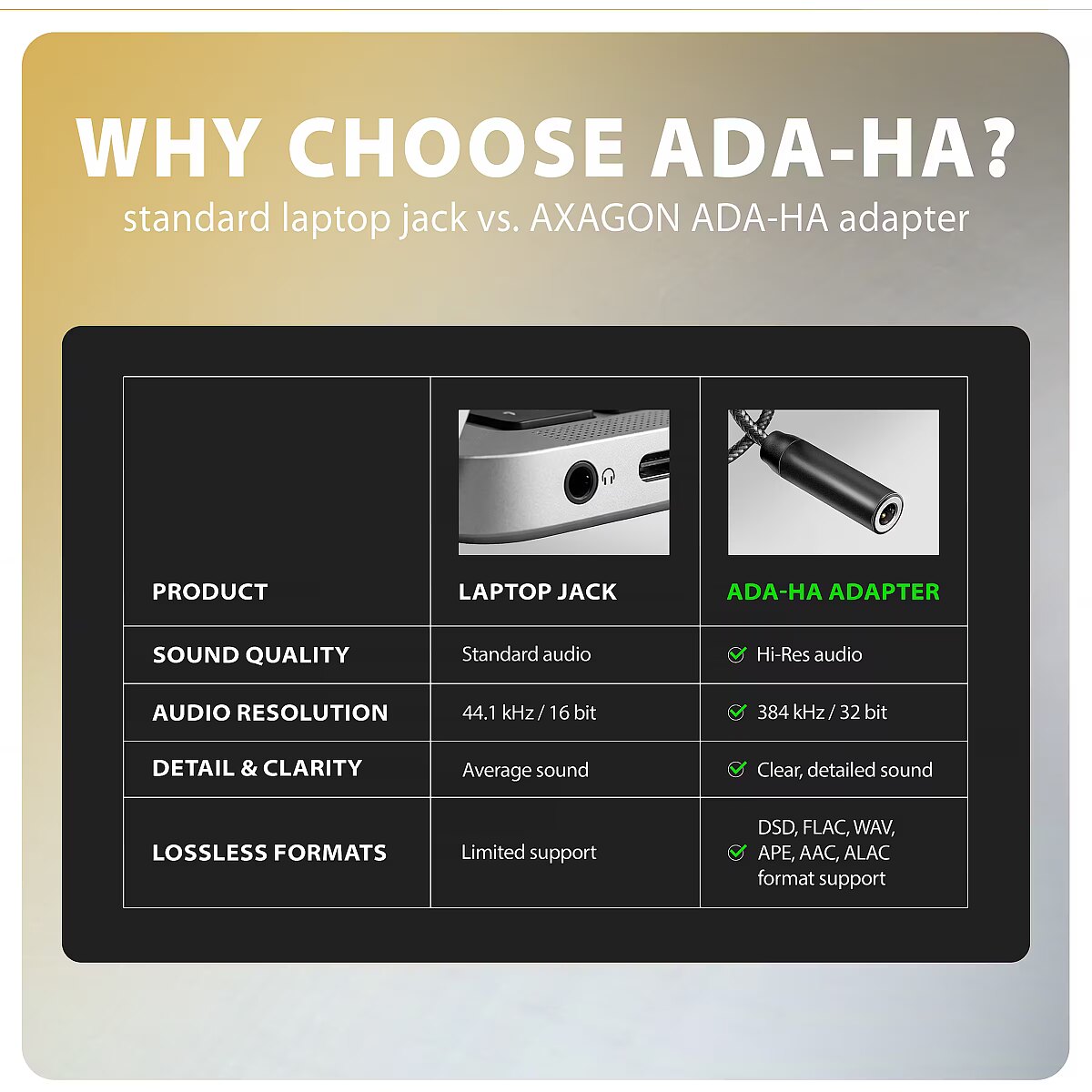

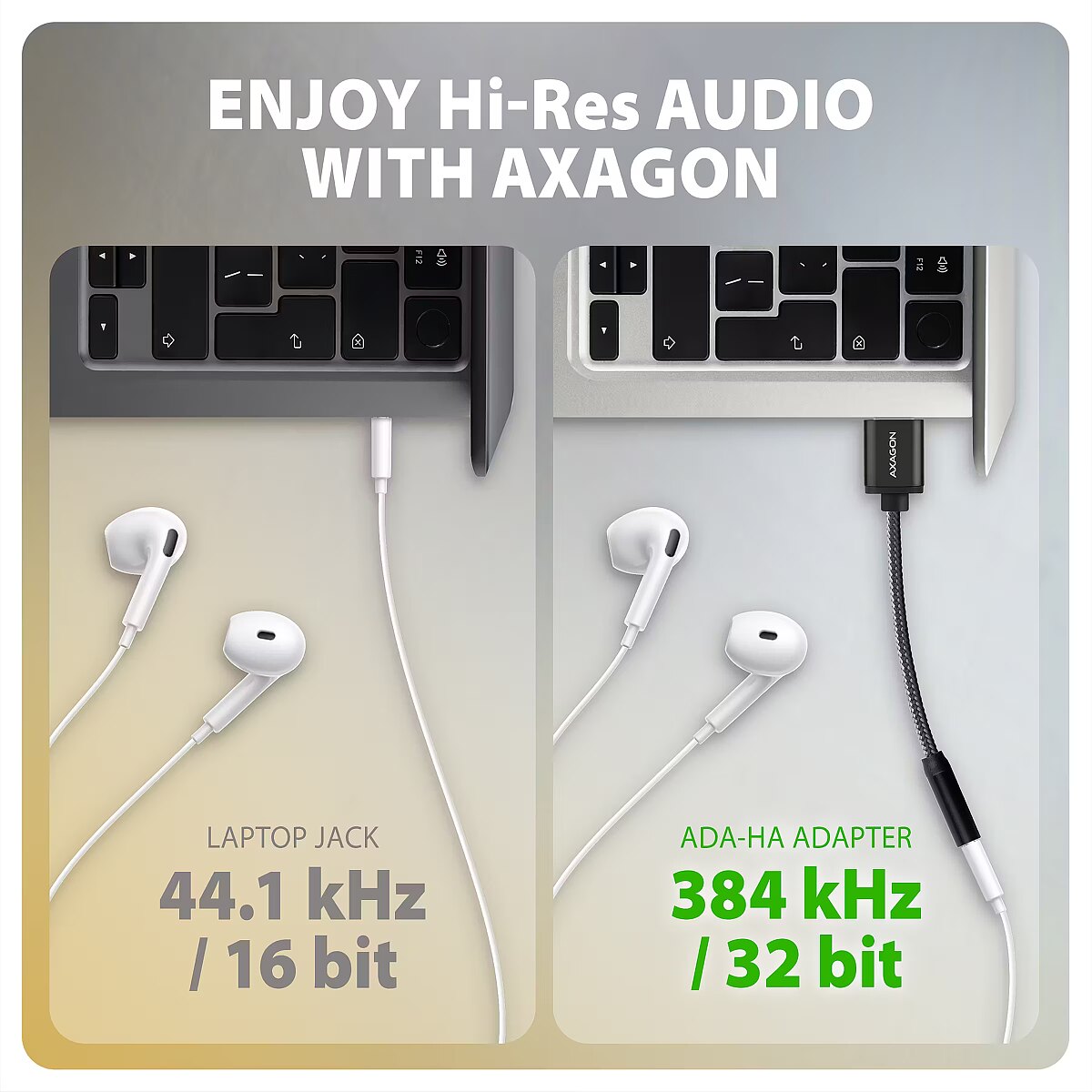

Description - The AXAGON ADA-HA Hi-Res DAC AUDIO ADAPTER is a practical accessory for a laptop or desktop computer with a USB-A connector, which provides better sound than the built-in audio connector. The adapter works as an external USB sound card with a DAC converter supporting Hi-Res Audio with sampling up to 384 kHz / 32 bits, which ensures clean and detailed sound. This adapter is an ideal solution for laptops equipped with a headphone connector with average sound quality or for devices where the sound card is missing or not working. The integrated USB DAC converter improves sound quality when listening to music, watching movies and during online calls. This external sound card is suitable for playback of lossless audio formats such as DSD, FLAC, WMA, WAV, APE, AAC or ALAC. You can also use maximum sound quality when listening to music on streaming platforms such as Spotify, Apple Music, YouTube Music or Amazon Music Unlimited. The adapter can also be used when watching streaming services such as Netflix, Disney+, HBO Max, Amazon Prime or Apple TV+. It will also serve well as a replacement for a non-functional original sound card in a laptop and will expand the computer with a headphone output and a microphone input. It is thus easy to connect headphones, a headset or active speakers and use it also for communication services such as WhatsApp, Messenger, FaceTime, Zoom, MS Teams, Google Meet or Discord. For connecting headphones, a stereo 3.5 mm 4-pole TRRS jack connector with automatic detection of CTIA or OMTP standards is used. The durability of the 10 cm long cable is ensured by a resistant nylon braiding. Installation is very easy thanks to Plug and Play, so no drivers need to be installed. The adapter also supports Hot Plug, so it can be connected during operation. Setting up a sound card in Windows allows:
adjusting volume and balance of speakers settings for listening to the microphone extended speaker features: virtual surround sound, Dolby Atmos support Setting the sampling rate and bit depth for reproduction
Designation - CE+WEEE
dimension depth - mm
dimension height - mm
Dimensions - 25 x 7 mm
dimension weight - g
dimension width - mm
ean - 8595247909817
Features - Cable length - 0.01 m
Features - Certification - CE, RoHS, Reach
Features - Dolby technologies - Dolby Atmos
Features - Product colour - Black
Features - USB powered - Yes
GTIN - 8595247909817
guarantee - 24
guarantee_type - normal
Headphone amplifier - 32 Ω
Interface - USB
Logistics data - Country of origin - China
LongDesc - The AXAGON ADA-HA Hi-Res DAC AUDIO ADAPTER is a practical accessory for a laptop or desktop computer with a USB-A connector, which provides better sound than the built-in audio connector. The adapter works as an external USB sound card with a DAC converter supporting Hi-Res Audio with sampling up to 384 kHz / 32 bits, which ensures clean and detailed sound.This adapter is an ideal solution for laptops equipped with a headphone connector with average sound quality or for devices where the sound card is missing or not working. The integrated USB DAC converter improves sound quality when listening to music, watching movies and during online calls.This external sound card is suitable for playback of lossless audio formats such as DSD, FLAC, WMA, WAV, APE, AAC or ALAC. You can also use maximum sound quality when listening to music on streaming platforms such as Spotify, Apple Music, YouTube Music or Amazon Music Unlimited. The adapter can also be used when watching streaming services such as Netflix, Disney+, HBO Max, Amazon Prime or Apple TV+.It will also serve well as a replacement for a non-functional original sound card in a laptop and will expand the computer with a headphone output and a microphone input. It is thus easy to connect headphones, a headset or active speakers and use it also for communication services such as WhatsApp, Messenger, FaceTime, Zoom, MS Teams, Google Meet or Discord.For connecting headphones, a stereo 3.5 mm 4-pole TRRS jack connector with automatic detection of CTIA or OMTP standards is used. The durability of the 10 cm long cable is ensured by a resistant nylon braiding.Installation is very easy thanks to Plug and Play, so no drivers need to be installed. The adapter also supports Hot Plug, so it can be connected during operation. Input:• 1x USB 480Mbps male connector (USB 2.0)• connecting USB connector type A maleAudio output:• 2-channel analog 32-bit output (3.5 mm TRRS stereo jack)• stereo output for headphones or active speakersAudio input:• analog 16-bit input (3.5 mm jack)• microphone input and input for recording analog signalSampling rate, resolution and output converter (DAC) noise:• analog - 44.1 - 384 kHz @ 16 / 24 / 32 bit (PCM) for playback• Signal-to-Noise ratio (Output SNR) ≥ 101 dB (0 dBFs, 1 kHz, A-weighted)• Harmonic distortion (Output THD + N) ≤ -85 dB (0 dBFs, 1 kHz)Sampling rate, resolution and input converter (ADC) noise:• analog - 48 kHz @ 16 bit (PCM) for recording• signal-to-Noise ratio (Input SNR) ≥ 90 dB (100 mVrms, 1 kHz, A-weighted)• Harmonic distortion (Input THD + N) ≤ -85 dB (80 mVrms, 1 kHz)Other features:• Built-in headphone amplifier 27.5 mW @ 32 ohm.• Impedance range of connected headphones 16 - 300 ohm.• Frequency range 20 Hz - 20 kHz.• Support of lossless formats: DSD64, DSD128, FLAC, WMA, WAV, APE, AAC, ALAC.• Easy installation thanks to full Plug and Play support.• Possibility to connect your device while running thanks to the Hot Plug support.• 3.5 mm jack, TRS, TRRS (CTIA & OMTP autodetection) compatible.• Compliant with the USB Audio Device Class specification v1.0 / 2.0.• Adapter power supply via USB (bus power) - no auxiliary power supply required.• Miniature dimensions 25 x 7 mm, cable length 10 cm.• Weight only 8 g.Setting up a sound card in Windows allows:• adjusting volume and balance of speakers• settings for listening to the microphone• extended speaker features: virtual surround sound, Dolby Atmos support• Setting the sampling rate and bit depth for reproductionSupported OS:• Windows 10 / 11 and later, macOS, Linux.Package contains:• USB-A audio adapter,• packed in foil packaging with hanging hole.
LongProductName - AXAGON ADA-HA USB-A to 3.5mm jack Hi-Res DAC Audio Adapter, 384kHz/32bit, Stereo
LongSummaryDescription - Axagon ADA-HA USB-A to 3.5mm jack Hi-Res DAC Audio Adapter, 384kHz/32bit, Stereo. Audio output channels: 2.0 channels, Audio quality: 32 bit, Line-out Signal-to-Noise Ratio (SNR): 101 dB. Host interface: USB, Headphone connectivity: 3.5 mm. Dolby technologies: Dolby Atmos, Cable length: 0.01 m, Product colour: Black. Weight: 8 g, Depth: 25 mm, Height: 7 mm. Country of origin: China
name - audio adapter ADA-HA USB-A 32bit DAC 384kHz
name - AXAGON ADA-HA USB-A Hi-Res Audio-Adapter, 3,5-mm-Klinke, 32 Bit und 384kHz - schwarz

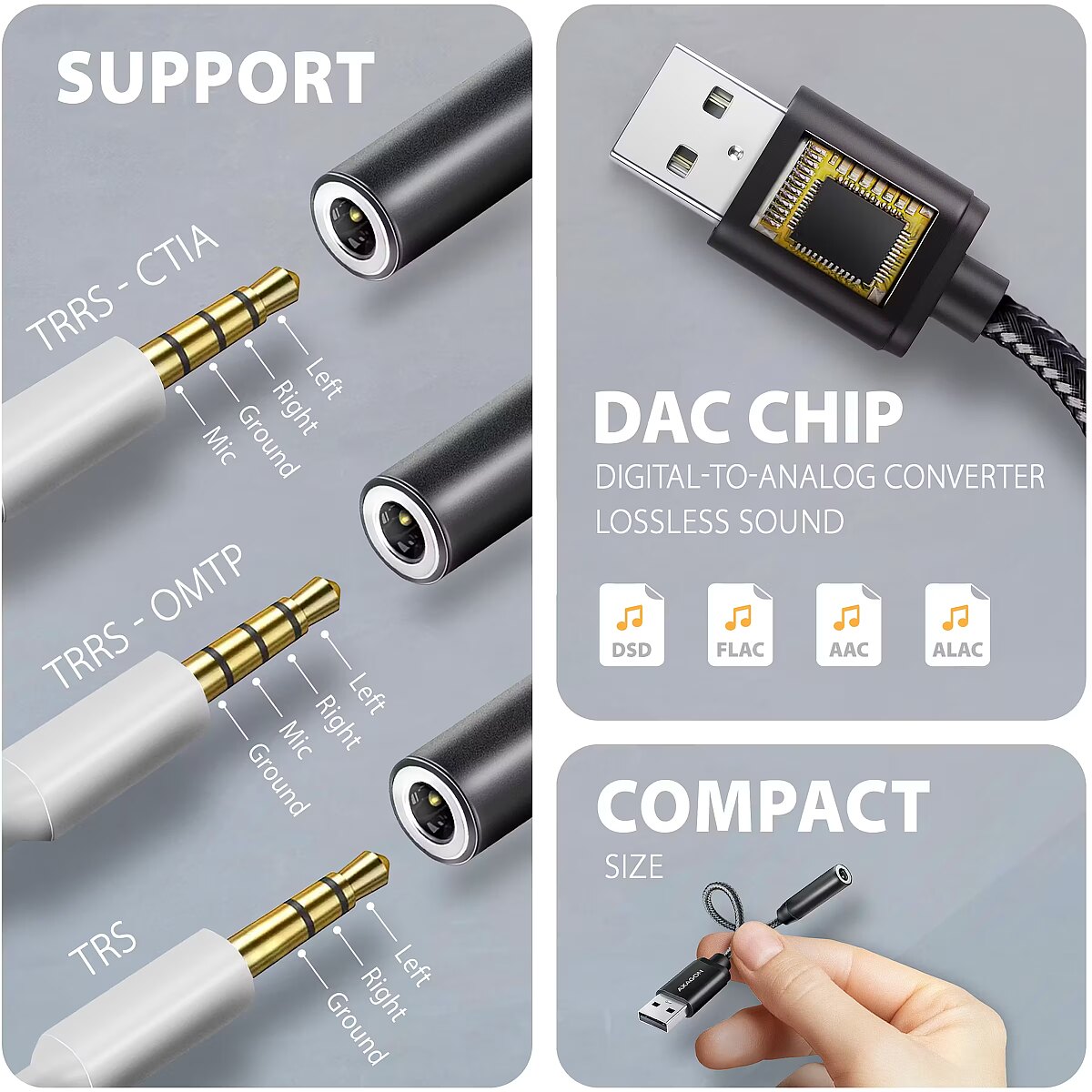

Other features - Input: 1x USB 480Mbps male connector (USB 2.0) connecting USB connector type A male Audio output: 2-channel analog 32-bit output (3.5 mm TRRS stereo jack) stereo output for headphones or active speakers Audio input: analog 16-bit input (3.5 mm jack) microphone input and input for recording analog signal Sampling rate, resolution and output converter (DAC) noise: analog - 44.1 - 384 kHz @ 16 / 24 / 32 bit (PCM) for playback Signal-to-Noise ratio (Output SNR) 101 dB (0 dBFs, 1 kHz, A-weighted) Harmonic distortion (Output THD + N) -85 dB (0 dBFs, 1 kHz) Sampling rate, resolution and input converter (ADC) noise: analog - 48 kHz @ 16 bit (PCM) for recording signal-to-Noise ratio (Input SNR) 90 dB (100 mVrms, 1 kHz, A-weighted) Harmonic distortion (Input THD + N) -85 dB (80 mVrms, 1 kHz) Other features: Built-in headphone amplifier 27.5 mW @ 32 ohm. Impedance range of connected headphones 16 - 300 ohm. Frequency range 20 Hz - 20 kHz. Support of lossless formats: DSD64, DSD128, FLAC, WMA, WAV, APE, AAC, ALAC. Easy installation thanks to full Plug and Play support. Possibility to connect your device while running thanks to the Hot Plug support. 3.5 mm jack, TRS, TRRS (CTIA & OMTP autodetection) compatible. Compliant with the USB Audio Device Class specification v1.0 / 2.0. Adapter power supply via USB (bus power) - no auxiliary power supply required. Cable length 10 cm.
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Host interface - USB
Ports & interfaces - Microphone in - Yes
Ports & interfaces - Plug and Play - Yes
Ports & interfaces - Wireless connection - No
producer - AXAGON
ProductName - AXAGON ADA-HA USB-A to 3.5mm jack Hi-Res DAC Audio Adapter, 384kHz/32bit, Stereo
Sampling - 32 bit
Sampling frequency - 384 kHz
ShortSummaryDescription - Axagon ADA-HA USB-A to 3.5mm jack Hi-Res DAC Audio Adapter, 384kHz/32bit, Stereo, 2.0 channels, 32 bit, 101 dB, USB
Software - Linux operating systems supported - Yes
Software - Mac compatibility - Yes
Software - Mac operating systems supported - Yes
Software - Windows operating systems supported - Yes
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Compliance certificates - CE, RoHS, REACH
Technical details - Warranty period - 2 year(s)
Title - Axagon ADA-HA USB-A to 3.5mm jack Hi-Res DAC Audio Adapter, 384kHz/32bit, Stereo
URL - https://www.axagon.eu/en/products/ada-ha
vendpn - ADA-HA
WarrantyInfo - 2 years
Weight - 8 g
Weight & dimensions - Depth - 25 mm
Weight & dimensions - Height - 7 mm
Weight & dimensions - Package depth - 21 mm
Weight & dimensions - Package height - 12.8 mm
Weight & dimensions - Package weight - 14 g
Weight & dimensions - Package width - 0.8 mm
Weight & dimensions - Weight - 8 g
