Brand - ASUS
BrandPartCode - 90YV0NR0-M0NA00
Category - Graphics Cards
Category Code - VGP
Cooling technology Design - ASUS Axial-tech
Cooling type Design - Active
CUDA cores Processor - 8960
CUDA Processor - Yes
Data transfer rate Memory - 28 Gbit/s
Depth Weight & dimensions - 50 mm

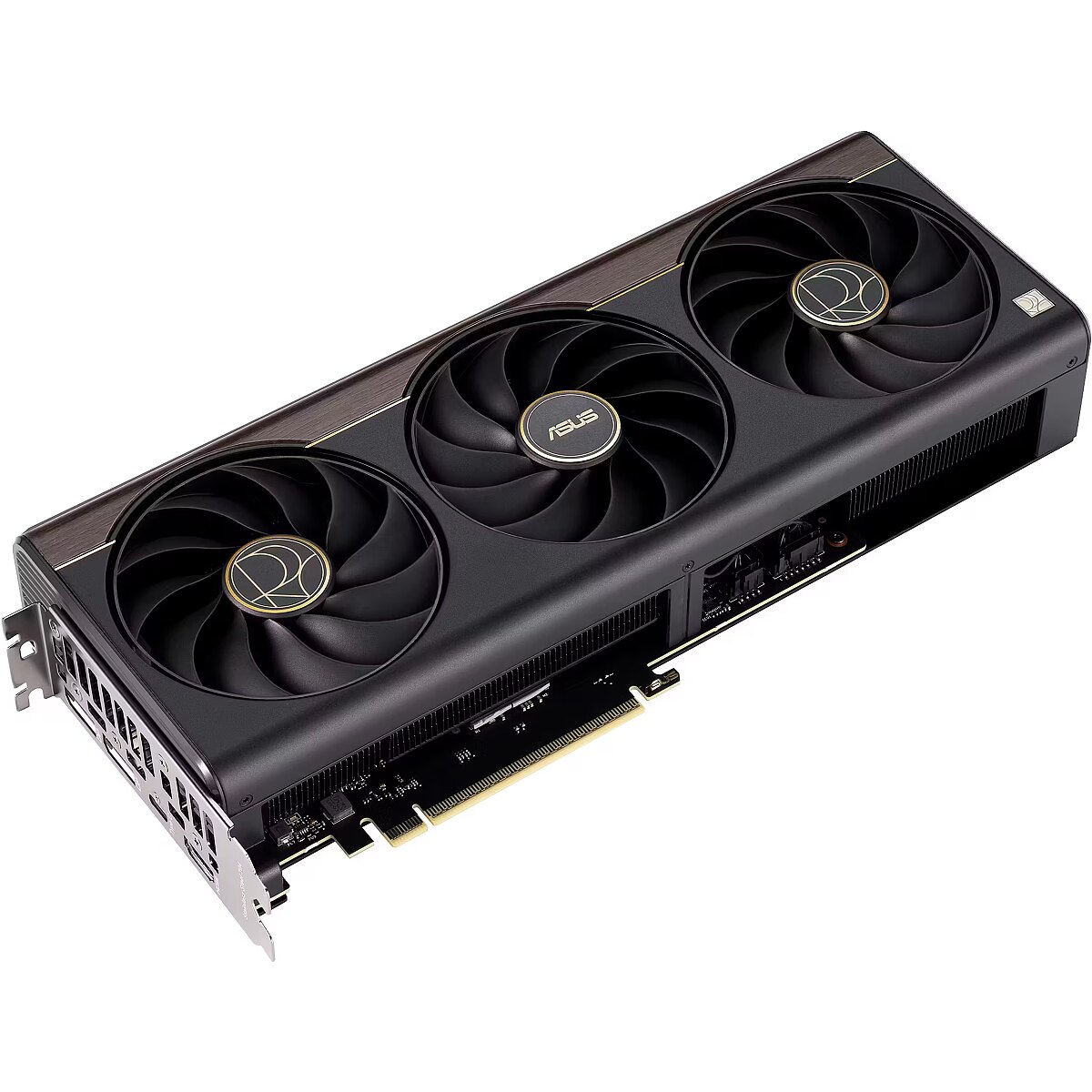

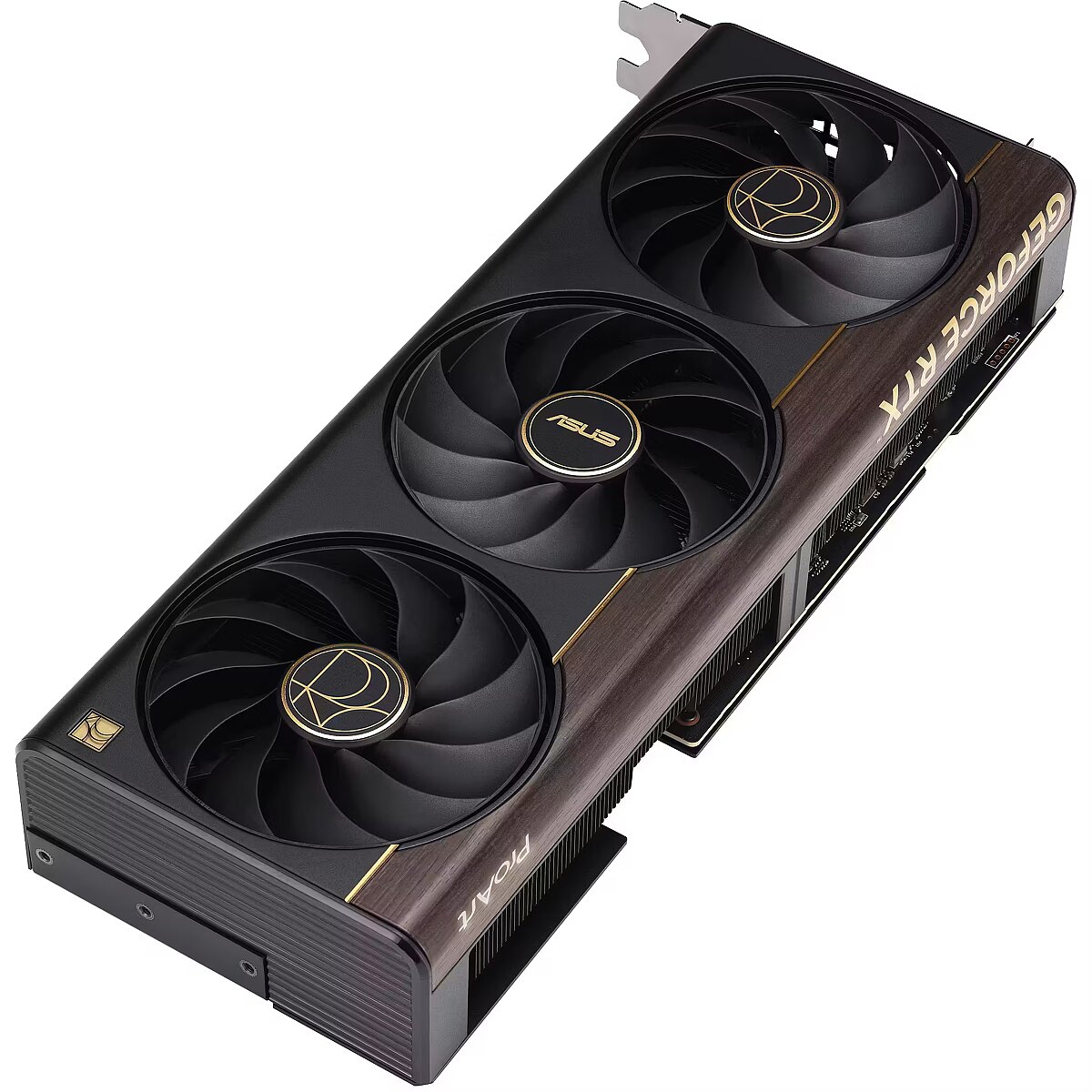

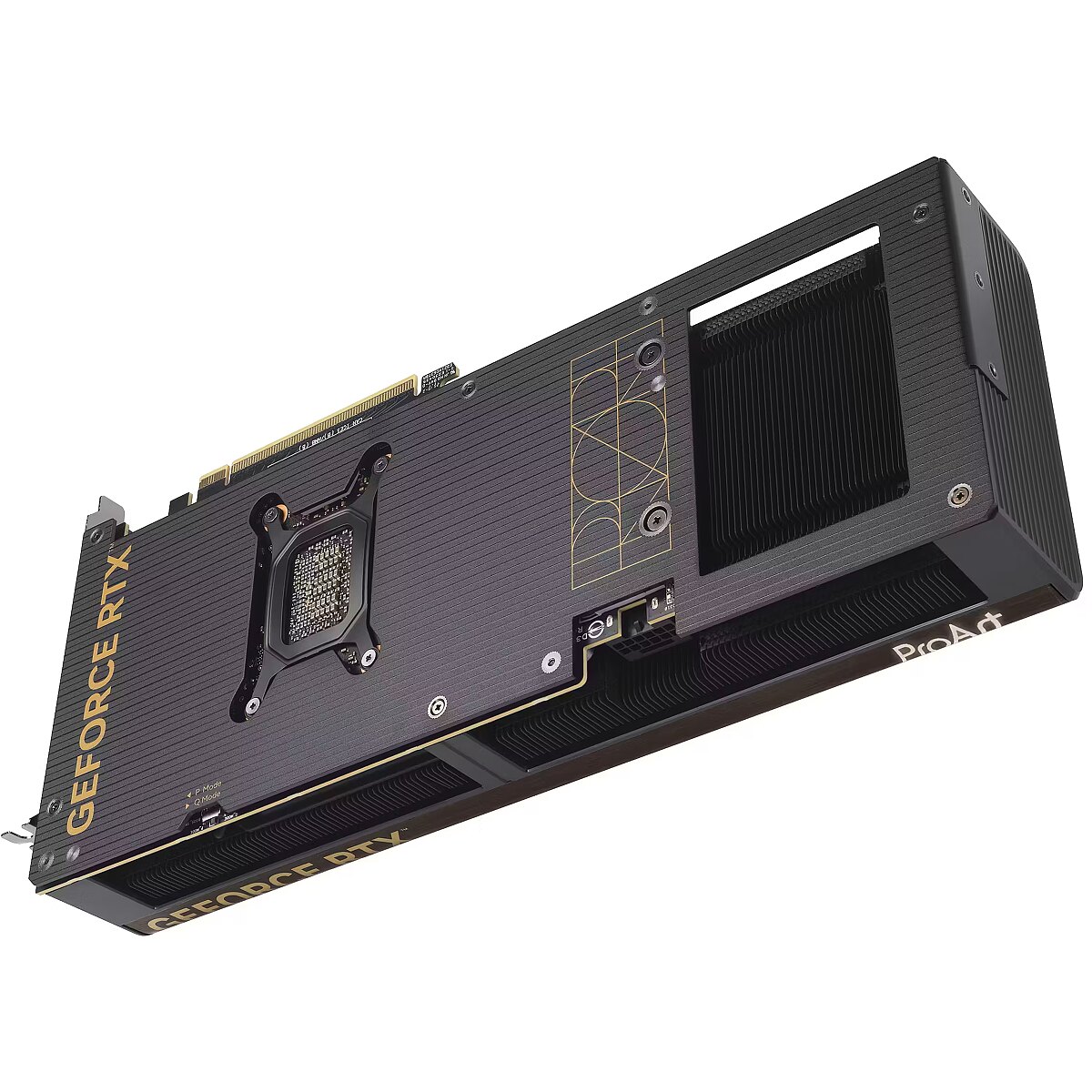

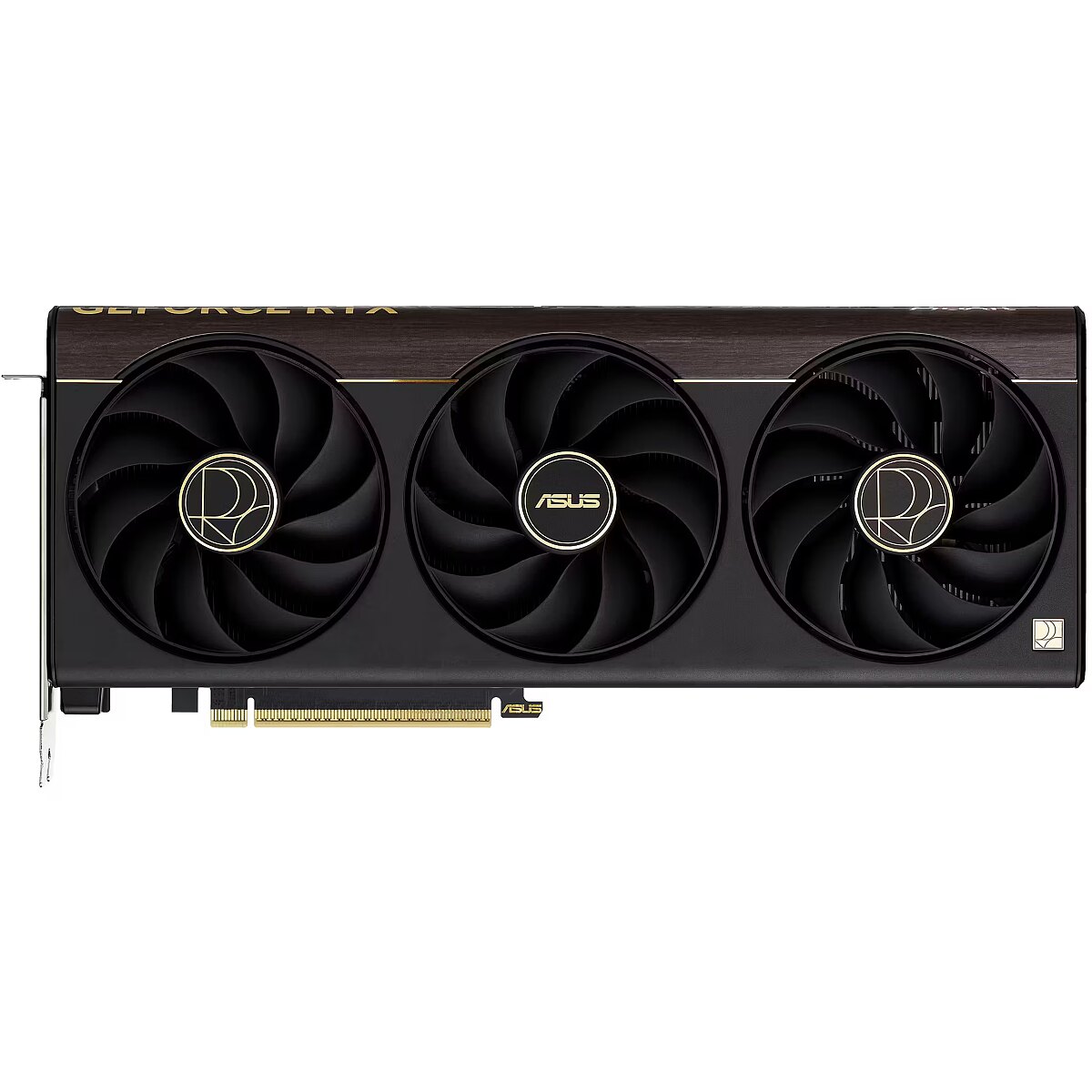

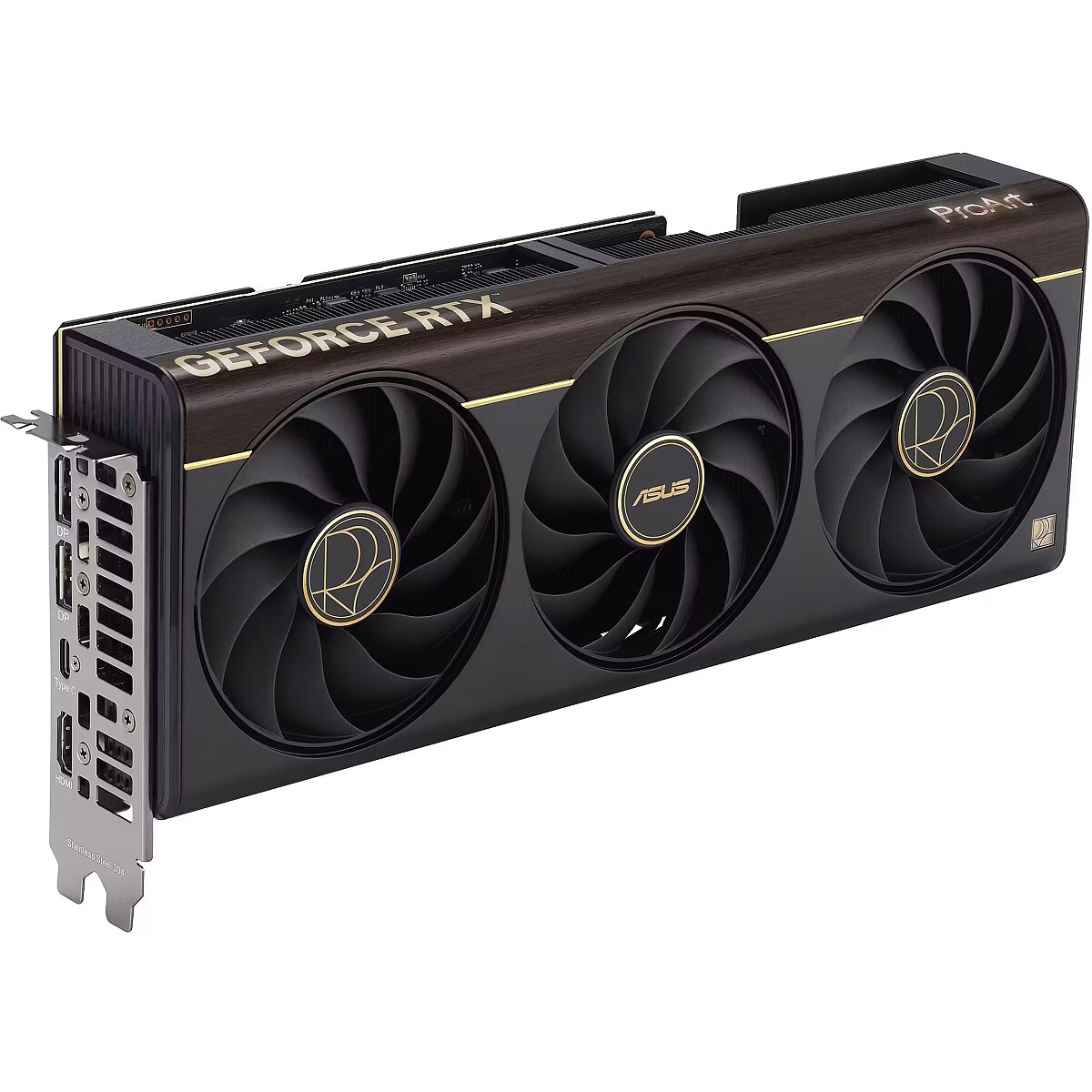

Description - Visionary. Versatile. Timeless. The ProArt GeForce RTX™ 5070 Ti combines a compact 2.5-slot design with potent cooling – three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad – to deliver GeForce RTX 50 Series performance to both full-scale towers and space-saving SFF builds. A USB Type-C® port enhances versatility for content creation workflows, while a wood-patterned laminate trim and low-key Aura-lit logo help deliver a refined aesthetic.
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Number of fans - 3 fan(s)
Design - Number of slots - 2.5
Design - Product colour - Multicolour
Design - SFF ready - Yes
Discrete graphics card memory Memory - 16 GB

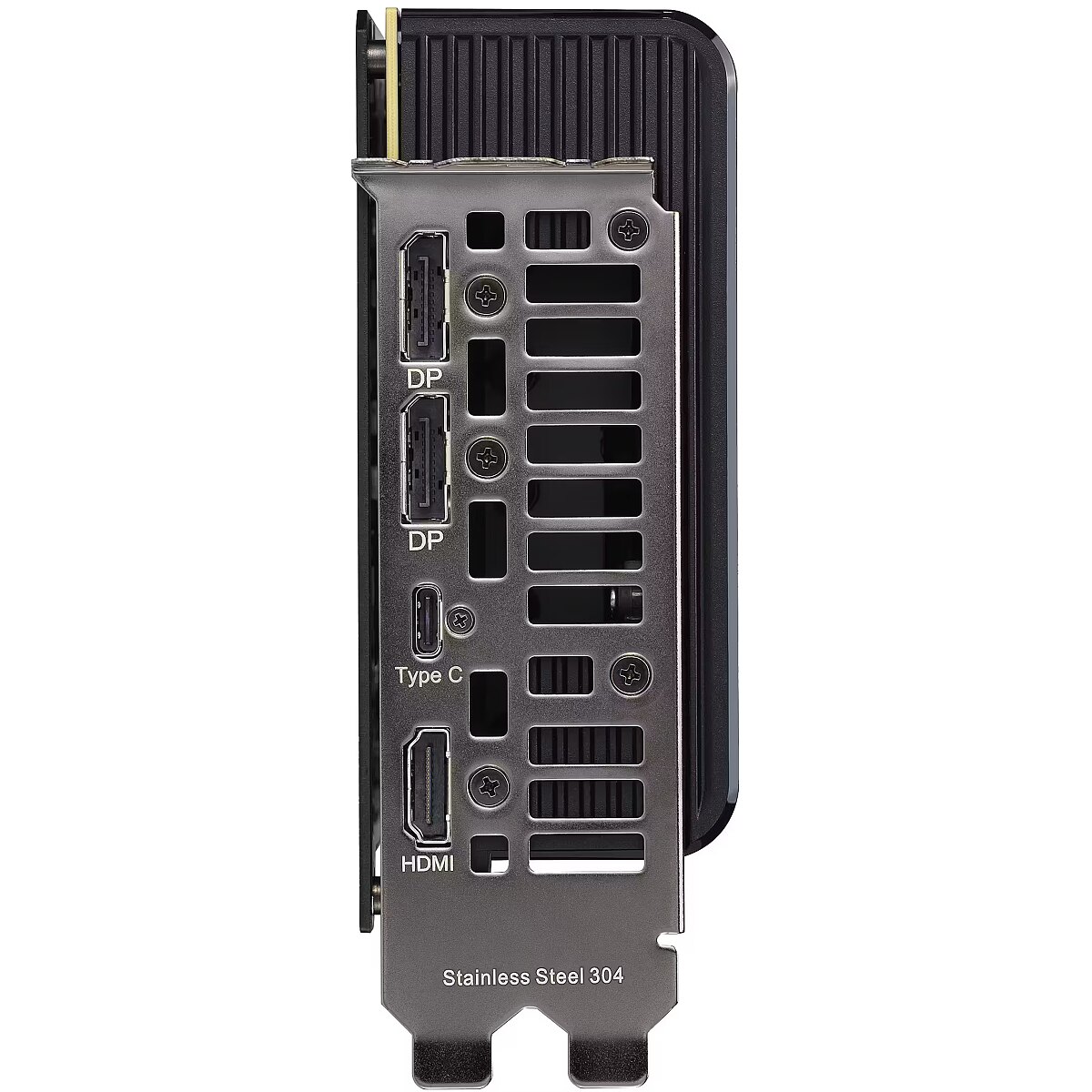

DisplayPorts quantity Ports & interfaces - 2
DisplayPort version Ports & interfaces - 2.1b
Dual Link DVI Performance - No
Graphics card memory type Memory - GDDR7
Graphics processor family Processor - NVIDIA
Graphics processor Processor - GeForce RTX 5070 Ti
GTIN - 4711636226998
HDCP Performance - Yes
HDCP version Performance - 2.3
HDMI ports quantity Ports & interfaces - 1
HDMI version Ports & interfaces - 2.1b
Height Weight & dimensions - 126 mm
Interface type Ports & interfaces - PCI Express 5.0
Length Weight & dimensions - 304 mm
LongDesc - Visionary. Versatile. Timeless.The ProArt GeForce RTX™ 5070 Ti combines a compact 2.5-slot design with potent cooling – three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad – to deliver GeForce RTX 50 Series performance to both full-scale towers and space-saving SFF builds. A USB Type-C® port enhances versatility for content creation workflows, while a wood-patterned laminate trim and low-key Aura-lit logo help deliver a refined aesthetic.
LongProductName - NVIDIA GeForce RTX 5070 Ti 16GB GDDR7, PCI Express 5.0, 28 Gbps, 256-bit, 850W, 2.5 Slot
LongSummaryDescription - ASUS ProArt -RTX5070TI-O16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5070 Ti. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s)
Maximum displays per videocard Processor - 4
Maximum resolution Processor - 7680 x 4320 pixels
Memory - Data transfer rate - 28 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR7
Memory - Memory bus - 256 bit
Memory bus Memory - 256 bit
Minimum system power supply Power - 850 W
Number of fans Design - 3 fan(s)
Number of slots Design - 2.5
NVIDIA G-SYNC Performance - Yes
OpenGL version Performance - 4.6
Overclocked (OC) edition Performance - Yes
Package depth Packaging data - 233 mm
Package height Packaging data - 88.5 mm
Package type Packaging data - Box
Package weight Packaging data - 2040 g
Package width Packaging data - 405 mm
Packaging data - Package depth - 233 mm
Packaging data - Package height - 88.5 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.04 kg
Packaging data - Package width - 405 mm
Parallel processing technology support Processor - Not supported
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - Overclocked (OC) edition - Yes
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 2.1b
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express 5.0
Ports & interfaces - USB Type-C ports quantity - 1
Power - Minimum system power supply - 850 W
Power - Supplementary power connectors - 1x 16-pin
Processor - CUDA - Yes
Processor - CUDA cores - 8960
Processor - Graphics processor - GeForce RTX 5070 Ti
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2588 MHz
Processor - Processor frequency (OC mode) - 2610 MHz
Processor boost clock speed Processor - 2588 MHz
Processor frequency (OC mode) Processor - 2610 MHz
Product colour Design - Multicolour
ProductName - PROART-RTX5070TI-O16G
Product Net Weight - 1.39 kg
SFF ready Design - Yes
ShortSummaryDescription - ASUS ProArt -RTX5070TI-O16G, GeForce RTX 5070 Ti, 16 GB, GDDR7, 256 bit, 7680 x 4320 pixels, PCI Express 5.0
Summary - ASUS ProArt -RTX5070TI-O16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5070 Ti. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s)
Supplementary power connectors Power - 1x 16-pin
System requirements - Windows operating systems supported - Yes
Title - ASUS ProArt -RTX5070TI-O16G NVIDIA GeForce RTX 5070 Ti 16 GB GDDR7
Unit Box Height - 0.235
Unit Box Length - 0.405
Unit Box Width - 0.09
Unit Calculated Volume - 0.0101 cubm
Unit Calculated Weight - 2.23 kg
Units per Pallet - 0
Units per Shipping Box - 5
URL - https://www.asus.com/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/
USB Type-C ports quantity Ports & interfaces - 1
Vendor Homepage - https://www.asus.com/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 50 mm
Weight & dimensions - Height - 126 mm
Weight & dimensions - Length - 304 mm
Weight & dimensions - Weight - 1.39 kg
Weight Weight & dimensions - 1390 g
Windows operating systems supported System requirements - Yes
