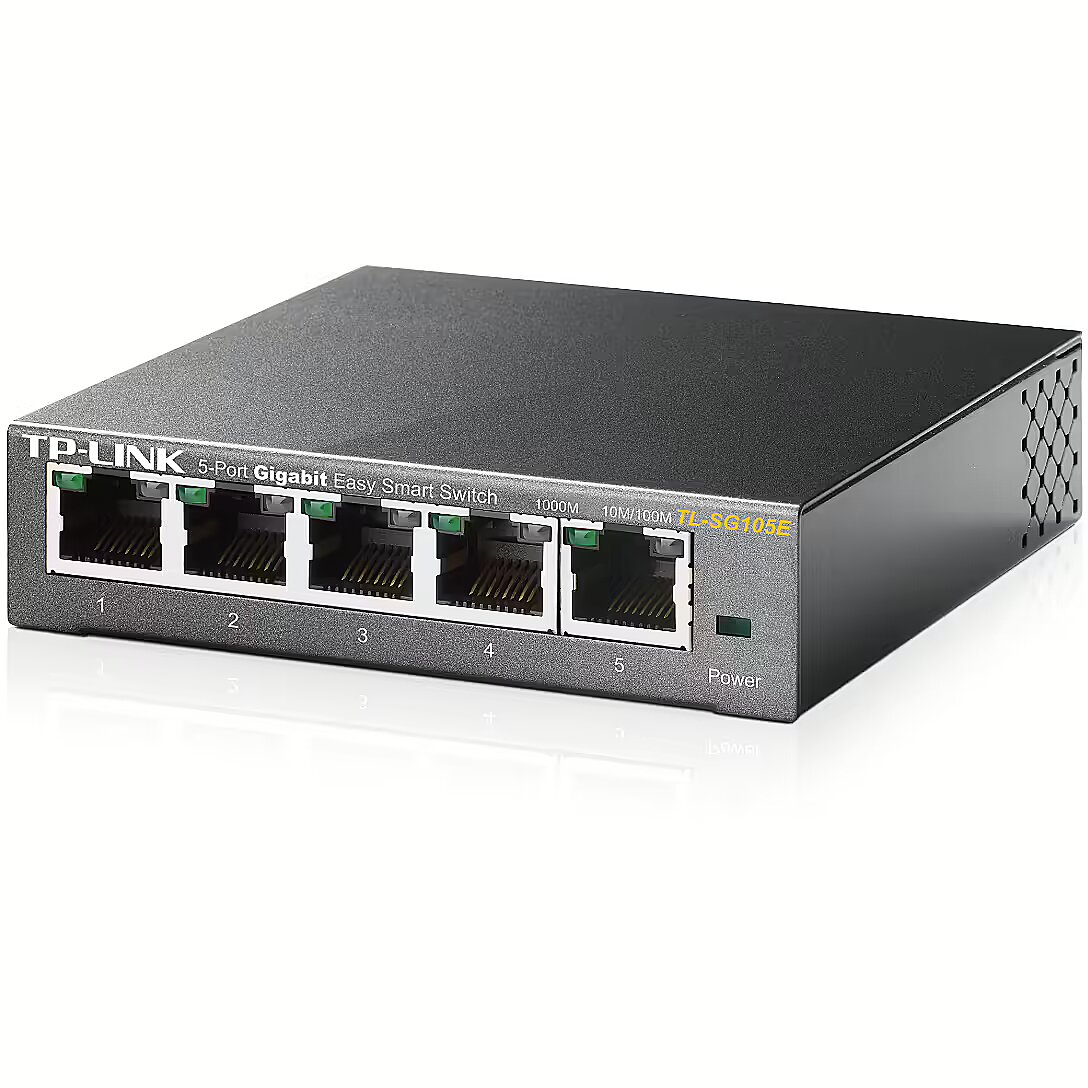

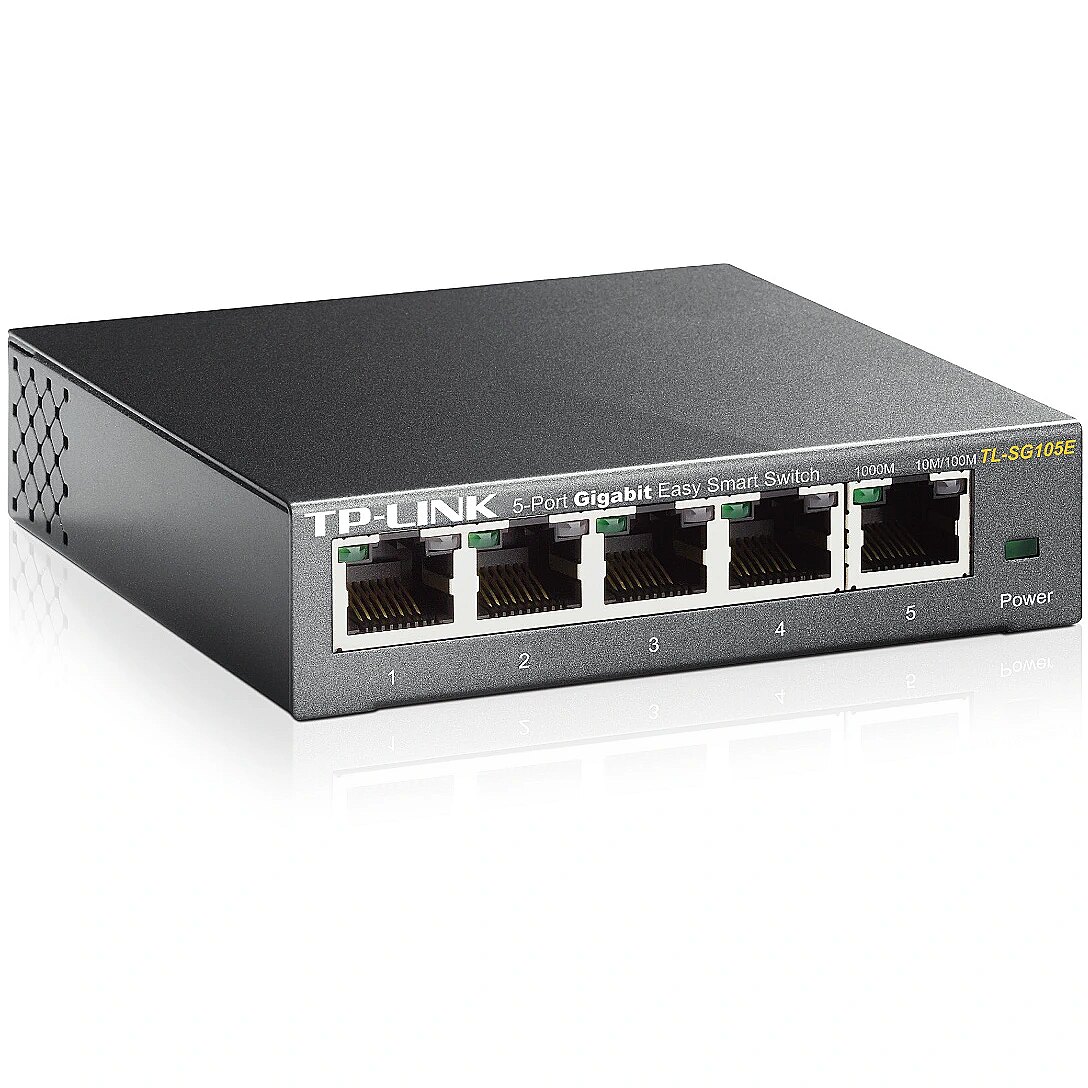

TP-LINK TL-SG105E, 5port

10G support Network - No
Accessories included - - TL-SG105E
- Power cable
- User manual
- CD
- Rubber feet
Application - Home and small office
ARTIKEL1 - TL-SG105E 5-PORT GBIT
ARTIKEL2 - EASY SMART SWITCH
Auto-negotiation Network - Yes
Auto MDI/MDI-X Network - Yes
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 5
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
Brand - TP-Link
BrandPartCode - TL-SG105E
BrandPartCode - TL-SG105E V5
Cables included Packaging content - AC
Cable types supported Network - Cat3, Cat4, Cat5, Cat5e, Cat6
Category - Network Switches
Category Code - SWI
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - CE
Certificates - FCC Class B
Certificates - RoHS
Certificates - Certification - FCC, CE, RoHS
Certification Certificates - FCC, CE, RoHS
Chassis type - Desktop
Code - TL-SG105E
Compatible operating systems Performance - Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux
Console port - No
Copper ethernet cabling technology Network - 1000BASE-T, 100BASE-TX, 10BASE-T
Data transmission - Forwarding rate - 7.44 Mpps
Data transmission - Jumbo frames - 16000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 2000 entries
Data transmission - MAC address table - 8192 entries
Data transmission - Packet buffer memory - 1 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 10 Gbit/s
Data transmission - Throughput - 7.4 Mpps
Depth Weight & dimensions - 98 mm
Description - Easily Expand Your Gigabit Network and Save Energy
5-Port Gigabit Easy Smart Switch Link Your Devices, Create Convenient Business
The 5-Port Gigabit Easy Smart Desktop Switch provides an easy way to expand your wired network. Deal with your business quickly and easily, whether you are at home or in the office. Gigabit Ports for Maximum Speed
5 non-blocking 10/100/1,000 Mbps ports make it possible to transfer large, bandwidth-intensive files with no interference. More Features,More Choices QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery. VLAN for Security
Helps to create network with higher security and better overall performance by dividing network into smaller groups Management Made Easy
TL-SG105E offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105E offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. Durable Metal Casing
The interior components of TL-SG105E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG105E delivers switching performance you can depend on. Go Green with Your Ethernet
TP-Link’s latest generation of Easy Smart Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!5 10/100/1000Mbps RJ45 portsPlug and play, with no configuration requiredDurable metal casing of superior quality and professional appearanceIntelligent management via a web user interface and downloadable utilityGreen technology reduces power consumption
Description - Easy Smart Switch - 5 Port Gigabit Switch TL-SG105E
Main features:
- 5 RJ 45 ports 10/100/1000 Mbps
- Network monitoring, network traffic priority and VLAN priority
- Innovative technology saves up to 75% of energy
- No need to configure - Plug & Play
- Managing with Easy Smart Configuration Utility (Windows)
Application of the product
The Easy Smart TL-SG105E is designed for small and medium businesses that need basic LAN management. With port mirroring, loop prevention, and cable diagnostics, administrators can easily monitor network traffic. Support for port-based QoS and 802.1P tagging enables you to maintain the highest throughput for the most important connections in your corporate network. In addition, port-based support, tagging, and MTU for VLANs improve security and isolate network resources. In addition, the TL-SG105E is environmentally friendly because it uses an innovative technology that saves up to 75% of energy consumption.
Simple and effective management
The TP-LINK Easy Smart TL-SG105E switch comes with easy-to-use Layer 2 management features, available from Easy Smart Configuration Utility (for Windows). With Port Mirroring, loop prevention, and port status diagnostics, the TL-SG105E enables you to identify and locate any problems on your corporate network. In addition, administrators can leverage port-based QoS or 802.1p tagging to deliver seamless voice, video or voice transmission. In addition, to improve network performance and security, the switch supports port-based VLANs, Tag Assignments, and MTUs (for easy uplink port configuration). Thanks to the manageability of the TL-SG105E, it provides greater functionality than unmanaged switches while being economical and easy to use for your network.
Energy-efficient Ethernet - environmentally friendly
By creating a gigabit ethernet network you can now choose an environmentally-friendly solution! The TL-SG105E uses technology that enables high-bandwidth networks with high energy savings. The device automatically adjusts the required power consumption depending on the connection status and cable length, reducing power consumption.
Power off unused ports
Traditional network switches consume significant amounts of power on ports, even if the attached devices are switched off. The TL-SG105E automatically detects the connection status of each port, reducing the power consumption of inactive ports.
Power consumption depends on cable length
Theoretically, the use of shorter cables should reduce energy consumption, due to the smaller energy loss on their length. However, most devices consume as much energy, regardless of the length of the cables. The TL-SG105E analyzes the length of cables attached to it, and accordingly regulates the amount of power consumed by the ports.
Ease of use
The TL-SG105E is easy to use and install. With Auto MDI / MDIX, no crossover cables are required. The automatic negotiation function detects the speed of the connected device (10, 100 or 1000Mb / s) on each port for the best transmission performance. Small size makes it a little space for desk use. The LEDs display information about the current state of each port, allowing for easy diagnostics of connections.
Design - Certification - FCC, CE, RoHS
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Design > Form factor - Wall mountable
Designation - CE+WEEE
dimensionalWeight - 338
dimension depth - 100 mm
dimension height - 170 mm
Dimensions - 100 x 98 x 25 mm
dimension weight - 460 g
dimension width - 110 mm
EAN - 6935364022037
ean - 6935364022037
EANCode - 1210002616836
EAN_code - 6935364022037
Environment requirements - - Permissible operating temperature: 0 - 40 degrees C
- Permissible storage temperature: -40 to 70 degrees C
- Permissible air humidity: 10 - 90% (non-condensing)
- Permissible storage humidity: 5-90% (non-condensing)
Fan - No
Forwarding mode - Store-and-forward
Forwarding rate - 7.4 Mpps
Forwarding rate Data transmission - 7.44 Mpps
Gewicht - 0.47
Gigabit Ethernet (copper) ports quantity Ports & interfaces - 5
Gross Weight Kg - 0,58
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 0758399147737
GTIN - 758399147737
GTIN - 0801940477613
GTIN - 801940477613
GTIN - 0804067302905
GTIN - 804067302905
GTIN - 0804904106338
GTIN - 804904106338
GTIN - 0808112941699
GTIN - 808112941699
GTIN - 0845973022037
GTIN - 845973022037
GTIN - 1210002616836
GTIN - 1210002616843
GTIN - 5054242210623
GTIN - 5054484704492
GTIN - 6935364022037
GTIN - 6935364022044
guarantee - 60
guarantee_type - normal
Heat dissipation Operational conditions - 9.07 BTU/h
Height Weight & dimensions - 25 mm
HERSTELLER - TP-LINK
HSTNUMMER - TL-SG105E
IGMP snooping Security - Yes
Input current Power - 0.6 A
Input voltage Power - 5 V
Jumbo frames Data transmission - 16000
Jumbo frame size - 16 KB
Jumbo frames support Data transmission - Yes
L2 features - - IGMP Snooping
- Aggregation of links
- Mirroring ports
- Cable diagnostics
- Prevent looping
L3 features -
LED indicators Design - Yes
Link - https://www.tp-link.com/us/business-networking/unmanaged-pro-switch/tl-sg105e/
Link aggregation Network - Yes
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Easily Expand Your Gigabit Network and Save Energy5-Port Gigabit Easy Smart SwitchLink Your Devices, Create Convenient BusinessThe 5-Port Gigabit Easy Smart Desktop Switch provides an easy way to expand your wired network. Deal with your business quickly and easily, whether you are at home or in the office.Gigabit Ports for Maximum Speed5 non-blocking 10/100/1,000 Mbps ports make it possible to transfer large, bandwidth-intensive files with no interference.More Features,More ChoicesQoS for a Lag-Free ExperienceEnsures smooth traffic for latency sensitive applications, such as voice and videoIGMP Snooping for Multicast OptimizationEnsures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.VLAN for SecurityHelps to create network with higher security and better overall performance by dividing network into smaller groupsManagement Made EasyTL-SG105E offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105E offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.Durable Metal CasingThe interior components of TL-SG105E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG105E delivers switching performance you can depend on.Go Green with Your EthernetTP-Link’s latest generation of Easy Smart Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
LongDesc - What This Product DoesThe TL-SG105E 5-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG105E offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG105E can save up to 75% of power consumption, making it an eco-friendly solution for your business network.Simple & Effective ManagementTP-LINK’s Gigabit Easy Smart switch, TL-SG105E offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG105E can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and 802.1P Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG105E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG105E is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.Go Green with Your EthernetYou now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG105E 5-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.Power down Idle PortsWhen a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105E can automatically detect the link status of each port and reduce the power consumption of ports that are idle.Power Budget According to Cable LengthIdeally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG105E analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.Ease of UseTL-SG105E is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
LongProductName - 5 10/100/1000 Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX, IEEE 802.3i/u/ab/x, IEEE 802.1q/p, 100 × 98 × 25 mm
LongProductName - 5-Port Gigabit Easy Smart Switch
LongSummaryDescription - TP-Link 5-Port Gigabit Easy Smart Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
LongSummaryDescription - TP-Link TL-SG105E. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8192 entries. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V
MAC address table Data transmission - 2000 entries
MAC address table size - 8192
Management, monitoring, configuration -
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Switch type - Unmanaged
Management features - Web-based management - Yes
Management features > Switch type - Web managed
Manufacturer - TP-Link
Manufacturer Code - TL-SG105E
Manufacturer Name - TP-LINK
Manufacturer_code - TL-SG105E
Model - TL-SG105E
name - TL-SG105E 5-Port Gigabit Easy Smart Switch
Name - TP-LINK TL-SG105E, Switch
Name - TP-LINK | Switch | TL-SG105E | Web managed | Wall mountable | Gigabit Ethernet (copper) ports quantity 5 | Power supply type External | 36 month(s)
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e, Cat6
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Copper ethernet cabling technology - 1000BASE-T, 100BASE-TX, 10BASE-T
Network - Flow control support - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Network - Networking standards - IEEE 802.1Q
Network - Networking standards - IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Number of VLANs - 32
Network - Port mirroring - Yes
Network - Virtual LAN features - Port-based VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Networking standards Network - IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 5
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of SFP+ ports - None
Number of SFP ports - None
Number of VLAN groups - 32
Number of VLANs Network - 32
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Heat dissipation - 9.07 BTU/h
Operational conditions - Heat dissipation - 9.62 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - - 5 ports for high performance, suitable for fast transfer of large files
- Innovative technology saves up to 75% of energy
- 802.3x flow control - data transmission optimization
- Supports 16K Jumbo Frames
- Network status monitoring - port mirroring, loop prevention,
- QoS support
- IGMP Snooping function
- Easy central management
Other features > Power supply type - External
Other functions - Autonegotiation AUTO-MDI / MDIX
Package depth Packaging data - 128 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 130 mm
Package features > Gross height (mm) - 93 mm
Package features > Gross weight - 0.455 kg
Package features > Gross width (mm) - 125 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 1143 pc(s)
Package features > Paper/Pasteboard - 5 g
Package features > Plastic (No PET) - 156 g
Package features > Tare weight (kg) - 0.161 kg
Package features > Volume (m3) - 0.00151125 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 92 mm
Package type Packaging data - Box
Package weight Packaging data - 450 g
Package width Packaging data - 125 mm
Packaging content - Cables included - AC
Packaging content - Quick start guide - Yes
Packaging content - Rack mount kit - Yes
Packaging content - User guide - Yes
Packaging data - Cables included - AC
Packaging data - Package depth - 125 mm
Packaging data - Package depth - 128 mm
Packaging data - Package height - 92 mm
Packaging data - Package type - Box
Packaging data - Package weight - 450 g
Packaging data - Package width - 125 mm
Packaging data - Package width - 128 mm
Packaging data - Quick start guide - Yes
Packaging data - Rack mount kit - Yes
Packaging data - User guide - Yes
Packet buffer - 2 MB
Packet buffer memory Data transmission - 1 MB
Performance - Compatible operating systems - Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux
Port mirroring Network - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 5
Ports & interfaces > Gigabit Ethernet (copper) ports quantity - 5
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - 1 Gbps (RJ-45)
Power - AC input frequency - 50 Hz
Power - AC input voltage - 220 V
Power - DC input voltage - 5 V
Power - Input current - 0.6 A
Power - Input voltage - 5 V
Power - Power consumption (max) - 2.82 W
Power - Power source - DC
Power - Power supply included - Yes
Power consumption (max) Power - 2.82 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power over Ethernet (PoE) Power over Ethernet (PoE) - No
Power source Power - DC
Power supply - 100-240VAC, 50/60Hz
Power supply - Internal
Power supply included Power - Yes
producer - TP-LINK
producerCode - TL-SG105E
Producer product family - Switch
Producer product name - TL-SG105E
Product colour Design - Black
ProductName - 5-Port Gigabit Easy Smart Switch
ProductName - TL-SG105E
productName - TP-Link 5-Port Gigabit Easy Smart Switch
productSize - Normal
QoS - - 802.1p Port / Port priority support
- Supports 4 priority queues
- Speed limiting function for each port
- Storm Control function
Quality of Service (QoS) support Management features - Yes
Quick start guide Packaging content - Yes
Rack mount kit Packaging content - Yes
Security -
Security - IGMP snooping - Yes
Short description - TP-LINK Switch TL-SG105E 5xGBit Managed Metallgehäuse
ShortSummaryDescription - TP-Link 5-Port Gigabit Easy Smart Switch, Managed, L2, Gigabit Ethernet (10/100/1000)
ShortSummaryDescription - TP-Link TL-SG105E, Managed, L2, Gigabit Ethernet (10/100/1000)
sizeX - 100
sizeY - 130
sizeZ - 130
Stackability - No
Stck_Kart - 36
Stck_Pal - 36
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Store-and-forward Data transmission - Yes
Storno - Y
Summary - TP-Link 5-Port Gigabit Easy Smart Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
Supported protocols and standards - - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1q
- IEEE 802.1p
Support for Jumbo frames - Yes
Switch class - SMART
Switching capacity Data transmission - 10 Gbit/s
Switch layer - L2
Switch layer Management features - L2
Switch type Management features - Managed
Technical details > Net weight - 0.294 kg
Technical details > Producer - TP-LINK
Technical details > Warranty - 60 month(s)
Title - TP-Link 5-Port Gigabit Easy Smart Switch
Title - TP-Link TL-SG105E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Unit Box Height - 0.093
Unit Box Length - 0.13
Unit Box Width - 0.126
Unit Calculated Volume - 0.001472 cubm
Unit Calculated Weight - 0.458 kg
Units per Shipping Box - 1
URL - https://www.tp-link.com/en/business-networking/easy-smart-switch/tl-sg105e/
URL - https://www.tp-link.com/uk/business-networking/easy-smart-switch/tl-sg105e/
User guide Packaging content - Yes
Vendor Homepage - https://www.tp-link.com/uk/business-networking/easy-smart-switch/tl-sg105e/
vendpn - TL-SG105E
Virtual LAN features Network - Port-based VLAN
VLAN - - Simultaneous support for up to 32 VLANs (with 4096 VLAN IDs)
- MTU / Port / Tag VLAN
VLAN support Network - Yes
Warranty - 60
Warranty - 60 months
WarrantyInfo -
WarrantyInfo - Lifetime
warrantyLength - 60
warrantyType - G
Web-based management Management features - Yes
Weight - 0,45
weight - 460
Weight & dimensions - Depth - 98 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Height - 26 mm
Weight & dimensions - Width - 99.8 mm
Weight & dimensions - Width - 100 mm
Width Weight & dimensions - 100 mm
