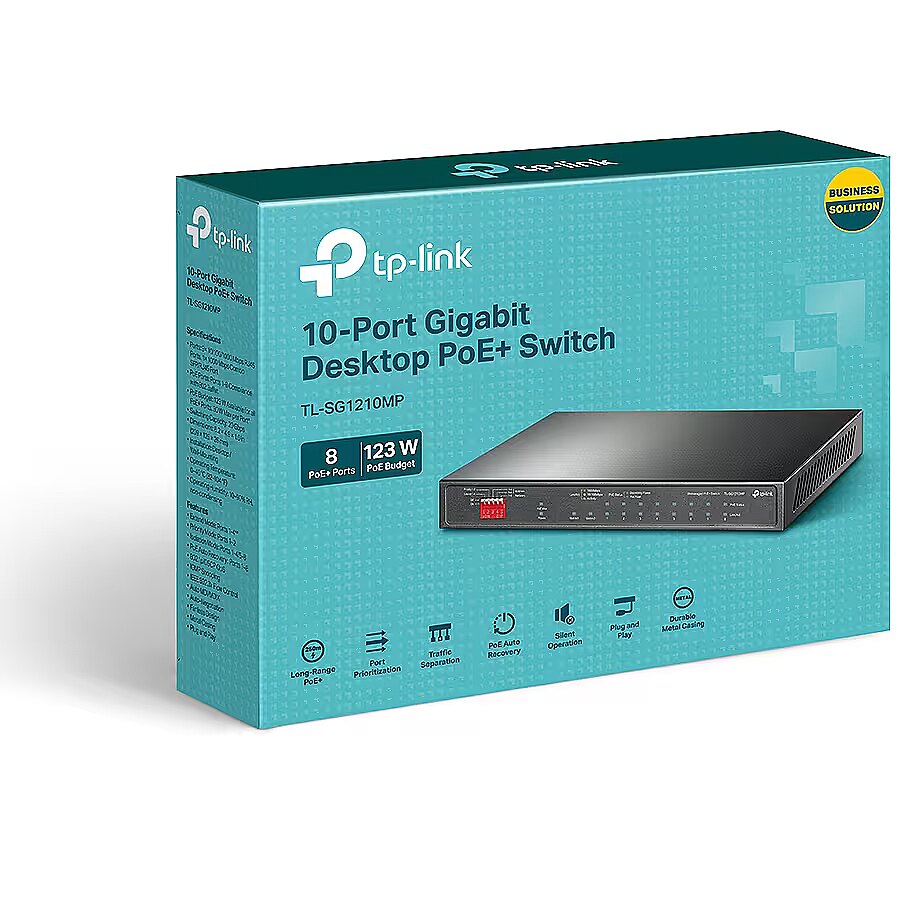

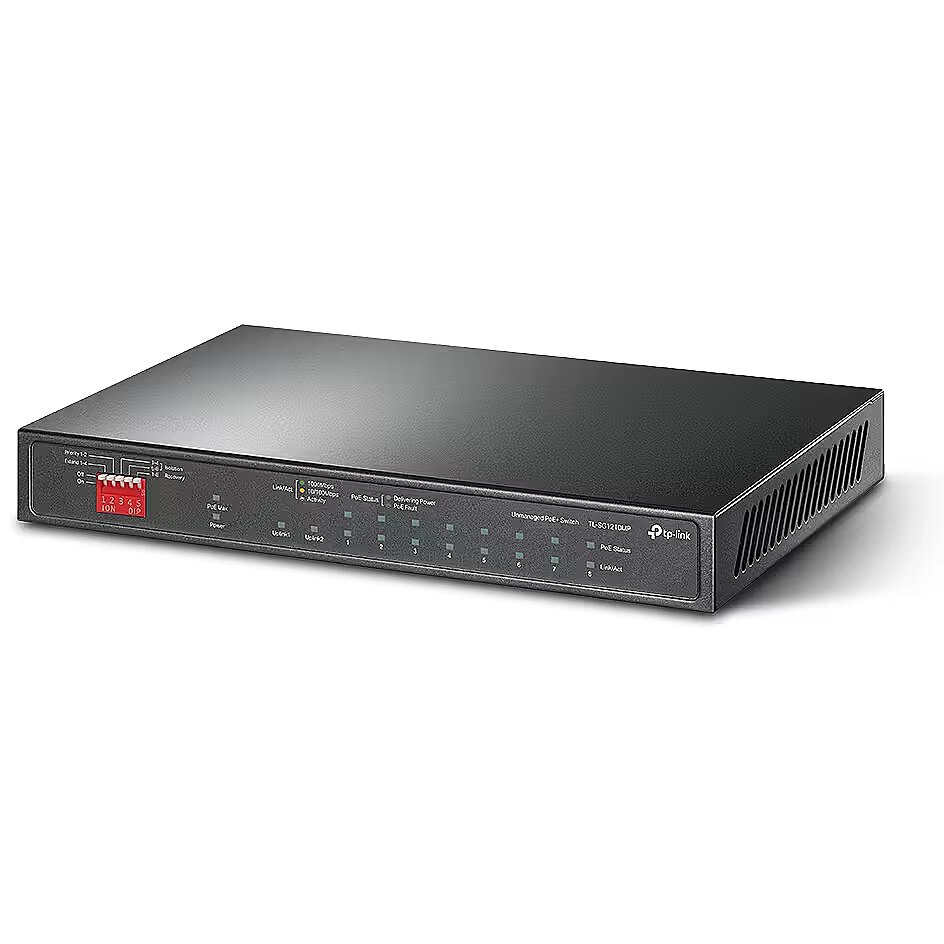

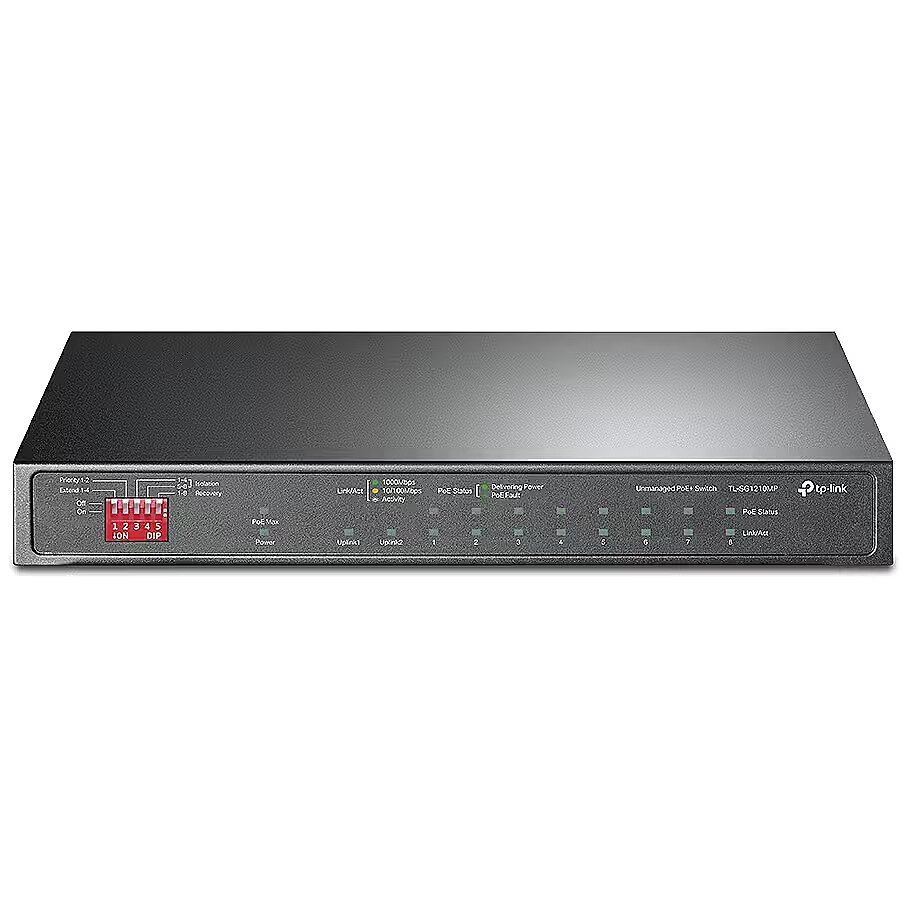

TP-LINK TL-SG1210MPE, 10-Port 8-Port PoE+

10G support Network - No
Accessories included - Switch TL-SG1210MP, Zasilacz, Instrukcja Instalacji
Application - Home and small office
ARTIKEL1 - 10-PORT POE GIGABIT SWITCH
ARTIKEL2 - DESKTOP WITH 8-PORT POE+
Auto-negotiation Network - Yes
Auto MDI/MDI-X Network - Yes
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 9
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
Brand - TP-Link
BrandPartCode - TL-SG1210MP
Cable types supported Network - Cat3, Cat4, Cat5, Cat5e
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - Certification - CE, FCC
Certification Certificates - CE, FCC
Chassis type - Desktop
Code - TL-SG1210MP
Combo SFP ports quantity Ports & interfaces - 1
Copper ethernet cabling technology Network - 10BASE-T, 100BASE-TX
Data transmission - MAC address table - 4000 entries
Data transmission - Packet buffer memory - 14.88 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 20 Gbit/s
Depth Weight & dimensions - 126 mm
Description - Switch SG1210MP 8GE PoE+ 1GE 1SFP Przełącznik typu desktop, 10 Gigabitowych Portów, w tym 8 Portów PoE+ 9 Gigabitowych portów RJ45 i 1 Gigabitowy port combo SFP/RJ45 8 portów PoE+, zasilanie i przesył danych za pomocą jednego przewodu Zgodność ze standardem IEEE 802.3af/at PoE+. Łączna moc zasilania do 123W. Do 30W zasilania na każdym porcie PoE. Do 250 m zasięgu transmisji danych i zasilania w trybie Extend. Tryb Priority zapewnia wysoki priorytet dla portów 12, aby utrzymać wysoką jakość działania systemów podatnych na zakłócenia, takich jak np. wideomonitoring. Tryb Isolation umożliwia oddzielenie jednym kliknięciem ruchu generowanego przez klienta dla zwiększenia jego ochrony i wydajności Automatyczne restartowanie urządzeń PoE, które nie odpowiadają lub z którymi połączenie zostało przerwane (funkcja PoE Auto Recovery) Podłączanie typu plug and play, bez potrzeby konfiguracji i skomplikowanej instalacji Bezwentylatorowa konstrukcja ogranicza zużycie energii i zapewnia cichą pracę urządzenia AUTO Negocjacja AUTO MDI/MDIX Okablowanie sieciowe 10BASE-T: Kabel UTP kat. 3, 4 lub 5 (do 100m) Kabel EIA/TIA-568 100 (do 100m) 100BASE-TX: Kabel UTP kat. 5, lub 5e (do 100m) Kabel EIA/TIA-568 100 (do 100m) Zabezpieczenia fizyczne Tak Porty PoE (RJ45) Zgodność ze standardami 802.3af/at Porty PoE: 18
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Design > Colour of product - Black
Design > Form factor - Desktop
Designation - CE+WEEE
dimensionalWeight - 1152
dimension depth - 70 mm
dimension height - 240 mm
Dimensions - 209 × 126 × 26 mm
dimension weight - 1591 g
dimension width - 320 mm
EAN - 6935364052683
ean - 6935364052683
EANCode - 1210002617024
EAN_code - 6935364052683
Fan - No
Fanless Performance - Yes
Flow control support Network - Yes
Forwarding mode - Store-and-forward
Forwarding rate - 14.88 Mbit/s
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0845973099534
GTIN - 845973099534
GTIN - 1210002617024
GTIN - 1210002617031
GTIN - 6935364052683
GTIN - 6935364052690
guarantee - 60
guarantee_type - normal
Harmonized System (HS) code Logistics data - 85176990
Heat dissipation Operational conditions - 482.17 BTU/h
Height Weight & dimensions - 26 mm
HERSTELLER - TP-LINK
HSTNUMMER - TL-SG1210MP
Input current Power - 2.43 A
Input voltage Power - 53.5 V
Jumbo frame size - 16 KB
L2 features -
L3 features -
LED indicators Design - Yes
Link - https://www.tp-link.com/uk/business-networking/unmanaged-switch/tl-sg1210mp/
Logistics data - Harmonized System (HS) code - 85176990
LongSummaryDescription - TP-Link TL-SG1210MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE)
MAC address auto-aging supported Network - Yes
MAC address auto-learning supported Network - Yes
MAC address table Data transmission - 4000 entries
MAC address table size - 40000
Management, monitoring, configuration - Maks. zużycie energii 7,93 W (220 V/50 Hz, bez podłączonych urządzeń PoE) 141,4 W (220 V/50 Hz, z podłączonymi urządzeniami PoE o mocy 123 W) Ilość generowanego ciepła 27.04 BTU/h (bez podłączonych urządzeń PoE) 482.17 BTU/h (z podłączonymi urządzeniami PoE o mocy 123 W)
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Manufacturer - TP-Link
Manufacturer_code - TL-SG1210MP
Model - TL-SG1210MP
Model name - TL-SG1210MP
MPN - TL-SG1210MP
name - TP-Link SG1210MP switch 8GE PoE+ 1GE 1SFP
Name - TP-Link Switch TL-SG1210MP 10-Port Gigabit PoE
Name - TP-Link TL-SG1210MP, Switch
Name - TP-LINK | 10-Port Gigabit Easy Smart Switch with 8-Port PoE+ | TL-SG1210MP | Unmanaged | Desktop | Power supply type External | 60 month(s)
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e
Network - Cable types supported - Cat4
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Flow control support - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3i
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Networking standards - IEEE 802.3z
Network architecture - GigabitEthernet
Networking standards Network - IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of 10/100/1000 Mbps ports - 9
Number of COMBO ports - 1
Number of PoE ports (PoE & PoE+) - 8
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Heat dissipation - 482.17 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Środowisko pracy Dopuszczalna temperatura pracy: 0-40 (32~104); Dopuszczalna temperatura przechowywania: -40-70 (-40~158) Dopuszczalna wilgotność powietrza: 10%-90%, niekondensująca Certyfikaty FCC, CE, RoHS
Other features > Power supply type - External
Other functions -
Package depth Packaging data - 315 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 315 mm
Package features > Gross depth master carton - 505 mm
Package features > Gross height (mm) - 240 mm
Package features > Gross height master carton - 370 mm
Package features > Gross width (mm) - 70 mm
Package features > Gross width master carton - 330 mm
Package features > Net weight master carton - 15.92 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 280 pc(s)
Package features > Paper/Pasteboard - 435 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare other - 2.00 g
Package features > Tare weight (kg) - 0.455 kg
Package features > Tare weight master carton - 1.048 kg
Package features > Volume (m3) - 0.005292 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 70 mm
Package weight Packaging data - 1.41 kg
Package width Packaging data - 240 mm
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 315 mm
Packaging data - Package height - 70 mm
Packaging data - Package weight - 1.41 kg
Packaging data - Package width - 240 mm
Packet buffer memory Data transmission - 14.88 MB
Performance - Fanless - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 9
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Combo SFP ports quantity - 1
Ports & interfaces > Ethernet LAN (RJ-45) ports - 9
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Power - Input current - 2.43 A
Power - Input voltage - 53.5 V
Power - Power consumption (max) - 141.4 W
Power - Power source - DC
Power consumption - 123 W
Power consumption (max) Power - 141.4 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 8
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 123 W
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) power per port Power over Ethernet (PoE) - 30 W
Power over Ethernet plus (PoE+) ports quantity Power over Ethernet (PoE) - 8
Power source Power - DC
Power supply - Zewnętrzny zasilacz: 53.5V DC / 2.43A
Power supply - External
producer - TP-LINK
producerCode - TL-SG1210MP
Producer product family - 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
Producer product name - TL-SG1210MP
Product colour Design - Black
ProductName - TL-SG1210MP
productName - TP-Link TL-SG1210MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
productSize - Normal
QoS -
Quick start guide Packaging content - Yes
Rack mounting Design - No
Safety warning - Warnings - Do not open the case or try to repair it yourself.
Safety warning - Warnings - Ensure the unit is adequately ventilated during operation.
Safety warning - Warnings - The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
Security - Metoda transmisji Store-And-Forward Funkcje zaawansowane Zgodność z urządzeniami zasilanymi PoE (PD) działającymi w standardzie IEEE 802.3af/at Tryb Extend na portach 1-4 (do 250 m zasięgu transmisji danych i zasilania PoE) Tryb Priority na portach 1-2 Tryb Isolation na portach 1-4 lub 5-8 PoE Auto Recovery na portach 1-8 Automatyczne zapamiętywanie i wygaszanie adresów MAC Obsługa kontroli przepustowości IEEE802.3x
ShortSummaryDescription - TP-Link TL-SG1210MP, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
sizeX - 320
sizeY - 240
sizeZ - 75
Stackability - No
Stck_Kart - 10
Stck_Pal - 0
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Store-and-forward Data transmission - Yes
Storno - Y
Summary - TP-Link TL-SG1210MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE)
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - Unmanaged
Switching capacity Data transmission - 20 Gbit/s
Switch type Management features - Unmanaged
Technical details > Gross weight - 1.592 kg
Technical details > Net weight - 1.137 kg
Technical details > Producer - TP-LINK
Technical details > Warranty - 60 month(s)
Throughput - 20 Gb/s
Title - TP-Link TL-SG1210MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Total Power over Ethernet (PoE) budget Power over Ethernet (PoE) - 123 W
Unit Box Height - 0.075
Unit Box Length - 0.32
Unit Box Width - 0.245
Unit Calculated Volume - 0.00588 cubm
Unit Calculated Weight - 1.59 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.tp-link.com/uk-ua/business-networking/soho-switch-unmanaged/tl-sg1210mp/
vendpn - TL-SG1210MP
VLAN -
Warranty - 60
Warranty - 60 months
warrantyLength - 60
warrantyType - G
Weight - 1,41
Weight - 1.6
weight - 1580
Weight & dimensions - Depth - 126 mm
Weight & dimensions - Height - 26 mm
Weight & dimensions - Width - 209 mm
Width Weight & dimensions - 209 mm
