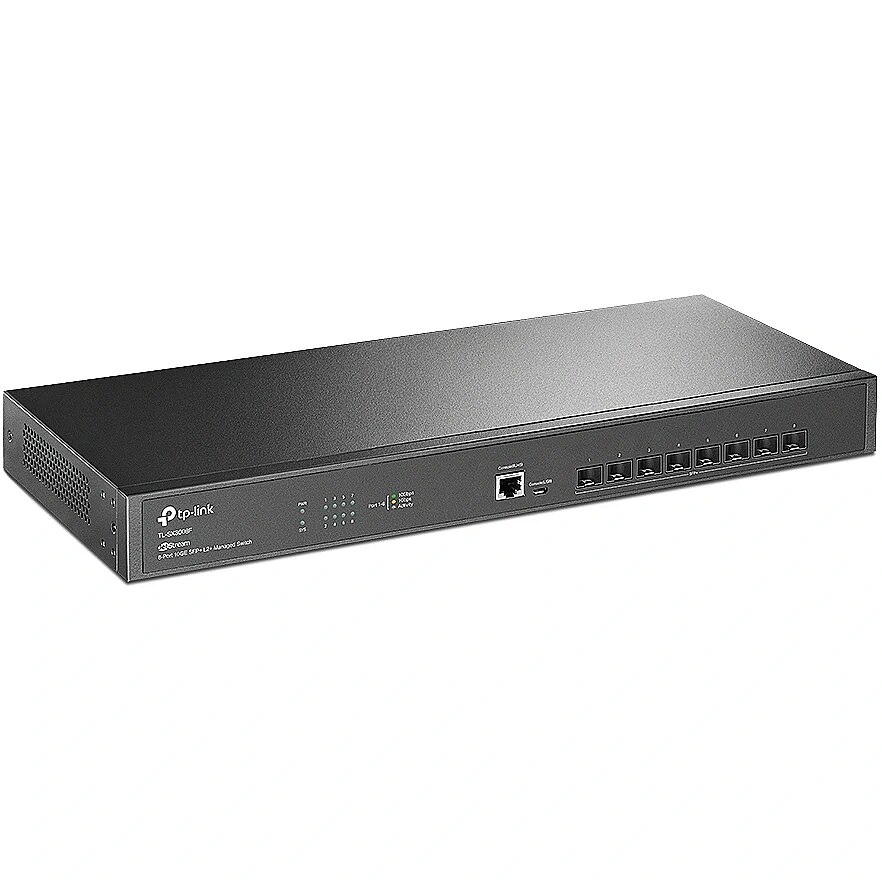

TP-LINK SX3008F, 8xSFP+

10G support Network - Yes
Access Control List (ACL) Security - Yes
Accessories included - Przełącznik TL-SF3008F Zasilacz Instrukcja instalacji Zestaw montażowy Gumowe nóżki
AC input frequency Power - 50/60 Hz
AC input voltage Power - 220 V
Application - Home and small office
ARP inspection Management features - Yes
ARTIKEL1 - 8-PORT 10GE SFP+ SWITCH MANAGED
ARTIKEL2 -
Authentication Security - Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type Security - AAA, TACACS+
Basic switching RJ-45 Ethernet ports type Ports & interfaces - No
BPDU filtering/protection Security - Yes
Brand - TP-Link
BrandPartCode - SX3008F
Breite - 0
Broadcast storm control Network - Yes
Cables included Packaging content - AC
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Certificates - Certification - CE, FCC, RoHS
Certification Certificates - CE, FCC, RoHS
Chassis type - Rack
Cloud-managed Management features - Yes
Configuring Location Settings (CLI) Management features - Yes
Console port - Yes
Console port Ports & interfaces - RJ-45/micro-USB
Dane techniczne: Grupa produktowa - Przełączniki TP-Link
Dane techniczne: Gwarancja - 5 lat w serwisie sprzedawcy
Dane techniczne: Głębokość - 180 mm
Dane techniczne: Możliwość instalacji w szafach 19' - tak
Dane techniczne: Obsługa VLANów - tak
Dane techniczne: Port konsolowy - 2 szt. (RJ45 | microUSB)
Dane techniczne: Producent - TP-Link
Dane techniczne: Przeznaczenie - do szaf RACK 19"
Dane techniczne: Prędkość magistrali wew. - 160 Gb/s
Dane techniczne: Rozmiar tablicy adresów MAC - 32000
Dane techniczne: Sloty SFP+ 10G - 8 szt.
Dane techniczne: Szerokość - 440 mm
Dane techniczne: Szybkość przekierowań pakietów - 119.04 mpps
Dane techniczne: Typ - zarządzalny
Dane techniczne: Warstwa przełączania - 3
Dane techniczne: Wysokość - 44 mm
Dane techniczne: Zarządzalność - tak
Data transmission - Forwarding rate - 119.04 Mpps
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 32000 entries
Data transmission - Number of queues - 8
Data transmission - Packet buffer memory - 16 MB
Data transmission - Static route - Yes
Data transmission - Switching capacity - 160 Gbit/s
Depth Weight & dimensions - 180 mm
Description - TL-SX3008F
Przełącznik zarządzalny JetStream L2+, 8 slotów SFP+ 10 GE Szybkie porty 10G: 8 slotów SFP+ o prędkości 10 Gb/s zapewnia dużą przepustowość łącza oraz wydajność przełączania na poziomie 160 Gb/s w trybie non-blocking. Działanie zintegrowane z platformą Omada SDN: Bezobsługowa konfiguracja ZTP*, centralne zarządzanie w chmurze i inteligentne monitorowanie. Centralne zarządzanie: Dostęp z poziomu chmury i aplikacja Omada to wygoda zarządzania. Routing statyczny: Sterowanie ruchem wewnętrznym daje możliwość efektywniejszego wykorzystania zasobów sieciowych. Niezawodne zabezpieczenia: Wiązanie adresów IP, MAC i portów, ACL, Port Security, ochrona przed atakami DoS, Storm Control, DHCP Snooping, 802.1X, uwierzytelnianie poprzez serwer Radius i wiele więcej. Optymalizacja transmisji głosu i wideo: QoS L2/L3/L4 i IGMP Snooping. Samodzielne zarządzanie: witryna, CLI (port konsolowy, Telnet, SSH), SNMP, RMON i Dual Image dają duże możliwości zarządzania.
Description - TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.8× 10 Gbps SFP+ slots enable high-bandwidth connectivity160 Gbps Switching CapacityCentralized cloud management via the web or the Omada app†Standalone management via web, CLI, SNMP, and RMONStatic Routing helps route internal traffic for higher efficiencyVLAN, ACL, QoS, IGMP Snooping, OAM, and DDMERPS supports rapid protection and recovery in a ring topologyFanless design for silent operationDurable metal casing and rack-mountable design
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - Yes
Designation - CE+WEEE
DHCP features Security - DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
dimension depth - 70 mm
dimension height - 530 mm

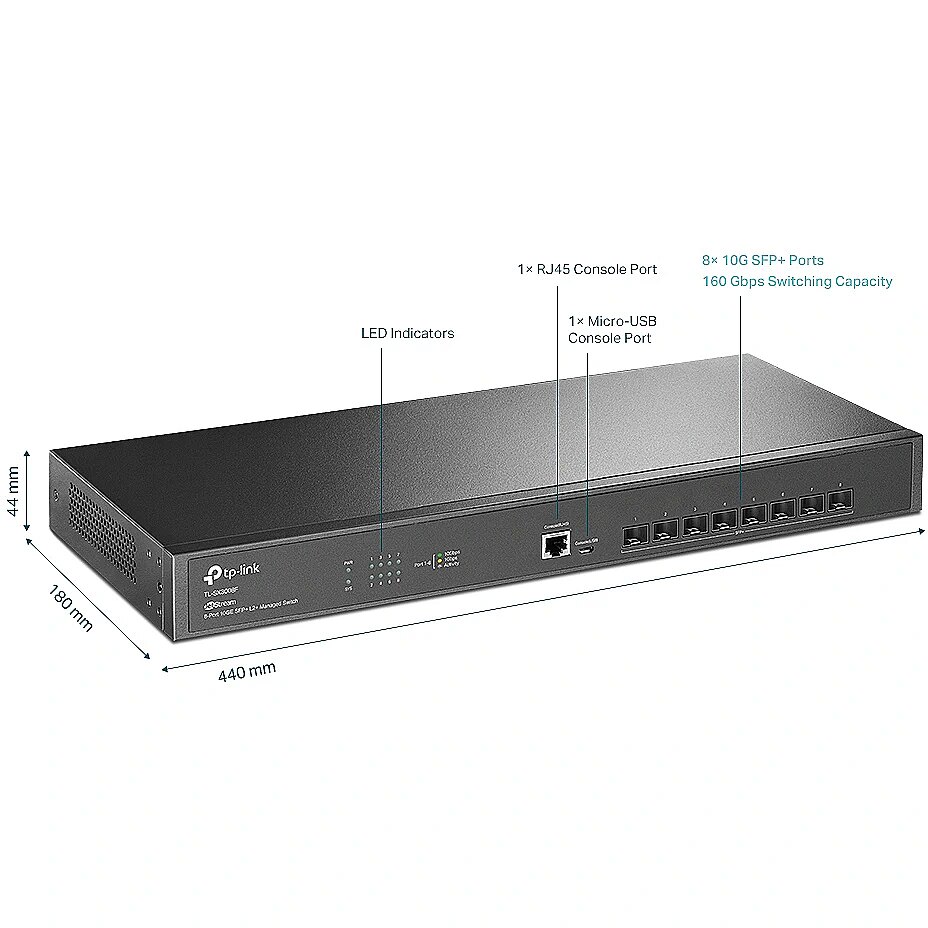

Dimensions - Szerokość: 440 mm Głębokość: 180 mm Wysokość: 44 mm
dimension weight - 2400 g
dimension width - 250 mm
ean - 6935364006457
EAN - 6935364006457
EANCode - 6935364006457
Eans - 6935364006457
Fan - No
Flow control support Network - Yes
Forwarding mode - Store-and-forward
Forwarding rate - 119.04 Mpps
Forwarding rate Data transmission - 119.04 Mpps
Gross Weight Kg - 2,5
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 5715063363423
GTIN - 6935364006457
guarantee - 60
guarantee_type - normal
Head-of-line (HOL) blocking Network - Yes
Heat dissipation Operational conditions - 52.75 BTU/h
Height Weight & dimensions - 44 mm
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - SX3008F
IGMP snooping Security - Yes
IP-MAC-Port binding Security - Yes
IP routing Network - Yes
IPv4 & IPv6 features Protocols - IPv6 Telnet, IPv6 ping, IPv6 tracert
Jumbo frames Data transmission - 9000
Jumbo frame size - 9 KB
Jumbo frames support Data transmission - Yes
L2 features - Funkcje L2 i L2+
Agregacja łączy Statyczna agregacja łączy LACP 802.3ad Do 8 grup agregacji i do 8 portów na grupę Protokół drzewa rozpinającego (STP) STP 802.1D RSTP 802.1w MSTP 802.1s Zabezpieczenia STP: ochrona TC, filtrowanie poprzez pakiety BPDU, ochrona Root Wykrywanie pętli zwrotnych Oparte na portach Oparte na VLAN Kontrola przepływu Kontrola przepływu 802.3x Zapobieganie blokowaniu HOL Mirroring Port Mirroring Mirroring procesora Przesył One-to-One Przesył Many-to-One Port wejścia/wyjścia/obydwa porty L2 Multicast IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave IGMP Snooping Querier Uwierzytelnianie IGMP
Uwierzytelnianie IGMP
MVR
MLD Snooping
MLD v1/v2 Snooping Fast Leave MLD Snooping Querier Konfiguracja grupy statycznej Ograniczone przekazywanie IP Multicast Filtrowanie transmisji Multicast: 256 profili i 16 wpisów na profil
L3 features - 16 interfejsów IPv4/IPv6
Routing statyczny 48 tras statycznych Wpisy statyczne ARP 128 wpisów statycznych Proxy ARP
Gratuitous ARP
Serwer DHCP
DHCP Relay
DHCP Interface Relay
DHCP VLAN Relay
DHCP L2 Relay
Laenge - 0
LED indicators Design - Yes
Link aggregation Network - Yes
LongDesc - TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
LongProductName - 8× 10GE SFP+ Slots, 1× RJ45 Console, 1× Micro-USB Console, 160 Gbps, 32 K MAC, 9 KB Jumbo, 440×180×44 mm
LongSummaryDescription - TP-Link Omada 8-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45/micro-USB. MAC address table: 32000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Power connector: DC-in jack. Rack mounting
Loop protection Security - Yes
MAC address filtering Security - Yes
MAC address table Data transmission - 32000 entries
MAC address table size - 32
Management, monitoring, configuration - Interfejs graficzny GUI Interfejs linii poleceń CLI przez port konsolowy, Telnet SNMP v1/v2c/v3 Trap/Inform RMON (grupy 1,2,3,9) Szablon SDM Klient DHCP/BOOTP LLDP/LLDP-MED 802.1ab Automatyczna instalacja DHCP Dual Image, Dual Configuration Monitorowanie zużycia procesora Diagnostyka kabli EEE Odzyskiwanie haseł SNTP Logi systemu
Management features - ARP inspection - Yes
Management features - Cloud-managed - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - MIB support - RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2/L3
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Traffic classification - Yes
Management features - Web-based management - Yes
Management protocols Protocols - SNMPv1/v2c/v3, SNTP
Manual Packaging content - Yes
Manufacturer - TP-Link
Manufacturer Code - SX3008F
Manufacturer Name - TP-LINK
MIB support Management features - RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Model name - TL-SX3008F
MPN - SX3008F
Multicast features - Multicast Listener Discovery (MLD) snooping - Y
Multicast features - Multicast support - Yes
Multicast Listener Discovery (MLD) snooping Multicast features - Y
Multicast support Multicast features - Yes
Name - 8P TP-LINK Omada SX3008F M RM
name - TP-Link SX3008F switch 8xSFP+
Name - TP-Link TL-SX3008F
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Flow control support - Yes
Network - Head-of-line (HOL) blocking - Yes
Network - IP routing - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Network - Number of VLANs - 4000
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Private VLAN, Protocol-based VLAN, Voice VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Networking standards Network - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Number of 10Gb ports - 8
Number of queues Data transmission - 8
Number of SFP+ ports - 8
Number of VLAN groups - 4000
Number of VLANs Network - 4000
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 45 °C
Operational conditions - Heat dissipation - 52.75 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other functions - Obsługa kontrolerów sprzętowych Omada (OC200/OC300), kontrolera programowego, kontrolera opartego na chmurze Automatyczne wykrywanie urządzeń Konfiguracje grupowe Grupowe aktualizacje oprogramowania Inteligentne monitorowanie stanu sieci Ostrzeżenia o nietypowych zdarzeniach Ujednolicony proces konfiguracji Harmonogram restartu Bezobsługowa konfiguracja ZTP (Korzystanie z funkcji bezobsługowej konfiguracji ZTP wymaga użycia kontrolera Omada opartego na chmurze.)
Package type Packaging data - Box
Packaging content - Cables included - AC
Packaging content - Manual - Yes
Packaging content - Quick start guide - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Package type - Box
Packet buffer memory Data transmission - 16 MB
Port mirroring Network - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - No
Ports & interfaces - Console port - RJ-45/micro-USB
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces - SFP+ module slots quantity - 8
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 220 V
Power - Power consumption (max) - 15.46 W
Power - Power source - AC
Power - Power supply included - Yes
Power connector Ports & interfaces - DC-in jack
Power consumption - 15.46 W
Power consumption (max) Power - 15.46 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power over Ethernet (PoE) Power over Ethernet (PoE) - No
Power source Power - AC
Power supply - 100-240 V AC~50/60 Hz
Power supply - External
Power supply included Power - Yes
Producent: Nazwa producenta / importera - TP-Link
TP-Link Polska sp. z o.o.
Ożarowska 40/42
05-850 Duchnice

producer - TP-LINK
Producer - TP-Link
ProducerCode - TL-SX3008F
Product colour Design - Black
ProductName - Omada 8-Port 10GE SFP+ L2+ Managed Switch
Protocols - IPv4 & IPv6 features - IPv6 Telnet, IPv6 ping, IPv6 tracert
Protocols - Management protocols - SNMPv1/v2c/v3, SNTP
QoS - 8 kolejek priorytetowania
Obsługa priorytetowania 802.1p CoS/DSCP
Tryb harmonogramu priorytetowania: SP (Strict Priority) WRR (Weighted Round Robin) SP+WRR Kontrola przepustowości Ograniczanie prędkości transferu w oparciu o port/przepływ danych Płynniejsze działanie
Działania dla przepływów Mirror (do obsługiwanego interfejsu) Redirect (do obsługiwanego interfejsu) Limit prędkości QoS Remark
Quality of Service (QoS) support Management features - Yes
Queue scheduling algorithms Security - SP, WRR+SP, Weighted Round Robin (WRR)
Quick start guide Packaging content - Yes
Rack mounting Design - Yes
Rack mount kit Packaging content - Yes
Rate limiting Network - Yes
Security - Wiązanie adresów IP, MAC i portów 512 wpisów DHCP Snooping Inspekcja ARP Ochrona źródłowego adresu IPv4: 100 wpisów Wiązanie adresów IPv6, MAC i portów 512 wpisów DHCPv6 Snooping Wykrywanie ND Ochrona źródłowego adresu IPv6: 100 wpisów Ochrona przed atakami DoS
Ochrona portów poprzez ich statyczną/dynamiczną konfigurację Do 64 adresów MAC na port Storm Control Broadcast/Multicast/Unicast Tryb kontroli (kb/s/wskaźnik) Uwierzytelnianie 802.1X Uwierzytelnianie w oparciu o port Uwierzytelnianie w oparciu o adres MAC Przydzielanie VLAN MAB Sieć VLAN dla gości Uwierzytelnianie i autoryzowanie poprzez Radius AAA (w tym TACACS+)
Izolacja portów
Bezpieczne zarządzanie webowe poprzez HTTPS z szyfrowaniem SSLv3/TLS 1.2
Bezpieczne zarządzanie CLI z szyfrowaniem SSHv1/SSHv2
Kontrola dostępu w oparciu o IP/port/MAC
Security - Access Control List (ACL) - Yes
Security - Authentication - Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Security - Authentication type - AAA, TACACS+
Security - BPDU filtering/protection - Yes
Security - DHCP features - DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Security - IGMP snooping - Yes
Security - IP-MAC-Port binding - Yes
Security - Loop protection - Yes
Security - MAC address filtering - Yes
Security - Queue scheduling algorithms - SP, WRR+SP, Weighted Round Robin (WRR)
Security - Security algorithms - HTTPS, SSH, SSH-2, SSL/TLS
Security - SSH/SSL support - Yes
Security - Static port security - Yes
Security algorithms Security - HTTPS, SSH, SSH-2, SSL/TLS
Series - Omada
SFP+ module slots quantity Ports & interfaces - 8
ShortDescription -
Short description - TP-LINK Switch SX3008F 8xSFP+ Managed
ShortSummaryDescription - TP-Link Omada 8-Port 10GE SFP+ L2+ Managed Switch, Managed, L2/L3, Rack mounting
Spanning tree protocol Network - Yes
SSH/SSL support Security - Yes
Stackability - No
Static port security Security - Yes
Static route Data transmission - Yes
Stck_Kart - 1
Stck_Pal - 12
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Storno - Y
Summary - TP-Link Omada 8-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45/micro-USB. MAC address table: 32000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Power connector: DC-in jack. Rack mounting
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - Managed
Switching capacity Data transmission - 160 Gbit/s
Switch layer - L2+
Switch layer Management features - L2/L3
Switch type Management features - Managed
System event log Management features - Yes
Throughput - 160 Gb/s
Title - TP-Link Omada 8-Port 10GE SFP+ L2+ Managed Switch
Traffic classification Management features - Yes
Unit Box Height - 0.25
Unit Box Length - 0.53
Unit Box Width - 0.08
Unit Calculated Volume - 0.0106 cubm
Unit Calculated Weight - 2.43 kg
Units per Shipping Box - 1
URL - https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sx3008f/
Vendor Homepage - https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sx3008f/
vendpn - SX3008F
Virtual LAN features Network - Private VLAN, Protocol-based VLAN, Voice VLAN
VLAN - Grupy VLAN Maks. 4K grup VLAN Tagowanie 802.1Q VLAN
Adres MAC VLAN: 7 wpisów
Protokół VLAN
Prywatna sieć VLAN
GVRP
VLAN VPN (QinQ) QinQ oparty na portach Selective QinQ Głosowa sieć VLAN
VLAN support Network - Yes
Warranty - 60 months
WarrantyInfo -
Web-based management Management features - Yes
Weight - 2.568
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
Width Weight & dimensions - 440 mm
