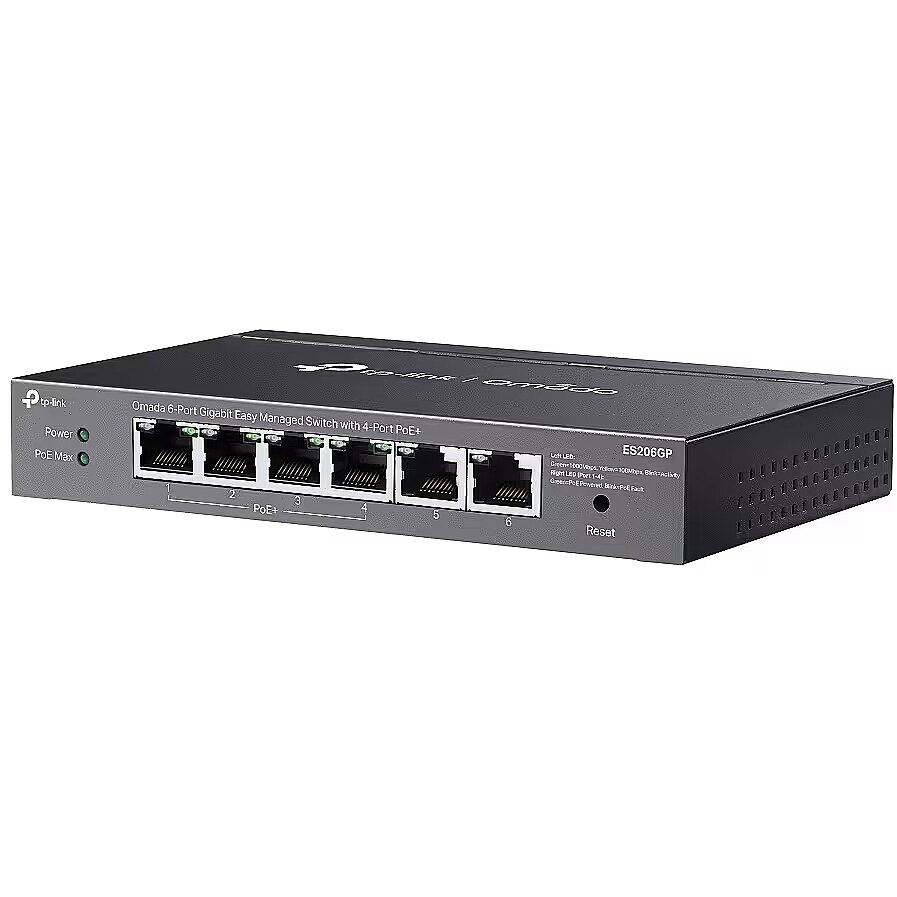

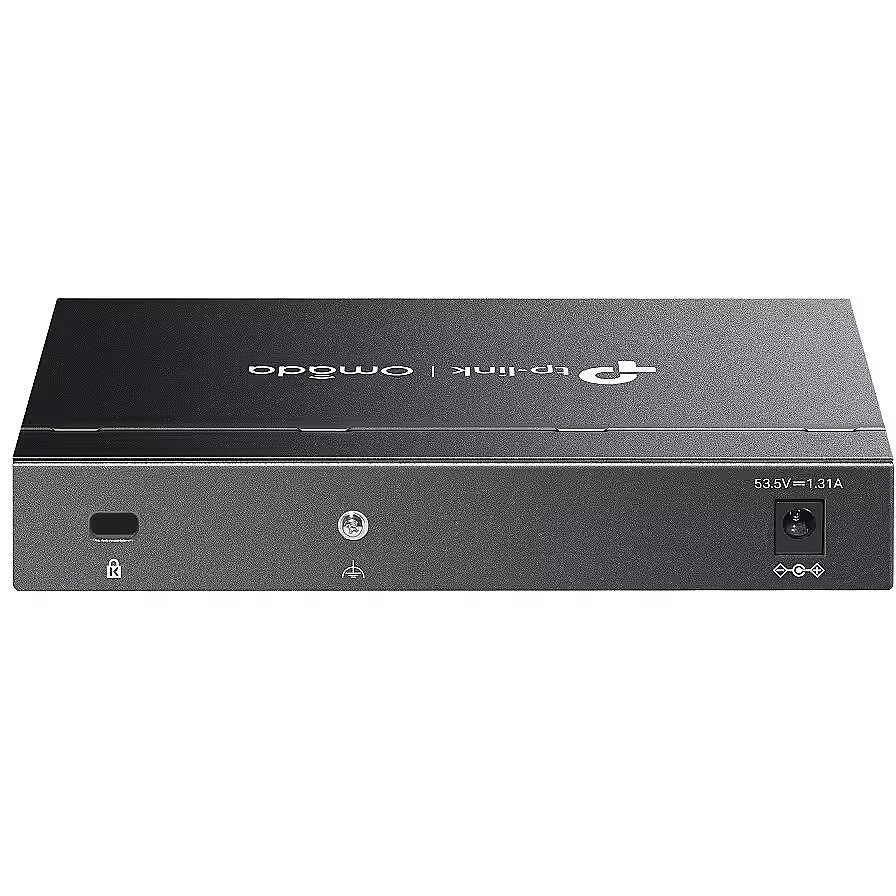

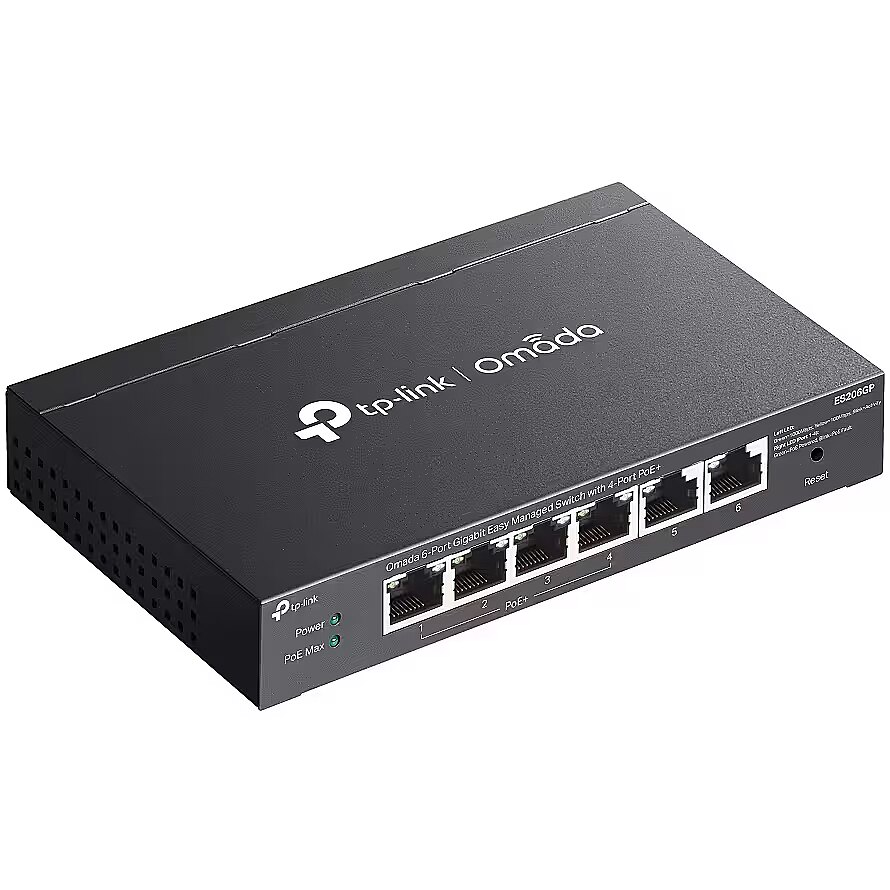

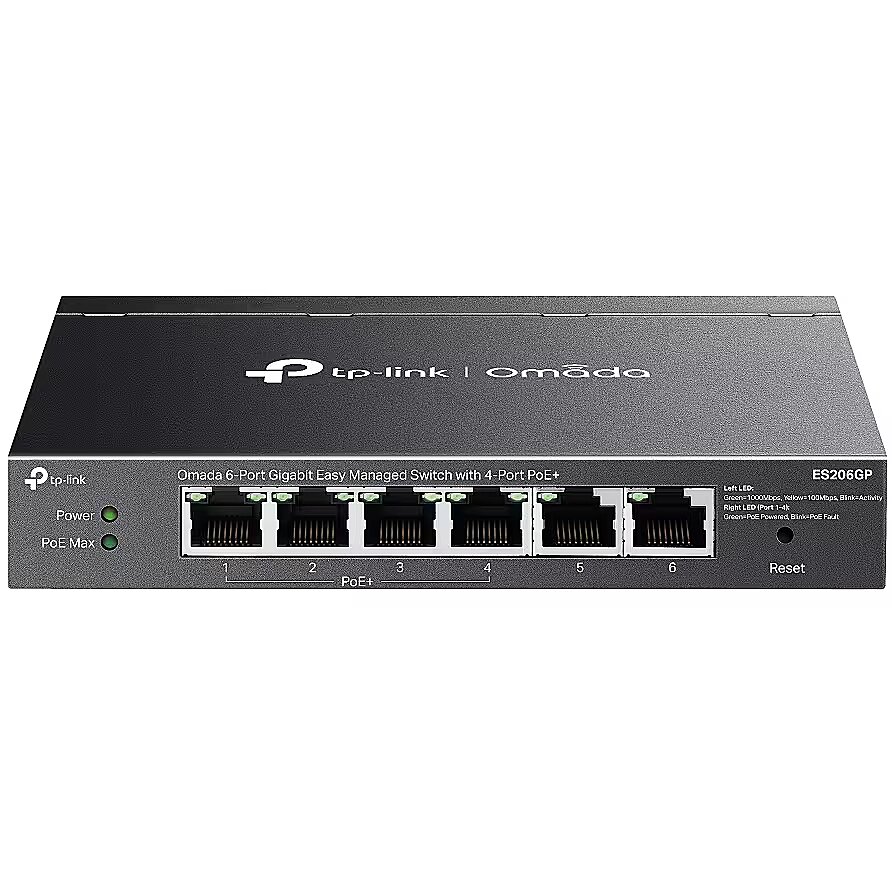

TP-LINK ES206GP, 6x1Gb PoE

Brand - TP-Link
BrandPartCode - ES206GP
Category - Network Switches
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - RoHS
Data transmission - Forwarding rate - 7.4 Mpps
Data transmission - Jumbo frames - 15
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 4 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 12 Gbit/s
Design - LED indicators - Yes
Design - Product colour - Black
Design - Reset button - Yes

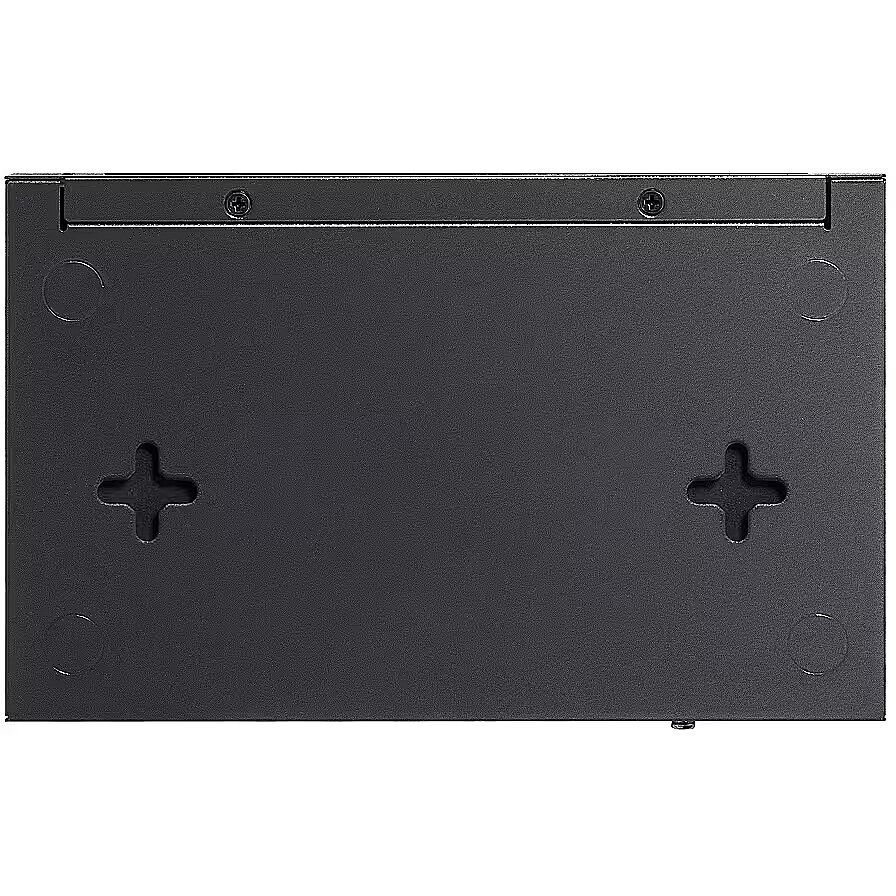

Design - Wall mountable - Yes
dimensionalWeight - 676
GTIN - 1210002600644
GTIN - 1210002600651
LongDesc - Omada Cloud Essentials — A Free and Easy Cloud-Based Network ManagementOmada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
LongProductName - ES206GP Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+
LongSummaryDescription - TP-Link Omada ES206GP. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable
Management features - Cloud-managed - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch type - Managed
Management features - Unified static configuration - Yes
Management features - Web-based management - Yes
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Fast leave - Yes
Network - Flow control support - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1ab
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1Q
Network - Networking standards - IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3x
Network - Port mirroring - Yes
Network - Virtual LAN features - MTU VLAN
Network - Virtual LAN features - MTU VLAN, Port-based VLAN, Tagged VLAN
Network - Virtual LAN features - Port-based VLAN
Network - Virtual LAN features - Tagged VLAN
Network - VLAN support - Yes
Network - Zero Touch Provisioning (ZTP) - Yes
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -5 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Optical fiber - Transmission distance (max) - 0.25 km
Packaging content - User guide - Yes
Packaging data - AC adapter included - Yes
Packaging data - Package type - Box
Performance - Fanless - Yes
Performance - Firmware upgradeable - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 6
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 6
Power - DC input voltage - 53.5 V
Power - Input current - 1.31 A
Power - Power source - DC
Power - Power supply included - Yes
Power - Surge protection - Yes
Power - Surge protection voltage - 6 kV
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) type supported - PoE+
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 4
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 65 W
producerCode - ES206GP
ProductName - ES206GP
productName - TP-Link Omada ES206GP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
productSize - Normal
Security - DHCP features - DHCP client
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - Queue scheduling algorithms - Weighted Round Robin (WRR)
ShortSummaryDescription - TP-Link Omada ES206GP, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
sizeX - 199
sizeY - 126
sizeZ - 135
Title - TP-Link Omada ES206GP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
URL - https://www.omadanetworks.com/ae/business-networking/omada-switch-easy-managed/es206gp/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 992
Weight & dimensions - Depth - 101 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Width - 158 mm
