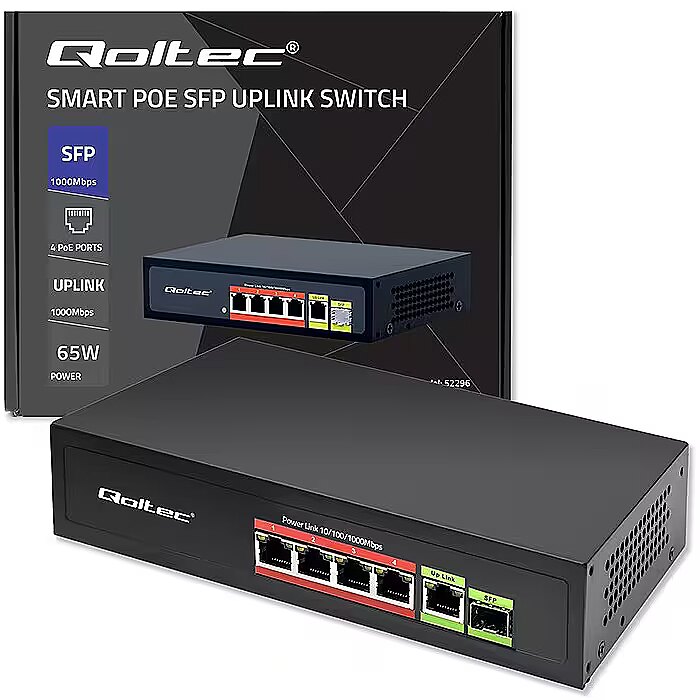

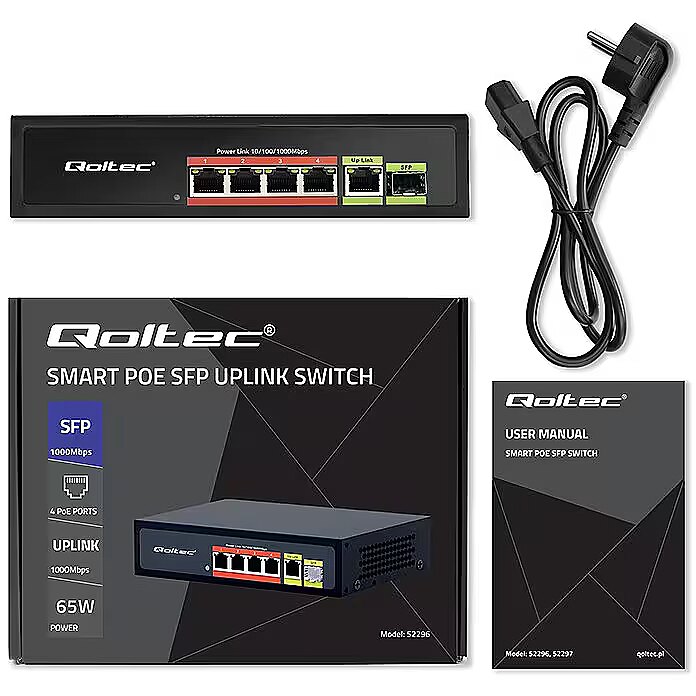

Accessories included - Network switch Cable User manual Warranty card
Application - Home and small office
Certificates -
Console port - No
Description - Discover the full potential of your network

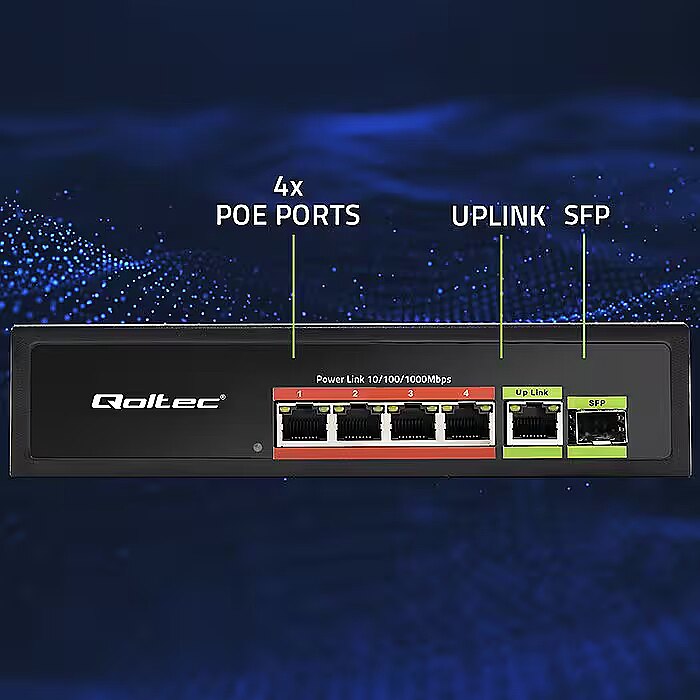

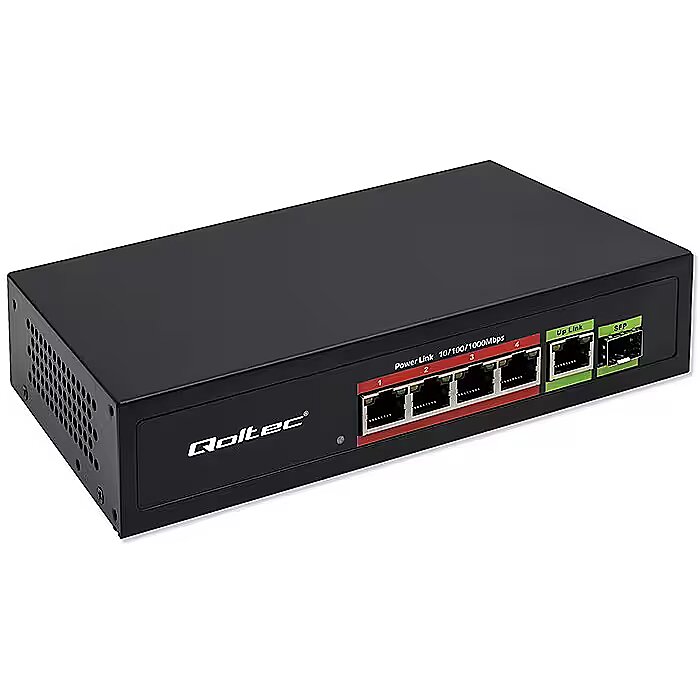

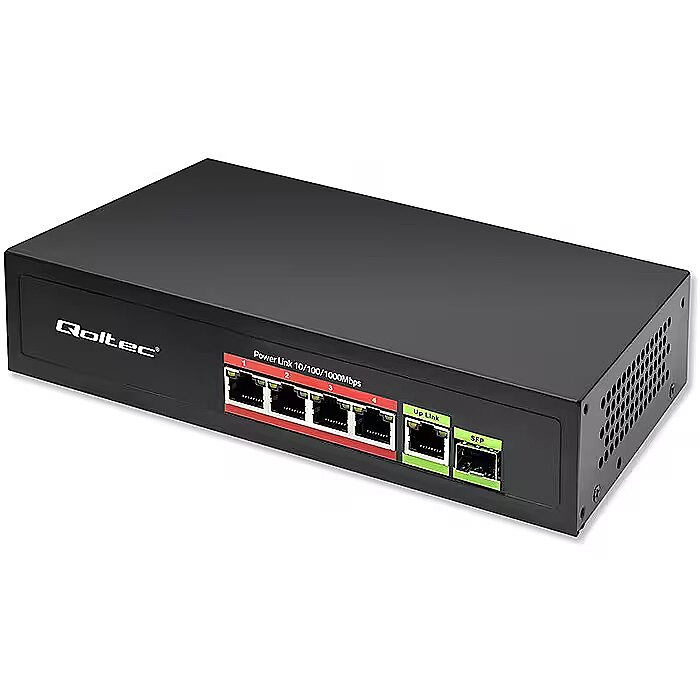

Experience a reliable and efficient plug-and-play network device. With 4 10/100/1000 Mbps ports with PoE function, as well as additional Uplink (RJ45 1000 Mbps) and SFP (fiber 1000 Mbps) ports, the device allows you to create a flexible and scalable LAN - without unnecessary power cables, external power supplies or additional switches.
Reliable communication - Widely used in any space
The switch is designed for users who need a reliable network connection in various environments:
in home multimedia networks (movie streaming, online gaming, smart home operation),
In IP surveillance (support for PoE-powered cameras),

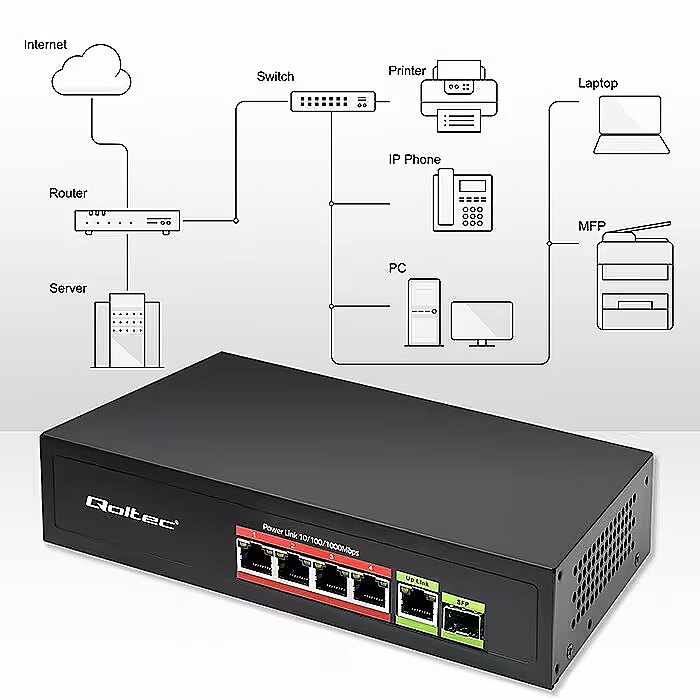

in small and medium-sized companies (Wi-Fi access points, VoIP, NAS servers),
in fiber optic installations (thanks to the SFP port - e.g., interconnection between buildings).
Power up and transfer data at speeds of up to 1 Gb/s
Discover new possibilities with a Qoltec device that offers:

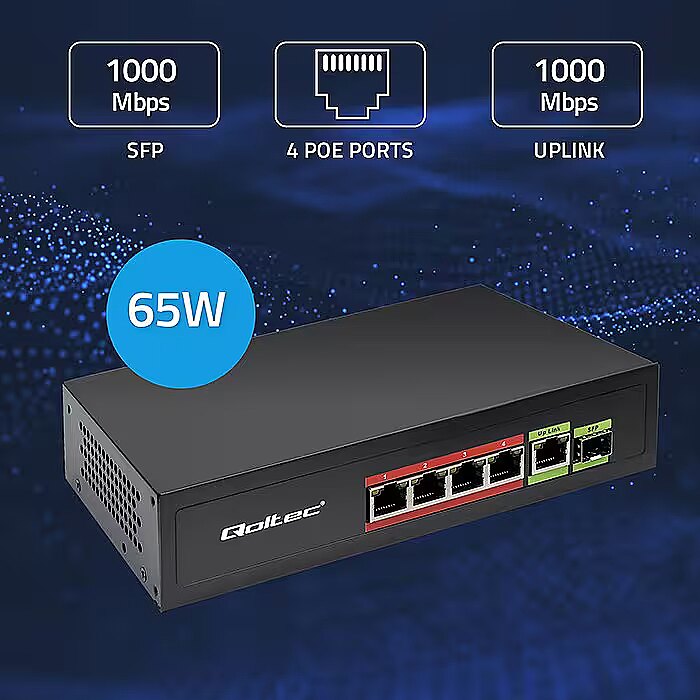

Compliant with IEEE 802.3af - offering up to 15.4W per port and up to 65W total output power for the entire switch,
Automatic detection of PoE devices,
SFP port for fiber optic connections,
Data transmission speed up to 1Gbps,
Robust metal housing protects the electronics inside and allows for operation in more demanding conditions,
Quiet operation thanks to passive cooling,
Plug & Play - no configuration.
Quiet operation, sturdy metal construction and instant installation

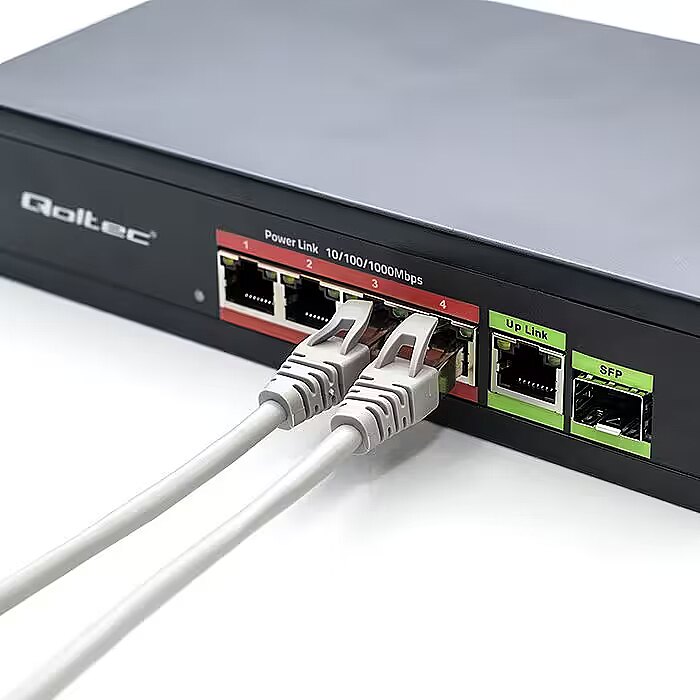

Our device Offers instant and hassle-free installation, thanks to Plug &Play technology, which requires no additional configuration or technical expertise. You only need to follow a few simple steps. First, connect the devices to the appropriate RJ45 ports using the appropriate network cables and then connect one of the ports to your router or access modem. Make sure the LEDs on the switch indicate activity on the ports. The rugged metal housing protects the electronics, provides durability, resistance to electromagnetic interference and efficient heat dissipation, resulting in long and stable operation.
Designation - CE+WEEE
dimension depth - 70 mm
dimension height - 235 mm

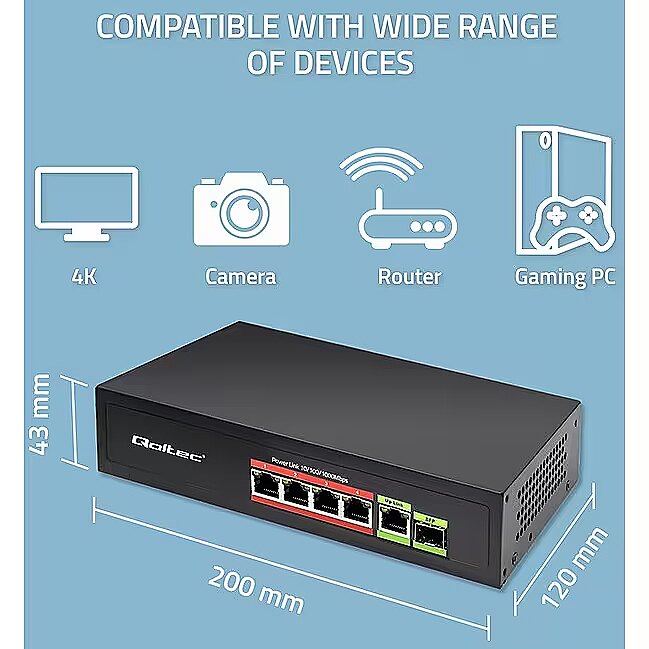

Dimensions - (G/D x Sz x W): 120 x 200 x 42 mm
dimension weight - 780 g
dimension width - 185 mm
ean - 5901878522968
Environment requirements - Temperatura pracy -10°C ~ 55
Fan - No
Forwarding mode - Store-and-forward
guarantee - 24
guarantee_type - external
L2 features -
L3 features -
Management, monitoring, configuration -
name - Ethernet PoE SWITCH 4x RJ45 PoE 1x RJ45Upli
Network architecture - FastEthernet
Number of 10/100/1000 Mbps ports - 4
Number of PoE ports (PoE & PoE+) - 4
Number of SFP ports - 1
Other features -
Other functions -
Power supply -

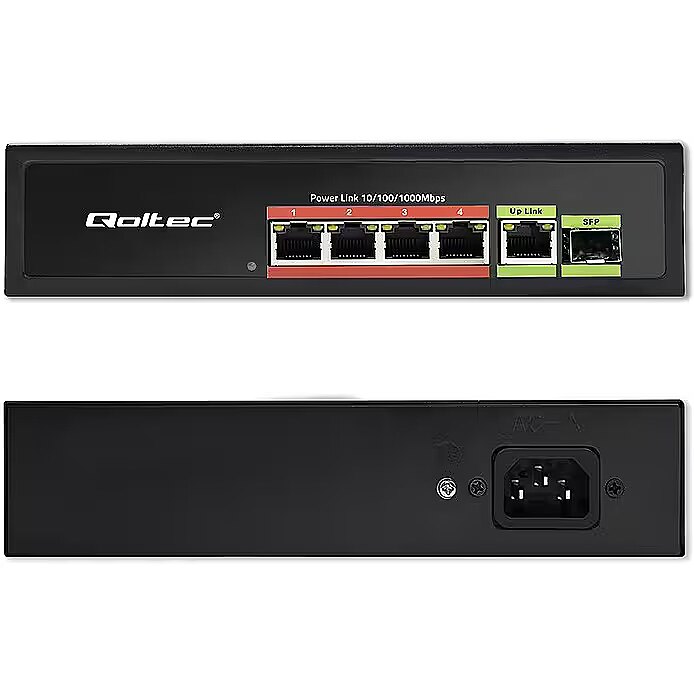

Power supply - Internal
producer - Qoltec
QoS -
Security -
Stackability - No
Supported protocols and standards - IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3af
Support for Jumbo frames - No
Switch class - Unmanaged
Switch layer - L2
Throughput - 12 Gb/s
vendpn - 52296
VLAN -
Weight - 640 g
