Startech 4 PORT GIGABIT POE PCIE NIC CARD W/ POE

ARTIKEL1 - 4 PORT GIGABIT POE PCIE NIC
ARTIKEL2 - CARD W/ POE
Brand - StarTech.com
BrandPartCode - ST4000PEXPSE
Breite - 0.2
Category - Network Cards
Design - Certification - CE, FCC, REACH, TAA
Design - Chipset - RTL8111E
Design - Internal - Yes
Design - LED indicators - Link, PoE
EANCode - 0065030855150
Gewicht - 0.45
GRUPPE1 - Network
GRUPPE2 - Network Adapters
GTIN - 0065030855150
GTIN - 065030855150
HERSTELLER - STARTECH
Hoehe - 0.07
HSTNUMMER - ST4000PEXPSE
Laenge - 0.3
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computerThe ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).Backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage- Position your network devices where power outlets aren’t available, with 25.5 Watts per-port PoE output- Reduce expenses by using existing standard Cat5 (or better) Ethernet cabling to deliver power and data- Optimize network traffic with support for advanced features, like Jumbo Frames and VLAN tagging
LongProductName - StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC - Quad Port NIC - PoE Card
LongSummaryDescription - StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s
Network - Auto MDIX IEEE - Yes
Network - Cabling technology - 10/100/1000BaseT(X)
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Full duplex - Yes
Network - Jumbo frames - 9000
Network - Jumbo frames support - Yes
Network - Maximum data transfer rate - 2000 Mbit/s
Network - Networking standards - IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Network - Wake-on-LAN ready - Yes
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 55 °C
Operational conditions - Storage temperature (T-T) - -40 - 75 °C
Other features - Buffer size - 48 KB
Other features - Number of SATA power connectors - 1
Other features - Peripheral (Molex) power connectors (4-pin) - 1

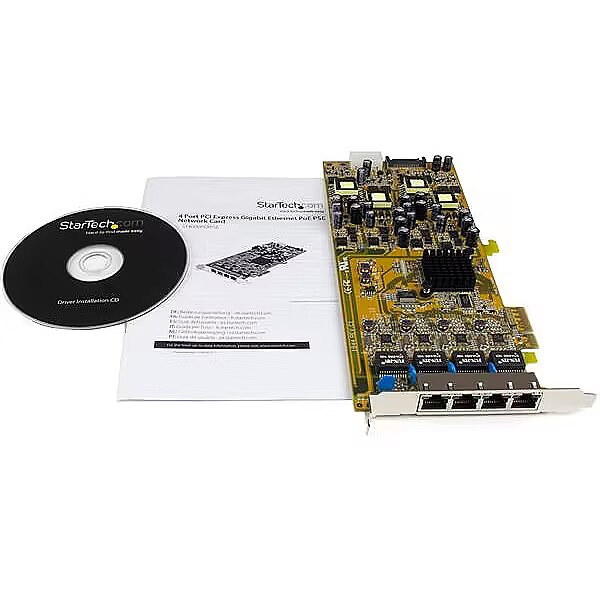

Packaging content - Manual - Yes
Packaging data - Drivers included - Yes
Packaging data - Package depth - 296 mm
Packaging data - Package height - 66 mm
Packaging data - Package weight - 428 g
Packaging data - Package width - 188 mm
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - Interface - Ethernet
Ports & interfaces - PCI Card form factor - Full-height
Power - Output voltage - 48 V
ProductName - 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC
ShortSummaryDescription - StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC, Internal, Wired, PCI Express, Ethernet, 2000 Mbit/s
Stck_Kart - 14
Stck_Pal - 14
Storno - Y
System requirements - Linux operating systems supported - Yes
System requirements - Server operating systems supported - Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
System requirements - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Technical details - Compliance certificates - RoHS
Title - StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC
URL - https://www.startech.com/Networking-IO/Adapter-Cards/4-port-gigabit-poe-pcie-network-card~ST4000PEXPSE
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 243 mm
Weight & dimensions - Height - 120 mm
Weight & dimensions - Weight - 102 g
Weight & dimensions - Width - 18 mm
