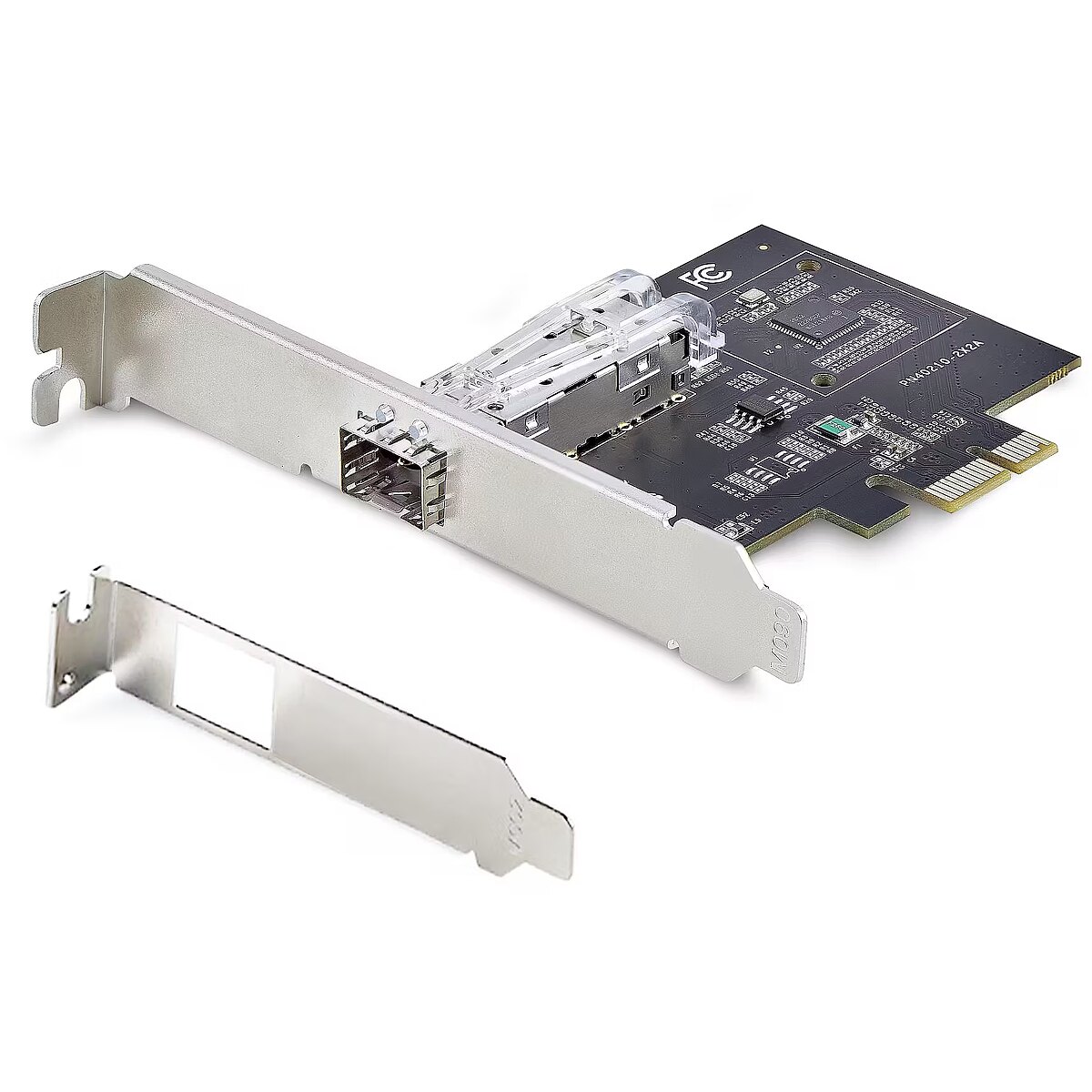

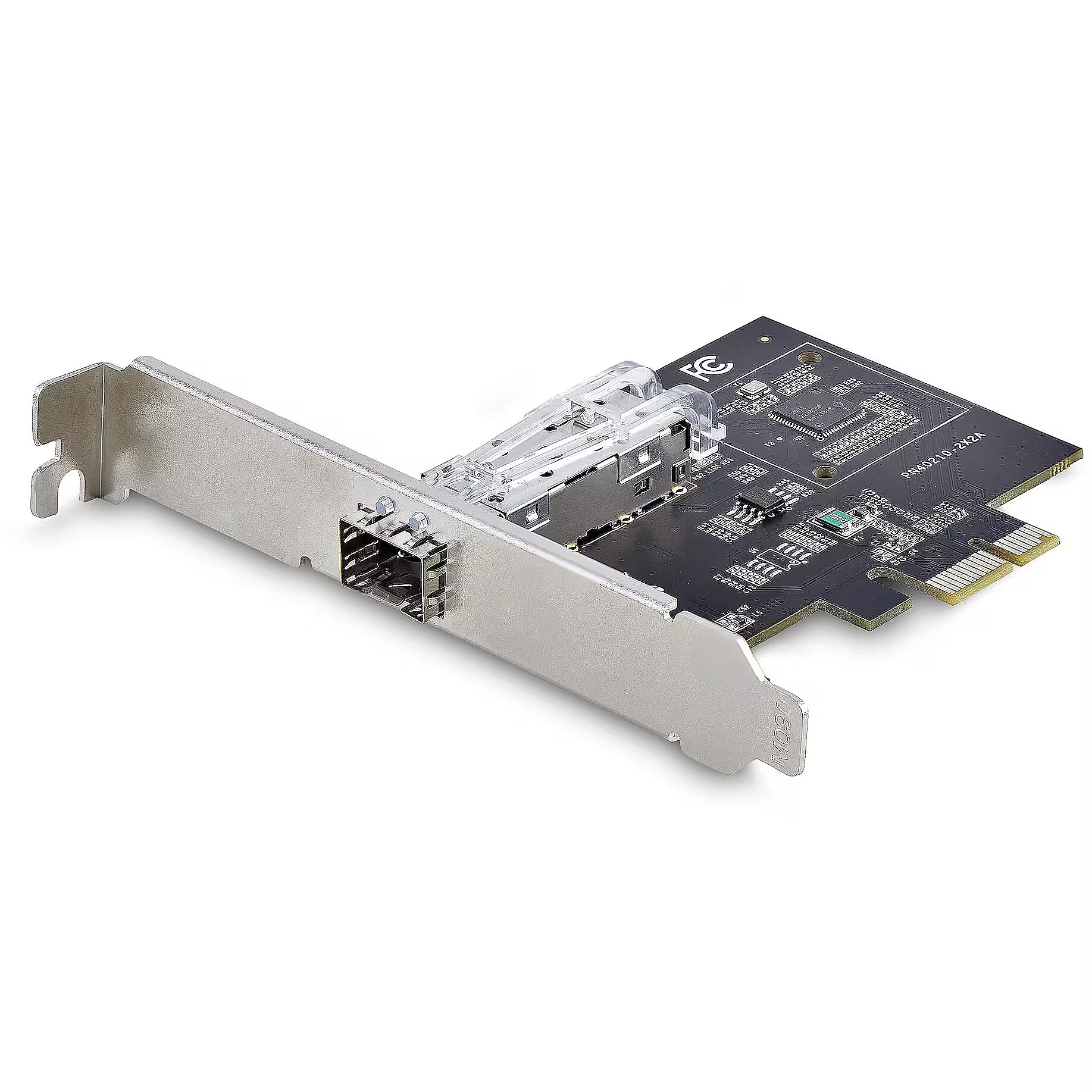

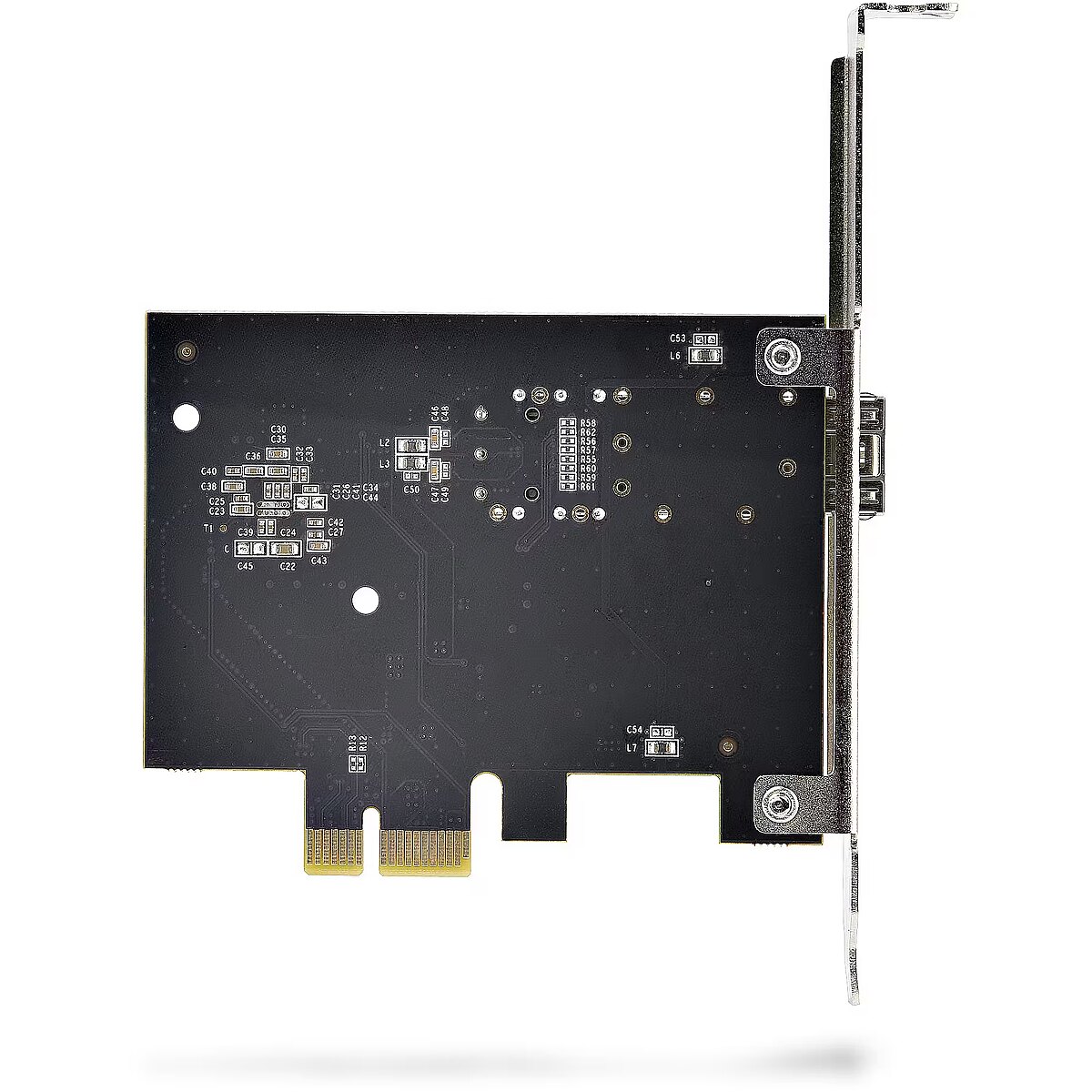

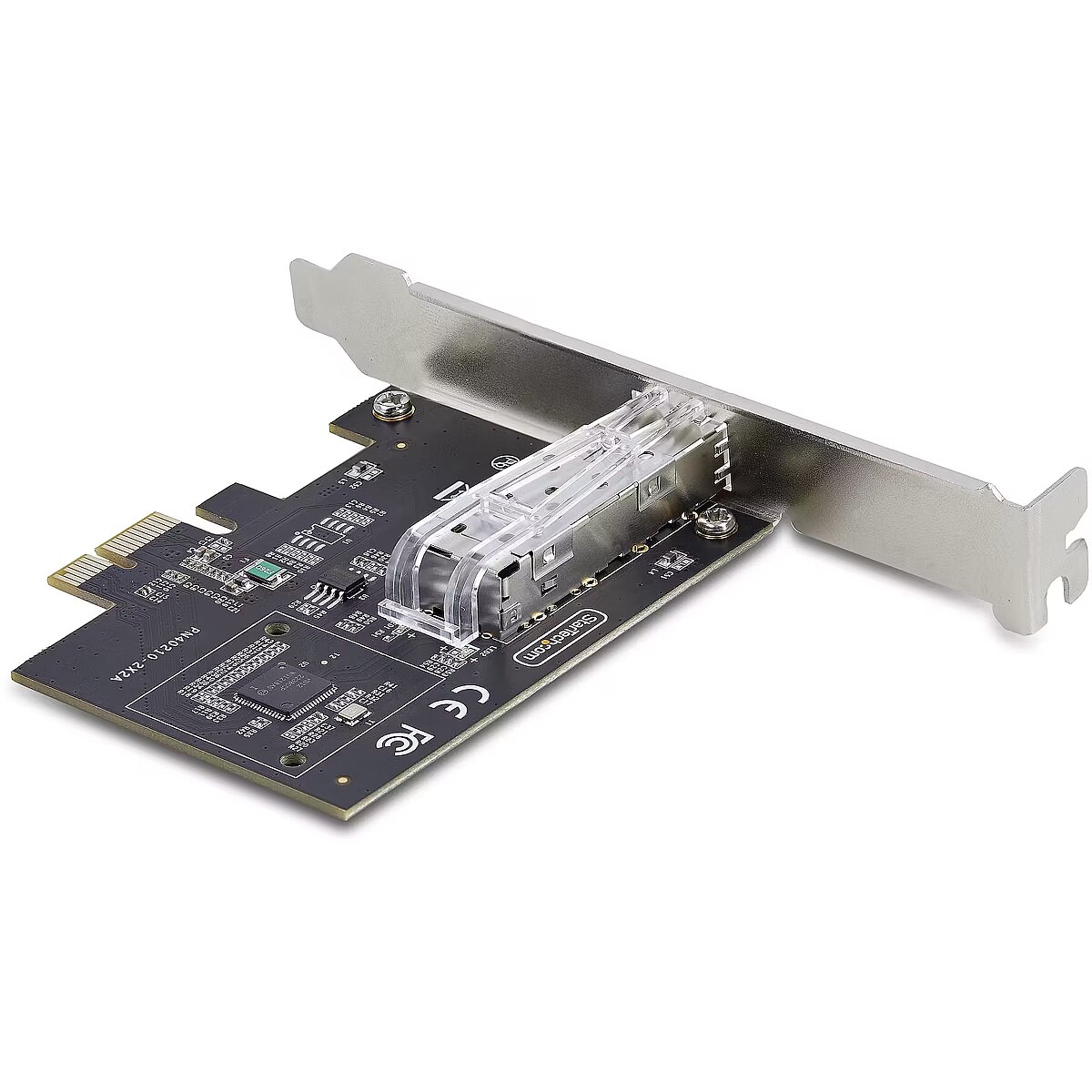

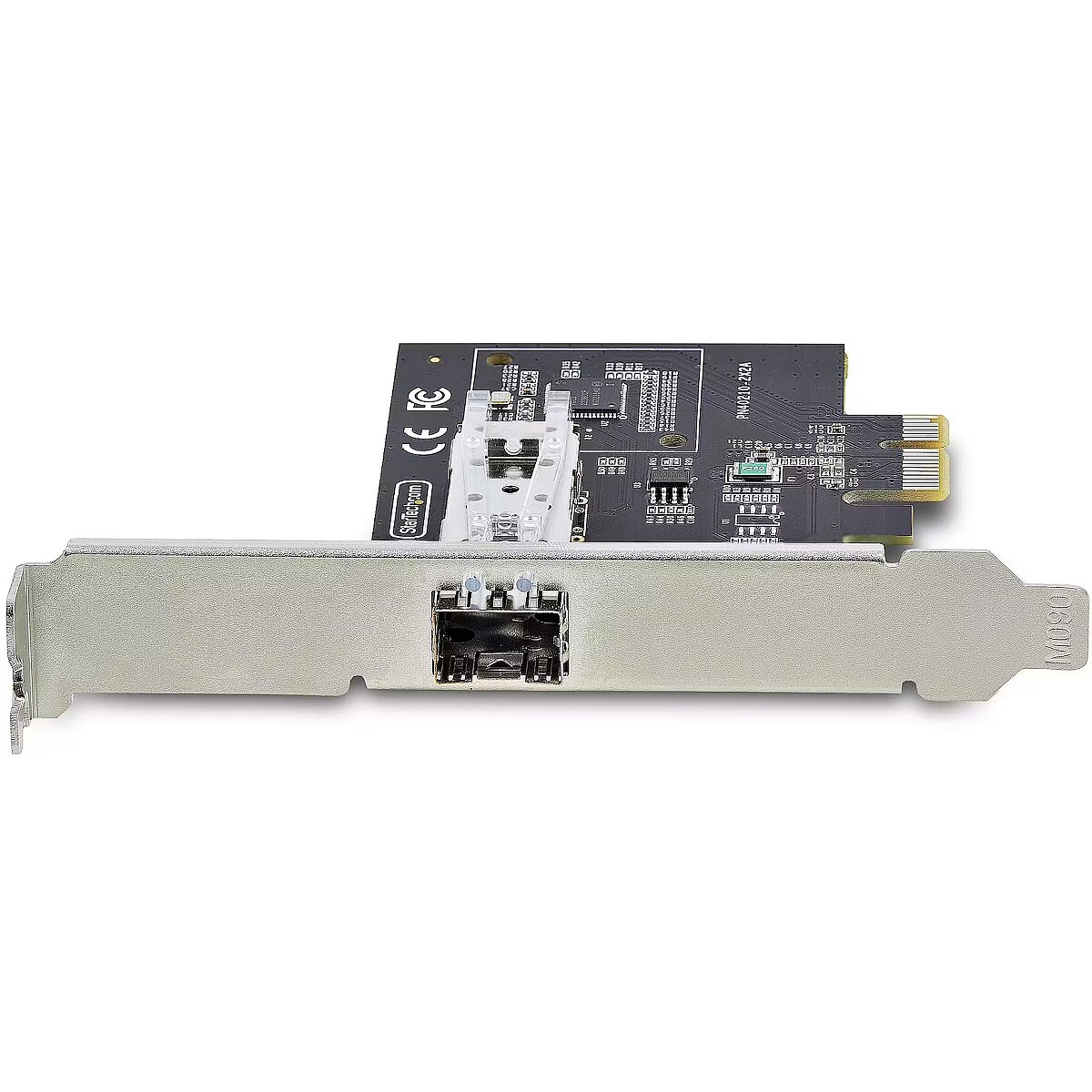

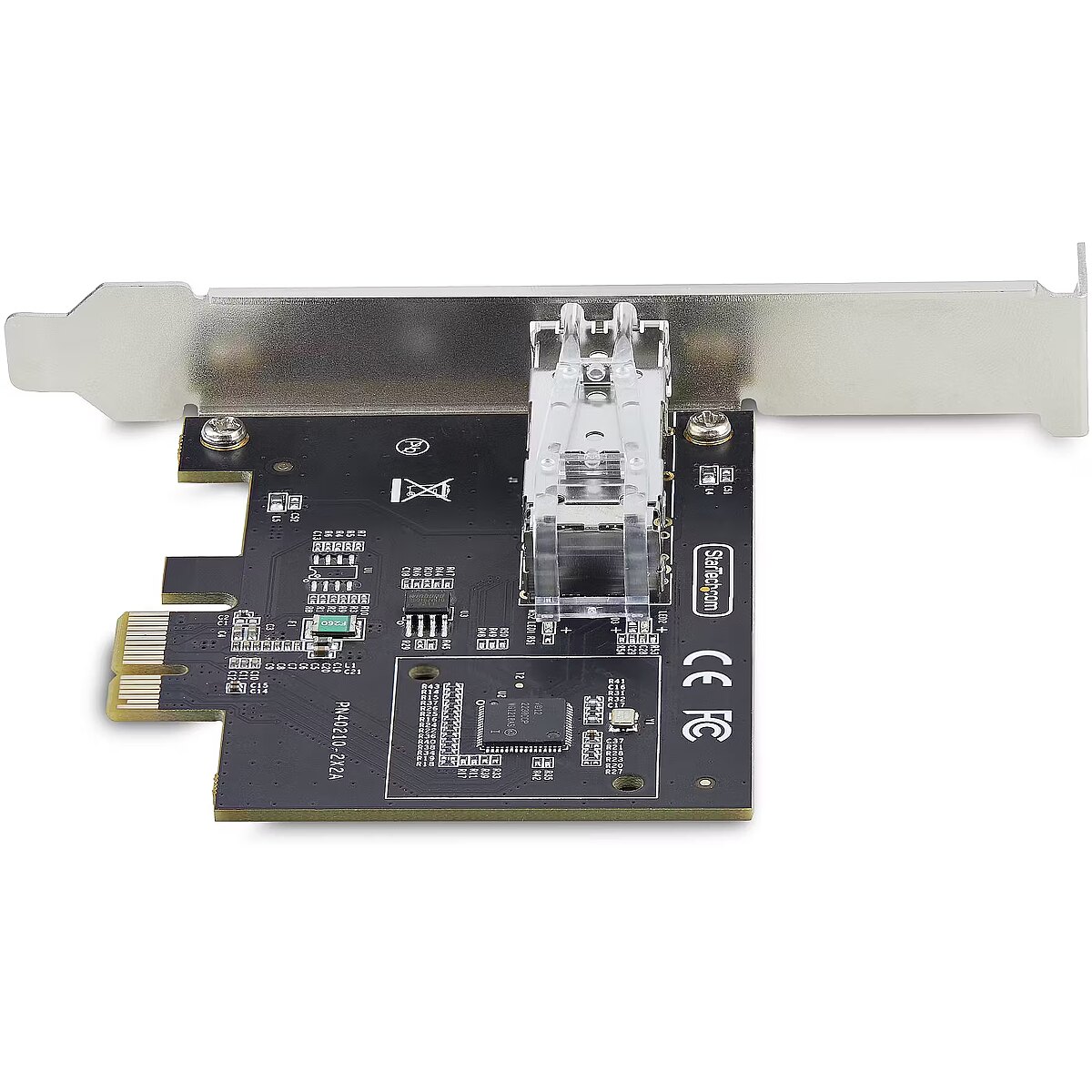

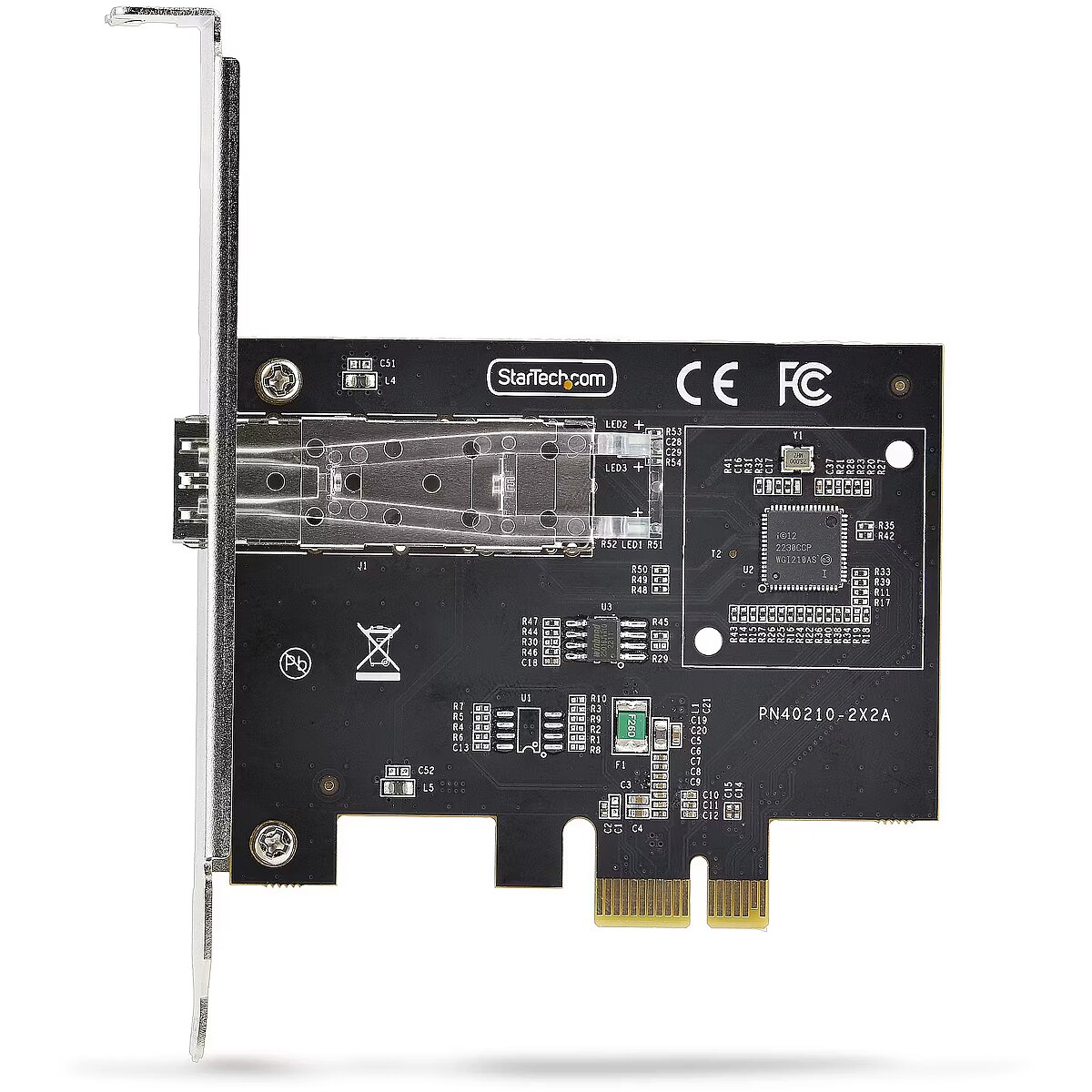

Startech P011GI-NETWORK-CARD 1-PORT GBE SFP NETWORK CARD

ARTIKEL1 - P011GI-NETWORK-CARD
ARTIKEL2 - 1-PORT GBE SFP NETWORK CARD
Brand - StarTech.com
BrandPartCode - P011GI-NETWORK-CARD
Breite - 0
Category - Network Cards
Design - Component for - PC
Design - Internal - Yes
Design - LED indicators - Speed, Status
Design - Product colour - Black
EANCode - 0065030899987
Gewicht - 0.13
GRUPPE1 - Network
GRUPPE2 - Network Adapters
GTIN - 0065030899987
GTIN - 065030899987
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - P011GI-NETWORK-CARD
Laenge - 0
Logistics data - Master (outer) case height - 385 mm
Logistics data - Master (outer) case length - 325 mm
Logistics data - Master (outer) case width - 605 mm
Logistics data - Products per master (outer) case - 80 pc(s)
LongDesc - Add a fiber/copper GbE SFP transceiver or Direct Attach Cable to a workstation or serverAdd a 1GbE SFP module to a PCI Express (PCIe) 2.1 x1 (or higher) slot in an IT Administrator workstation or server backplane, using this 1-Port SFP Network Controller.High Performance Intel ChipsetThe network controller features an Intel I210 chip known for its reliability and high-performance capabilities, offering low-latency and low CPU utilization, ensuring smooth and efficient network data transfer, which is critical for business applications and services. Support for VMDq, SR-IOV, and Intel® VT-c technologies allow for enhanced virtual machine performance, reduced CPU overhead, and improved network virtualization capabilities. The PCIe network card supports PXE boot, enabling centralized operating system deployment and updates. It also features 9K jumbo frame support, reducing packet overhead for improved data transmission efficiency. VLAN tagging support allows for efficient network management and segmentation.Hardware and Operating System CompatibilityThe network interface controller connects to an available x1 PCI Express 2.1 (or higher) expansion slot. It is compatible with Windows Server 2012 and newer, Windows 10 and newer, Linux, VMware ESXi 7.x, and Microsoft Hyper-V. This NIC is compatible with both MSA-compliant and branded 1GB SFP modules, as well as direct attach copper cables (DACC). Includes a low-profile bracket designed for small form factor systems.Flexible Network ConnectionsThe card features an SFP slot for interchangeable SFP modules. Select fiber transceiver modules that best suit the network needs of the application, based on the distance and connector type. StarTech.com offers a wide variety of SFP transceiver modules to meet many GbE network applications.The StarTech.com Advantage
LongProductName - StarTech.com 1-Port GbE SFP Network Card, PCIe 2.1 x1, Intel I210-IS, 1GbE Controller, 1000BASE Copper/Fiber Optic, Single-Port Gigabit Ethernet NIC, Desktop/Server Backplanes (P011GI-NETWORK-CARD)
LongSummaryDescription - StarTech.com 1-Port GbE SFP Network Card, PCIe 2.1 x1, Intel I210-IS, 1GbE Controller, 1000BASE Copper/Fiber Optic, Single-Port Gigabit Ethernet NIC, Desktop/Server Backplanes - Windows and Linux Compatible. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 1000 Mbit/s. Product colour: Black
Network - Auto MDIX IEEE - Yes
Network - Full duplex - Yes
Network - Jumbo frames - 9000
Network - Jumbo frames support - Yes
Network - Maximum data transfer rate - 1000 Mbit/s
Network - Networking standards - IEEE 802.1AX, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3z
Network - Supported network protocols - IPv4, IPv6, TCP/UDP
Operational conditions - Operating relative humidity (H-H) - 5 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -10 - 70 °C
Packaging content - Mounting brackets included - Yes
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 142 mm
Packaging data - Package height - 30 mm
Packaging data - Package weight - 47.5 g
Packaging data - Package width - 170 mm
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Fiber optic connector - SFP
Ports & interfaces - Fiber ports quantity - 1
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - Interface - Fiber
Ports & interfaces - PCI version - 2.1
Power - Power consumption (typical) - 0.6 W
ProductName - 1-Port GbE SFP Network Card, PCIe 2.1 x1, Intel I210-IS, 1GbE Controller, 1000BASE Copper/Fiber Optic, Single-Port Gigabit Ethernet NIC, Desktop/Server Backplanes - Windows and Linux Compatible
ShortSummaryDescription - StarTech.com 1-Port GbE SFP Network Card, PCIe 2.1 x1, Intel I210-IS, 1GbE Controller, 1000BASE Copper/Fiber Optic, Single-Port Gigabit Ethernet NIC, Desktop/Server Backplanes - Windows and Linux Compatible, Internal, Wired, PCI Express, Fiber, 1000 Mbit/s, Black
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
System requirements - Linux operating systems supported - Yes
System requirements - Server operating systems supported - Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
System requirements - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Title - StarTech.com 1-Port GbE SFP Network Card, PCIe 2.1 x1, Intel I210-IS, 1GbE Controller, 1000BASE Copper/Fiber Optic, Single-Port Gigabit Ethernet NIC, Desktop/Server Backplanes - Windows and Linux Compatible
URL - https://www.startech.com/en-us/P011GI-NETWORK-CARD
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 87 mm
Weight & dimensions - Height - 16 mm
Weight & dimensions - Weight - 40 g
Weight & dimensions - Width - 67 mm
