Brand - Kensington
BrandPartCode - K35201EU
Category - Laptop Docks & Port Replicators
Category 1 - Notebooks & Zubehör
Category 2 - Zubehör Notebooks
Category 3 - Dockingstations
EAN - 5028252644037
GTIN - 5028252644037
GTIN - 5028252644044
Logistics data - Master (outer) case gross weight - 12.1 kg
Logistics data - Master (outer) case height - 352 mm
Logistics data - Master (outer) case length - 395 mm
Logistics data - Master (outer) case width - 282 mm
Logistics data - Products per master (outer) case - 6 pc(s)

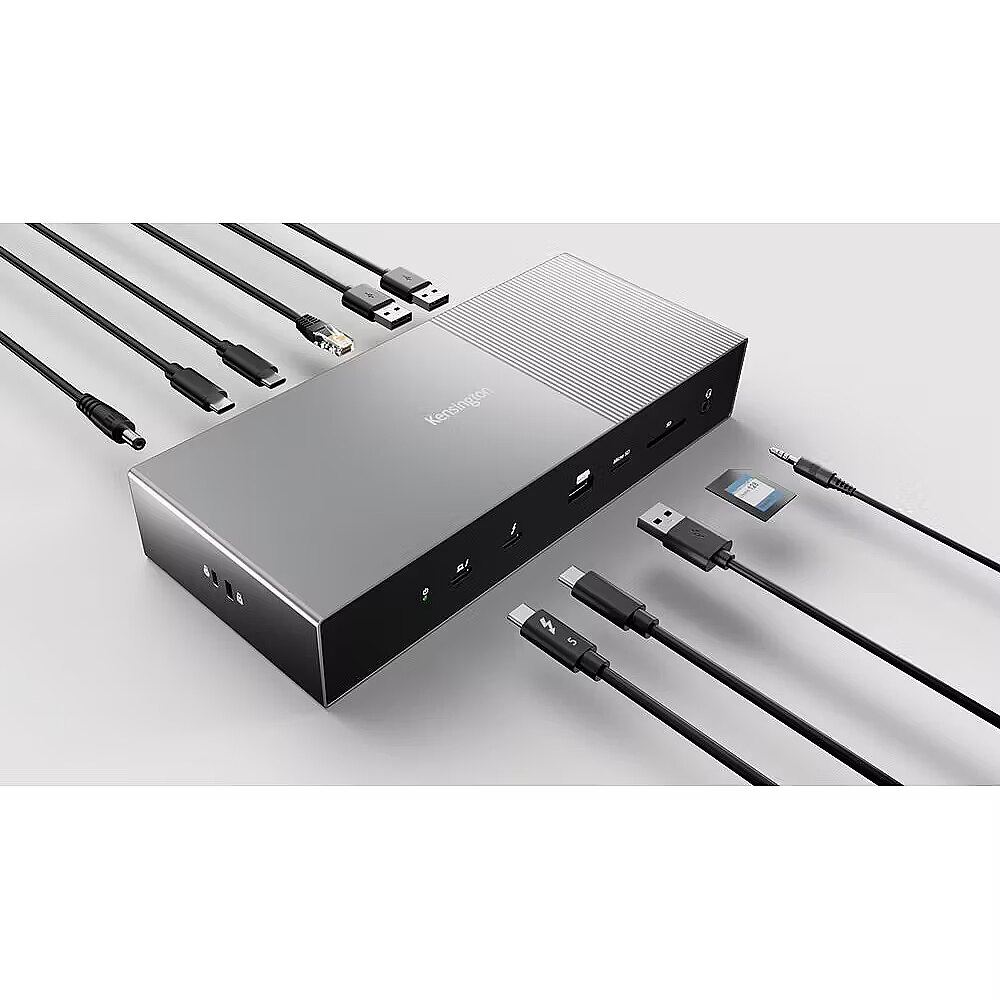

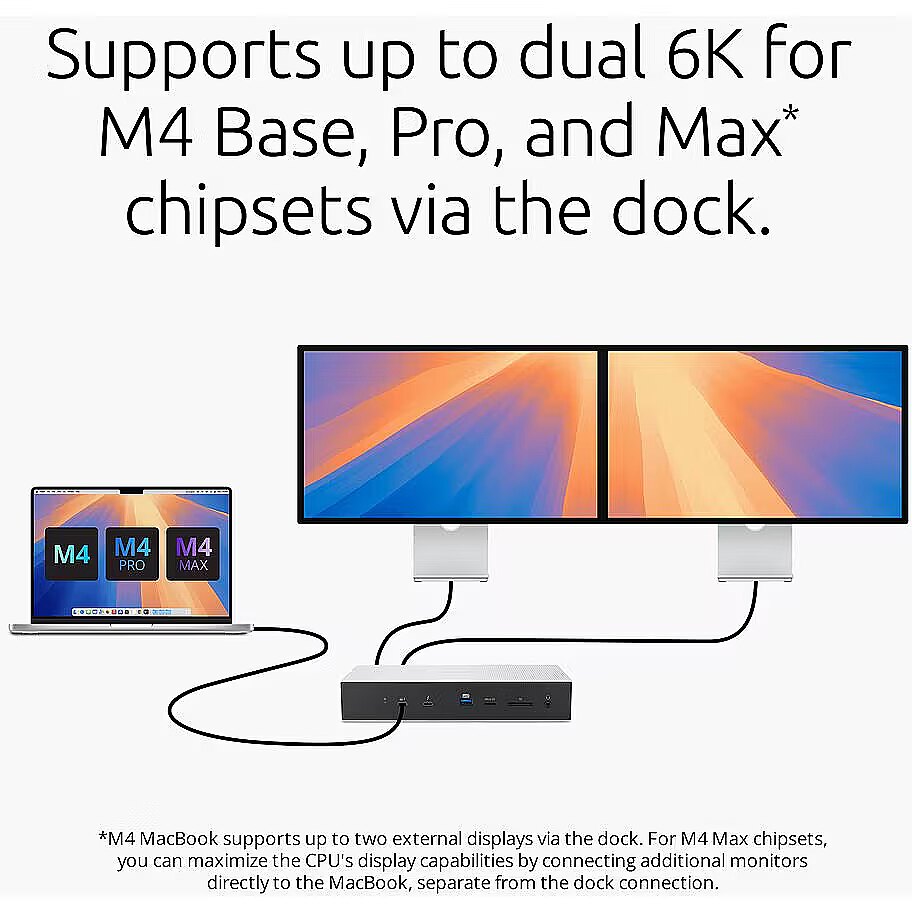

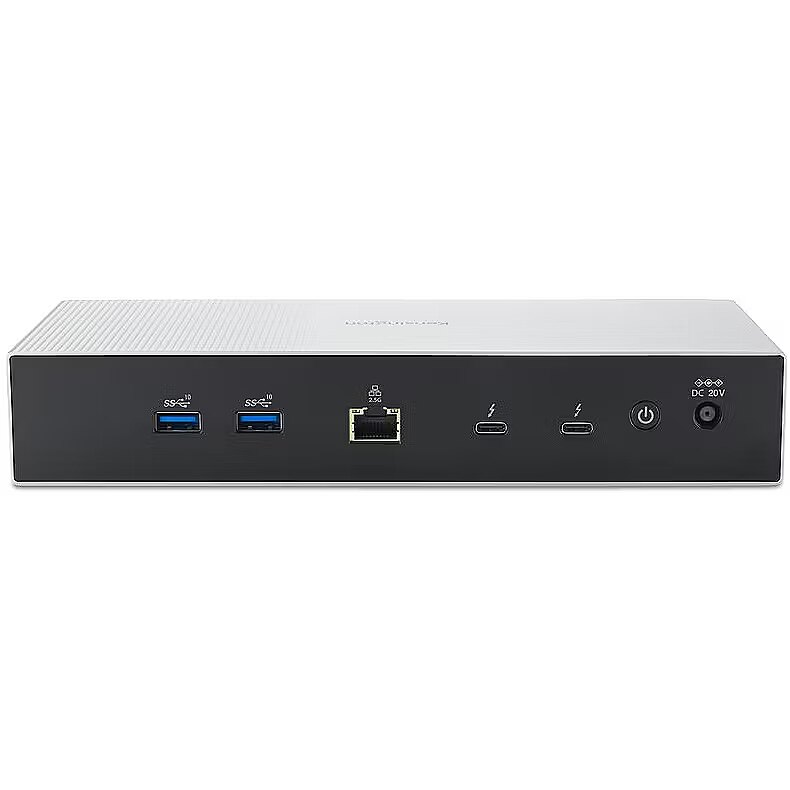

LongDesc - The SD5000T5 EQ Thunderbolt™ 5 Docking Station is designed for professionals requiring the highest performance. Windows and macOS compatible, the SD5000T5 boosts workflow efficiency with lightning-fast 80Gbps data transfers—and up to 120Gbps for video-intensive usage via Bandwidth Boost. It supports up to three 4K monitors @ 144Hz or two 8K monitors @ 60Hz, ensuring high-quality visuals and smooth multitasking. The single-cable solution delivers up to 140W Power Delivery to your laptop and peripherals—supporting low-latency efficiency and less cable clutter. Boasting 3 x Thunderbolt™ 5 downstream ports, 1 x Thunderbolt™ 5 host, 3 x USB-A 3.2 Gen2 ports, an audio jack, dual SD/Micro Card readers, and 2.5Gbps Ethernet, this docking station maximizes productivity with cutting-edge technology. The SD5000T contains 100% post-consumer recycled (PCR) aluminum*. It includes Kensington DockWorks™ Software and is supported by a 3-year limited warranty. * The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.
LongProductName - SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station with 140W PD - Windows/macOS
LongSummaryDescription - Kensington SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station with 140W PD - Windows/macOS. Connectivity technology: Wired, Host interface: Thunderbolt 5, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Product colour: Black, Grey, Compatible memory cards: SD, MicroSD (TransFlash), Data transfer rate: 80 Gbit/s. AC input voltage: 100 - 240 V, Input current: 2.5 A, Output voltage: 20 V. Width: 226 mm, Depth: 97 mm, Height: 40 mm
Manufacturer - Kensington
MPN - K35201EU
Name - Kensington Dockingstation EQ Thunderbolt5 Triple mit 140W PD
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 100,1000,2500 Mbit/s
Operational conditions - Operating relative humidity (H-H) - 0 - 55%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -18 - 60 °C
Other features - Compatible operating systems - Windows 11 (23H2 or later); macOS 14.5 or above
Other features - Minimum system requirements - CPU: Intel Core HX series 13th /14th+
Other features - Special features - EQ
Other features - USB ports quantity - 3
Packaging content - Cables included - AC, Thunderbolt
Packaging content - Quick start guide - Yes
Packaging content - Warranty card - Yes
Packaging data - Package depth - 264 mm
Packaging data - Package height - 154 mm
Packaging data - Package weight - 1.9 kg
Packaging data - Package width - 125 mm
Packaging data - Quantity per pack - 1 pc(s)

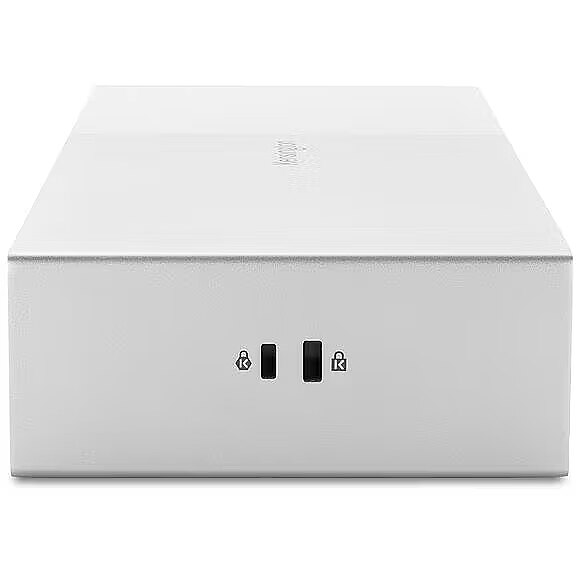

Performance - Cable lock slot - Yes
Performance - Cable lock slot type - Nano, Kensington
Performance - Card reader integrated - Yes
Performance - Compatible memory cards - SD, MicroSD (TransFlash)
Performance - Country of origin - China
Performance - Data transfer rate - 80 Gbit/s
Performance - HD type - 8K Ultra HD
Performance - Housing material - Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Performance - LED indicators - Power
Performance - Maximum digital resolution - 7680 x 4320 pixels
Performance - Maximum refresh rate - 540 Hz
Performance - Number of displays supported - 3
Performance - Plug and Play - Yes
Performance - Product colour - Black, Grey
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Host interface - Thunderbolt 5
Ports & interfaces - Thunderbolt 5 ports quantity - 3
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery revision - 3.1
Ports & interfaces - USB Power Delivery up to - 140 W
Power - AC input voltage - 100 - 240 V
Power - Input current - 2.5 A
Power - Output current - 9 A
Power - Output voltage - 20 V
ProductName - SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station with 140W PD - Windows/macOS
ShortSummaryDescription - Kensington SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station with 140W PD - Windows/macOS, Wired, Thunderbolt 5, 140 W, 3.5 mm, 100,1000,2500 Mbit/s, Black, Grey
Software - Mac operating systems supported - Yes
Software - Windows operating systems supported - Yes
Technical details - Compliance certificates - CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA
Title - Kensington SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station with 140W PD - Windows/macOS
URL - https://www.kensington.com/en/gb/4491/K35201EU/sd5000t5%c2%a0eq%c2%a0thunderbolt%e2%84%a2-5-triple-4k-docking-station-with-140w-pd---windows-macos
WarrantyInfo - Limited 3-year warranty
Weight - 2.08
Weight & dimensions - Depth - 97 mm
Weight & dimensions - Height - 40 mm
Weight & dimensions - Weight - 975 g
Weight & dimensions - Width - 226 mm
