AC adapter included Packaging content - Yes
Brand - ASUS
BrandPartCode - 90XB08DN-BDS080
Cable lock slot Performance - Yes
Cable lock slot type Performance - Kensington
Card reader integrated Performance - Yes
Category - Laptop Docks & Port Replicators
Category 1 - Notebooks & Zubehör
Category 2 - Zubehör Notebooks
Category Code - NBK
Code - 90XB08DN-BDS010
Combo headphone/mic port Ports & interfaces - Yes
Compatible memory cards Performance - MicroSD (TransFlash), SD
Connectivity technology Ports & interfaces - Wired
DC-in jack Ports & interfaces - Yes
Depth Weight & dimensions - 80 mm
Description - All the connections you need

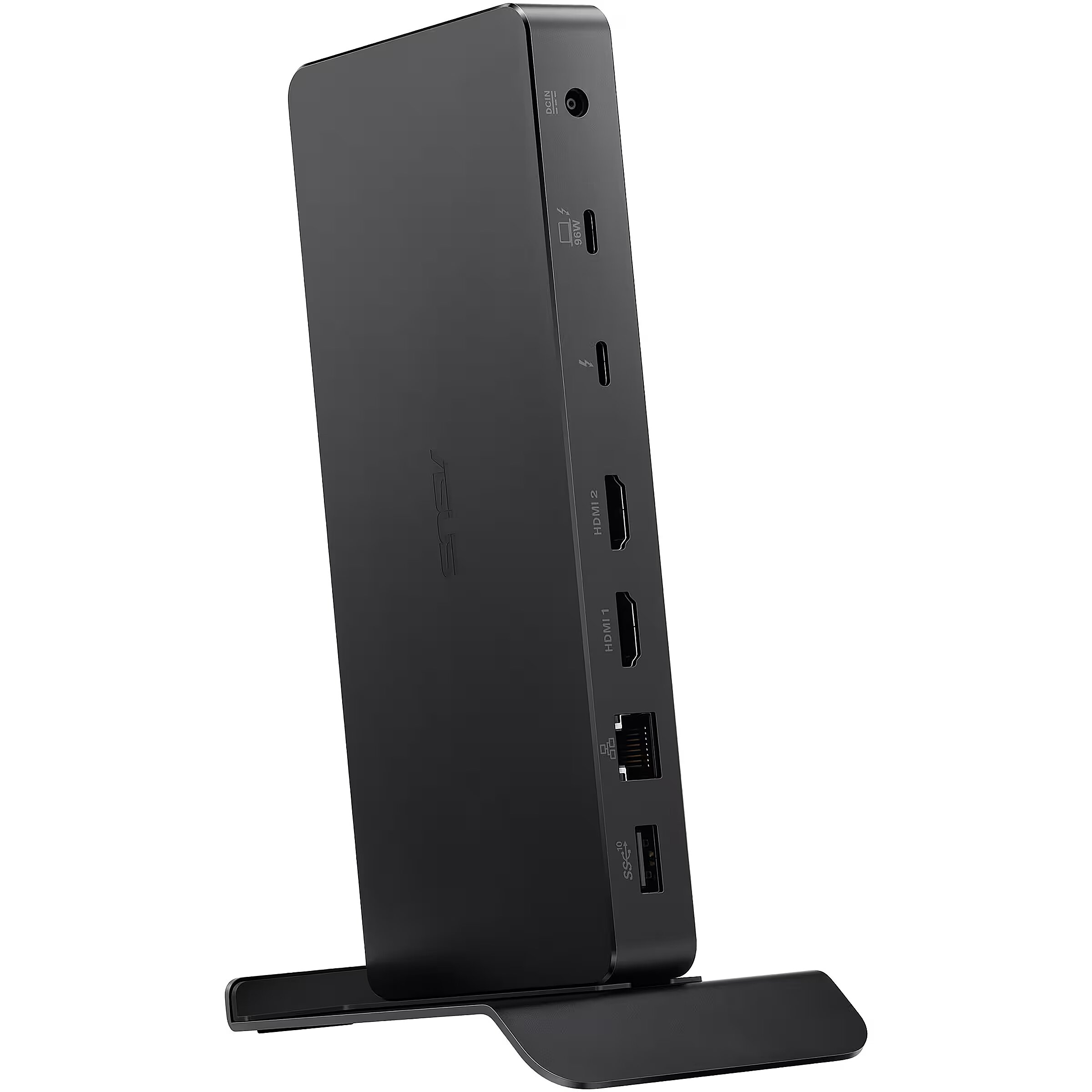

ASUS Triple 4K Thunderbolt™ 4 Dock is an all-in-one docking station designed for creators, and is the smallest 12-in-1 Thunderbolt™ 4 dock. It requires just a single cable connection to a creator laptop to hook up to multiple 4K displays and peripherals, as well as memory card readers for a complete, highly efficient creative workstation. Productivity
Triple 4K display support and dual HDMI 2.1
With Thunderbolt™ 4 and two HDMI 2.1 ports, ASUS Triple 4K Thunderbolt™ 4 Dock gives creators the ability to multitask and work with greater levels of detail across a single 8K monitor or a triple 4K display setup. Versatility
Unparalleled 8K visuals
Enthralling viewing experiences are possible with ultrahigh 8K resolution via HDMI 2.1 or Thunderbolt™ 4. Check the table below for specific resolutions1 for all monitor2 combinations. Connectivity
Simultaneous multi-device connections
ASUS Triple 4K Thunderbolt™ 4 Dock includes a multitude of I/O ports that enable simultaneous connections to a myriad of devices, including cameras, drones, and others. Plus, it includes two card readers catering to SD and microSD cards to give users the flexibility to back up data from various devices quickly and easily. Faste speed
Faster data transfers
High-speed data transfers are facilitated with 2.5 G Ethernet and Thunderbolt™ 4 connectivity, even for large files, allowing users to get more done in less time. For example, 12 seconds is all it takes to transfer a 20 GB image file. The UFP Thunderbolt™ 4 port offers up to 96 W passthrough charging. The ASUS Triple 4K Thunderbolt™ 4 Dock also makes it easy for IT administrators to manage company assets and keep information safe with MAC address pass-through3, remote port-disablement, and Wake-on-LAN. Design
Compact, innovative design
ASUS Triple 4K Thunderbolt™ 4 Dock is the smallest Thunderbolt™ 4-enabled 12-in-1 dock. Finished in aluminum, its chiseled, rectangular design fits perfectly under a monitor stand to ensure a neat workstation setup. Innovative cooling features keep internal temperatures at optimal levels to ensure sustained high performance. Design
A well-organized workstation
The adjustable aluminum stand gives ASUS Triple 4K Thunderbolt™ 4 Dock a firm footing when placed on a table, and it even includes a locking knob that secures it to the edge of a desk or rear of a monitor.Video output may vary depending on input signal. ASUS Triple 4K Thunderbolt 4 Dock DC500 supports up to one 8K display when connected to a laptop with DSC (Display Stream Compression) support. If the connected device and monitor is able to support a DSC compression ratio of 3:1., ASUS Thunderbolt 4 Dock DC500 is able to support one 4K @ 60 Hz and one 4K @ 120 Hz in dual-display mode, or up to three displays at 4K @ 60 Hz.
Input signal may vary depending on the CPU and GPU of the your laptop or PC. Please consult with your laptop or PC manufacturer prior to using ASUS Thunderbolt 4 Dock DC500, or check the ASUS support page for more information.
ASUS Triple 4K Thunderbolt 4 Dock DC500 supports additional features, such as MAC address pass through, PXE, WOL and mirrored power button, on many ASUS laptops. Some features may not be available on certain ASUS laptops, ASUS Chromebook, or non-ASUS laptops. Please find support site for compatible device.
dimensionalWeight - 910
EAN - 4711387125014
Ethernet LAN (RJ-45) ports Network - 1
Ethernet LAN data rates Network - 10,100,1000,2500 Mbit/s
Ethernet LAN Network - Yes
GTIN - 4711387125014
HDMI ports quantity Ports & interfaces - 2
HDMI version Ports & interfaces - 2.1
Height Weight & dimensions - 21 mm
Host interface Ports & interfaces - Thunderbolt 4
Housing material Performance - Metal, Plastic
LongDesc - All the connections you needASUS Triple 4K Thunderbolt™ 4 Dock is an all-in-one docking station designed for creators, and is the smallest 12-in-1 Thunderbolt™ 4 dock. It requires just a single cable connection to a creator laptop to hook up to multiple 4K displays and peripherals, as well as memory card readers for a complete, highly efficient creative workstation.ProductivityTriple 4K display support and dual HDMI 2.1With Thunderbolt™ 4 and two HDMI 2.1 ports, ASUS Triple 4K Thunderbolt™ 4 Dock gives creators the ability to multitask and work with greater levels of detail across a single 8K monitor or a triple 4K display setup.VersatilityUnparalleled 8K visualsEnthralling viewing experiences are possible with ultrahigh 8K resolution via HDMI 2.1 or Thunderbolt™ 4. Check the table below for specific resolutions1 for all monitor2 combinations.ConnectivitySimultaneous multi-device connectionsASUS Triple 4K Thunderbolt™ 4 Dock includes a multitude of I/O ports that enable simultaneous connections to a myriad of devices, including cameras, drones, and others. Plus, it includes two card readers catering to SD and microSD cards to give users the flexibility to back up data from various devices quickly and easily.Faste speedFaster data transfersHigh-speed data transfers are facilitated with 2.5 G Ethernet and Thunderbolt™ 4 connectivity, even for large files, allowing users to get more done in less time. For example, 12 seconds is all it takes to transfer a 20 GB image file. The UFP Thunderbolt™ 4 port offers up to 96 W passthrough charging. The ASUS Triple 4K Thunderbolt™ 4 Dock also makes it easy for IT administrators to manage company assets and keep information safe with MAC address pass-through3, remote port-disablement, and Wake-on-LAN.DesignCompact, innovative designASUS Triple 4K Thunderbolt™ 4 Dock is the smallest Thunderbolt™ 4-enabled 12-in-1 dock. Finished in aluminum, its chiseled, rectangular design fits perfectly under a monitor stand to ensure a neat workstation setup. Innovative cooling features keep internal temperatures at optimal levels to ensure sustained high performance.DesignA well-organized workstationThe adjustable aluminum stand gives ASUS Triple 4K Thunderbolt™ 4 Dock a firm footing when placed on a table, and it even includes a locking knob that secures it to the edge of a desk or rear of a monitor.
LongProductName - HDMI, Thunderbolt 4, SD/Micro SD, USB-A, RJ-45, EU power cord
LongSummaryDescription - ASUS Triple 4K Thunderbolt 4 Dock DC500. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 96 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), SD, Maximum digital resolution: 3840 x 2160 pixels. Power source type: DC, Power supply: 150 W, Output voltage: 20 V. Windows operating systems supported: Windows 10, Windows 11
Mac operating systems supported Software - Yes
Manufacturer - ASUS
Maximum digital resolution Performance - 3840 x 2160 pixels
Maximum refresh rate Performance - 60 Hz
Microphone in Ports & interfaces - No
MPN - 90XB08DN-BDS010
Name - ASUS DC500 Triple 4K USB-C Dock
Name - Asus Triple 4K Thunderbolt 4 Dock | Ethernet LAN (RJ-45) ports 1 | HDMI ports quantity 2
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 10,100,1000,2500 Mbit/s
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Ethernet LAN data rates - 2500 Mbit/s
Network - Wake-on-LAN ready - Yes
Number of displays supported Performance - 3
On/off switch Performance - Yes
Output current Power - 7.5 A
Output voltage Power - 20 V
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 180.00 mm
Package features > Gross height (mm) - 21.00 mm
Package features > Gross width (mm) - 85.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 2353 pc(s)
Package features > Paper/Pasteboard - 90.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging data - Quantity per pack - 1 pc(s)
Performance - Cable lock slot - Yes
Performance - Cable lock slot type - Kensington
Performance - Card reader integrated - Yes
Performance - Compatible memory cards - MicroSD (TransFlash)
Performance - Compatible memory cards - MicroSD (TransFlash), SD
Performance - Compatible memory cards - SD
Performance - Housing material - Metal
Performance - Housing material - Metal, Plastic
Performance - Housing material - Plastic
Performance - Maximum digital resolution - 3840 x 2160 pixels
Performance - Maximum refresh rate - 60 Hz
Performance - Number of displays supported - 3
Performance - On/off switch - Yes
Performance - Product colour - Black
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Host interface - Thunderbolt 4
Ports & interfaces - Microphone in - No
Ports & interfaces - Thunderbolt 4 ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery up to - 96 W
Ports & interfaces > Ethernet LAN (RJ-45) ports - 1
Ports & interfaces > HDMI ports quantity - 2
Ports & interfaces > Ports quantity - 1x Thunderbolt 4,1x SD card Reader 4.0 (UHS II), 1x Micro SD card Reader (UHS II), 2x USB-A 3.2 Gen2, 2x USB-A 2.0, 1x Audio combo jack, 1x Kensington lock, 1x Power button with indicator LED, 1x DC jack (4.5 phi)
Power - Output current - 7.5 A
Power - Output voltage - 20 V
Power - Power source type - DC
Power - Power supply - 150 W
Power source type Power - DC
Power supply Power - 150 W
producerCode - 90XB08DN-BDS010
Product colour Performance - Black
productName - ASUS DC500 Triple 4K Thunderbolt 4 Dock
ProductName - Triple 4K Thunderbolt 4 Dock DC500
productSize - Normal
Quantity per pack Packaging data - 1 pc(s)
ShortSummaryDescription - ASUS Triple 4K Thunderbolt 4 Dock DC500, Wired, Thunderbolt 4, 96 W, 10,100,1000,2500 Mbit/s, Black, MicroSD (TransFlash), SD
sizeX - 250
sizeY - 260
sizeZ - 70
Software - Mac operating systems supported - Yes
Software - Windows operating systems supported - Windows 10
Software - Windows operating systems supported - Windows 10, Windows 11
Software - Windows operating systems supported - Windows 11
Summary - ASUS Triple 4K Thunderbolt 4 Dock DC500. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 96 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), SD, Maximum digital resolution: 3840 x 2160 pixels. Power source type: DC, Power supply: 150 W, Output voltage: 20 V. Windows operating systems supported: Windows 10, Windows 11
Technical details > Gross weight - 0.43 kg
Technical details > Net weight - 0.33 kg
Technical details > Producer - Asus
Technical details > Producer product name - Triple 4K Thunderbolt 4 Dock
Thunderbolt 4 ports quantity Ports & interfaces - 1
Title - ASUS Triple 4K Thunderbolt 4 Dock DC500 Wired Black
Unit Box Height - 0.255
Unit Box Length - 0.26
Unit Box Width - 0.065
Unit Calculated Volume - 0.004309 cubm
Unit Calculated Weight - 1.42 kg
Units per Pallet - 0
Units per Shipping Box - 1
URL - https://www.asus.com/accessories/docks-dongles-and-cable/asus-docks-dongles-and-cable/asus-triple-4k-thunderbolt-4-dock-dc500/
USB 2.0 ports quantity Ports & interfaces - 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Ports & interfaces - 2
USB Power Delivery (USB PD) Ports & interfaces - Yes
USB Power Delivery up to Ports & interfaces - 96 W
Vendor Homepage - https://www.asus.com/accessories/docks-dongles-and-cable/asus-docks-dongles-and-cable/asus-triple-4k-thunderbolt-4-dock-dc500/
Wake-on-LAN ready Network - Yes
Warranty - 12 months
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
warrantyLength - 24
warrantyType - F
Weight - 1.398
weight - 1420
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 21 mm
Weight & dimensions - Weight - 335 g
Weight & dimensions - Width - 185 mm
Weight Weight & dimensions - 335 g
Width Weight & dimensions - 185 mm
Windows operating systems supported Software - Windows 10, Windows 11
