Raidsonic ICY BOX IB-DK4061-CPD 12in1, 2xHDMI, PD 100W

Accessories included -
Brand - ICY BOX
BrandPartCode - 61059
Category - Laptop Docks & Port Replicators
Category - Root/Accessories | Exploitation/Cables and adapters/adapter/USB
Color - Anthracite
Compatible with -
Dane techniczne: Dodatkowe informacje - długość kabla 15 cm
Dane techniczne: Gwarancja - 2 lata w serwisie zewnętrznym
Dane techniczne: Kolor - szary
Dane techniczne: Końcówka 1 - 1 x USB-C
Dane techniczne: Końcówka 2 - 1 x czytnik kart microSD
Dane techniczne: Końcówka 2 - 1 x czytnik kart SD
Dane techniczne: Końcówka 2 - 1 x miniJack 3.5 mm gniazdo
Dane techniczne: Końcówka 2 - 1 x RJ-45 gniazdo
Dane techniczne: Końcówka 2 - 2 x HDMI gniazdo
Dane techniczne: Końcówka 2 - 2 x USB-A 2.0
Dane techniczne: Końcówka 2 - 2 x USB-A 3.2 gniazdo
Dane techniczne: Końcówka 2 - 2 x USB-C gniazdo
Dane techniczne: Maks. rozdzielczość - 7680 x 4320 (8K | 30 Hz)
Dane techniczne: Moc - 100 W
Dane techniczne: Producent - ICY Box
Dane techniczne: Standard - HDMI
Dane techniczne: Standard - microSD
Dane techniczne: Standard - miniJack
Dane techniczne: Standard - RJ-45
Dane techniczne: Standard - SD
Dane techniczne: Standard - USB-A
Dane techniczne: Standard - USB-C
Dane techniczne: Typ - hub
Dane techniczne: Waga - 103 g
Dane techniczne: Wymiary - 57 x 122 x 17 mm

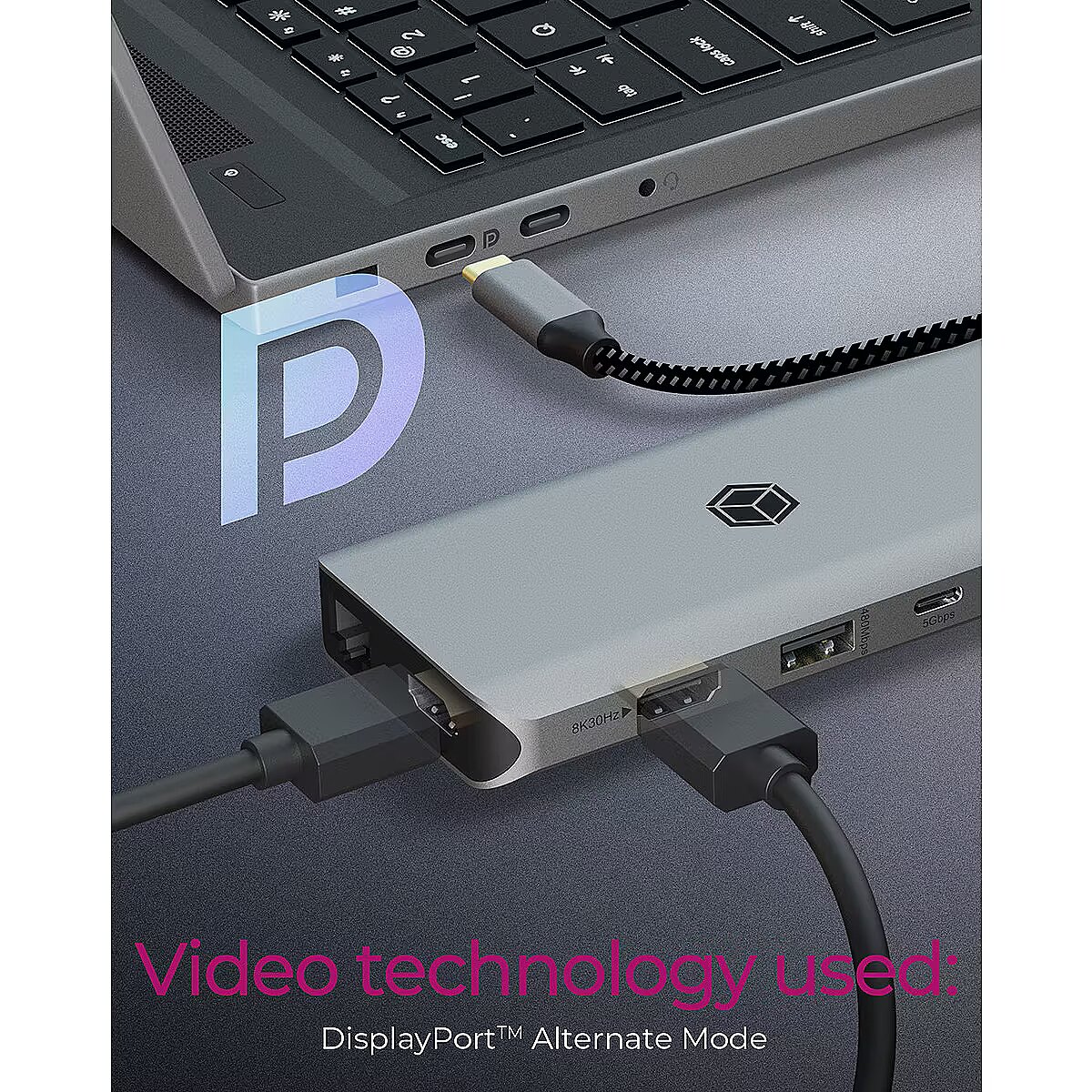

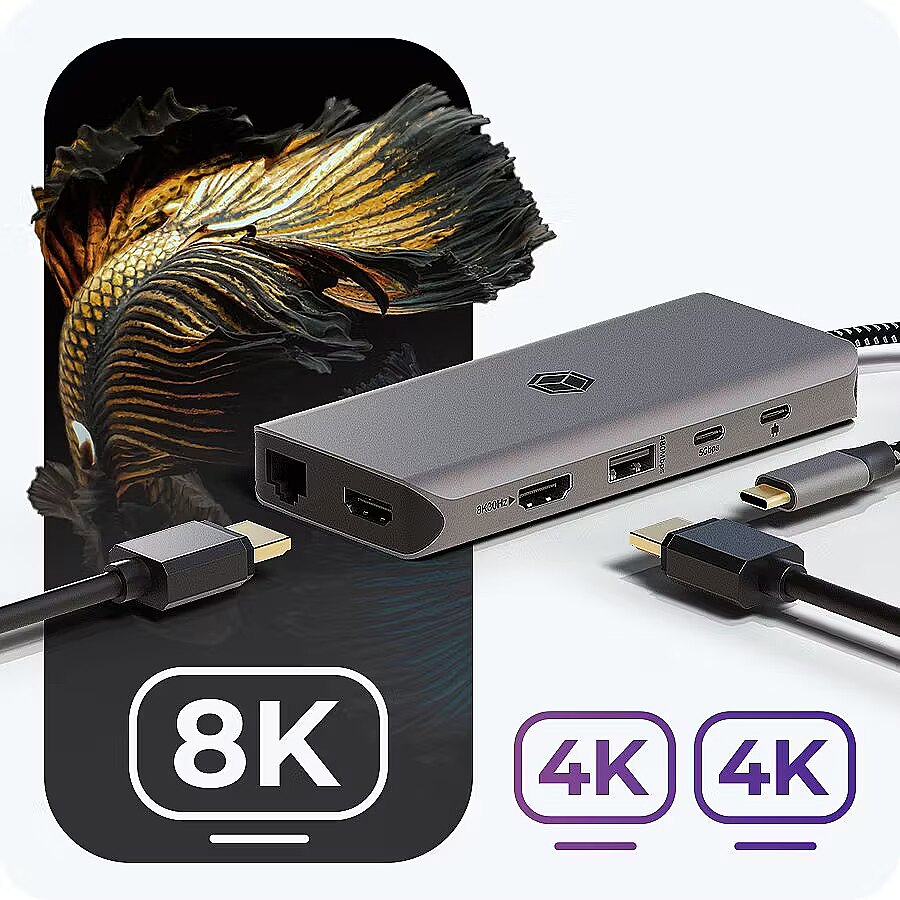

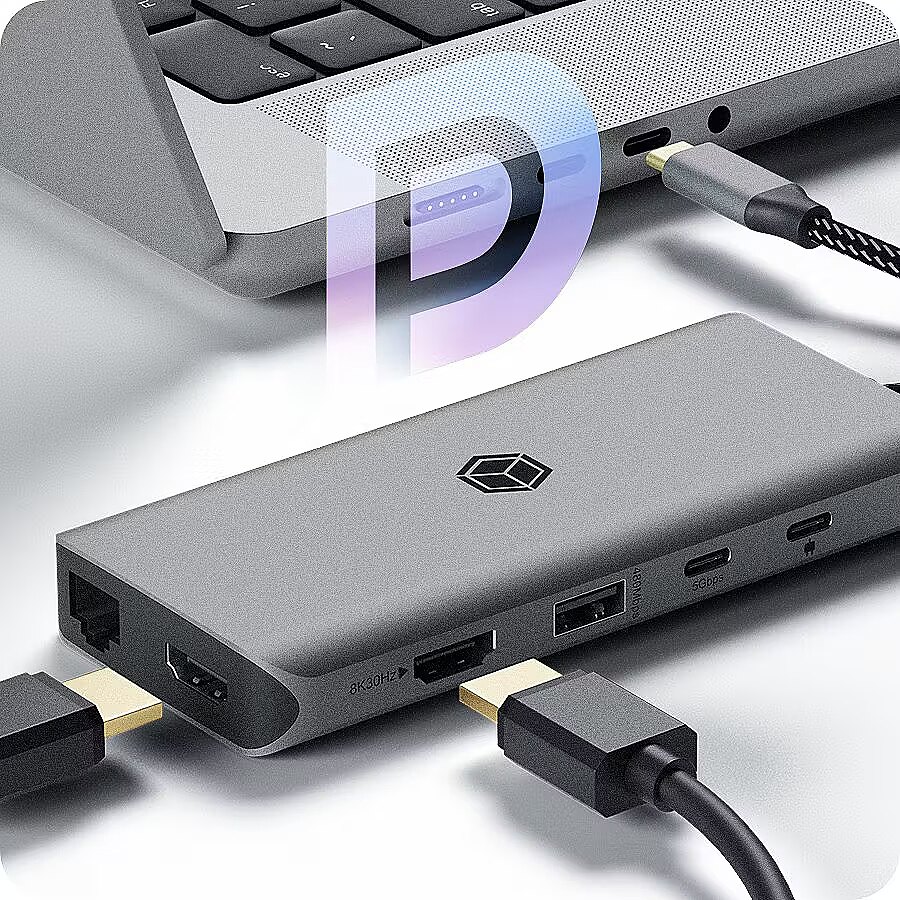

Description - 12-in-1 USB Type-C Dock with PD up to 100 W HIGH RESOLUTION Immerse yourself in razor-sharp images: Once 8K@30 Hz or twice 4K@60/30 Hz via two HDMI ports for an optimal working environment, depending on the performance of your host computer MULTI-TOOL This mobile DockingStation fits in any trouser pocket. High-quality aluminium and resistant materials make it a robust travel companion that always has the right connection at hand WELL CONNECTED No matter how you turn it, the twist-proof USB Type-C connector fits immediately and host computer and DockingStation are connected. Data transfer, video and audio output as well as power supply are available via only one connection with DP Alt Mode function VIDEO TECHNOLOGY With the DP Alt Mode Technology of this DockingStation, the graphic signals of your host computer are passed through directly, provided that it has the DisplayPort Alt Mode functionality. For maximum performance and best connection OPERATING SYSTEMS Our device works smoothly with Windows, macOS and Chrome OS. No driver installation required if your host computer supports this technology. Just plug in and go
Designation - CE+WEEE
dimension depth - 25 mm
dimension height - 220 mm
Dimensions - 57x122x17 mm
dimension weight - 175 g
dimension width - 105 mm
Docking connector - No
ean - 4250078173915
Eans - 4250078173915
GTIN - 4250078173915
guarantee - 24
guarantee_type - normal

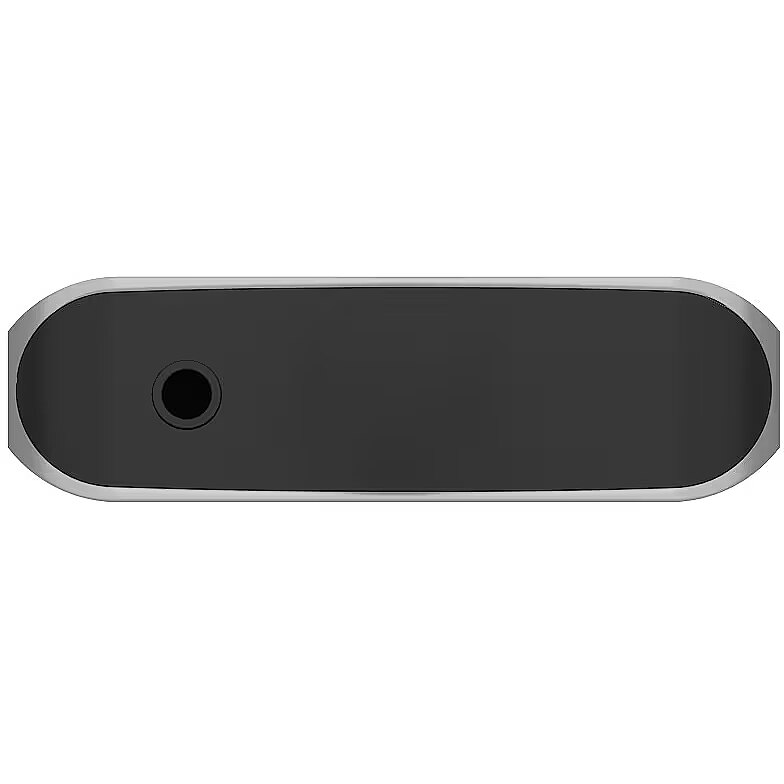

I/O ports - 1 x 3,5 mm minijack (Combo)

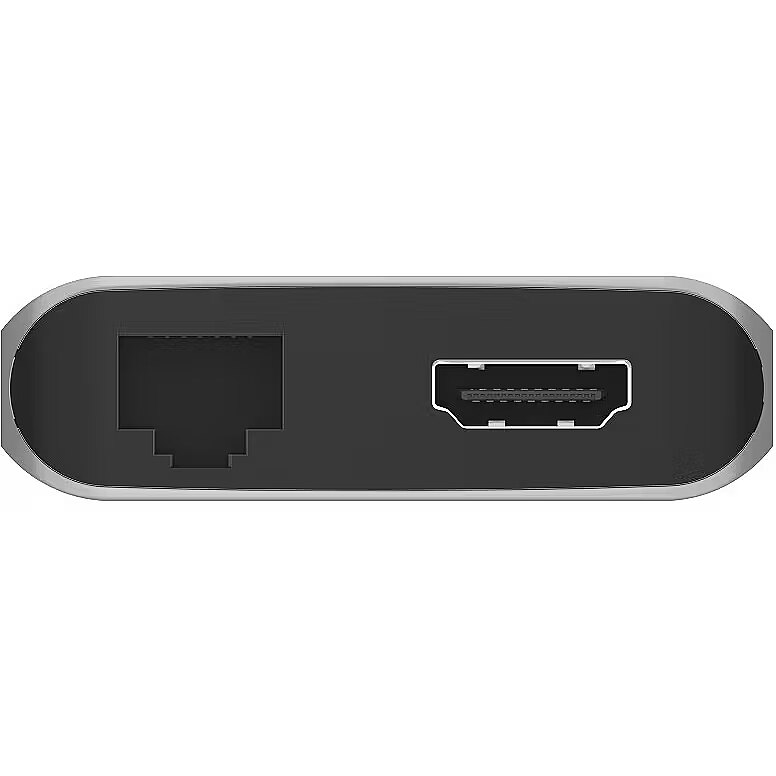

I/O ports - 1 x RJ-45 (LAN)
I/O ports - 1 x SD Card Reader
I/O ports - 1 x USB 3.1 Type C
I/O ports - 1 x USB Power
I/O ports - 2 x HDMI Type A
I/O ports - 2 x USB 2.0 Type A
I/O ports - 2 x USB 3.0 Type A
Logistics data - Harmonized System (HS) code - 84718000
Logistics data - Master (outer) case gross weight - 10.8 kg
Logistics data - Master (outer) case height - 285 mm
Logistics data - Master (outer) case length - 335 mm
Logistics data - Master (outer) case width - 445 mm
Logistics data - Products per master (outer) case - 60 pc(s)

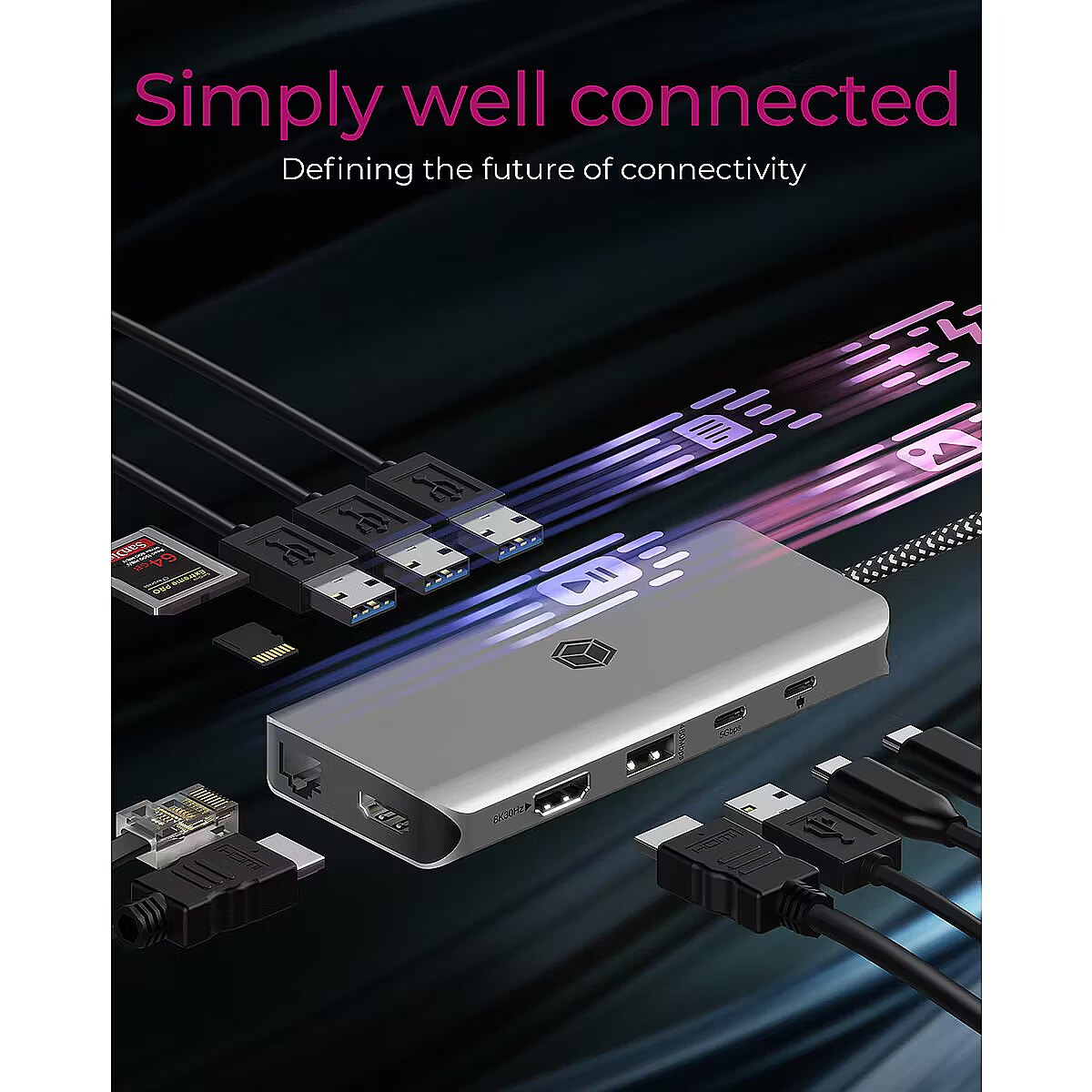

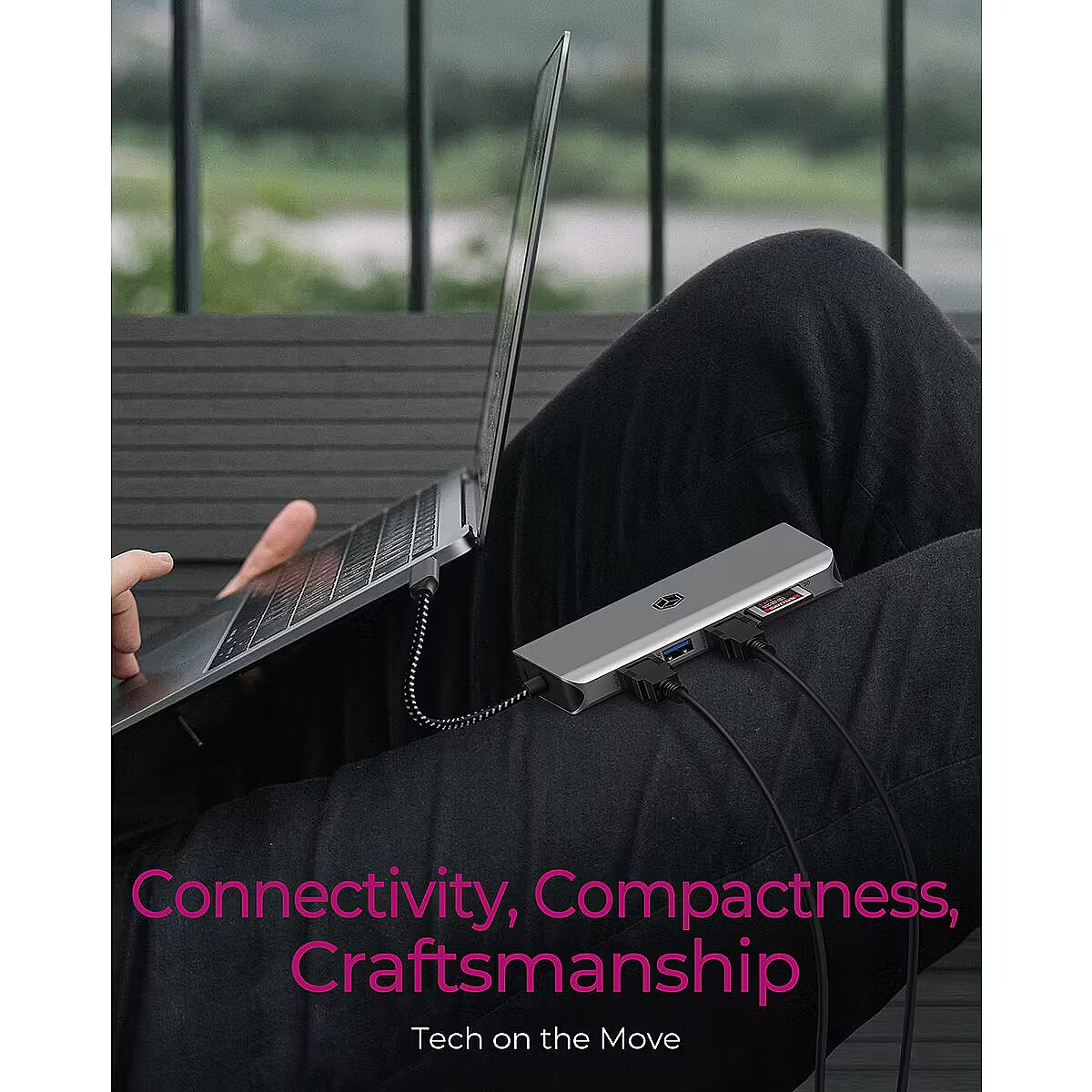

LongDesc - Seamless Integration & Con- nectivityNavigate seamlessly between devices and enjoy the perfect com- plement both at home and on the move. Equipped with plenty of USB ports for external devices, the product offers optimal versatility, secure and stable Gbit LAN for fast connections and headset jack included.Ready for the future: Experience 8K quality!8K resolution is the future of picture quality, and this device is already geared towards it. Connect two 4K monitors or immerse yourself in the breathtaking clarity of a single 8K display. From detailed graphics tasks to cinema experiences. Taking your performance to a new level. Reliable display transmissionWith DisplayPort™ Alternate Mode, we define a reliable and high- quality way to transmit graphics signals from your host device. This approach ensures seamless visual transmission and guarantees that every image, every colour and every detail is displayed as intended.

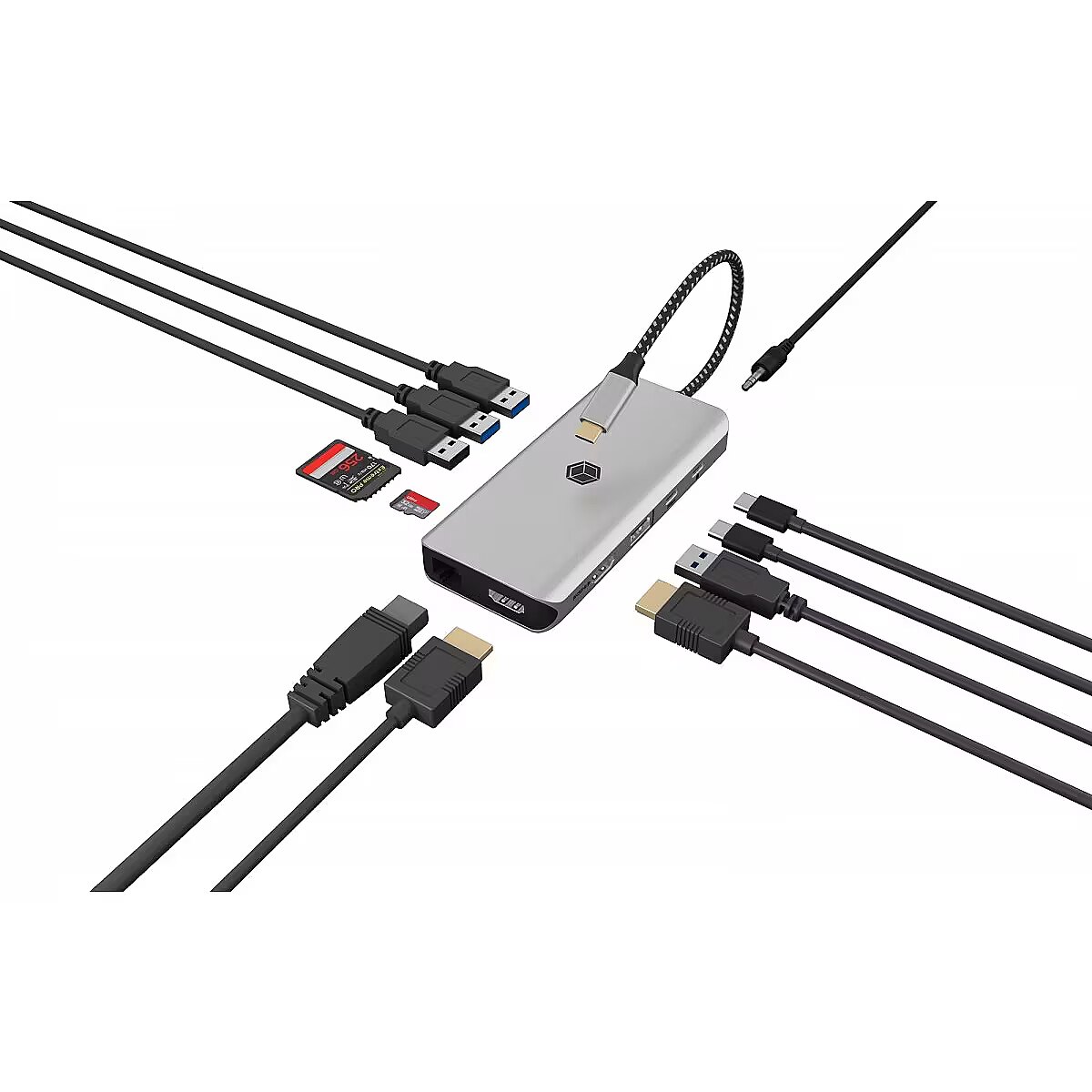

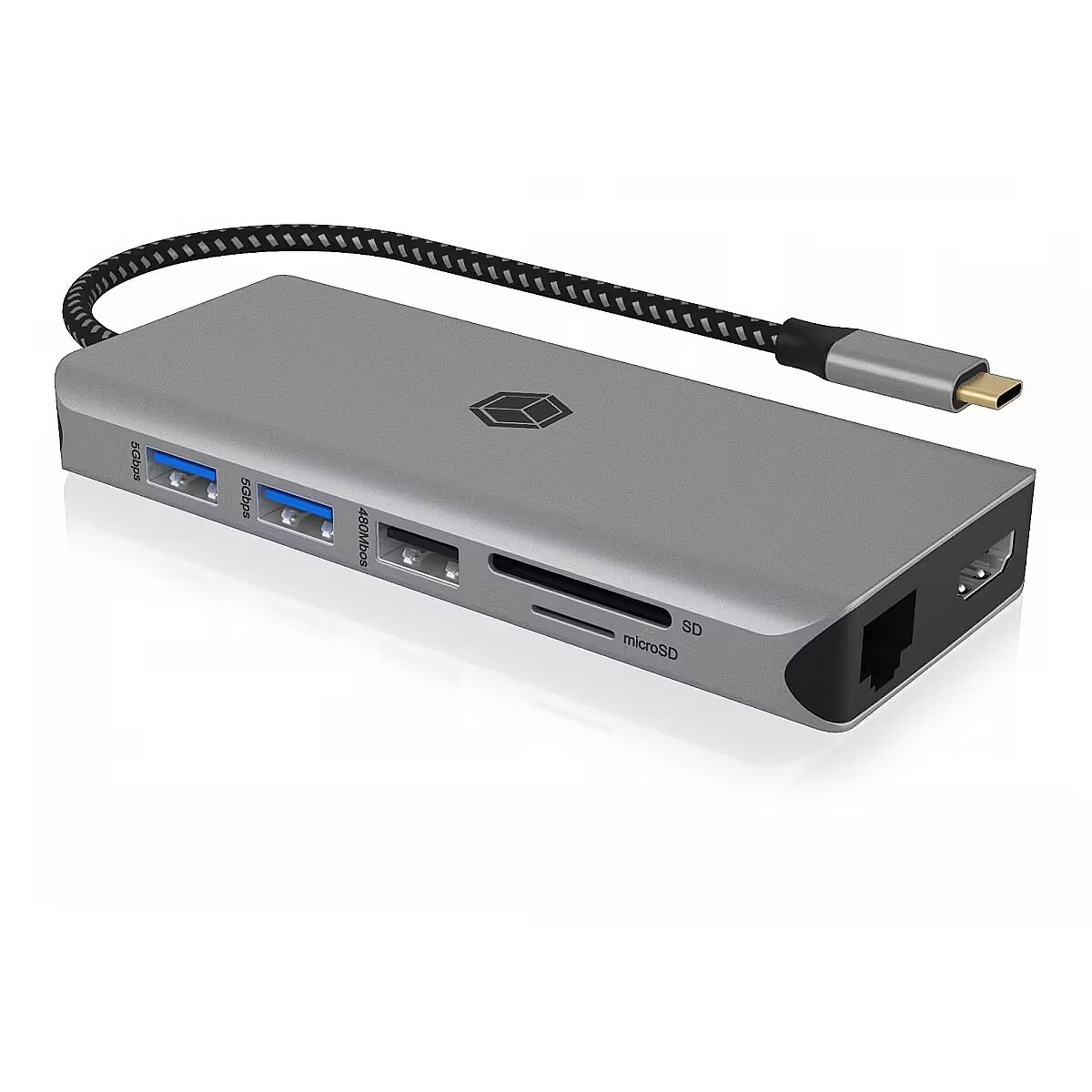

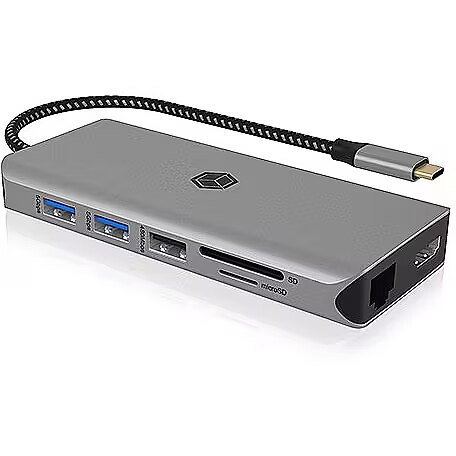

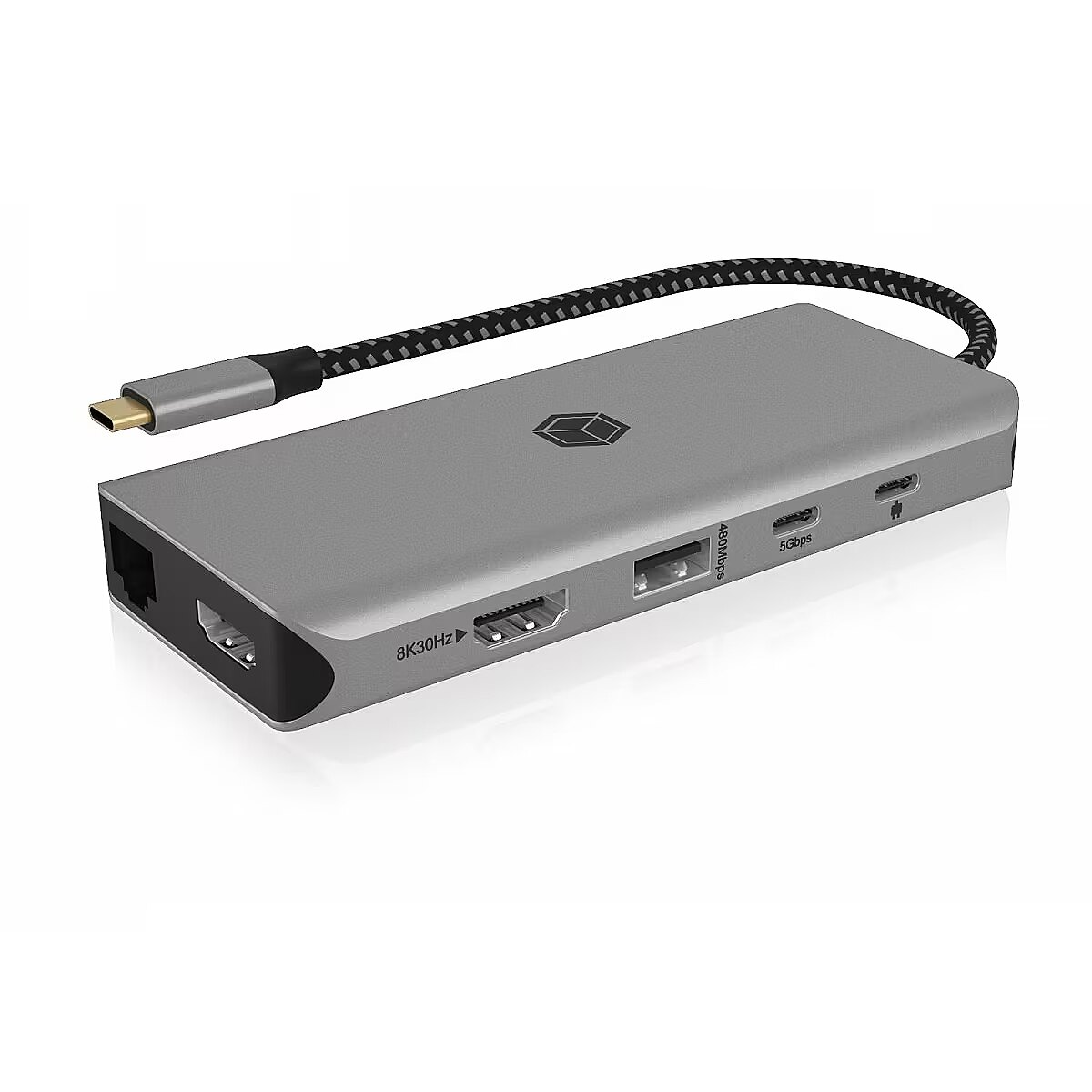

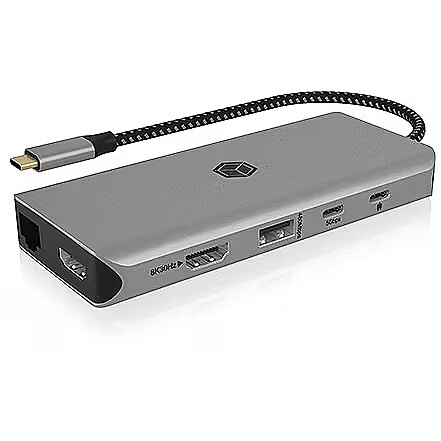

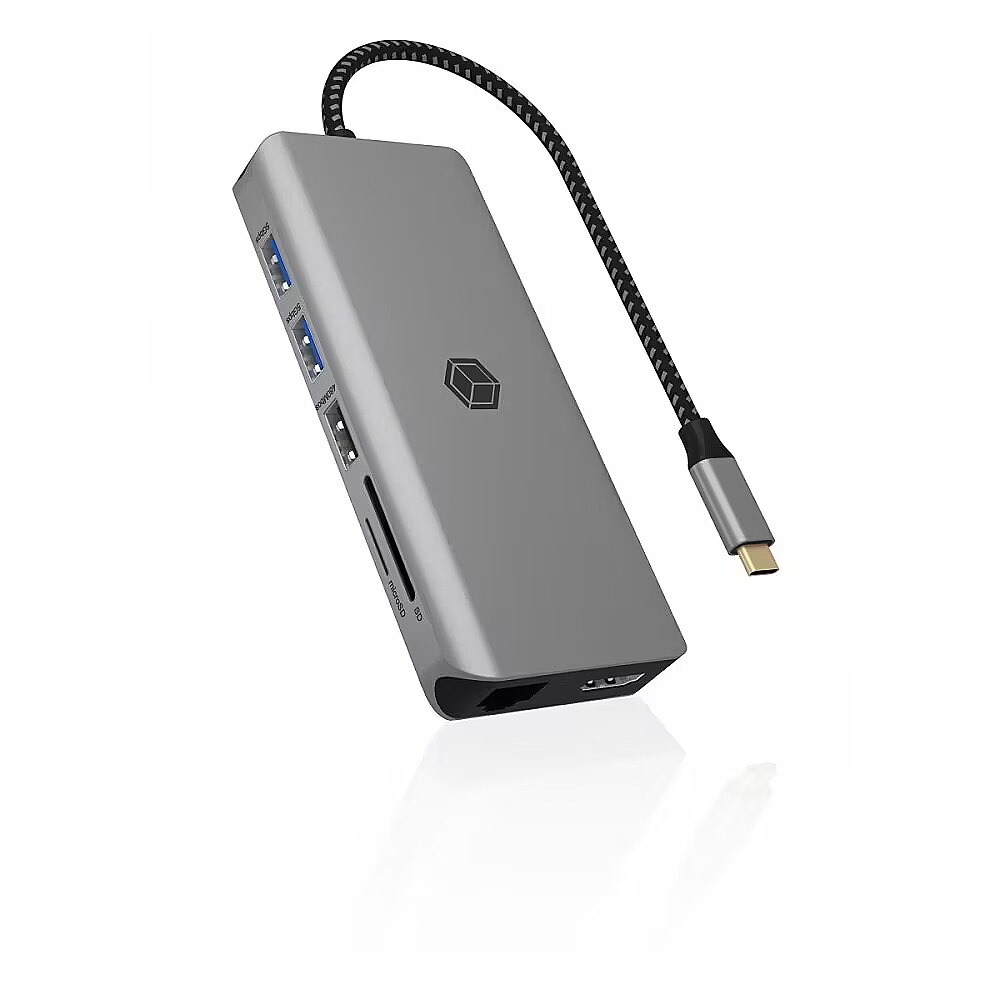

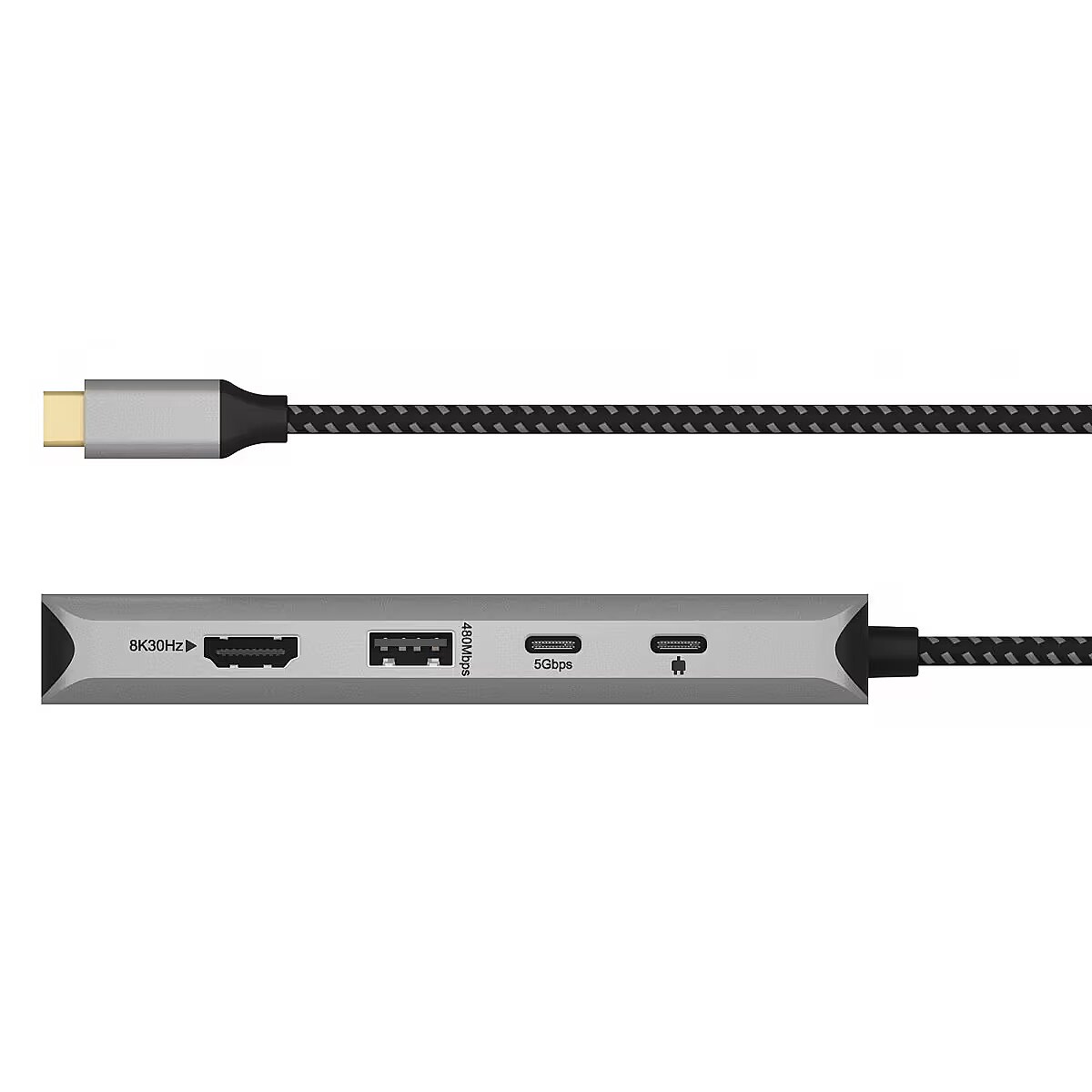

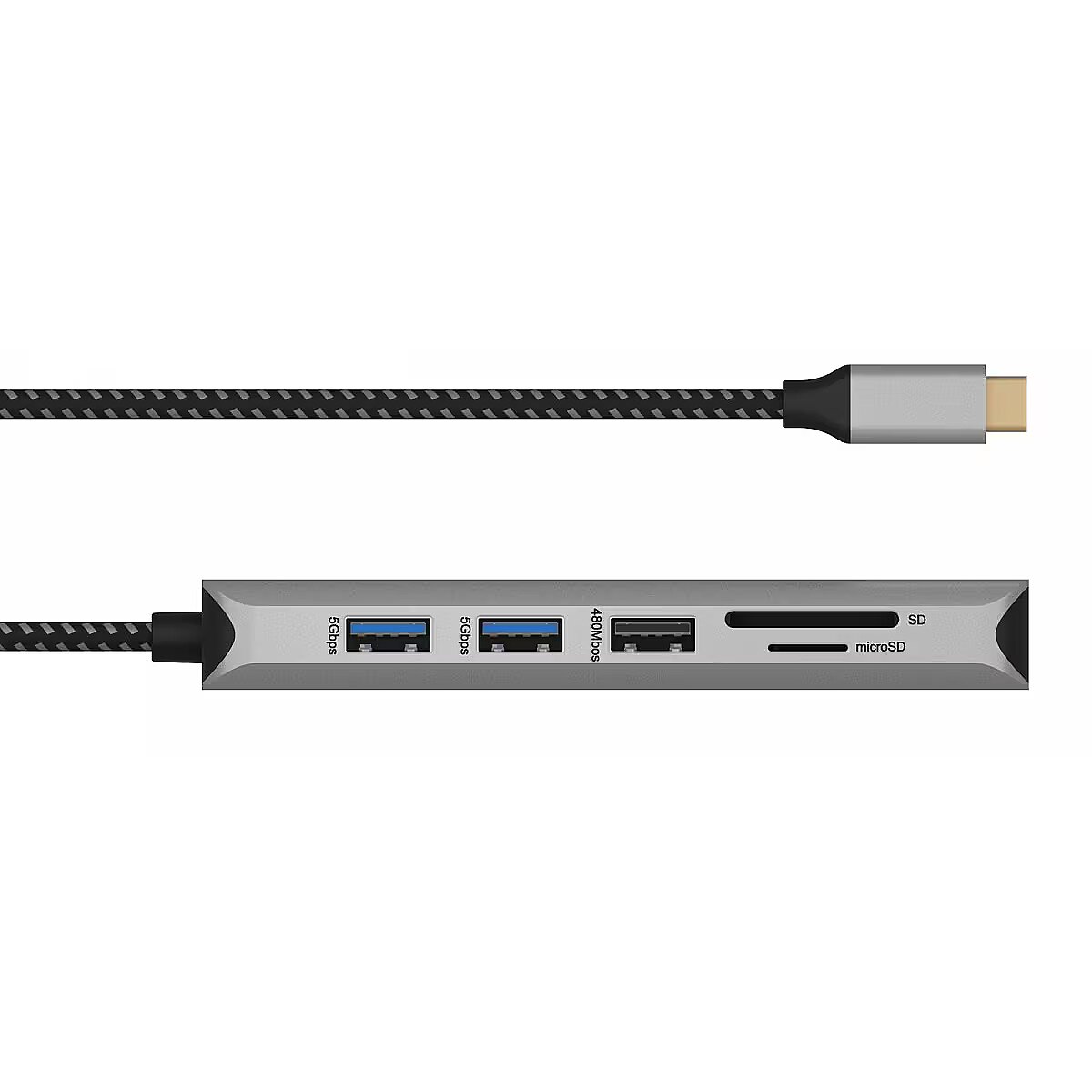

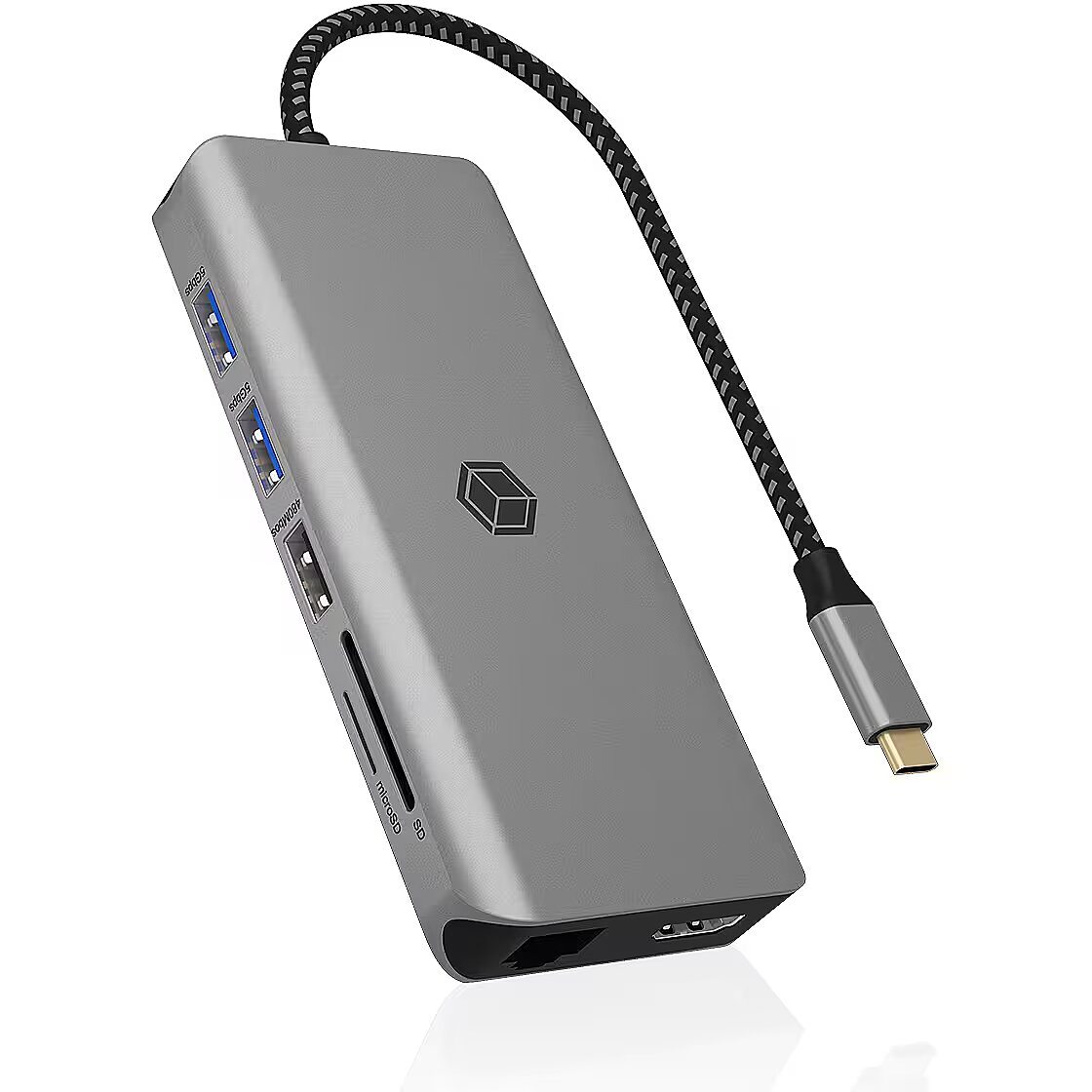

LongProductName - 12-in-1, 2 x HDMI, 1x USB 3.2 Gen 1 Type-C, 2x USB 3.2 Gen 1 Type-A, 2x USB 2.0 Type-A, SD/microSD, 3.5 mm, RJ45, 57 x 122 x 17 mm, 103 g
LongSummaryDescription - ICY BOX IB-DK4061-CPD. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD, Maximum refresh rate: 30 Hz. USB cable length: 0.15 m. Other operating systems supported: ChromeOS
name - ICY BOX IB-DK4061-CPD 12in1, 2xHDMI, PD 100W
Name - Icy Box USB-C 12w1
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Other features -
Packaging content - Manual - Yes
Packaging data - Package depth - 200 mm
Packaging data - Package height - 25 mm
Packaging data - Package weight - 180 g
Packaging data - Package width - 100 mm
Packaging data - Quantity per pack - 1 pc(s)
Performance - Card reader integrated - Yes
Performance - Compatible memory cards - MicroSD (TransFlash), SD
Performance - Country of origin - China
Performance - Housing material - Acrylonitrile butadiene styrene (ABS), Aluminium
Performance - Maximum refresh rate - 30 Hz
Performance - Product colour - Grey
Performance - UASP support - Yes
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Host interface - USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 2
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery revision - 3.0
Ports & interfaces - USB Power Delivery up to - 100 W
Power - USB cable length - 0.15 m
Producent: Nazwa producenta / importera - ICY Box
RaidSonic Technology GmbH
Kurt-Fischer-Str. 50
22926 Ahrensburgproducer - IcyBox
Producer - ICY Box
ProducerCode - IB-DK4061-CPD
ProductName - IB-DK4061-CPD
ShortDescription -
ShortSummaryDescription - ICY BOX IB-DK4061-CPD, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 3.5 mm, 10,100,1000 Mbit/s, Grey

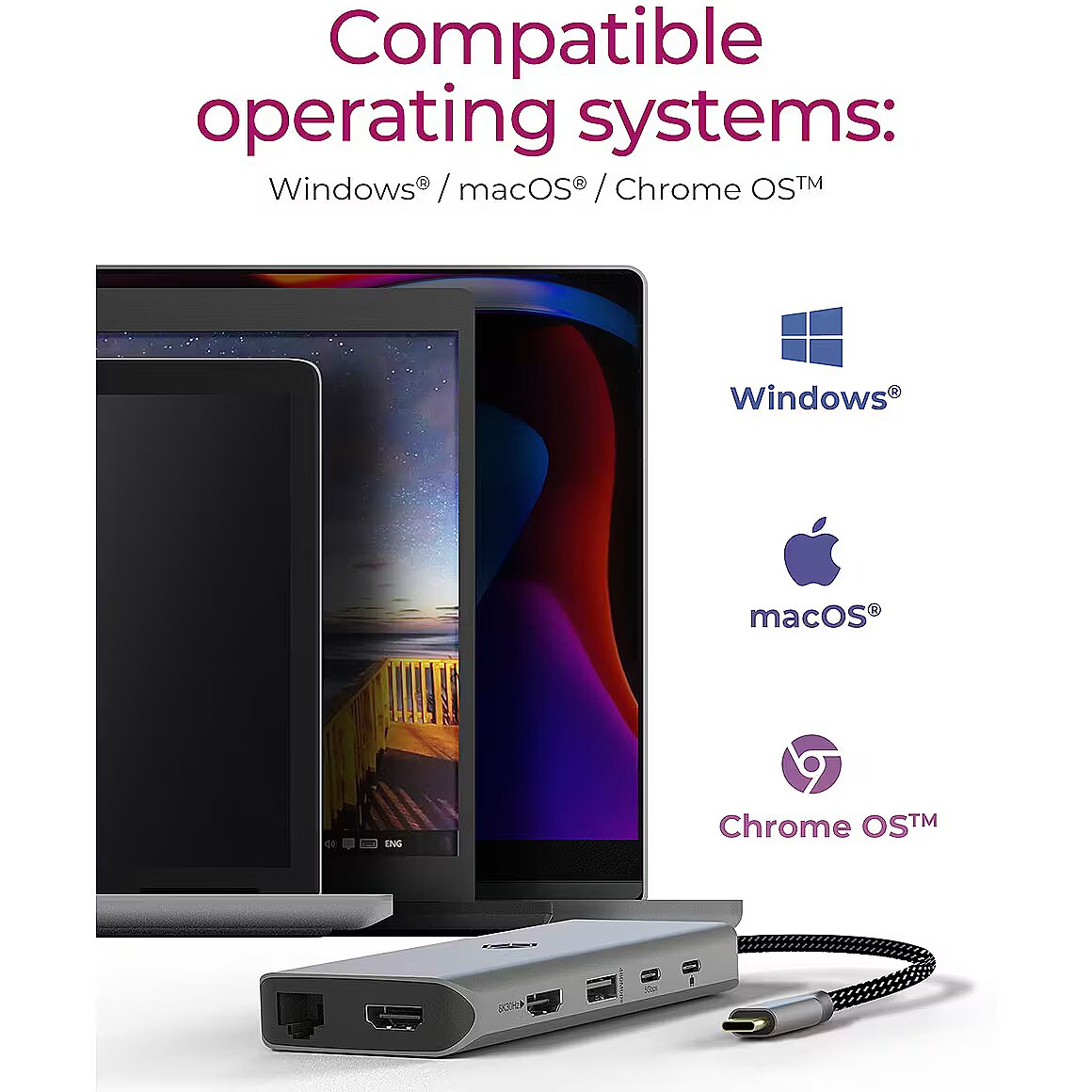

Software - Mac operating systems supported - Yes
Software - Other operating systems supported - ChromeOS
Software - Windows operating systems supported - Yes

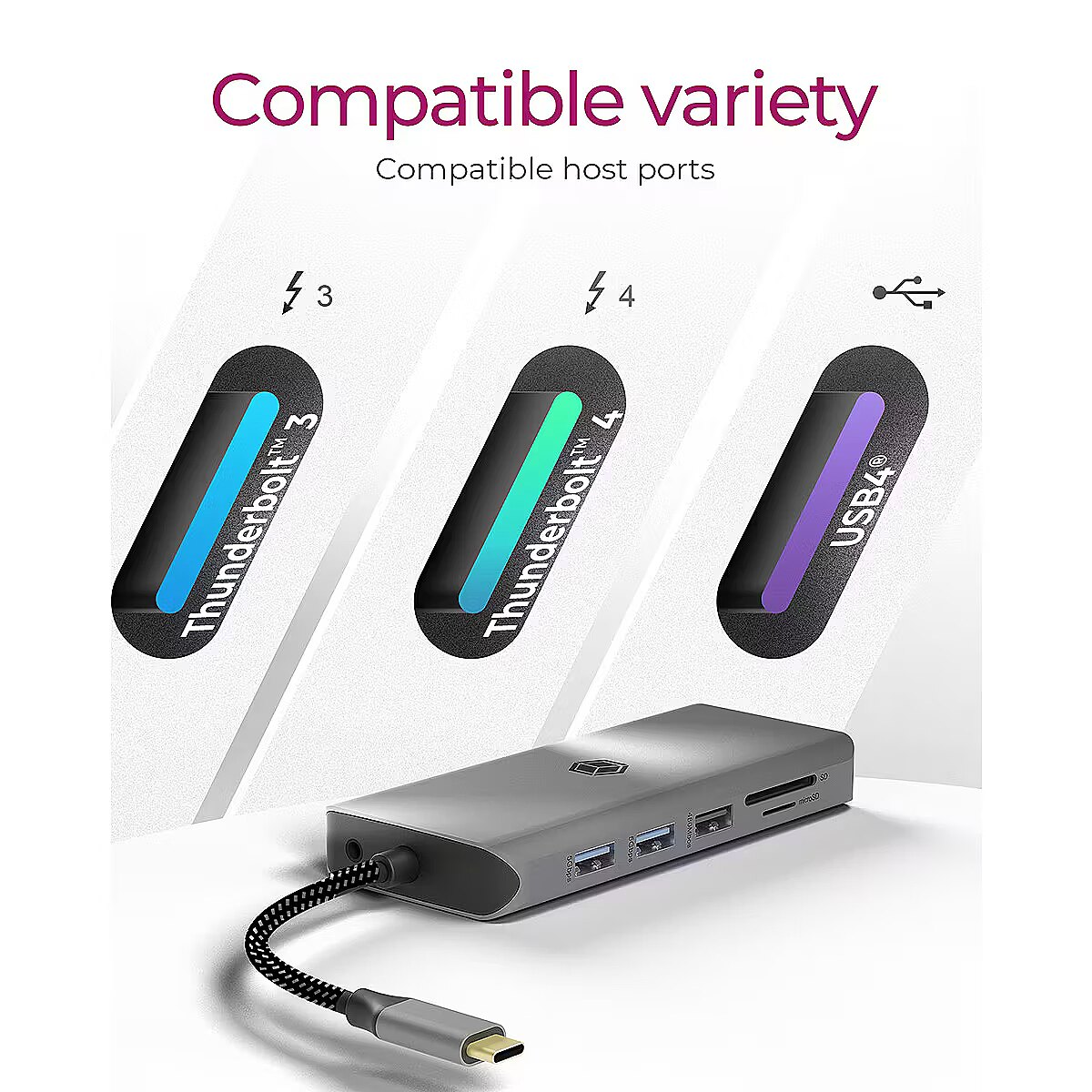

System Requirements - Compatible with Thunderbolt 3/4/USB4 USB Type-C equipped computers
Support of DisplayPort Alt Mode and Power Delivery required!
Supports MST (Multi Stream Protocol) for Windows bases computers
Only supports SST (Single Stream Protocol) for macOS based computers
Multi-LUN card readers: allow the use of two cards simultaneously
No power supply included (only necessary for Power Delivery)
Title - ICY BOX IB-DK4061-CPD Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
URL - https://icybox.uk/product/dockingstation/IB-DK4061-CPD
vendpn - IB-DK4061-CPD
WarrantyInfo -
Weight - 0.103 kg
Weight & dimensions - Depth - 57 mm
Weight & dimensions - Height - 17 mm
Weight & dimensions - Weight - 103 g
Weight & dimensions - Width - 122 mm
