Accessories included -
Active power - 360 W
Apparent power - 700 VA
Backup time (100% load) - 5 min
Battery capacity - 7 Ah
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Chassis type - Tower
Color - Black
Description - The 5E Gen2 UPS provides affordable power protection for mission-critical applications in residential and professional environments. Power protection The 5E Gen2 UPS protects applications and data from unexpected power loss. Double-boost Automatic Voltage Regulation (AVR) technology regulates mains fluctuations (voltage dips and rises) to conserve energy in the battery for the duration of a power outage. A wide range of models covers the power requirements of many IT devices. The auto-restart function allows the UPS to restart automatically when mains power returns after the battery has been completely discharged. Perfect protection for: Computers, workstations and peripherals; Internet routers, basic NAS servers; Televisions, games consoles and other more power-hungry devices; Home security systems; Point of sale, ticket vending machines. Easy installation The 5E Gen2 UPS offers local sockets (FR, DIN/IT, BS and IEC) to make it easy to connect and protect the most commonly used equipment. The fanless design on versions up to 1200 VA ensures silent operation in a domestic environment. The compact housing allows convenient installation in the home or office. Easy management of the UPS from the PC (on USB models): Automatic connection to power tools in Windows / macOS / Linux for safe system shutdown. Energy consumption analysis and management of UPS parameters with Eaton UPS Companion software. Peace of mind A leading and trusted manufacturer with many years of experience and high quality standards: CE certified by an external agency (TUV) in accordance with the latest international safety standards. Know that you can rely on your batteries around the clock: The batteries of the 5E Gen2 UPS are constantly charged (even when the UPS is switched off). The UPS can start up without mains power (cold start). Automatic battery test and battery replacement alarm. Take the worry away with a two-year warranty.
Designation - CE+WEEE
dimension depth - 200 mm
dimension height - 240 mm
Dimensions - 288 x 148 x 100 mm
dimension weight - 5000 g
dimension width - 360 mm
ean - 3553340704154
Eans - 3553340704154
Environment requirements - Operating temperature from 0 to 40°C
Filters / protection - Voltage drop
guarantee - 24
guarantee_type - external
Hold-up time (maks) - 10 ms
I/O connectors - None
Input power ports - Wtyczka sieciowa

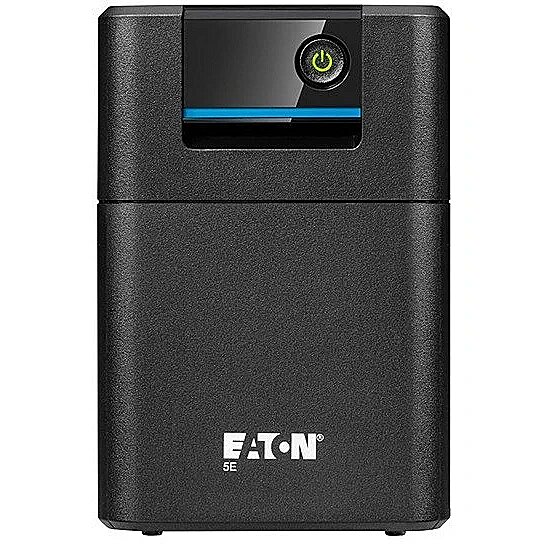

Name - Eaton 5E 700 FR G2
name - Eaton 5E 700 FR G2 5E700F
No. of batteries - 1
Number of phases input - 1 (230V)
Other features - Certifications EN IEC 62040-1:2019 ; EN 62040-2:2006 ; IEC 62040-2: 2016, IEC 62040-3: 2021; C.E. ; EAC ; UKCA ; cm ; Ukr Compliance with EU Directives: LVD (CB report); EMC ; RoHS ; WEEE ; Packaging ; Batteries
Output power ports - 2 x C/E type
producer - Eaton
Producer - Eaton
ProducerCode - 5E700F
ShortDescription -
Software - Eaton UPS Companion
Special functions -
UPS Architecture - line-interactive
vendpn - 5E700F
Voltage - 12 V
Weight - 4.3 kg
