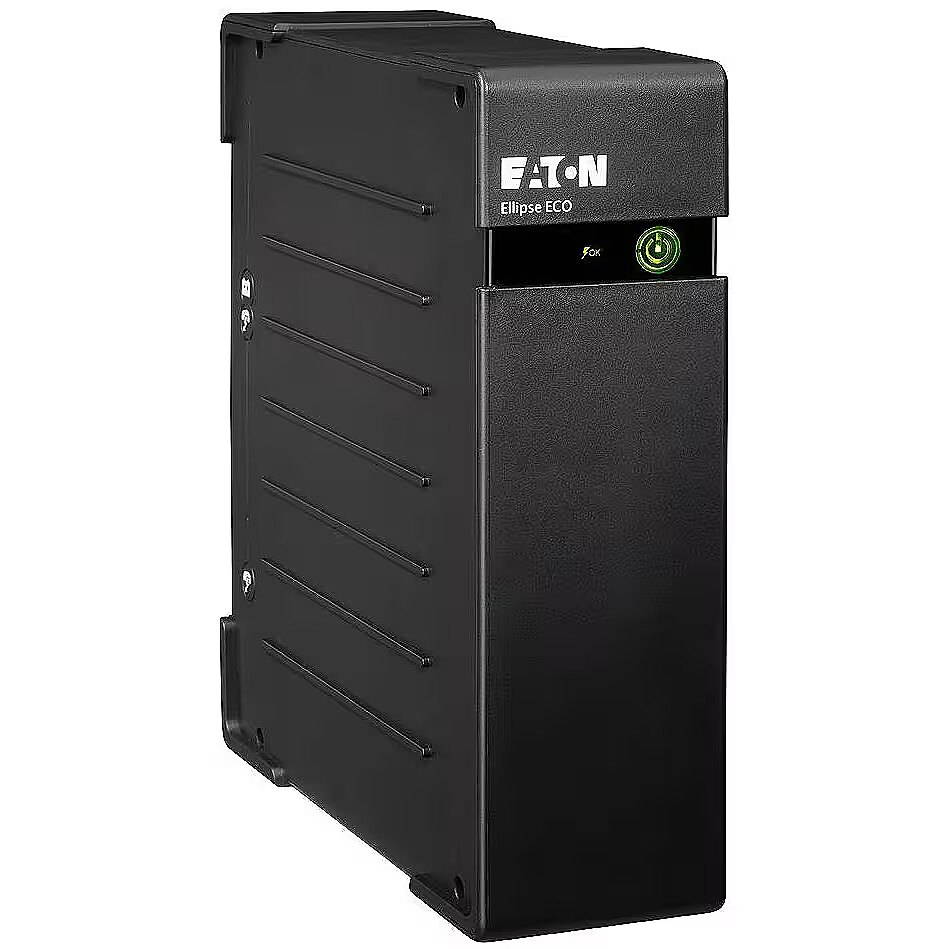

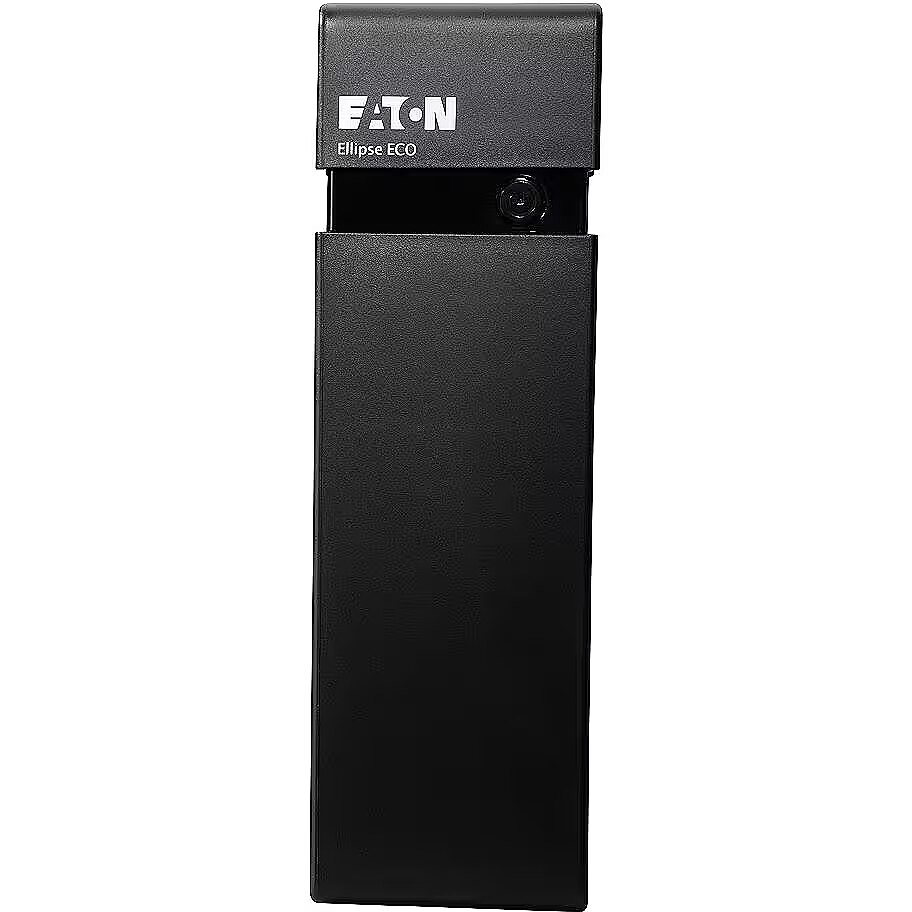

Eaton EL650IEC, 650VA, 400W

Accessories included -
Active power - 400 W
Alarm - -
Apparent power - 650 VA
Battery - Automatic battery test - Yes
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - No
Battery - Typical backup time at half load - 9 min
BatteryType - Replaceable sealed lead acid
Category Code - UPW
Chassis type - Rack
Chassis type - Tower
Color - -
Color - Black
Colour - Black
Connectors - RJ-11
ControlPanel - -
Depth - 235 mm
Description - Eaton Ellipse ECO 650 IEC
Description - Eaton Ellipse ECO 650 IECThe Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
Full specification: http://powerquality.eaton.com/EL650IEC.aspx?CX=101
Design - Form factor - Tower
Design - LED indicators - Battery replacement
Design - Product colour - Black
Design - Rack capacity - 2U
Design - Safety - IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
dimensionalWeight - 2679
dimension depth - 140 mm
dimension height - 330 mm
Dimensions - - Height: 263 mm
- Width: 81 mm
- Depth: 235 mm
Dimensions - 263 x 81 x 235mm
dimension weight - 4000 g
dimension width - 290 mm
ean - 3553340620638
Environment requirements -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement
Features - Emergency Power Off (EPO) - No
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 284 V
Features - Input operation voltage (min) - 161 V
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 400 W
Features - Output power capacity - 0.65 kVA
Features - Surge protection - Yes
Features - Surge protection features - Fax
Features - Surge protection features - Modem
Features - Surge protection features - Network
Features - Surge protection features - Telephone
Features - UPS topology - Standby (Offline)
Filters / protection - Data line
Filters / protection - Overdischarge
Filters / protection - Surge
FormFactor - Other
GrossWeight - 4.150 kg
guarantee - 24
guarantee_type - external
Height - 263 mm
InputConnections - -
InputFrequency - 50-60 Hz autoselect
Input ports - Single, IEC320 C14
Input power ports - IEC-C14
InputVoltage - 184 V - 264 V (adjustable to 161 V - 284 V)
InterfacePorts - -
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - With an efficient electrical design and the EcoControl function (USB models), which automatically disables peripherals when the master device is turned off, the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
MANUFDATASHEET - http://www.google.ee/url?sa=t&rct=j&q=&esrc=s&frm=1&source=web&cd=1&cad=rja&ved=0CCgQFjAA&url=http%3A%2F%2Flit.powerware.com%2Fll_download.asp%3Ffile%3DEaton-Ellipse-ECO-datasheet-rev-B-low-pdf.pdf&ei=RuKAUpzhBsPNhAf2mYHIDg&usg=AFQjCNHHroTtcgPB-33mgzDEb-J4xFyDpg&bvm=bv.56146854,d.bGE
name - Ellipse ECO 650 IEC EL650IEC
Number of phases input - 1 (230V)
Other features - - Input voltage range: 184 - 264V
- 3 output sockets with backup and protection + 1 with protection
- Replaceable sealed lead-acid batteries
- Energy-efficient build
- Time: 50% (9 min), 70% (6 minutes)
Other features - Input connection type - IEC
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 220-240 V
Other features - Overload protection - Yes
OutputConnections - 4
OutputFrequency - -
Output power capacity, VA - 650 VA
Output power capacity, W - 400 Watts
Output power connector type - IEC 320 C13

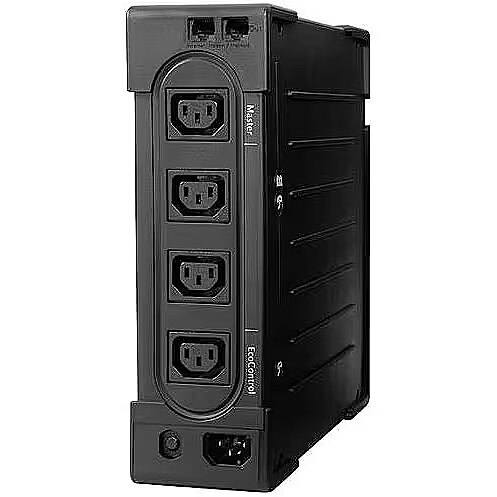

Output power ports - 4 x IEC-C13
OutputVoltage - 230 V (adjustable to 220 V, 230 V, 240 V
PackageContents - -
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Modem (RJ-11) ports - 1
Ports & interfaces - Power plug - C14 coupler
PowerVAW - 650 VA
PowerW - 400 W
ProdDesc - 650VA/400W UPS, offline, IEC 3+1
producer - Eaton
producerCode - EL650IEC
productName - Eaton Ellipse ECO 650 IEC uninterruptible power supply (UPS) Standby (Offline) 0.65 kVA 400 W 4 AC outlet(s)
Product Net Weight - 4 kg
ProductPicture - http://www.tdbaltic.ee/images/ds4/EL800USBIEC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
productSize - Normal
RechargeTime - -
RJ45 - -
Runtime - 9/6
sizeX - 330
sizeY - 290
sizeZ - 140
SmartSlot - -
Software - - Easy installation in an office environment
- Protecting data line
- Automatic switch
- LED idicator + audible alarm
- Battery test
- Cold start
Special functions - - Łatwy montaż w środowisku biurowym
- Ochrona linni transmisji danych
- Automatyczny wyłącznik
- Kontrolki LED + alarm dźwiękowy
- Test akumulatora
- Zimny start
Topology - Offline
Unit Box Height - 0.325
Unit Box Length - 0.28
Unit Box Width - 0.14
Unit Calculated Volume - 0 cubm
Unit Calculated Weight - 4 kg
Units per Shipping Box - 1
UPS Architecture - off-line (standby)
USB - -
Vendor Homepage - powerquality.eaton.com/EL650IEC.aspx?CX=61&&GUID=2e34d35f-fc91-4f59-9e5d-262b8e4341bb&PKEY=AAEC4B35-6486-45CF-8308-119F0ED401E7
vendpn - EL650IEC
Warranty - 2 years
Warranty - 24 months
warrantyLength - 24
warrantyType - F
WaveformType - -
Weight - 3.6 kg
Weight - 3.600 Kg
weight - 4200
Weight & dimensions - Depth - 235 mm
Weight & dimensions - Height - 263 mm
Weight & dimensions - Weight - 3.6 kg
Weight & dimensions - Width - 81 mm
Width - 81 mm
