Accessories included - USB cable + software
Active power - 400 W
Apparent power - 650 VA
Battery - Automatic battery test - Yes
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - No
Battery - Typical backup time at half load - 9 min
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Chassis type - Rack
Chassis type - Tower
Color - Black
Connectors - 1 x USB (Typ B)
Connectors - RJ-11

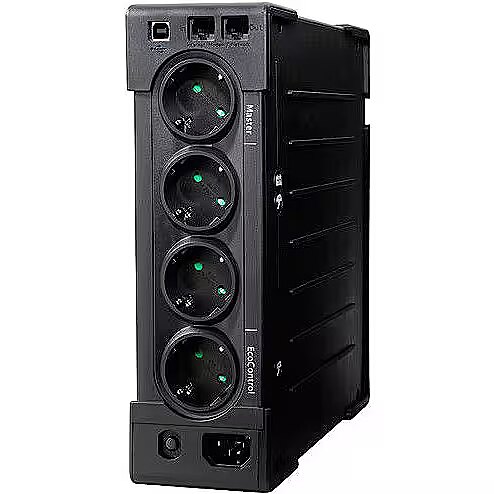

Description - Eaton Ellipse ECO 650 FR USBThe Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.Product features: http://powerquality.eaton.com/EL650USBFR.aspx?CX=101
Design - Form factor - Tower
Design - LED indicators - Battery replacement
Design - Product colour - Black
Design - Rack capacity - 2U
Design - Safety - IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
Designation - CE+WEEE
dimensionalWeight - 2598
dimension depth - 140 mm
dimension height - 280 mm
Dimensions - - Height: 263 mm
- Width: 81 mm
- Depth: 235 mm
dimension weight - 4262 g
dimension width - 320 mm
ean - 3553340620713
Eans - 3553340620713
Environment requirements -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement
Features - Emergency Power Off (EPO) - No
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 284 V
Features - Input operation voltage (min) - 161 V
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 400 W
Features - Output power capacity - 0.65 kVA
Features - Surge protection - Yes
Features - Surge protection features - Fax
Features - Surge protection features - Modem
Features - Surge protection features - Network
Features - Surge protection features - Telephone
Features - UPS topology - Standby (Offline)
Filters / protection - Data line
Filters / protection - Overdischarge
Filters / protection - Surge
guarantee - 24
guarantee_type - external
Input power ports - IEC-C14
Logistics data - Harmonized System (HS) code - 85078000
Name - Eaton Ellipse ECO EL650USBFR
name - Ellipse ECO 650 USB FR EL650USBFR
Number of phases input - 1 (230V)
Other features - - Input voltage range: 184 - 264V
- 3 output sockets with backup and protection + 1 with protection
- Replaceable sealed lead-acid batteries
- Energy-efficient build
- Time: 50% (9 min), 70% (6 minutes)
Other features - Compatible operating systems - Windows 7/Vista/XP\r\nMac OS X\r\nLinux
Other features - Input connection type - FR
Other features - Mac compatibility - Yes
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 220-240 V
Other features - Overload protection - Yes
Output power ports - 4 x C/E type
Packaging data - Bundled software - Eaton Intelligent Power
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - Type E
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Modem (RJ-11) ports - 1
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
producer - Eaton
Producer - Eaton
producerCode - EL650USBFR
ProducerCode - EL650USBFR
productName - Eaton Ellipse ECO 650 USB FR uninterruptible power supply (UPS) Standby (Offline) 0.65 kVA 400 W 4 AC outlet(s)
productSize - Normal
ShortDescription - 650 VA / 400 W
sizeX - 320
sizeY - 140
sizeZ - 290
Software - - Eaton Intelligent Power software included
- Compatible with: Windows 7/Vista/XP, Mac X OS, Linux
Special functions - - Easy installation in an office environment
- Protection of data transmission lines
- Automatic switch
- Indicators LED + audible alarm
- Battery test
- Cold start
- 1 slot PLC
- Automatic deactivation of idle peripherals
- USB port + cable
UPS Architecture - off-line (standby)
vendpn - EL650USBFR
Video -
warrantyLength - 24
warrantyType - F
Weight - 3.6 kg
weight - 4470
Weight & dimensions - Depth - 235 mm
Weight & dimensions - Height - 263 mm
Weight & dimensions - Weight - 3.6 kg
Weight & dimensions - Width - 81 mm
