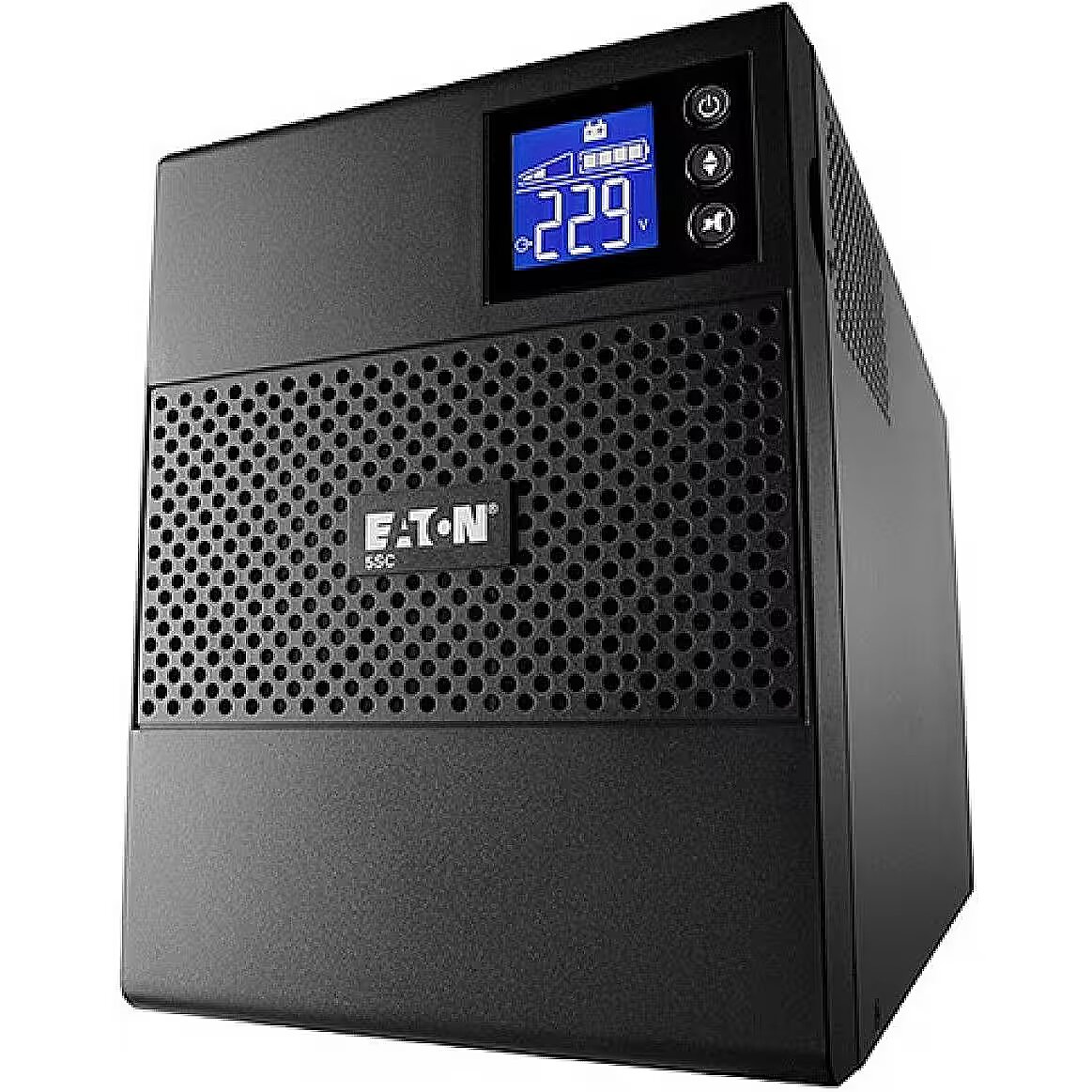

Eaton 5SC500I, 500VA 350W, IEC

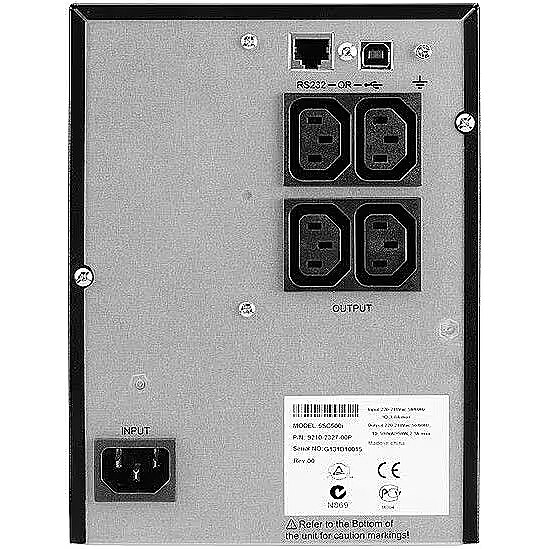

ACoutletsquantity - 4 AC outlet(s)
AC outlets quantity Ports & interfaces - 4 AC outlet(s)
ACoutlettypes - C13 coupler
AC outlet types Ports & interfaces - C13 coupler
Active power - 350 W
Additional information -
Apparent power - 500 VA
ARTIKEL1 - EATON 5SC 500I
ARTIKEL2 - 500/350
Audible alarm(s) Features - Yes
AutomaticVoltageRegulationAVR -
Battery -
Batterycapacity -
Batterytechnology -
Batteryvoltage -
Cablesincluded -
Category Code - UPW
Certification Certificates - CE/GS/C-Tick
Chassis type - Tower
Color - Black
Communication - Serial Port (RS-232)
Communication - USB
Depth - 240 mm
Depth Weight & dimensions - 240 mm
Description - Eaton 5SC UPS Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with todays most sensitive IT equipment
Description - Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with today’s most sensitive IT equipment.
Design -
Designation - CE+WEEE
dimension depth - 300 mm
dimension height - 300 mm
Dimensions - 150 x 240 x 210 mm
dimension weight - 7800 g
dimension width - 400 mm
Displaytype - LCD
Display type Design - LCD
ean - 743172045140
EANCode - 0743172045140
Efficiency - 97%
Efficiency Features - 97%
Features -
Formfactor - Tower
Form factor Design - Tower
Gewicht - 7.74
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - normal
Harmonized System (HS) code Logistics data - 85078000
Heatdissipation -
Height - 210 mm
Height Weight & dimensions - 210 mm
HERSTELLER - EATON
HighLights -
Hoehe - 0.2
Hotswapbattery -
HSTNUMMER - 5SC500I
Inputfrequency - 50 Hz
Input frequency Features - 50 Hz
Input operation voltage (max) Features - 276 V
Input operation voltage (min) Features - 184 V
Inputoperationvoltagemax - 276 V
Inputoperationvoltagemin - 184 V
Laenge - 0.3
LED indicators Design - Yes
LongDesc - Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with today’s most sensitive IT equipment.
ManufDatasheet -
name - UPS 5SC 500i 5SC500i
Networkcardslot -
Noiselevel - 40 dB
Noise level Features - 40 dB
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude - 0 - 3000 m
Operating altitude Operational conditions - 0 - 3000 m
OperatingrelativehumidityHH -
Operating temperature (T-T) Operational conditions - 0 - 35 °C
OperatingtemperatureTT - 0 - 35 °C
Operationalconditions -
Outputfrequency -
Output operation voltage (max) Features - 240 V
Output operation voltage (min) Features - 220 V
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 220 V
Outputpower - 350 W
Outputpowercapacity - 0.5 kVA
Output power capacity Features - 0.5 kVA
Output power Features - 350 W
Packagingcontent -
Portsinterfaces -
Powerfactor -
Powerplug - C14 coupler
Power plug Ports & interfaces - C14 coupler
Power protection features Features - Overload
ProdDesc - 500VA/350W UPS, line-interactive with pure sinewave output, Windows/MacOS/Linux support, USB/serial
producer - Eaton
Productcolour - Black
Product colour Design - Black
Productcondition - Original
ProductHighLights -

• 0.5 kVA 350 W
• Waveform: Sine
• 4 AC outlet(s)
• Tower Black

ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5SC500i_1.jpg
ProductPicture1 -
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
Quickinstallationguide -
Rackmountkit -
RS-232 ports Ports & interfaces - 1
RS232ports - 1
Safety Safety regulation & standards - IEC 62040-1, CB Report (TUV)
Serialinterface -
Serialinterfacetype -
Serialportsquantity -
Stck_Kart - 9998
Stck_Pal - 5
Storage temperature (T-T) Operational conditions - -15 - 40 °C
Storno - Y
Summary - Eaton 5SC500i. Output power capacity: 0.5 kVA, Output power: 350 W, Waveform: Sine. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Typical backup time at full load: 5 min, Typical backup time at half load: 13 min. Form factor: Tower, Product colour: Black, Display type: LCD. Certification: CE/GS/C-Tick
Typical backup time at full load Battery - 5 min
Typicalbackuptimeathalfload - 13 min
Typical backup time at half load Battery - 13 min
Unit Box Height - 0.29
Unit Box Length - 0.295
Unit Box Width - 0.195
Unit Calculated Volume - 0.01668 cubm
Unit Calculated Weight - 7.7 kg
Units per Shipping Box - 1
UPS Architecture - line-interactive
UPStopology -
USB 2.0 ports quantity Ports & interfaces - 1
USBport -
USBporttype -
Vendor Homepage - https://powerquality.eaton.com/5SC500i.aspx?CX=26
vendpn - 5SC500i
Warranty - 24 months
Warrantyandmisc -
Waveform - Sine
Waveform Features - Sine
Weight - 6.6 kg
Weight - 6.6 kg
Weightdimensions -
Weight Weight & dimensions - 6.6 kg
Width - 150 mm
Width Weight & dimensions - 150 mm
