ARTIKEL1 - EASY UPS3S 20KVA 400V 3:3 UPS
ARTIKEL2 - HIGH TOWER IN
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 220 V
Battery - Number of batteries supported - 3
Brand - APC
BrandPartCode - E3SUPS20KHB
Breite - 1.04
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH
Certificates - Compliance certificates - RoHS
Design - Display type - LED
Design - Form factor - Tower
Design - International Protection (IP) code - IP20
Design - Product colour - White
EANCode - 0731304340782
Features - Input current Total Harmonic Distortion (THD) - 3%
Features - Input frequency - 45/65 Hz
Features - Input operation voltage (max) - 477 V
Features - Input operation voltage (min) - 304 V
Features - Input power factor - 0.99
Features - Maximum current - 37 A
Features - Number of input phases - 3
Features - Number of output phases - 3
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 415 V
Features - Output operation voltage (min) - 380 V
Features - Output power - 20000 W
Features - Output power capacity - 20 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 3%
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Pure sine
Gewicht - 155.5
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304340782
GTIN - 731304340782
HERSTELLER - APC
Hoehe - 0.57
HSTNUMMER - E3SUPS20KHB
Laenge - 1.67
Logistics data - Harmonized System (HS) code - 85078000
LongSummaryDescription - APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 220 V. Form factor: Tower, Product colour: White, Display type: LED. Compliance certificates: RoHS, Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH. Width: 380 mm, Depth: 928 mm, Height: 1400 mm
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 999.9 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 40 °C
Other features - Output voltage - 400 V
Packaging content - Management card included - No
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 1014 mm
Packaging data - Package height - 1640 mm
Packaging data - Package weight - 158 kg
Packaging data - Package width - 563 mm
Ports & interfaces - SmartConnect port - No
Ports & interfaces - SmartSlot - Yes
ProductName - Easy 3S
ShortSummaryDescription - APC Easy 3S, Double-conversion (Online), 20 kVA, 20000 W, Pure sine, 304 V, 477 V
Stck_Kart - 1
Stck_Pal - 1
Storno - N

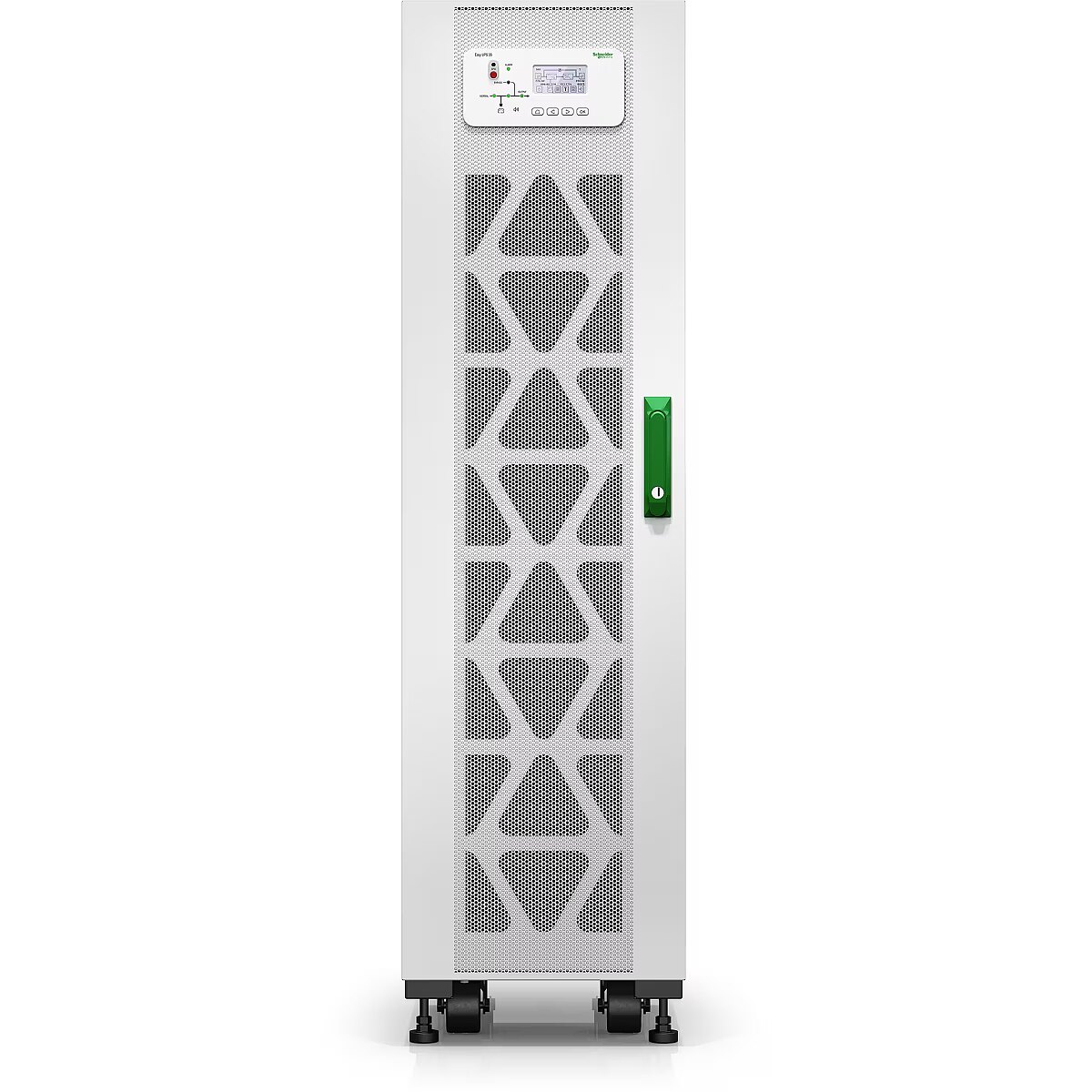

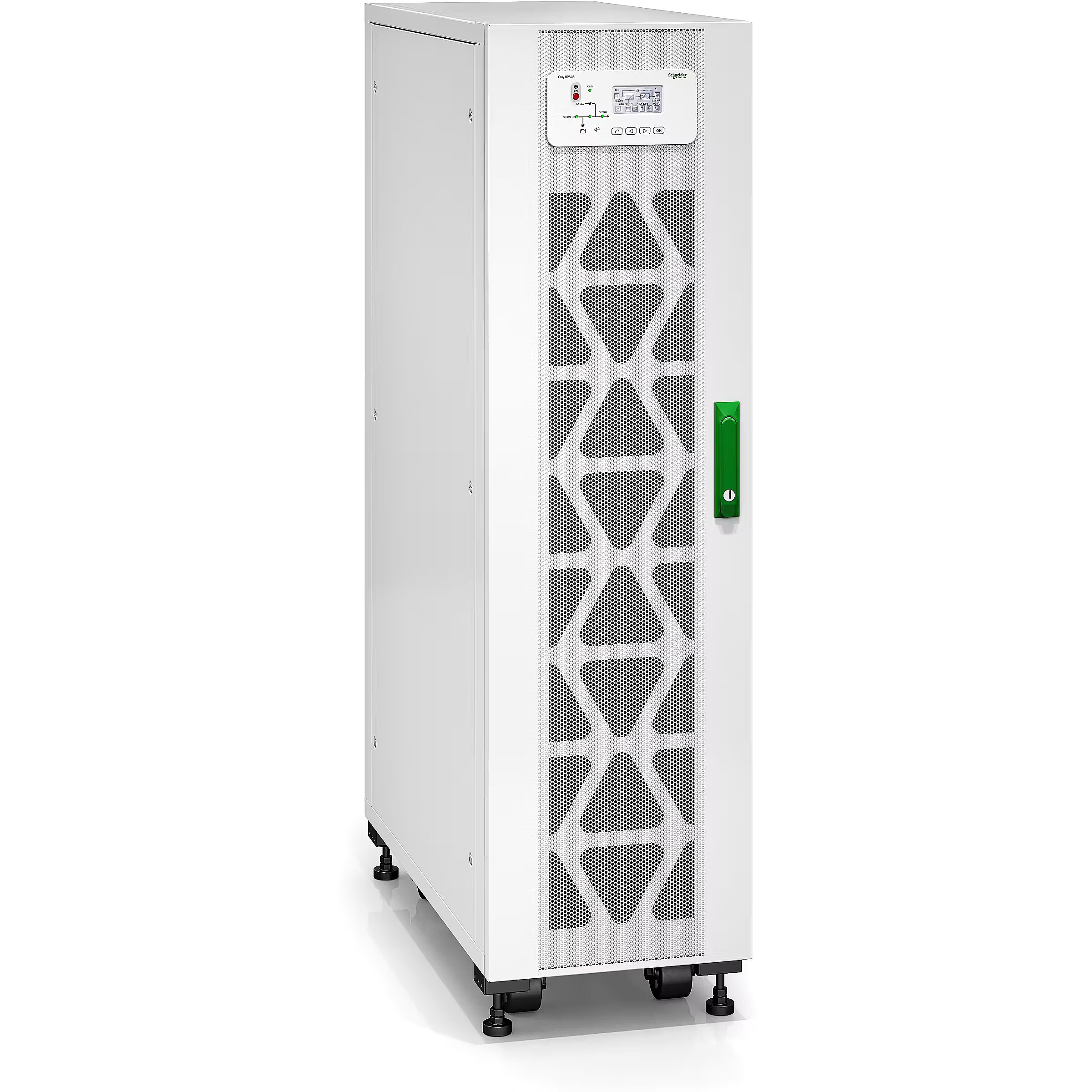

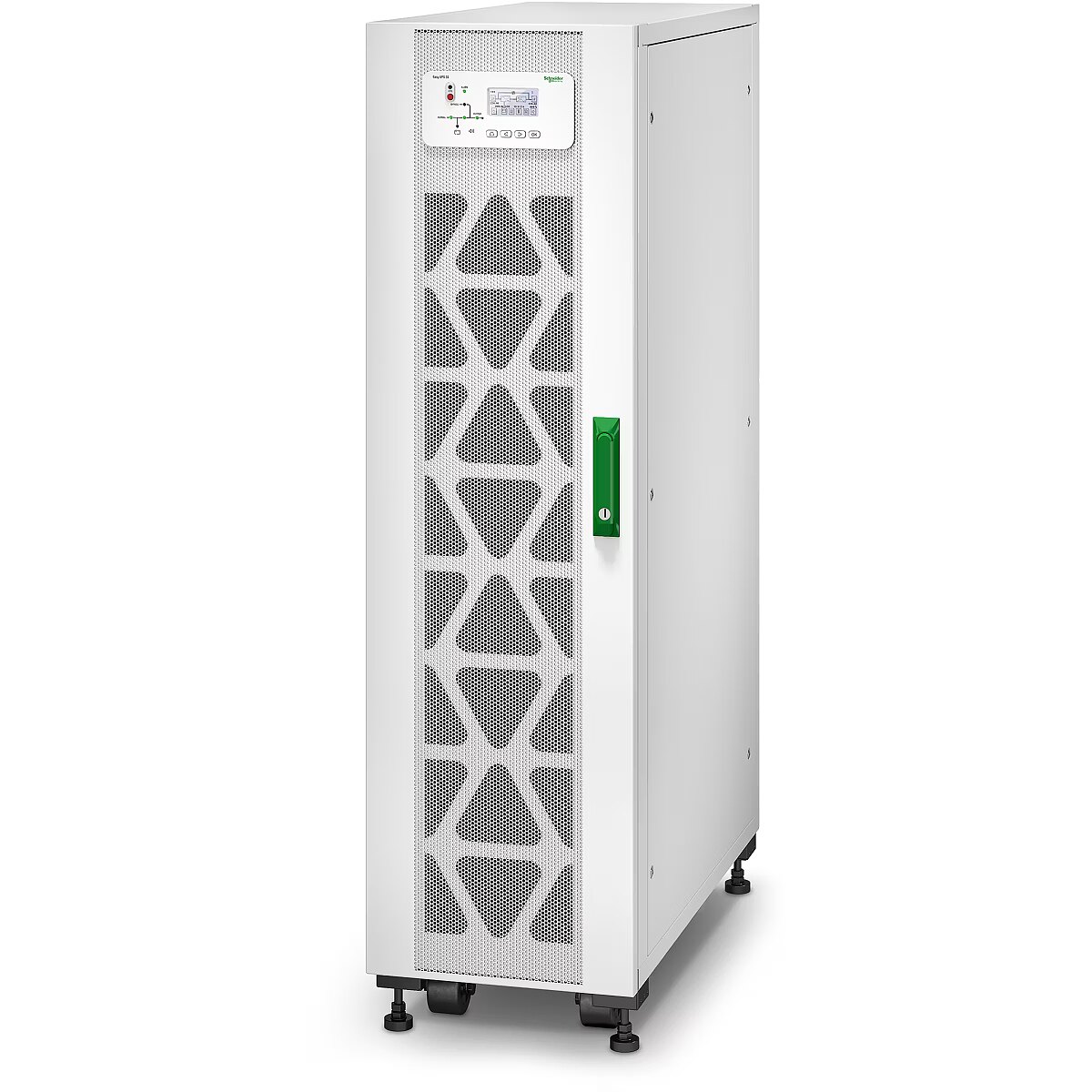

Title - APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
Weight & dimensions - Depth - 928 mm
Weight & dimensions - Height - 1400 mm
Weight & dimensions - Weight - 122 kg
Weight & dimensions - Width - 380 mm
