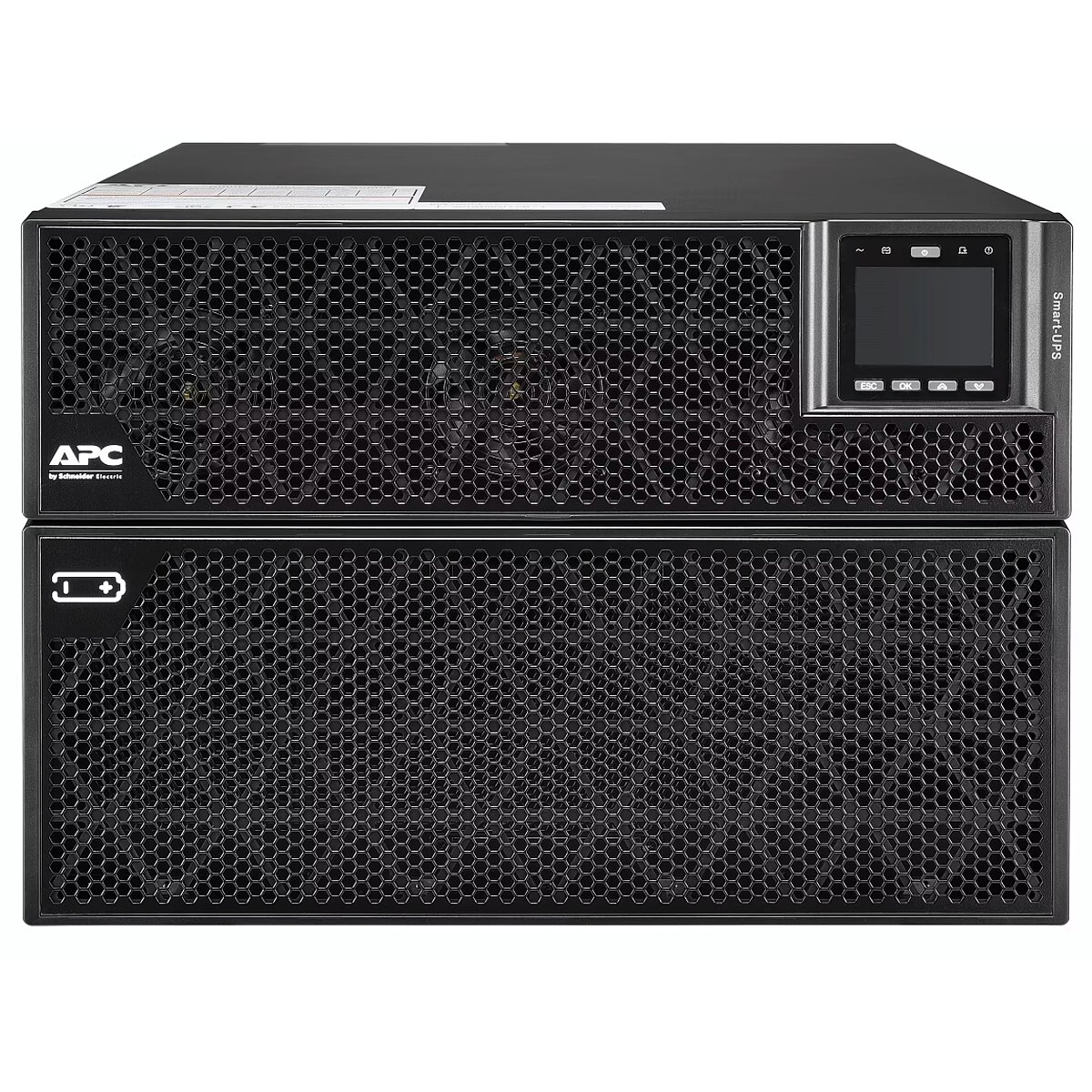

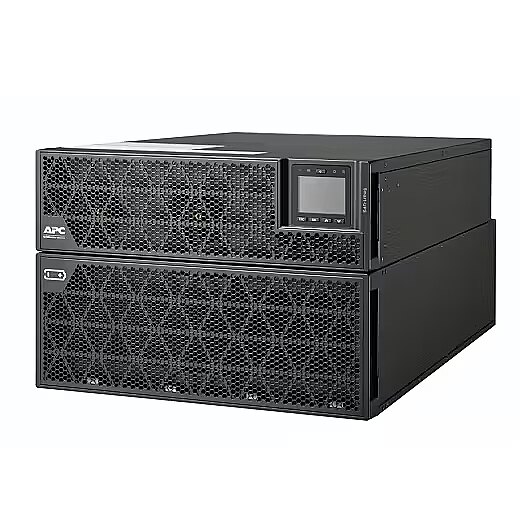

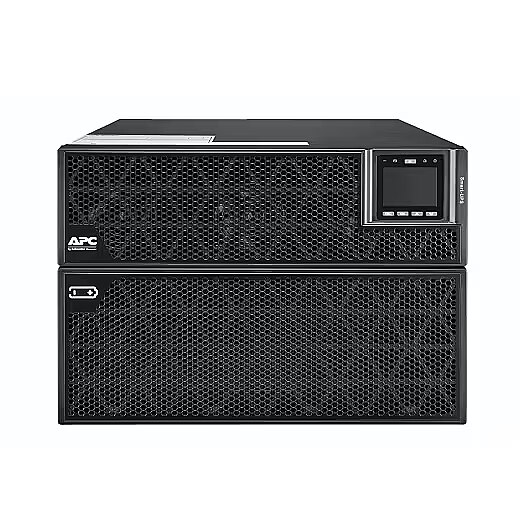

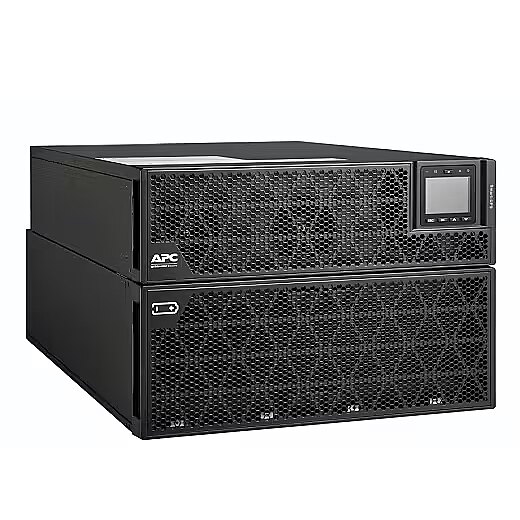

ARTIKEL1 - APC SMART-UPS RT 20KVA 230V
ARTIKEL2 - INTERNATIONAL
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 4 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 192 V
Battery - Cold start - Yes
Brand - APC
BrandPartCode - SRTG20KXLI
Breite - 0.72
Category - Uninterruptible Power Supplies (UPSs)
Design - Display type - LCD

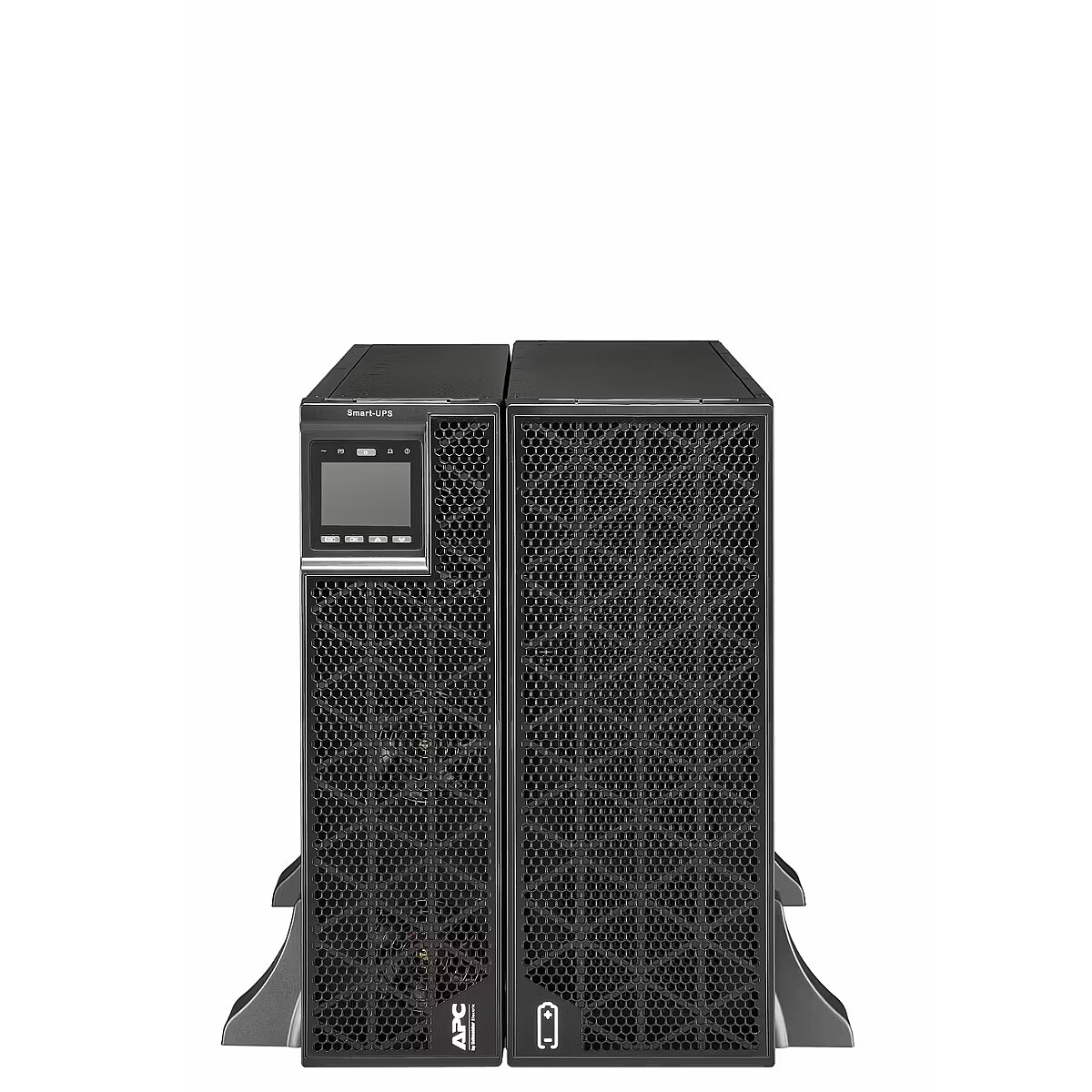

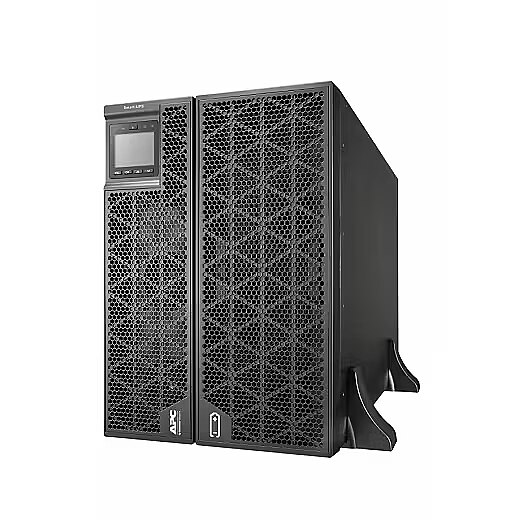

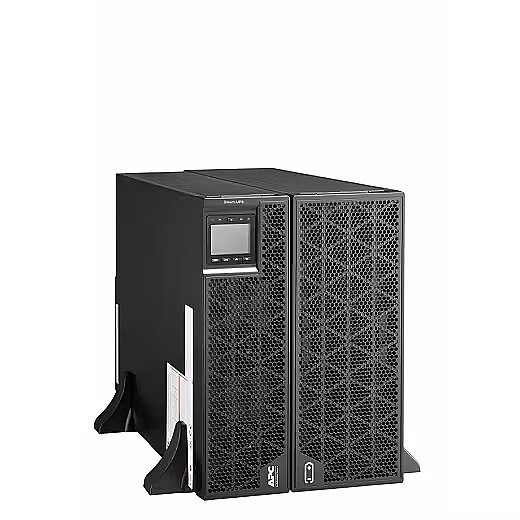

Design - Form factor - Rackmount/Tower
Design - International Protection (IP) code - IP20
Design - LED indicators - Yes
Design - Product colour - Black
EANCode - 0731304411901
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - Efficiency - 93%
Features - Emergency Power Off (EPO) - Yes
Features - Input current Total Harmonic Distortion (THD) - 5%
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 415 V
Features - Input operation voltage (min) - 160 V
Features - Maximum current - 87 A
Features - Noise level - 58 dB
Features - Number of output phases - 3
Features - Output frequency - 50/60 Hz
Features - Output frequency regulation - 0.1 Hz
Features - Output operation voltage (max) - 230 V
Features - Output power - 20000 W
Features - Output power capacity - 20 kVA
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Gewicht - 176.5
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304411901
GTIN - 731304411901
GTIN - 8592978435455
HERSTELLER - APC
Hoehe - 0.6
HSTNUMMER - SRTG20KXLI
Laenge - 0.8
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 20kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E) and 5-wire(3P+N+E) inputs, 3-wire(1P+N+E) and 5-wire(3P+N+E) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTGRK1 rail kit sold separately.
LongProductName - Smart-UPS On-Line, 20kVA/20kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit
LongSummaryDescription - APC Smart-UPS On-Line, 20kVA/20kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. AC outlet types: Hard Wire 3-wire (1P + N + E), Hard Wire 5-wire (3P + N + E), Serial interface type: RS-232. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 192 V, Battery life (max): 5 year(s). Form factor: Rackmount/Tower, Product colour: Black, Display type: LCD. Cables included: RS-232
Operational conditions - Non-operating altitude - 0 - 15240 m
Operational conditions - Operating altitude - 0 - 2011.68 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Packaging content - Cables included - RS-232
Packaging data - Package depth - 790 mm
Packaging data - Package height - 535 mm
Packaging data - Package width - 590 mm

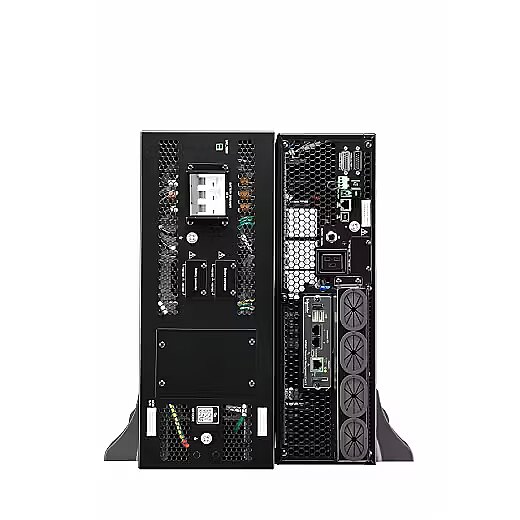

Ports & interfaces - AC outlet types - Hard Wire 3-wire (1P + N + E), Hard Wire 5-wire (3P + N + E)
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
ProductName - Smart-UPS On-Line, 20kVA/20kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit
ShortSummaryDescription - APC Smart-UPS On-Line, 20kVA/20kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit, Double-conversion (Online), 20 kVA, 20000 W, Sine, 160 V, 415 V
Stck_Kart - 1
Stck_Pal - 1
Storno - N
Title - APC Smart-UPS On-Line, 20kVA/20kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit
URL - https://www.apc.com/
WarrantyInfo - 3 years repair or replace (excluding battery) and 2 years for battery
Weight & dimensions - Depth - 700 mm
Weight & dimensions - Height - 306 mm
Weight & dimensions - Weight - 142.5 kg
Weight & dimensions - Width - 440 mm
