Accessories included - CP1600EIPFCRM2U UPS Rack mounts Power cable USB cable User manual Function setup guide
Active power - 1000 W
Apparent power - 1600 VA
Backup time (100% load) - 2.5 min
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Hot-swap battery - Yes
Battery - Number of batteries supported - 1
Battery - Typical backup time at full load - 2.5 min
Battery - Typical backup time at half load - 10.4 min
Brand - CyberPower
BrandPartCode - CP1600EIPFCRM2U
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Compliance certificates - CE, RoHS
Charging time - 8 h
Chassis type - Rack
Code - CP1600EIPFCRM2U
Color - Black
Data Act - Link and Link
Description - The CyberPower CP1600EIPFCRM2U, with uninterrupted pure sine wave output, provides full protection for network devices, security systems, and other electronic equipment requiring power with active Power Factor Correction (PFC). Its built-in Automatic Voltage Regulation (AVR) ensures that this Line-Interactive UPS delivers stable voltage to connected devices. Additionally, the UPS uses CyberPowers patented GreenPower UPS technology, which significantly reduces energy consumption and improves operational efficiency. Data line protection with high-speed transmission safeguards network devices against surges and voltage spikes while supporting data transfer speeds up to 1 Gb/s. Thanks to its short-depth chassis, the UPS saves significant rack space and can be used in various spatial configurations. Furthermore, it features a color LCD panel that allows quick status checks and easy monitoring of the power system. The product also supports remote UPS management via PowerPanel Management Software. Features: Line-Interactive UPS topology Active PFC compatible Automatic Voltage Regulation (AVR) Critical/non-critical loads Color LCD panel USB communication port PowerPanel management software Surge and noise protection Network protection Energy-saving technology Pure sine wave output Overload protection Hot-swappable batteries LED status indicators High-speed Ethernet data transmission Optional SNMP/HTTP remote management EMI and RFI filtering Short-depth chassis design
Design - Built-in fan - Yes
Design - Control type - Buttons
Design - Cooling type - Active
Design - Display type - LCD
Design - Form factor - Rackmount
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimension depth - 520 mm
dimension height - 150 mm
Dimensions - 433 x 86 x 274 mm
dimension weight - 14000 g
dimension width - 375 mm
EAN - 4711027798240
ean - 4711027798240
Environment requirements - Operating temperature: 0 - 40°C Operating relative humidity (non-condensing): 0 - 95% Storage temperature: -15 - 45°C Storage relative humidity (non-condensing): 0 - 95%
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Detachable power cord - Yes
Features - ECO mode - Yes
Features - EMI/RFI noise filtering - Yes
Features - Heat dissipation - 20.5 BTU/h
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 271 V
Features - Input operation voltage (min) - 169 V
Features - Output frequency - 50/60 Hz
Features - Output frequency regulation - 1 Hz
Features - Output power - 1000 W
Features - Output power capacity - 1.6 kVA
Features - Power factor - 0.625
Features - Power Factor Correction (PFC) type - Active
Features - Power protection features - Over voltage, Overload
Features - Power source type - AC
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Pure sine
Filters / protection - Automatic Voltage Regulation (AVR)
Filters / protection - Overload
Filters / protection - Suppression
GTIN - 4711027798240
guarantee - 24
guarantee_type - external

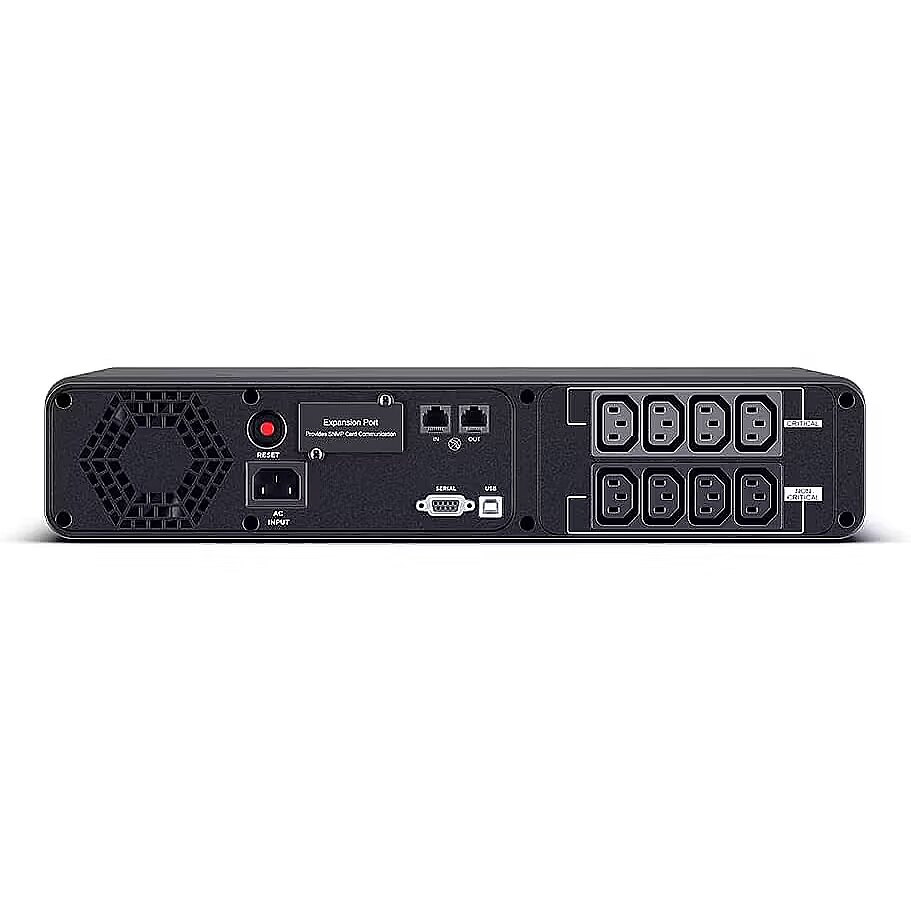

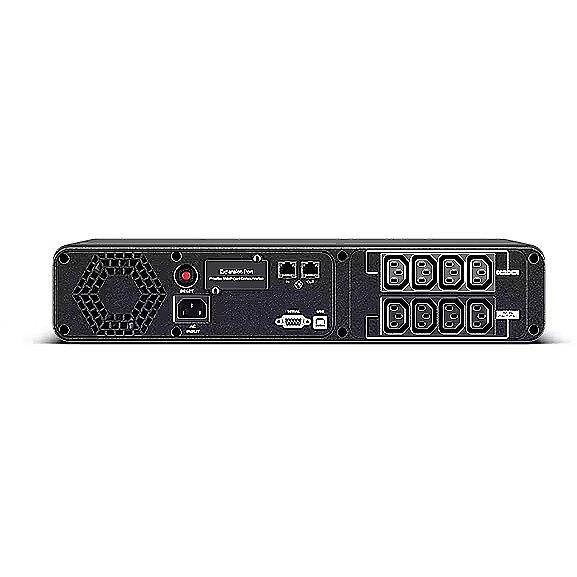

I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-45 LAN
Input power ports - IEC-C14
Link - https://www.cyberpower.com/de/en/product/sku/cp1600eipfcrm2u
LongSummaryDescription - CyberPower CP1600EIPFCRM2U. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 2.5 min, Typical backup time at half load: 10.4 min. Form factor: Rackmount, Product colour: Black, Housing material: Metal. Compliance certificates: CE, RoHS
Name - CyberPower Smart App UPS Systems | CP1600EIPFCRM2U | 1600 VA | 1000 W
name - UPS CP1600EIPFCRM2U 1600VA/1000W 8xC13
No. of batteries - 1
Number of phases input - 1 (230V)
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - CE RoHS
Other features - Battery type - RBP0166
Output power ports - 8 x IEC-C13
Package features > Classification of battery - CL126:PEN:2025-08-18
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 374.00 mm
Package features > Gross height (mm) - 162.00 mm
Package features > Gross width (mm) - 523.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 27 pc(s)
Package features > Paper/Pasteboard - 1088.00 g
Package features > Plastic (No PET) - 272.00 g
Package features > Tare weight (kg) - 1.36 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.03 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Capacity - 1600 VA
Performance > UPS topology - Line-Interactive
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-B
producer - CyberPower
ProductName - CP1600EIPFCRM2U
ShortSummaryDescription - CyberPower CP1600EIPFCRM2U, Line-Interactive, 1.6 kVA, 1000 W, Pure sine, 169 V, 271 V
Software - PowerPanel Business
Technical details > Capacity - 1000 W
Technical details > Gross weight - 13.92 kg
Technical details > Net weight - 12.56 kg
Technical details > Producer - CyberPower
Technical details > Producer product family - Smart App UPS Systems
Technical details > Producer product name - CP1600EIPFCRM2U
The shape of the output voltage - Full sine wave
Title - CyberPower CP1600EIPFCRM2U uninterruptible power supply (UPS) Line-Interactive 1.6 kVA 1000 W 8 AC outlet(s)
UPS Architecture - line-interactive
vendpn - CP1600EIPFCRM2U
Warranty - 24
Warranty - 24 month(s)
Weight - 12.56 kg
Weight & dimensions - Depth - 274 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 20.5 kg
Weight & dimensions - Width - 433 mm
