Active power - 1000 W
Apparent power - 1000 VA
Backup time (100% load) - 5 min
Battery capacity - 9 Ah
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Charging time - 6 h
Chassis type - Tower
Color - Black
Description - Armac Office On-line UPS PF1 T/1000I/PF1/DF - 4× IEC We create reliable energy for offices and professional applications - the new Armac Office On-line PF1 Dust-free UPS line combines top-tier specifications with an attractive price. Thanks to its on-line topology, 0ms transfer time, and pure sine wave output, the device protects sensitive equipment from any voltage spikes. A power factor of 1.0 (Power Factor = 1) means you get all the power you supply-without any unnecessary losses. The PF1 series has long received excellent reviews from business users, and the Dust-free version raises the bar even higher. Fans now respond to a 1% change in load, so the UPS runs quieter, consumes less energy, and lasts longer. The improved EMC section on the new motherboard and more durable batteries ensure stability for years. The Dust-free series also features an easily replaceable dust filter. Quick removal of the front panel provides access to the filter, which you can wipe with a damp cloth or vacuum, let dry, and reinstall. The whole process takes just a few minutes-perfect for a coffee break. Regular filter cleaning effectively captures dust, toner, paper particles, and other debris that would otherwise settle on the heatsinks and shorten component lifespan. Additionally, the dense perforation grid on the front panel directs airflow precisely where its needed most, and intelligent PWM fans smoothly adjust speed according to load and temperature. The result is stable, cool UPS operation with minimal noise and reduced maintenance needs. UPS with PF = 1
In small and medium businesses, every watt costs you twice: once from your power supplier, and again as heat generated by poorly designed equipment. Thats why a 1.0 power factor is so groundbreaking: practically 100% of the current drawn from a 230V mains is delivered as usable energy. In real terms, this means a full 1000W of active power at 1000VA-without the tax of reactive power. Compared to traditional PF 0.8 designs, you gain up to 20% extra headroom, allowing you to choose a smaller, cheaper model or connect additional workstations without risk of overload. Such high efficiency also reduces server room cooling costs and helps meet corporate ESG goals and new EU energy efficiency directives. Importantly, Armac maintains PF = 1 over a wide load range-not just on paper. This is thanks to the optimized power path and double conversion online design, ensuring the UPS operates efficiently without needing to reach full capacity. The result? Stable voltage, lower bills, and a smaller carbon footprint without compromising safety. Immediate response
Even millisecond-long power interruptions can halt production lines, corrupt CAD files, or interrupt POS (Point of Sale) transactions. In the T/1000I/PF1/DF model, this is handled via double conversion. Mains electricity is first converted to DC, then back to a perfect AC sine wave, leaving voltage fluctuations, spikes, and electromagnetic interference at the input. When mains fail, the UPS stops charging the rectifier and switches to battery power in less than 1ms, ensuring uninterrupted operation for servers, NAS arrays, or routers. This means zero lost packets, no need to restart virtual machines, and confidence that e-commerce transactions or financial operations are safely completed. The optional ECO mode switches to bypass with 99% efficiency when mains parameters are stable, giving you the flexibility to prioritize absolute 24/7 protection or energy savings during quiet periods. Extended battery life
Batteries are the heart-and the most expensive service component-of any UPS. The PF1 Dust-free includes intelligent energy management: Lowered Cut-Off: The microprocessor disconnects the battery at a higher voltage than standard, reducing deep discharges and extending battery life by up to 30%. Adjustable threshold: Need longer backup for a cash register? Adjust Cut-Off via the LCD or USB/RS-232 to match the current task. Automatic self-test every 60 days: The UPS simulates a power outage, checks battery capacity, and logs results in PowerManager II. Alerts are issued only if parameters fall below a preset threshold, allowing planned replacements and avoiding Friday at 6PM failures. Temperature-compensated charging: The charger adjusts current according to ambient conditions, preventing overcharging in summer heat and undercharging in cool server rooms. This ensures 9Ah batteries maintain capacity for years, reducing operational costs and waste. Professional-grade performance
Whether rendering in Blender or training AI models on a GPU, you need stable watts-not marketing VA. PF 1.0 and larger 9Ah batteries provide 1000W continuous power even at 40°C ambient. Four IEC 320 C13 outlets (C13CEE 7/7 or C13C19 cables easily available) allow simultaneous protection of a server, storage, switch, and monitor. All components are housed in a sturdy tower metal case, durable enough for daily office relocation. Easy monitoring and management
Cleaning and remote management are simple: USB and RS-232 ports work plug-and-play on Windows, macOS, and Linux. The Smart-Slot allows installation of SNMP or Modbus cards for monitoring via Zabbix or PRTG. PowerManager II software (with Polish interface) enables scheduling tests, logging, and sending email alerts, giving full control without running to the server room. Full safety
A built-in processor monitors UPS operation, device parameters, and connected equipment. Stand-By mode automatic charging and automatic restart after mains restoration are included. Each Armac UPS also features overload protection: if overloaded, the UPS safely disconnects connected devices, enhancing safety and user convenience. Ideal for sensitive equipment
Thanks to pure sine wave output in battery mode, the UPS can power devices with electric motors or heaters, such as laser printers, scanners, garage doors, electric blinds, and central heating systems. No need for expensive RCD switches-the unit can work with a 30mA circuit breaker.
Designation - CE+WEEE
dimension depth - 405 mm
dimension height - 295 mm
Dimensions - 354 x 145 x 224 mm
dimension weight - 13500 g
dimension width - 215 mm
ean - 5901969446968
Eans - 5901969446968
Environment requirements - Recommended ambient temperature: 0-40°C Recommended ambient humidity: 0-95% Ingress protection rating: IP20
Filters / protection - Circuit
Filters / protection - Overload
Filters / protection - Suppression
Filters / protection - Surge
guarantee - 24
guarantee_type - normal

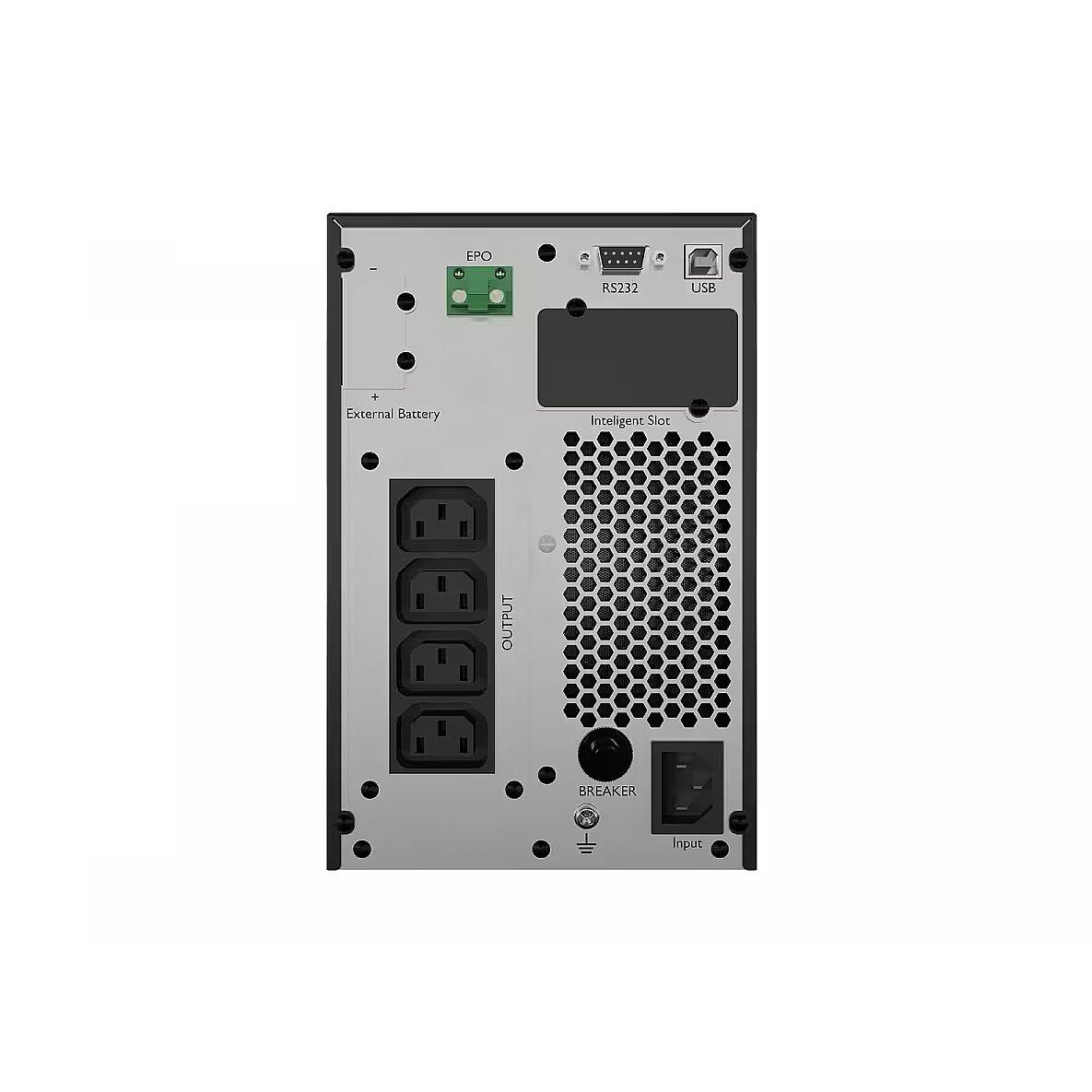

I/O connectors - 1 x EPO
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Name - Armac Office On-Line PF1 1000VA LCD 4x IEC C13 metalowa obudowa dust-free
name - UPS Office On-Line PF1 1000VA LCD 4X IEC C13 metal enclosure DUST-FREE
No. of batteries - 3
Number of phases input - 1 (230V)
Other features - Power factor: 1 Efficiency: 94.5% Battery type: VRLA AGM lead-acid Cold start
Output power ports - 4 x IEC-C13
producer - Armac
Producer - Armac
ProducerCode - T/1000I/PF1/DF
ShortDescription - UPS On-Line 1000VA | PF1 | LCD | 1000W | 4x IEC C13 | metalowa obudowa | dust free
Software - PowerManager II
The shape of the output voltage - Full sine wave
Transfer time (max) - 0 ms
UPS Architecture - on-line
vendpn - T/1000I/PF1/DF
Voltage - 12 V
Weight - 11 kg
