Accessories included - User manual 2 x IEC cables USB cable Power cable UPS vertical feet Rack mounts
Active power - 1500 W
Apparent power - 1500 VA
Backup time (100% load) - 13 min
Battery capacity - 9 Ah
Charging time - 3.7 h
Chassis type - Rack
Color - Black
Description - Next-Generation UPS with LiFePO4 Batteries Space-Saving and Maximum Efficiency Introducing the latest generation of professional 19" Rack UPS systems equipped with advanced lithium iron phosphate (LiFePO4) batteries. These high-performance batteries provide exceptional chemical and thermal stability, minimizing the risk of overheating and failure. The new models are compatible with dedicated 1U Battery Packs, saving space in Rack cabinets compared to traditional 2U models. The devices offer integration with IoT systems via Microsoft Azure cloud and a dedicated mobile app. With Online topology, they deliver the highest level of power protection, and advanced circuits maintain a power factor of 1.0, ensuring maximum efficiency of stored energy. All UPS status information is available on the built-in LCD display, allowing intuitive device configuration. UPS VFI 1500 LICR IOT Uncompromising Performance at Your Fingertips!
The uncompromising performance of our Online UPS units comes from maintaining the power factor at the highest possible level of 1.0. This means nearly all power supplied to the device at the input is delivered to the output without energy loss. As a result, the UPS units are highly energy-efficient and effective, providing full power support to connected devices. Additionally, thanks to Online topology, the UPS operates in line mode with zero transfer time (0 ms) to battery power, ensuring uninterrupted delivery of high-quality power to your electrical and electronic equipment, even during power outages. Safety First
Thanks to Online topology, our UPS systems provide the highest output voltage quality, ensuring uninterrupted operation of connected devices. The UPS instantly switches operating modes, meaning even the most sensitive equipment will not notice sudden power interruptions, eliminating the risk of failures or damage. Integration with Microsoft Azure cloud enables secure data transmission, and encrypted communication compliant with GDPR is TÜV Rheinland certified. The system meets industrial IT cybersecurity standards according to IEC 62443, providing users with full safety and data protection. Convenient Mobile App Control
With the dedicated WinPower View mobile app, users gain convenience and full control over connected devices. The app allows real-time monitoring of each UPS and, in the event of a power outage, displays the remaining battery runtime under the current load. The status of all devices can be viewed in a clear list or pie chart format, with grouping options to simplify management of multiple UPS units. Check Device Status on a Stylish LCD Screen

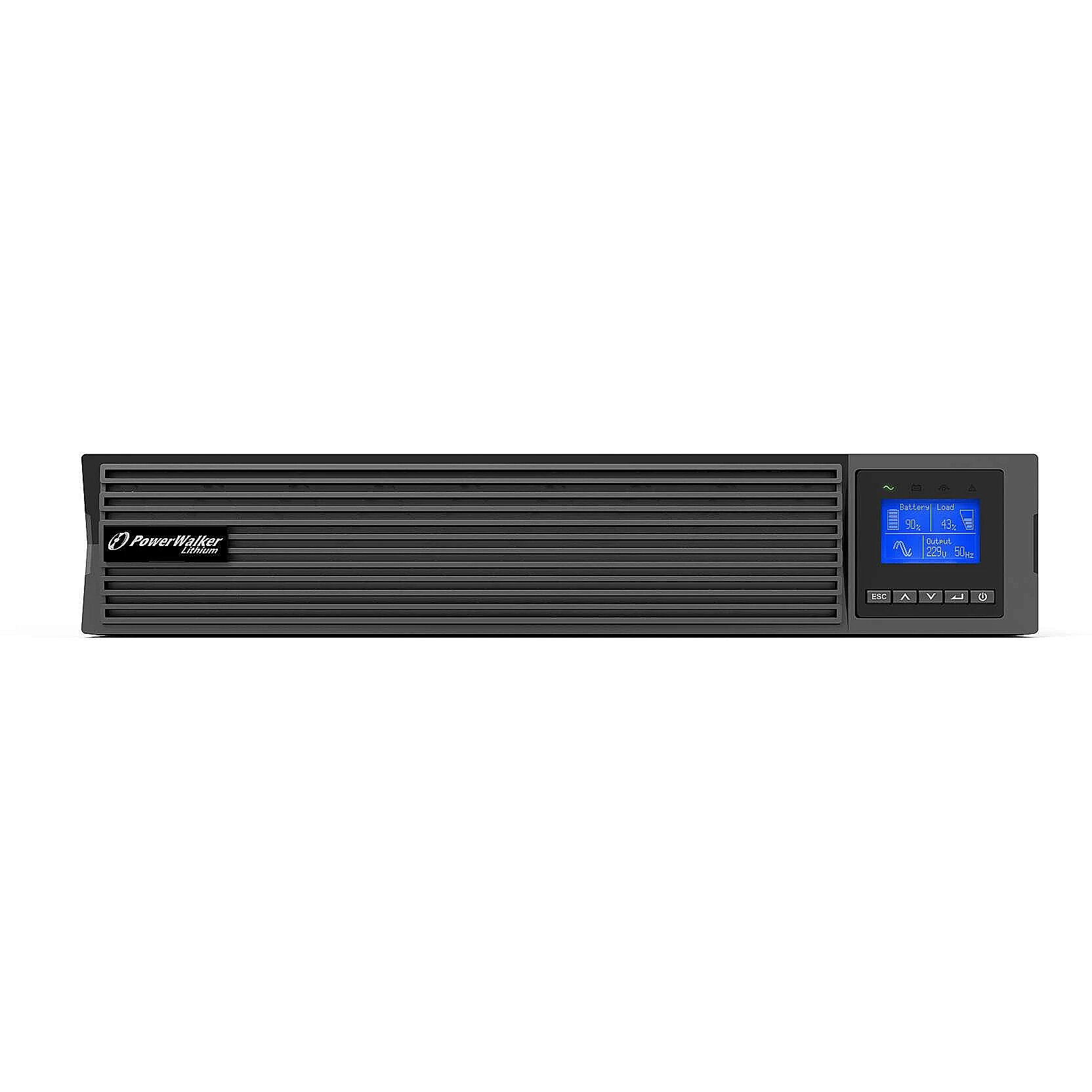

The clear, auto-dimming LCD display provides an intuitive overview of device operation regardless of lighting conditions. Readable indicators make it easy to monitor output voltage, load level, and current operating mode. Basic device configuration can also be performed using the built-in buttons under the screen, enhancing user convenience. High-Performance LiFePO4 Battery Packs in 1U Enclosures
The new UPS units are compatible with high-performance LiFePO4 Battery Packs housed in 1U enclosures. This saves space in 19" Rack cabinets, which is crucial in infrastructures with limited space. The battery modules feature an RJ-45 connector for UPS communication, and connecting or disconnecting them does not require a system reboot. Once connected, the Battery Pack is automatically recognized and displayed in the app, simplifying emergency power system management.
Designation - CE+WEEE
dimension depth - 585 mm
dimension height - 235 mm
Dimensions - 445 x 438 x 86 mm
dimension weight - 17000 g
dimension width - 500 mm
ean - 4260074984897
Environment requirements - Recommended ambient temperature: 0 - 40 °C Recommended ambient humidity: 0 - 95% Ingress protection class: IP20
Filters / protection - Surge
guarantee - 24
guarantee_type - normal
Hold-up time (maks) - 0 ms

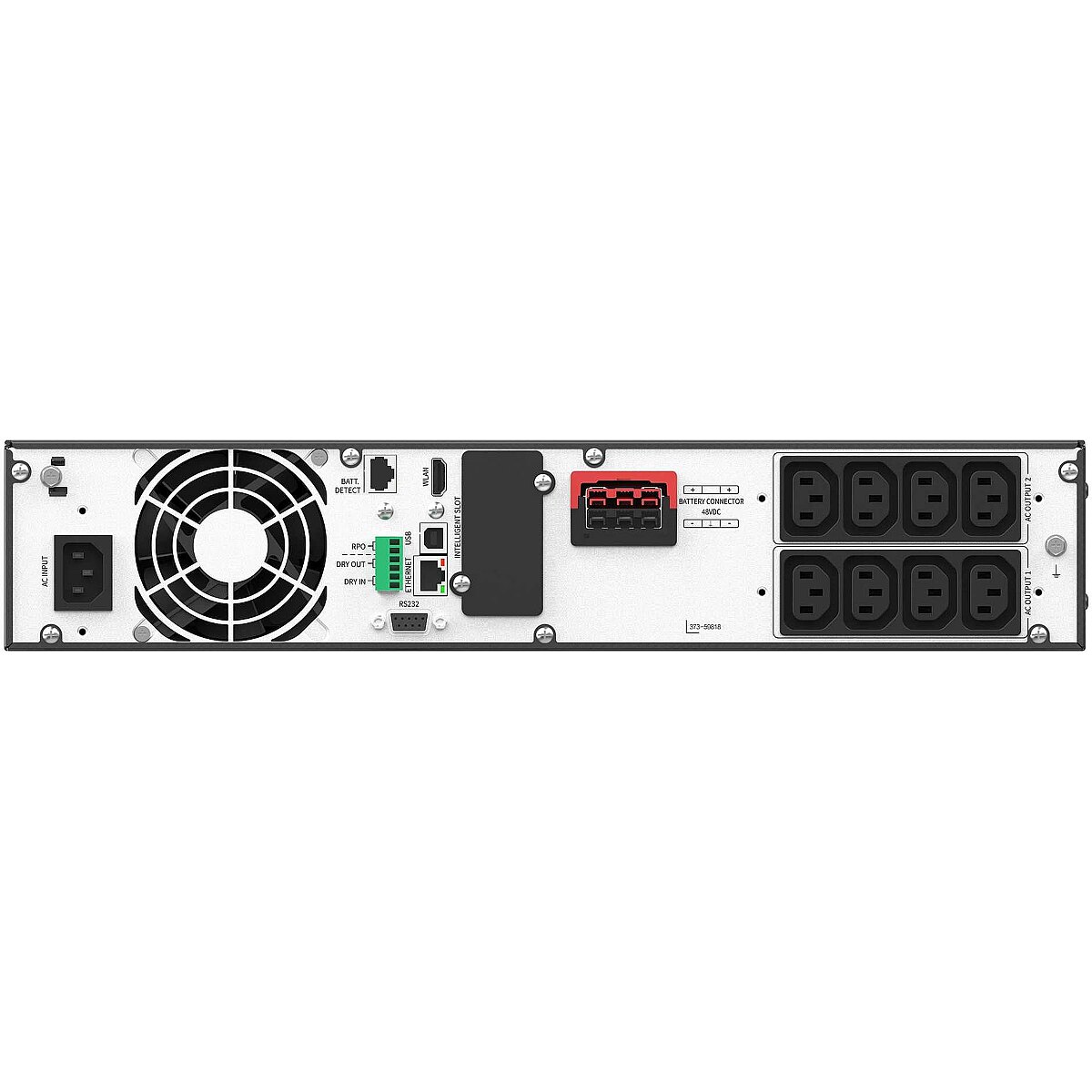

I/O connectors - 1 x HDMI
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Input power ports - IEC-C14
name - UPS On-Line Rack 1500VA 8xIEC C13 USB-B RS-232 LCD 2U
No. of batteries - 1
Number of phases input - 1 (230V)
Other features - Minimum 19" cabinet depth: 600 mm Battery type: Lithium iron phosphate LiFePO4
Output power ports - 8 x IEC-C13
producer - PowerWalker
Software - WinPower
Special functions - LCD operation indication Audible alarms Cold start
The shape of the output voltage - Full sine wave
Transfer time (max) - 0 ms
UPS Architecture - on-line
vendpn - VFI 1500 LICR IOT PF1
Voltage - 48 V
Weight - 18 kg
