Accessories included - Szyny Karta komunikacyjna
Active power - 1000 W
Apparent power - 1000 VA
Backup time (100% load) - 6.8 min
Battery - Typical backup time at full load - 5.6 min
Battery - Typical backup time at half load - 16.3 min
Battery capacity - 9 Ah
Brand - Vertiv
BrandPartCode - GXT5-1000IRT2UXLN
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - UL1778,4thEd.FCCPart15ClassAANSIC62.41Cat.BISTA1A
Certificates - Compliance certificates - REACH, RoHS
Chassis type - Rack
Chassis type - Tower
Color - Black
Description -
Design - Display type - LCD
Design - Form factor - Tower
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimension depth - 620 mm
dimension height - 570 mm
Dimensions - 85 x 430 x 400 mm
dimension weight - 23000 g
dimension width - 270 mm
ean - 4061471435285
Environment requirements - Operating temperature: full power up to 40°C (up to 50°C with derating) Storage temperature: -20 to 60°C (containing batteries will be -15 to 40°C) Relative humidity 0 to 95%, non-condensing
Features - Audible alarm(s) - Yes
Features - Efficiency (On-line mode) - 93%
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 280 V
Features - Input operation voltage (min) - 115 V
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 200 V
Features - Output power - 1000 W
Features - Output power capacity - 1 kVA
Features - Power factor - 0.99
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Pure sine
GTIN - 4061471435285
guarantee - 36
guarantee_type - external
I/O connectors - 1 x RJ-11/RJ-45
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x USB (Type B)
Input power ports - IEC-C14
Logistics data - Country of origin - China

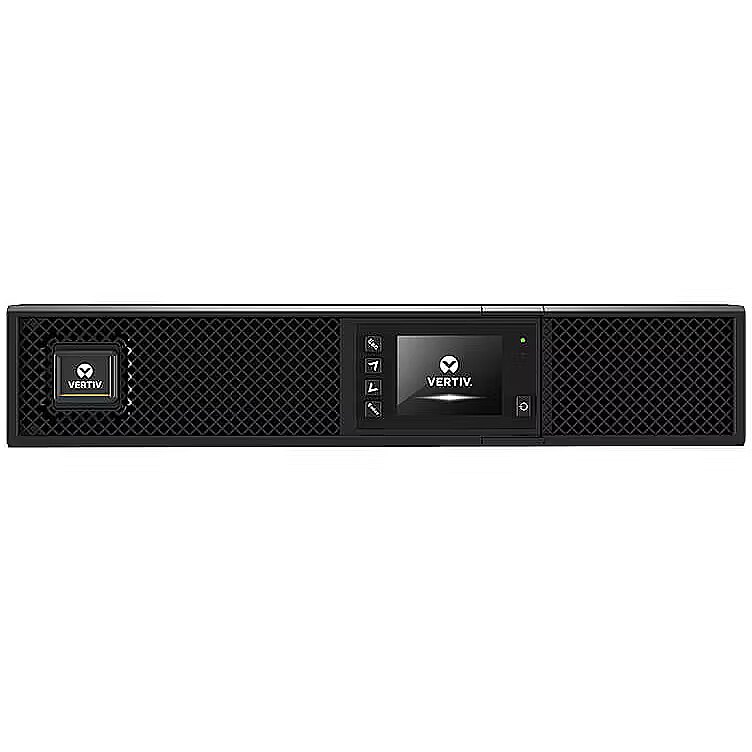

LongDesc - The Vertiv Liebert GXT5 UPS 1000VA/1000W is a 2U UPS solution that ensures the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environments, including 200/208/220/230/240V user configurable AC power, and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. This unit has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor’s product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.
LongProductName - 2U Rack/Tower | 6 Minute Stand-by | 200 V AC, 208 V AC, 220 V AC Output | 8 x IEC 60320 C13 Receptacle(s) | Single Phase | Sine Wave | Serial Port | SNMP/HTTP Remote Monitoring | 5-year Warranty (3-year Standard Warranty + 2-year Extended Warranty)
LongSummaryDescription - Vertiv Liebert GXT5 Double Online Conversion UPS - 1000VA/1000W| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card| GXT5-1000IRT2UXLN. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Typical backup time at full load: 5.6 min, Typical backup time at half load: 16.3 min. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: REACH, RoHS, Certification: UL1778,4thEd.FCCPart15ClassAANSIC62.41Cat.BISTA1
name - UPS GXT5-1000IRT2UXLN online 1kVA/1kW with rails and communication card RDU101
No. of batteries - 3
Number of phases input - 1 (230V)
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features -
Output power ports - 8 x IEC-C13
Packaging content - Cables included - USB cable
Packaging content - Manual - Yes
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 570 mm
Packaging data - Package height - 262 mm
Packaging data - Package weight - 21.4 kg
Packaging data - Package width - 617 mm
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - USB port - Yes
producer - Vertiv
ProductName - GXT5 Double Online Conversion UPS - 1000VA/1000W| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card| GXT5-1000IRT2UXLN
ShortSummaryDescription - Vertiv Liebert GXT5 Double Online Conversion UPS - 1000VA/1000W| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card| GXT5-1000IRT2UXLN, Double-conversion (Online), 1 kVA, 1000 W, Pure sine, 115 V, 280 V
Software -
Special functions -
Sustainability - Sustainability certificates - ENERGY STAR
The shape of the output voltage - Full sine wave
Title - Vertiv Liebert GXT5 Double Online Conversion UPS - 1000VA/1000W| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card| GXT5-1000IRT2UXLN
UPS Architecture - on-line double conversion
URL - https://www.vertiv.com/
vendpn - GXT5-1000IRT2UXLN
Voltage - 12 V
WarrantyInfo - 5-year Warranty (3-year Standard Warranty + 2-year Extended Warranty)
Weight - 16.8 kg
Weight & dimensions - Depth - 400 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 16.5 kg
Weight & dimensions - Width - 430 mm
