Accessories included -
Active power - 55 W
Color - Steel

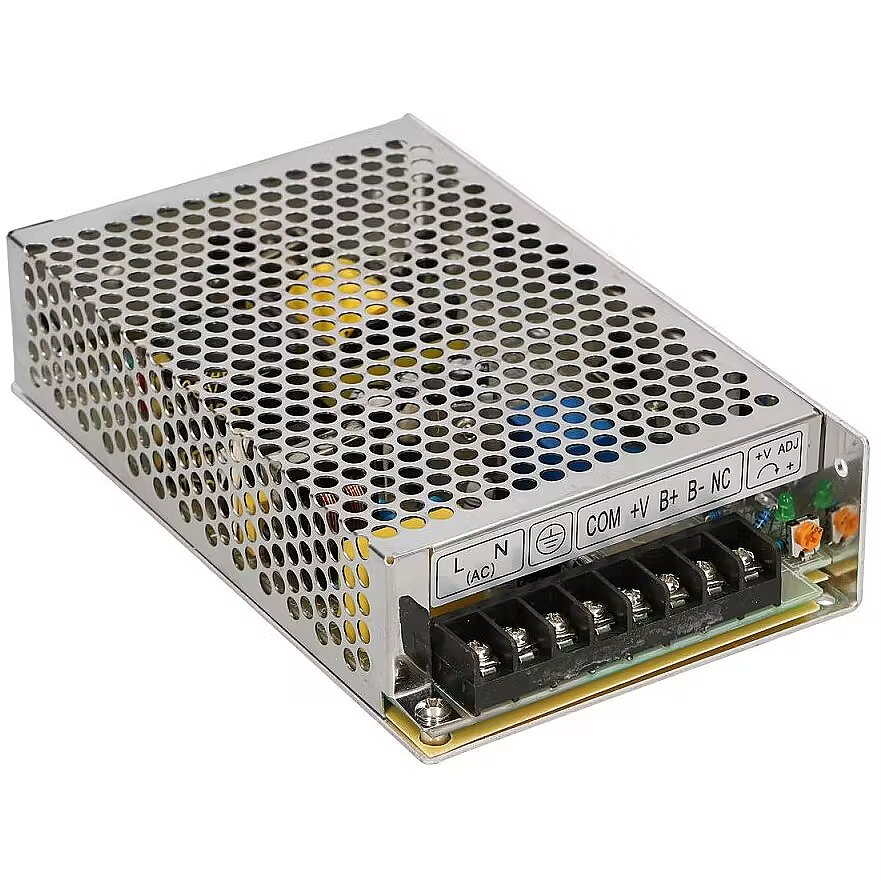

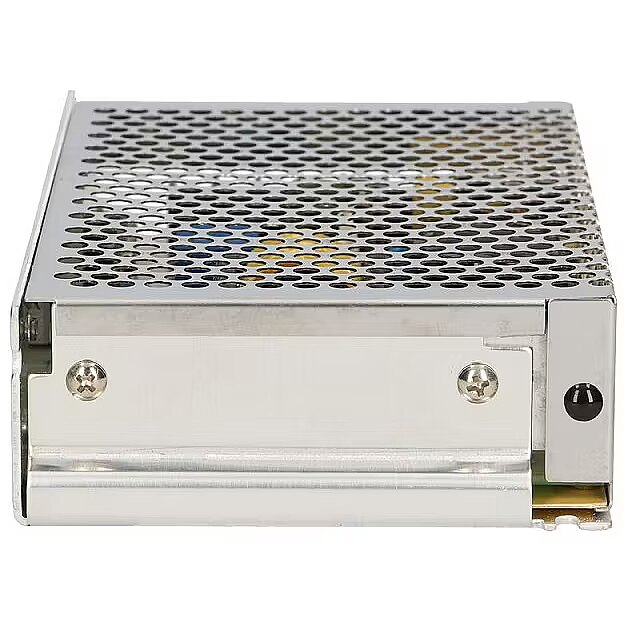

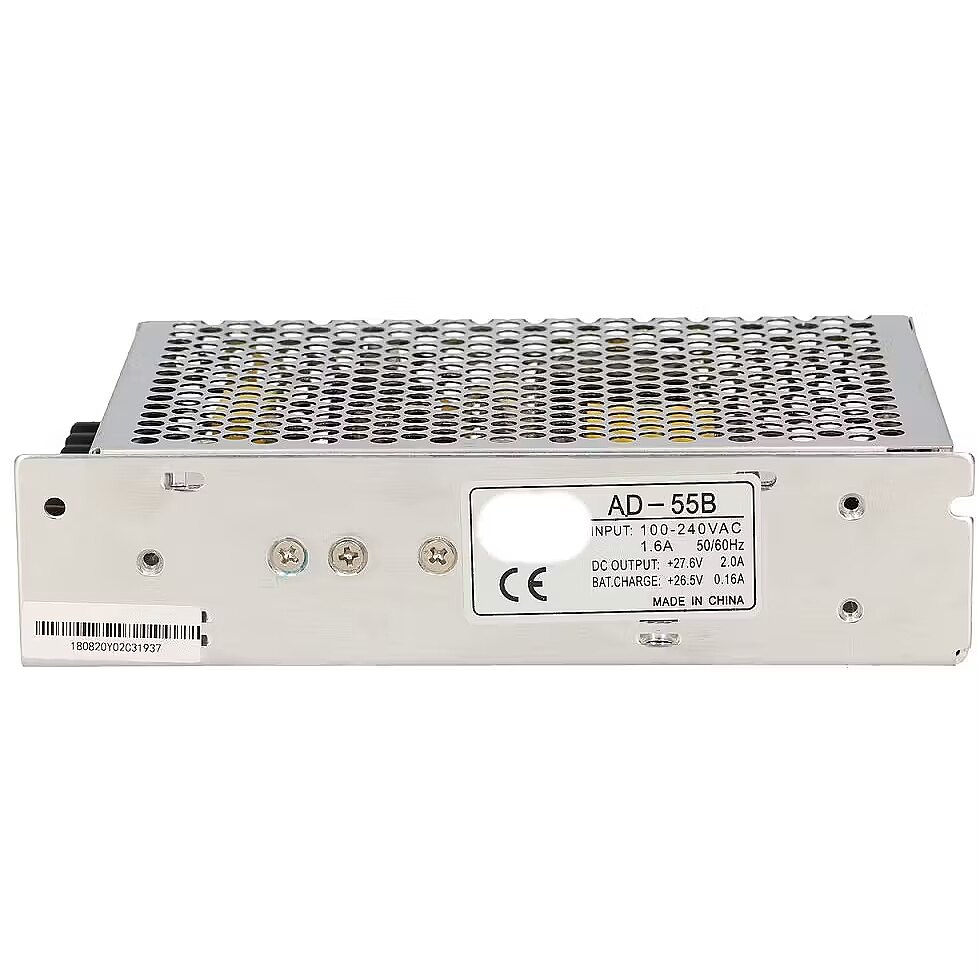

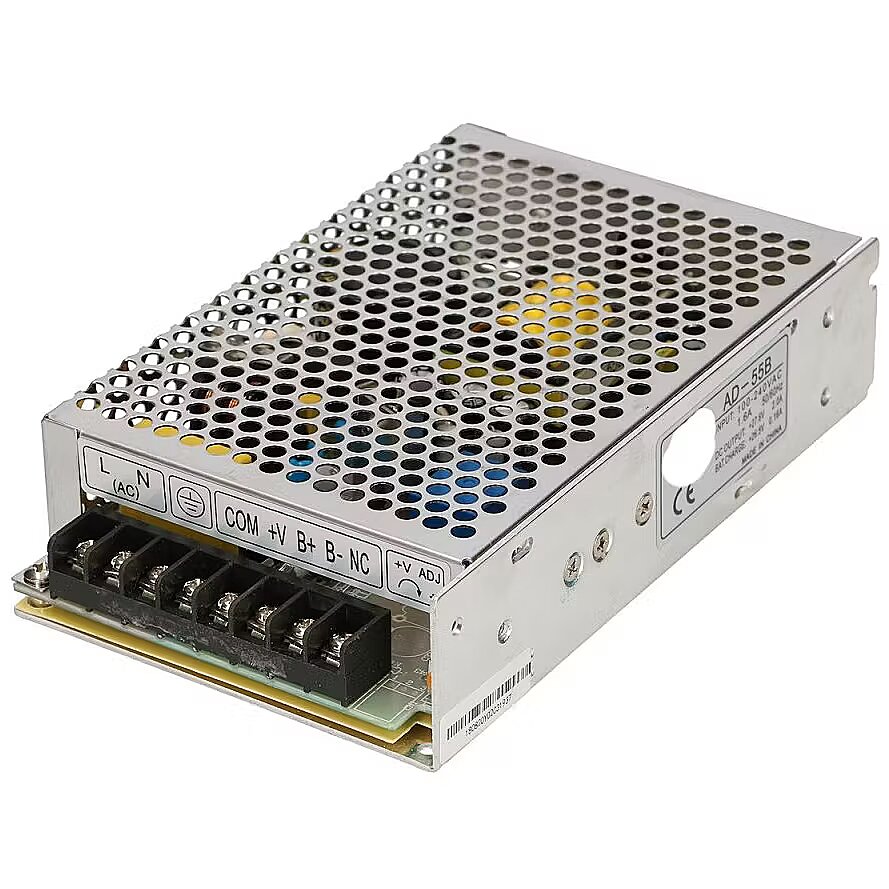

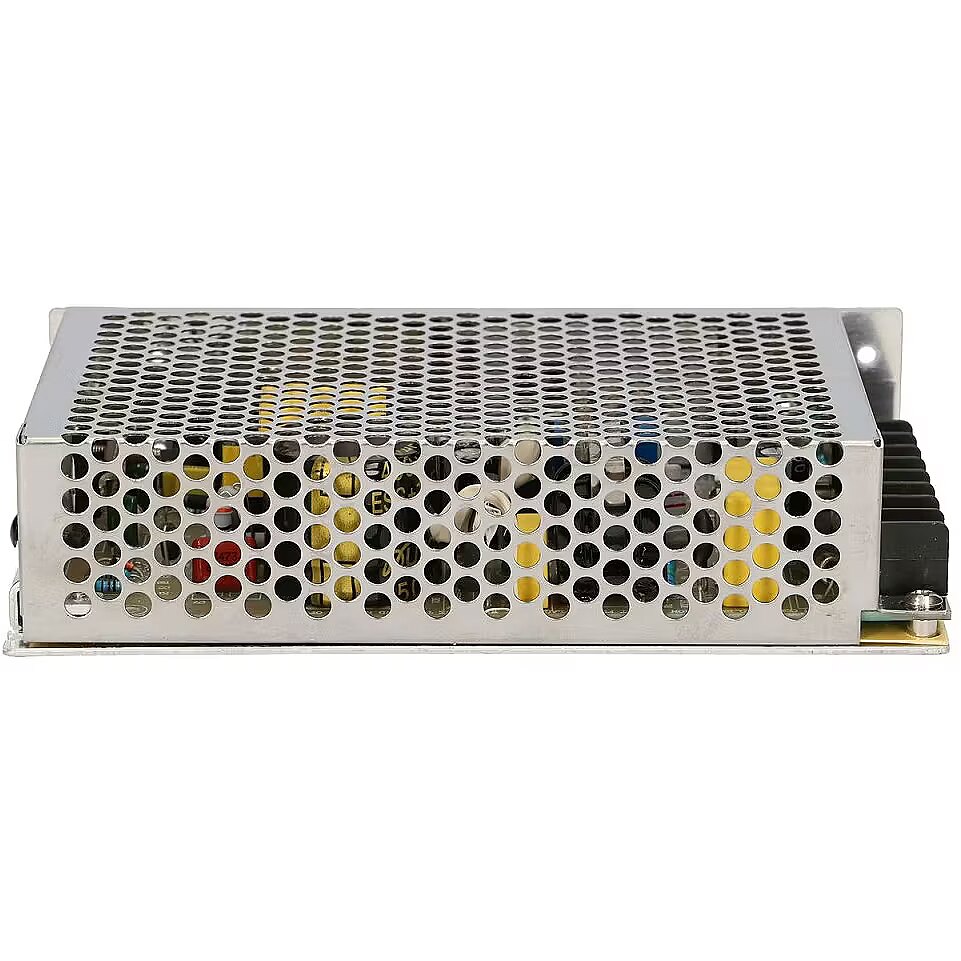

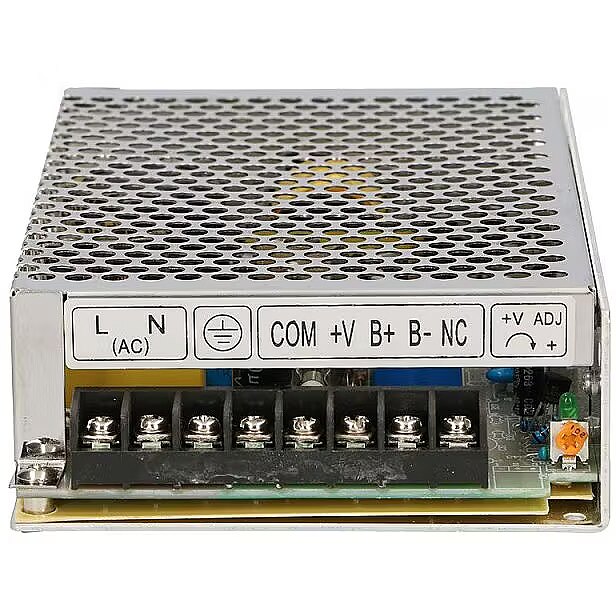

Description - Buffer power supply AD-55B 24V/27,6V, 55W
dimension depth - 40 mm
dimension height - 105 mm
Dimensions - 159 x 97 x 38 mm
dimension weight - 437 g
dimension width - 165 mm
ean - 5903148914114
Environment requirements - Operating temperature: -10 - 60 C Operating humidity: 20 - 90% RH Storage temperature: -20 - 85 C Storage humidity: 10 - 95% RH
Filters / protection - Overload
Filters / protection - Surge
guarantee - 24
guarantee_type - normal
name - Buffer power supply AD-55B 24V/27,6V 55W
Other features - CH1 Output Voltage: 27.6 V (24 V) CH2 Output Voltage: 26.5 V (24 V) CH1 Output Current: 1.8 A CH2 Output Current: 0.16 A Output Voltage Range: CH1:24-29 V Mains voltage: 88-264 V AC 47-63Hz; 124-370 V DC Input current: 1.6 A/115 V AC 1 A/230 V AC Minimum battery voltage: 20-22 V
producer - Extralink
Software -
Special functions - Cut-off when critical value is exceeded Automatic restart after return to normal operation UPS circuit: internal fuse
vendpn - EX.14114
Voltage - 27.6 V
Weight - 0.5 kg
