Accessories included - VP1600ELCD UPS USB Cable User Manual Product Registration Card
Active power - 960 W
Apparent power - 1600 VA
Backup time (100% load) - 2 min
Battery - Battery recharge time - 8 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Typical backup time at full load - 2 min
Battery - Typical backup time at half load - 11 min
Brand - CyberPower
BrandPartCode - VP1600ELCD
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE, RCM
Certificates - Compliance certificates - RoHS
Charging time - 8 h
Chassis type - Tower
Code - VP1600ELCD
Color - Black

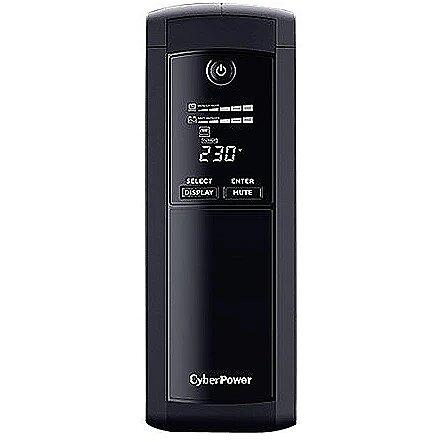

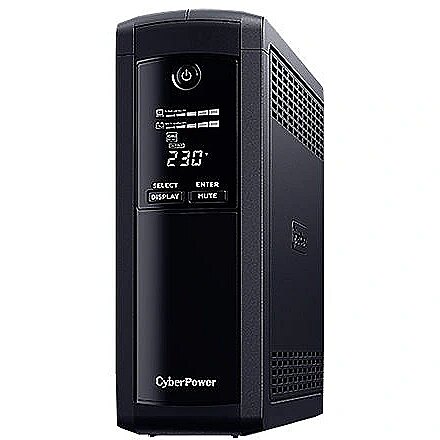

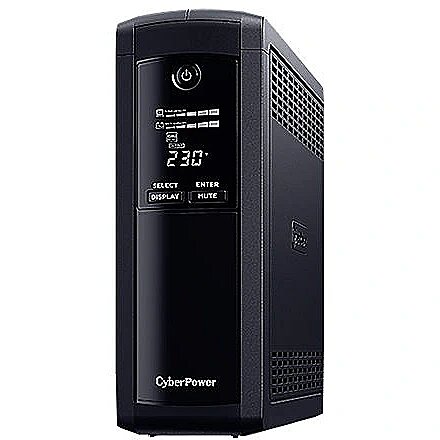

Description - CyberPower VP1600ELCD UPS The CyberPower VP1600ELCD offers home and office users reliable battery backup and protects office computers and other electronic devices from surges, power spikes, power outages and other power-related incidents. Designed with GreenPower UPS technology to improve UPS operational efficiency and minimise energy consumption. Users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides automatic voltage regulation (AVR) to maintain a safe voltage for connected equipment. The UPS has a multi-function LCD screen displaying power and battery status parameters. The product has high-bandwidth network port protection to protect connected telephones, network and communication devices from surges / spikes, and provides 1Gbps bandwidth for data transfer. The UPS is also compatible with PowerPanel power management software for real-time monitoring and configuration.
Design - Cable length - 1.5 m
Design - Display type - LCD
Design - Form factor - Tower
Design - Housing material - Plastic
Design - LED indicators - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 430 mm
dimension height - 375 mm
Dimensions - 281 x 100 x 355 mm
dimension weight - 11400 g
dimension width - 160 mm
EAN - 4712856275568
ean - 4712856275568
Environment requirements - Operating Temperature: 0 ~ 40 degrees C Relative Operating Humidity (non-condensing): 0 ~ 90 % Operating Altitude (feet/meters): 0-10,000 feet (0-3,000 meters) Storage Temperature: -20 ~ 50 degrees C Relative Storage Humidity (non-condensing): 0 ~ 90 % Storage Altitude (feet/meters): 0-10,000 feet (0-3,000 meters) Online Heat Dissipation (BTU/hr): 68 Audible Noise from 1.0 M from Device Surface: 50 dB
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Fault, Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - EMI/RFI noise filtering - Yes
Features - Heat dissipation - 68 BTU/h
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 295 V
Features - Input operation voltage (min) - 167 V
Features - Maximum current - 6.96 A
Features - Number of input phases - 1
Features - Number of output phases - 1
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 230 V
Features - Output power - 960 W
Features - Output power capacity - 1.6 kVA
Features - Output voltage regulation - 10%
Features - Power protection features - Over voltage
Features - Response time - 4 ms
Features - Surge energy rating - 450 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Automatic Voltage Regulation (AVR)
Filters / protection - Data line
Filters / protection - Suppression
Filters / protection - Surge
GTIN - 4712856275568
guarantee - 24
guarantee_type - external
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-11/RJ-45
Input power ports - IEC-C14
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 8504408590
LongDesc - VP1600ELCDCyberPower VP1600ELCD offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage for connected equipment. The UPS provides multifunctional LCD readout to display clear power and battery conditions. The product features data line protection with high-speed transmission to safeguard phones, network and communication equipment against surge/spike as well as supply 1Gbps speed to transmit data. The UPS is also compatible with PowerPanel Power Management Software to achieve real-time monitoring and configuration.
LongProductName - 1600 VA, 960W, 167-295V, 50/60Hz, 6.96A, 450J, 50 dB, 100x355x281mm, 10.42kg
LongSummaryDescription - CyberPower VP1600ELCD. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 960 W. AC outlet types: Type F, Power plug: C14 coupler, AC outlets quantity: 5 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 2 min, Typical backup time at half load: 11 min. Form factor: Tower, Product colour: Black, Housing material: Plastic. Compliance certificates: RoHS, Certification: CE, RCM
Name - CyberPower | Backup UPS Systems | VP1600ELCD | 1600 VA | 960 W
name - UPS VP1600ELCD 1600VA/960W AVR/USB/LCD/5xSchuko
Number of phases input - 1 (230V)
Operational conditions - Non-operating altitude - 0 - 3000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 50 °C
Other features -

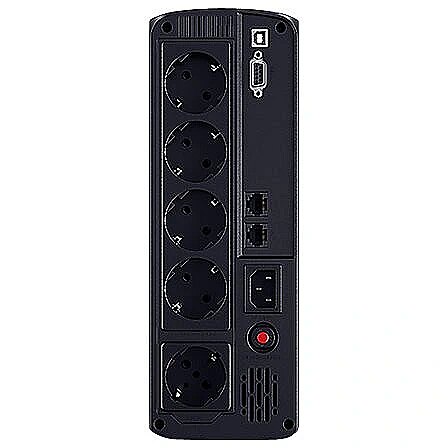

Output power ports - 5 x typ C/F (Schuko)
Packaging content - Cables included - USB cable
Packaging content - Manual - Yes
Packaging data - Package depth - 165 mm
Packaging data - Package height - 384 mm
Packaging data - Package weight - 11.3 kg
Packaging data - Package width - 430 mm
Ports & interfaces - AC outlets quantity - 5 AC outlet(s)
Ports & interfaces - AC outlet types - Type F
Ports & interfaces - Cabling technology - 10/100/1000Base-T(X)
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-B
producer - CyberPower
ProductName - VP1600ELCD
ShortSummaryDescription - CyberPower VP1600ELCD, Line-Interactive, 1.6 kVA, 960 W, Sine, 167 V, 295 V
Software - PowerPanel
Special functions - Generator Compatibility Fast Ethernet Data Transfer Energy Saving Technology LCD Status Display
Sustainability - Sustainability compliance - Yes
The shape of the output voltage - Modified sine wave
Title - CyberPower VP1600ELCD uninterruptible power supply (UPS) Line-Interactive 1.6 kVA 960 W 5 AC outlet(s)
Transfer time (max) - 4 ms
UPS Architecture - line-interactive
URL - https://www.cyberpower.com/au/en/product/sku/vp1600elcd
vendpn - VP1600ELCD
WarrantyInfo -
Weight - 10.42 kg
Weight & dimensions - Depth - 355 mm
Weight & dimensions - Height - 281 mm
Weight & dimensions - Weight - 10.4 kg
Weight & dimensions - Width - 100 mm
